Product Overview
The BURKERT 0470-G-04,0-BB-FM01-GM81-024/UC is a direct-acting 2/2-way solenoid valve from Bürkert’s proven Type 0470 series, engineered for precise open/close control of neutral and slightly aggressive gaseous and liquid media in industrial process and pneumatic systems. The valve operates on a direct-acting plunger principle, in which the solenoid armature directly actuates the seal against the orifice without requiring a minimum differential pressure, enabling reliable operation from zero bar up to the rated pressure. The “G” designation indicates a normally closed (NC) circuit function, while the “04,0” code corresponds to a 4.0 mm nominal orifice diameter. With a 24 VDC UC (universal current) coil rated at approximately 8 W, this valve is suited for continuous duty in control cabinets, manifolds, and OEM equipment where compact size, fast response, and leak-tight sealing are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | General Process & Pneumatic Solenoid Valve (2/2-way, direct-acting) |
| Model Designation | BURKERT 0470-G-04,0-BB-FM01-GM81-024/UC |
| Circuit Function | Normally Closed (NC) — “G” designation |
| Nominal Orifice | 4.0 mm (“04,0” designation) |
| Coil Voltage / Rating | 24 VDC, UC (universal current) coil, approx. 8 W |
| Operating Pressure | Direct-acting, suitable from 0 bar up to rated industrial pressure range |
| Body & Seal Materials | Brass body with FKM (FM01) and NBR (GM81) elastomer seals |
| Mounting & Connection | Standard Bürkert flange/threaded interface, compact block-mount design |
Engineering Features & Advantages
- Direct-Acting Precision: The plunger directly seals the orifice without pilot pressure, delivering dependable open/close control from 0 bar and ensuring fast, repeatable switching in low-pressure and vacuum-adjacent circuits.
- Compact Universal Coil: The 24 VDC UC coil provides stable electromagnetic actuation with low power consumption, making the valve ideal for dense control cabinet and manifold installations.
- Leak-Tight Sealing: Precision-matched FKM and NBR elastomer seals ensure bubble-tight shutoff and long cycle life across compatible neutral and slightly aggressive media.
- Industrial Reliability: Built for continuous duty operation under severe industrial conditions, with a robust brass body and proven Bürkert solenoid architecture.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a 24 VDC UC (universal current) coil rated at approximately 8 W, this valve is suited for continuous duty in control cabinets, manifolds, and OEM equipment where compact size, fast response, and leak-tight sealing are essential.
PRODUCT IMAGES

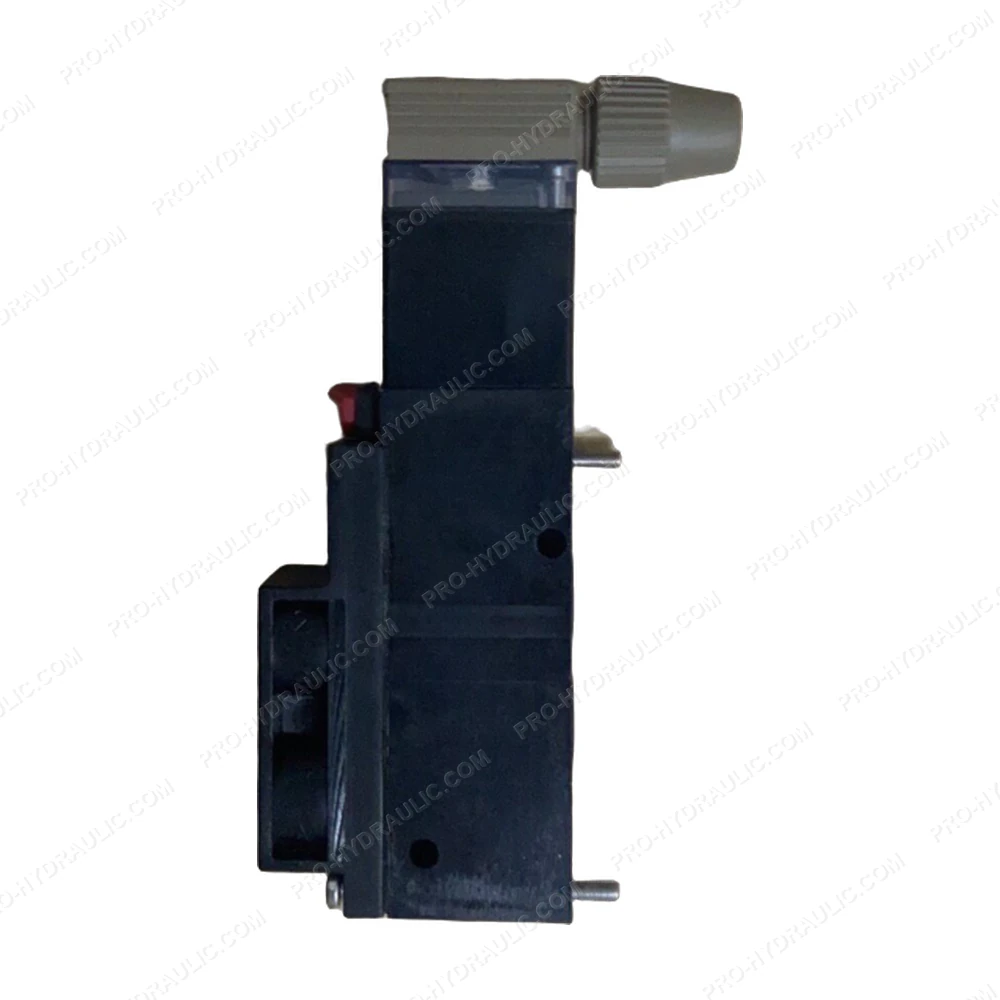

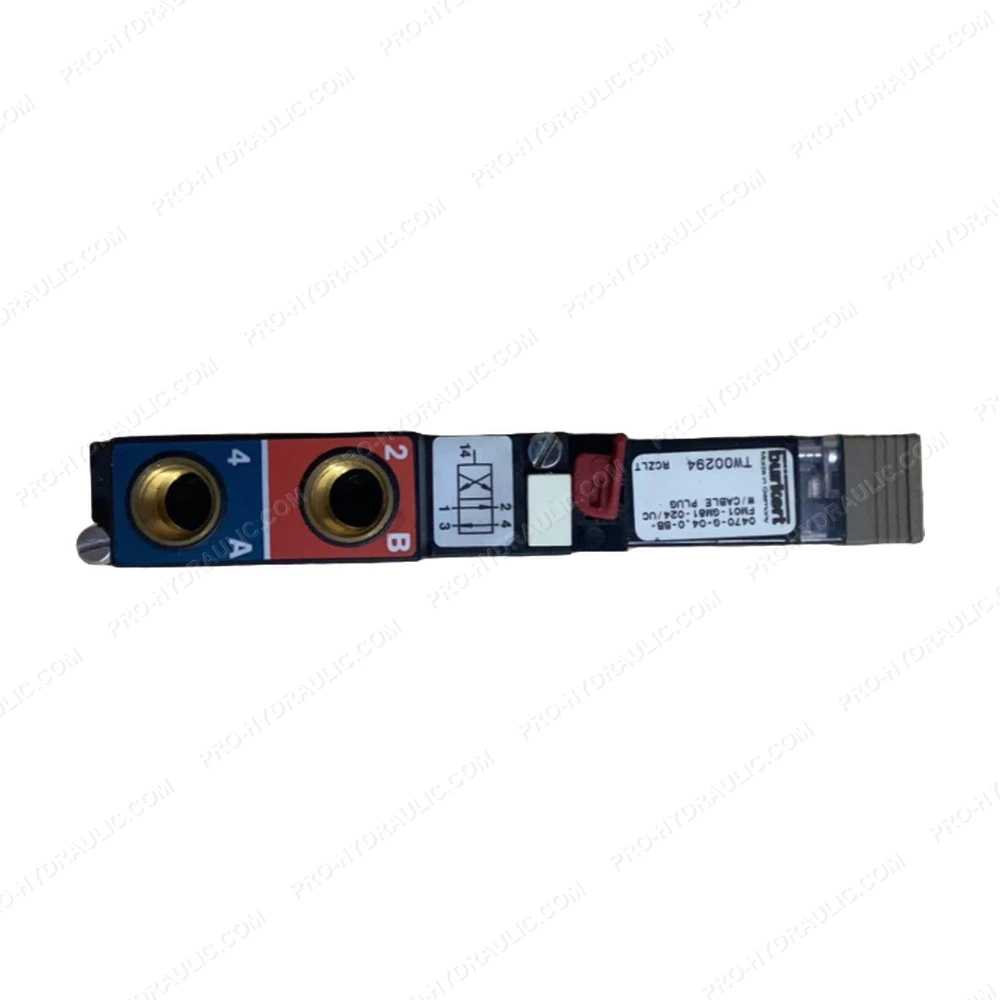

BURKERT 0470-G-04,0-BB-FM01-GM81-024/UC Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 0470-G-04,0-BB-FM01-GM81-024/UC Solenoid Valve. This Germany-made 24V DC hydraulic component features a direct-acting design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
