Product Overview
The BURKERT Type 2300 (Model 00203570) is a pneumatically operated angle seat valve engineered for precise, high-cycle control of neutral and aggressive media in industrial process systems. Manufactured by Bürkert, a global leader in fluid control technology, this valve utilizes a robust pneumatic piston actuator acting on a stainless steel valve spindle to deliver reliable on/off and modulating flow control. The angled seat geometry provides an unobstructed, straight-through flow path that minimizes pressure loss and turbulence, making it ideal for high-viscosity fluids, steam, and contaminated media. As a core component within hydraulic and pneumatic process loops, the 2300 series serves as a dependable shut-off and control element in demanding continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatically Operated Angle Seat Valve (Process & Pneumatic Valve) |
| Model Designation | BURKERT 2300 / 00203570 |
| Actuation Type | Pneumatic piston actuator (single-acting, spring-return) |
| Operating Pressure | Standard Industrial Grade (up to rated bar; media pressure dependent on line size and seal material) |
| Pilot Air Pressure | Typical 3–10 bar control air supply |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded or flanged process ports) |
| Body & Seat Configuration | Angle seat design with straight-through flow path |
Engineering Features & Advantages
- Precision Performance: The angled seat geometry and pneumatic piston actuation deliver rapid, repeatable valve positioning with minimal flow resistance, ensuring accurate media control and reduced pressure drop across the process line.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust actuator housing and wear-resistant spindle sealing designed for high cycle rates and long service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing straightforward integration into existing Bürkert 2300 installations and process manifolds.
- Versatile Media Handling: Suitable for neutral, aggressive, and high-viscosity fluids as well as steam, supported by a range of body and seal material options.
Typical Industrial Applications
The BURKERT 2300 angle seat valve is widely deployed in plastic injection molding machines for mold temperature and cooling circuit control, metallurgical presses and heat-treatment systems for steam and coolant shut-off, construction and marine hydraulics for auxiliary fluid routing, and CNC machine tools for precise coolant and lubrication management. Its pneumatic actuation and angle seat design also make it a preferred choice in chemical processing, water treatment, and food and beverage lines where reliable, fast-acting media isolation is essential.
PRODUCT IMAGES

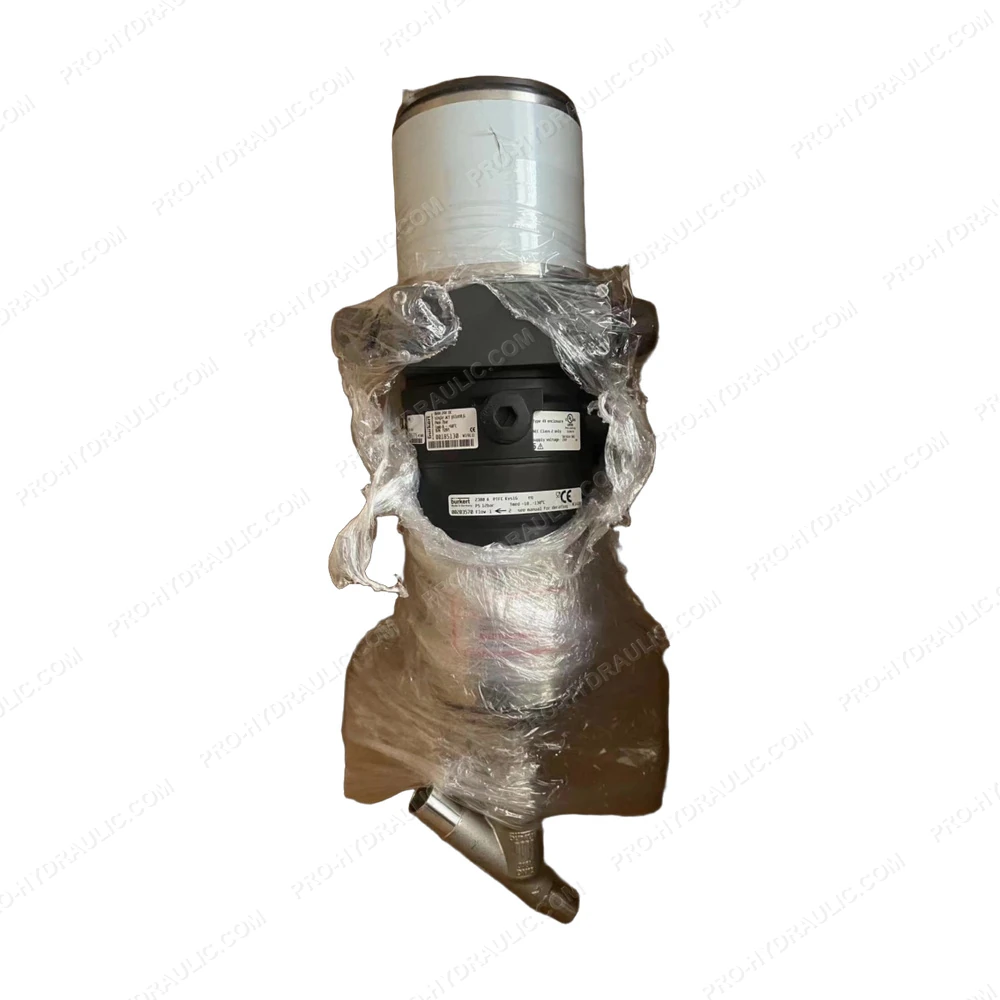

BURKERT 2300 / 00203570 Pneumatically Operated Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 2300 / 00203570 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 2/2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
