Product Overview
The Burkert Type 2300 (Part No. 00203652) is a pneumatically operated angle seat valve engineered for precise, high-cycle control of neutral and aggressive media in industrial process systems. Manufactured by Burkert, a global leader in fluid control technology, this valve utilizes a piston-actuated pneumatic drive acting on a spring-loaded valve spindle to open or close the flow path through a 90-degree angle body. The angled seat geometry delivers superior flow characteristics with minimal pressure loss and self-draining capability, making it ideal for demanding process lines. As a core component within hydraulic and pneumatic process circuits, the Type 2300 serves as a reliable shut-off and control element for water, steam, gases, and chemically compatible fluids across a wide range of industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatically Operated Angle Seat Valve (Process & Pneumatic Valve) |
| Model Designation | Burkert Type 2300 / Part No. 00203652 |
| Operating Pressure | Standard Industrial Grade (up to 16 bar depending on configuration and line size) |
| Actuation Type | Pneumatic piston actuator (single or double acting) |
| Body Configuration | Angle seat (Y-type) body design for optimized flow |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded, clamp, or weld end connections) |
| Control Pressure Range | Typically 3–10 bar pilot air supply |
| Seal Material Options | PTFE, EPDM, FKM (dependent on media compatibility) |
Engineering Features & Advantages
- Precision Performance: The angle seat design provides high flow rates with low pressure drop, ensuring efficient media transfer and precise shut-off in critical process lines.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust pneumatic actuator and durable valve body construction resistant to wear and chemical attack.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Burkert Type 2300 specifications, ensuring drop-in replacement without modification.
- Self-Draining Geometry: The angled body orientation prevents media accumulation and facilitates complete drainage, ideal for hygienic and high-purity applications.
- Fast Response Actuation: Pneumatic piston drive delivers rapid opening and closing cycles, supporting high-frequency process control demands.
Typical Industrial Applications
The Burkert Type 2300 angle seat valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for precise coolant and hydraulic fluid control, metallurgical presses for steam and water shut-off, construction and marine hydraulic systems requiring reliable media isolation, and CNC machine tools for coolant and compressed air management. It is also commonly found in chemical processing, water treatment, and food and beverage lines
PRODUCT IMAGES

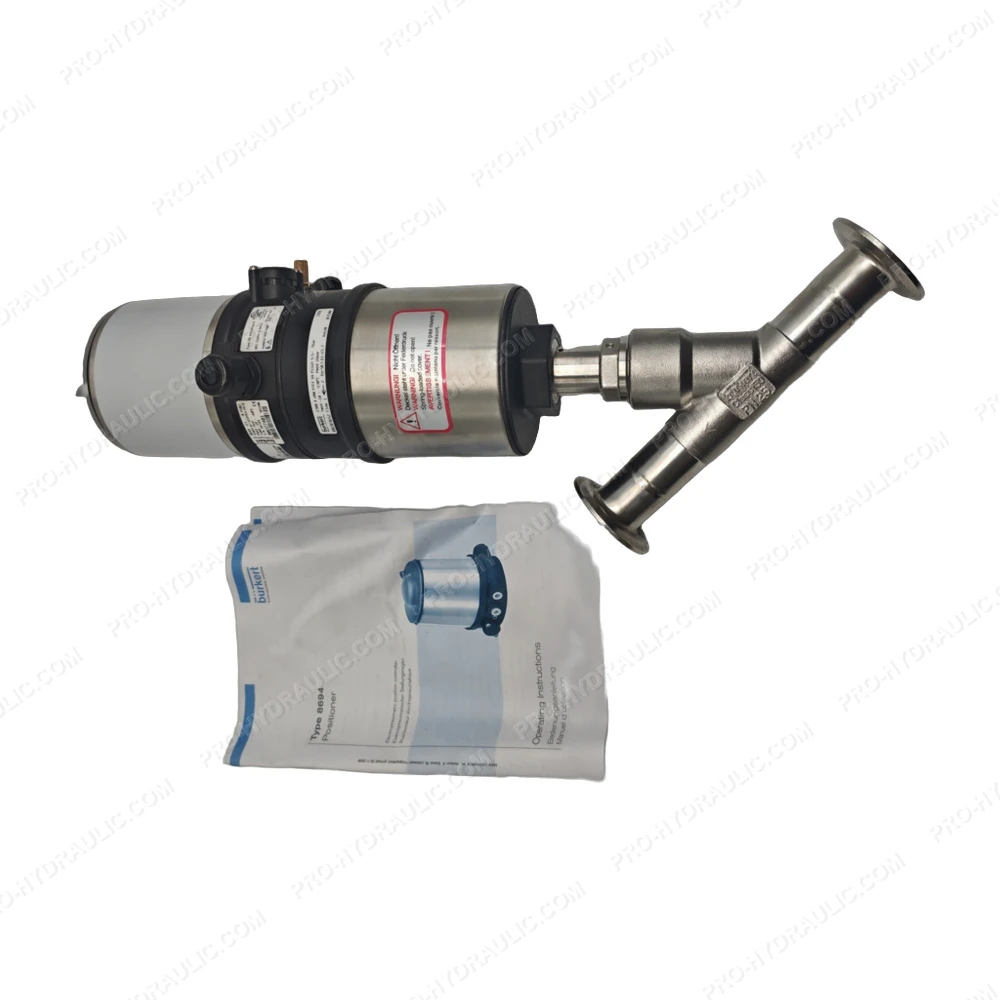

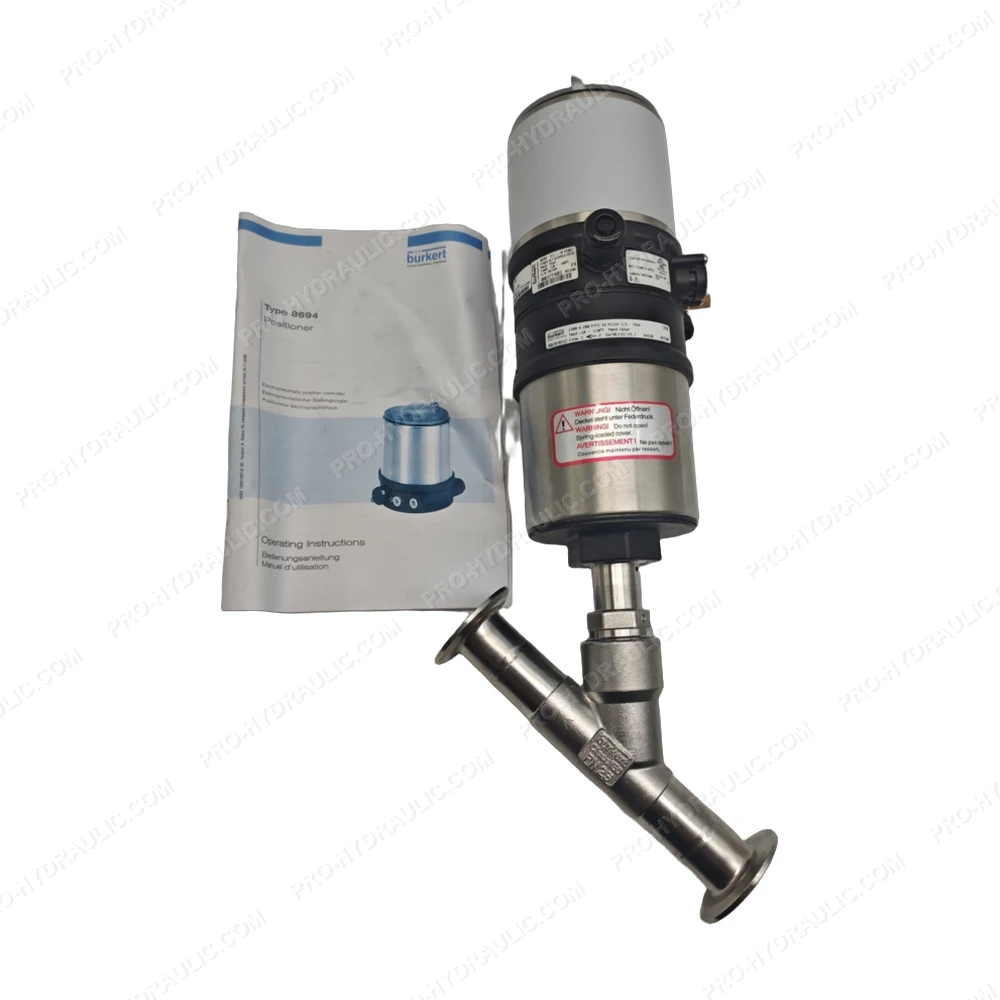

BURKERT 2300 / 00203652 Pneumatically Operated Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 2300 / 00203652 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 2/2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
