Product Overview
The BURKERT Type 2300 A is a pneumatically operated angle seat valve engineered for precise, high-cycle control of neutral and aggressive media in industrial process systems. Featuring a PTFE (polytetrafluoroethylene) valve body and a KV55 flow-optimized seat geometry, this valve delivers exceptional chemical resistance and reliable shut-off performance. The model designation 00203566 identifies this specific configuration within Burkert’s globally recognized 2300 series. Unlike hydraulic pumps, this component functions strictly as a flow-control valve, using an external pneumatic pilot signal to actuate a piston mechanism that drives the valve spindle against the seat. Its angled body design ensures superior flow characteristics and self-draining capability, making it a preferred choice for demanding process automation applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatically Operated Angle Seat Valve |
| Model Designation | BURKERT 2300 A PTFE KV55 / 00203566 |
| Body Material | PTFE (Polytetrafluoroethylene) |
| Seat Configuration | KV55 Angle Seat Geometry |
| Actuation Type | Pneumatic Piston Actuator (Spring Return / Double Acting) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per media and pilot pressure) |
| Pilot Pressure Range | Typical 3–10 bar (dependent on actuator variant) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Threaded or Flanged) |
| Media Compatibility | Neutral, Aggressive, and High-Purity Fluids & Gases |
Engineering Features & Advantages
- Precision Performance: The KV55 angle seat design provides a high flow coefficient (Kv) with minimal pressure drop, ensuring efficient media transfer and precise ON/OFF control in critical process lines.
- Superior Chemical Resistance: The PTFE body and wetted components offer outstanding resistance to corrosive acids, bases, and solvents, extending service life in aggressive chemical environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the robust pneumatic actuator delivers high cycle life and consistent sealing performance without the need for manual adjustment.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Burkert 2300 series specifications, ensuring drop-in installation without system modification.
- Self-Draining Design: The angled body geometry prevents media accumulation, reducing contamination risk and simplifying cleaning procedures in hygienic or high-purity applications.
Typical Industrial Applications
This valve
PRODUCT IMAGES

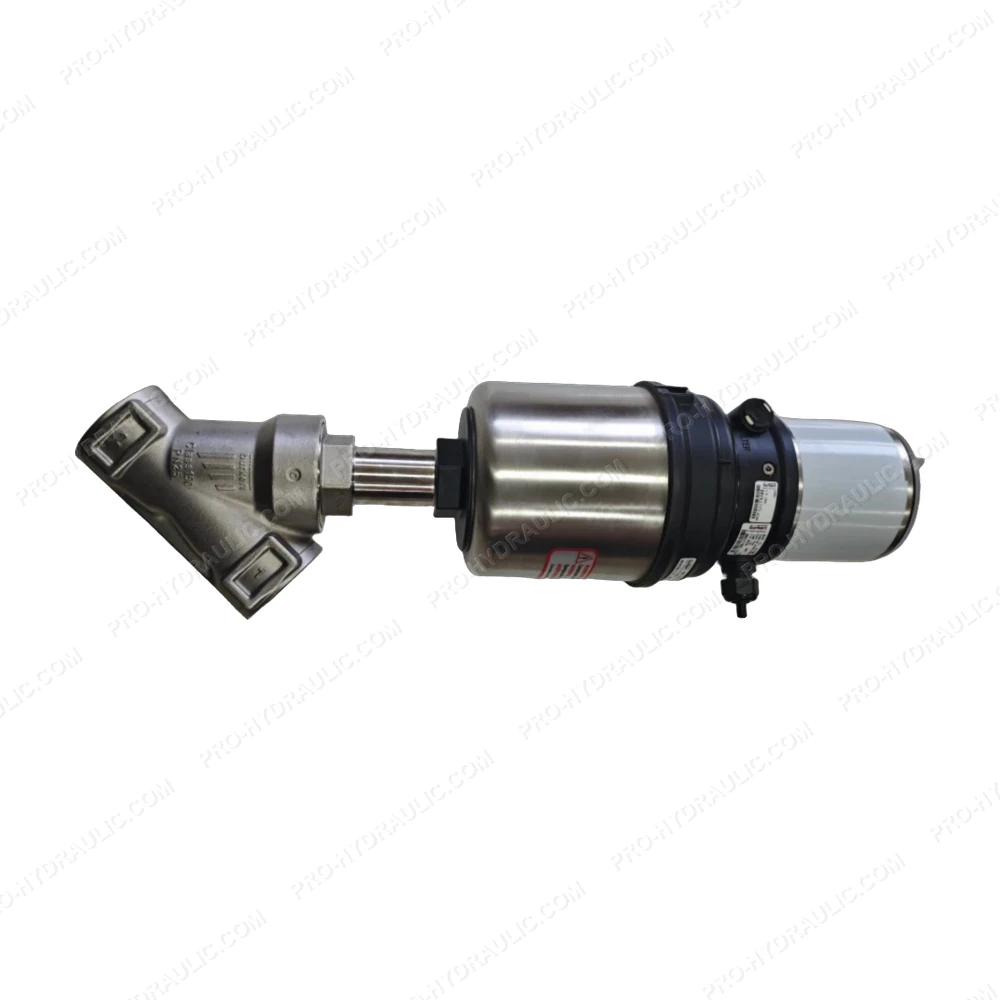

BURKERT 2300 A PTFE KV55 / 00203566 Pneumatically Operated Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 2300 A PTFE KV55 / 00203566 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
