Product Overview
The Burkert Type 2300 pneumatically operated angle seat valve (model 00203568) is a robust, externally piloted process valve engineered for shut-off and control of neutral, slightly aggressive, and aggressive media in industrial fluid handling systems. Featuring a PTFE (polytetrafluoroethylene) valve seat seal and a KVS value of 10, this valve delivers reliable flow control with excellent chemical resistance. The angle seat design provides high flow rates with minimal pressure loss, while the pneumatic piston actuator enables fast, precise switching via a single-acting or double-acting control signal. With a stainless steel body and Burkert’s proven modular design, the Type 2300 is a preferred choice for demanding process automation applications requiring long service life and leak-tight performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatically Operated Angle Seat Valve |
| Model Designation | Burkert 2300 A PTFE KVS10 / 00203568 |
| Manufacturer | Burkert |
| Seat Seal Material | PTFE (Polytetrafluoroethylene) |
| KVS Value | 10 m³/h (flow coefficient) |
| Actuation Type | Pneumatic piston actuator (external pilot) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, media-dependent) |
| Mounting & Connection | Standard ISO / Burkert Interface (threaded or flanged, model-dependent) |
| Body Material | Stainless Steel (standard for Type 2300) |
| Pilot Pressure Range | Typically 3–10 bar (consult Burkert datasheet for exact range) |
Engineering Features & Advantages
- Precision Flow Control: The angle seat design with KVS 10 provides high flow capacity with minimal pressure drop, ensuring efficient media transfer and precise shut-off.
- Chemical Resistance: PTFE seat seal offers outstanding resistance to aggressive media, solvents, and high-temperature fluids, extending service intervals.
- Fast Pneumatic Actuation: External pilot air enables rapid opening and closing, ideal for automated batch processes and safety-related shut-off duties.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust stainless steel body and proven Burkert actuator technology.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a stainless steel body and Burkert’s proven modular design, the Type 2300 is a preferred choice for demanding process automation applications requiring long service life and leak-tight performance.
PRODUCT IMAGES

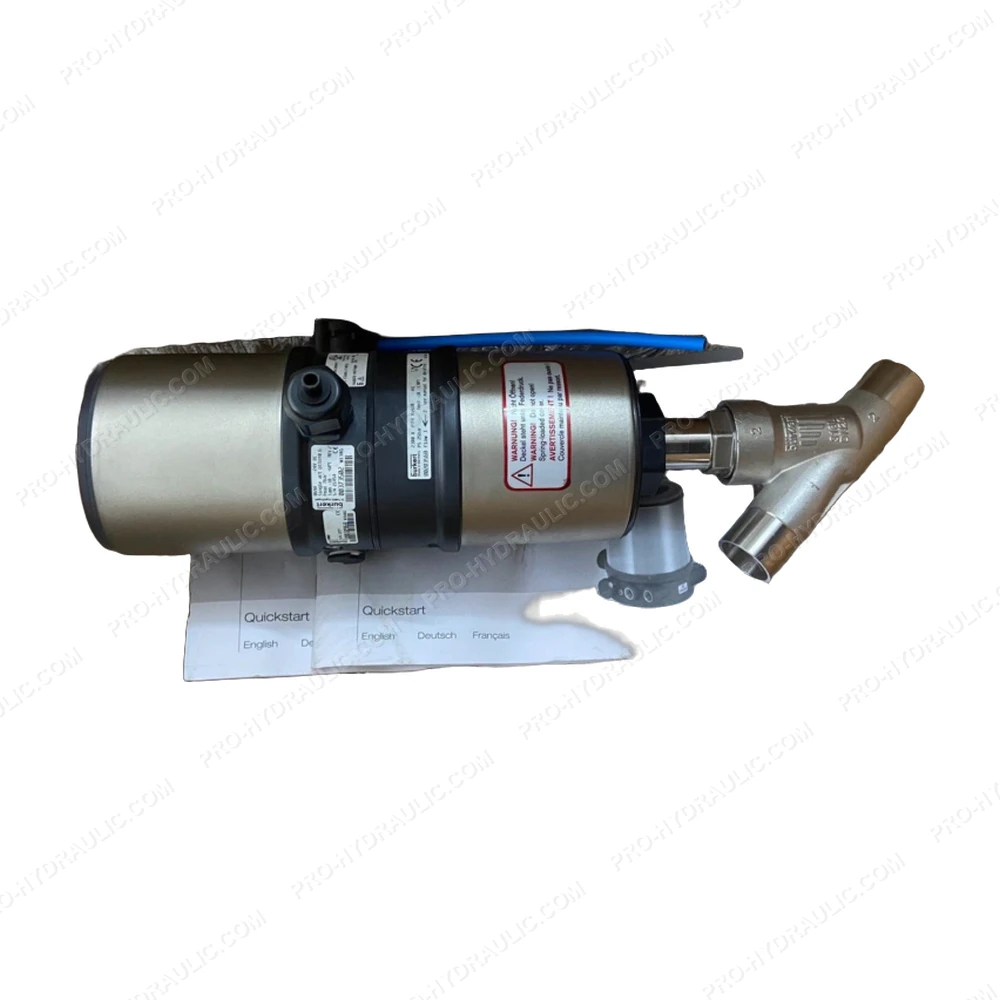

BURKERT 2300 A PTFE KVS10 / 00203568 Pneumatically Operated Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 2300 A PTFE KVS10 / 00203568 Angle Seat Valve. This Germany-made pneumatic hydraulic component features a PTFE-sealed angle seat design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
