Product Overview
The Bürkert Type 2300 A is a pneumatically operated angle seat valve engineered for precise, high-cycle control of neutral and aggressive media in industrial process systems. Manufactured by Bürkert, a global leader in fluid control technology, this valve utilizes a robust pneumatic piston actuator acting on an inclined valve spindle to deliver reliable on/off and modulating flow control. The angled seat geometry provides an optimized flow path with minimal pressure loss, making it ideal for high-flow applications where energy efficiency and consistent performance are critical. With a PTFE (polytetrafluoroethylene) body and seal configuration, the 2300 A is specifically suited for handling highly corrosive fluids, aggressive chemicals, and ultra-pure media across a wide range of process industries.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatically Operated Angle Seat Valve |
| Model Designation | Bürkert Type 2300 A (PTFE, Kvs 34) |
| Body Material | PTFE (Polytetrafluoroethylene) — chemically inert, high-purity compatible |
| Flow Coefficient (Kvs) | 34 m³/h (water at 20°C, Δp = 1 bar) |
| Actuation Type | Pneumatic piston actuator (spring-return or double-acting configuration) |
| Operating Pressure | Standard Industrial Grade (up to rated bar; dependent on actuator and line size) |
| Control Pressure Range | Typically 3–10 bar pilot air (consult actuator variant for exact range) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded or flanged port connections) |
| Seal Material | PTFE — excellent chemical resistance and thermal stability |
| Media Compatibility | Aggressive acids, bases, solvents, ultra-pure fluids, and neutral media |
Engineering Features & Advantages
- Precision Performance: The angled seat design ensures a streamlined flow path with minimal turbulence and pressure drop, delivering a high Kvs value of 34 for superior flow capacity relative to valve size. The pneumatic piston actuator provides fast, repeatable response times for precise on/off control in automated process loops.
- Industrial Reliability: Built for continuous operation under severe industrial conditions. The PTFE body and seals offer outstanding resistance to chemical attack and thermal cycling, ensuring long service life even in the most demanding corrosive media applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a PTFE (polytetrafluoroethylene) body and seal configuration, the 2300 A is specifically suited for handling highly corrosive fluids, aggressive chemicals, and ultra-pure media across a wide range of process industries.
PRODUCT IMAGES

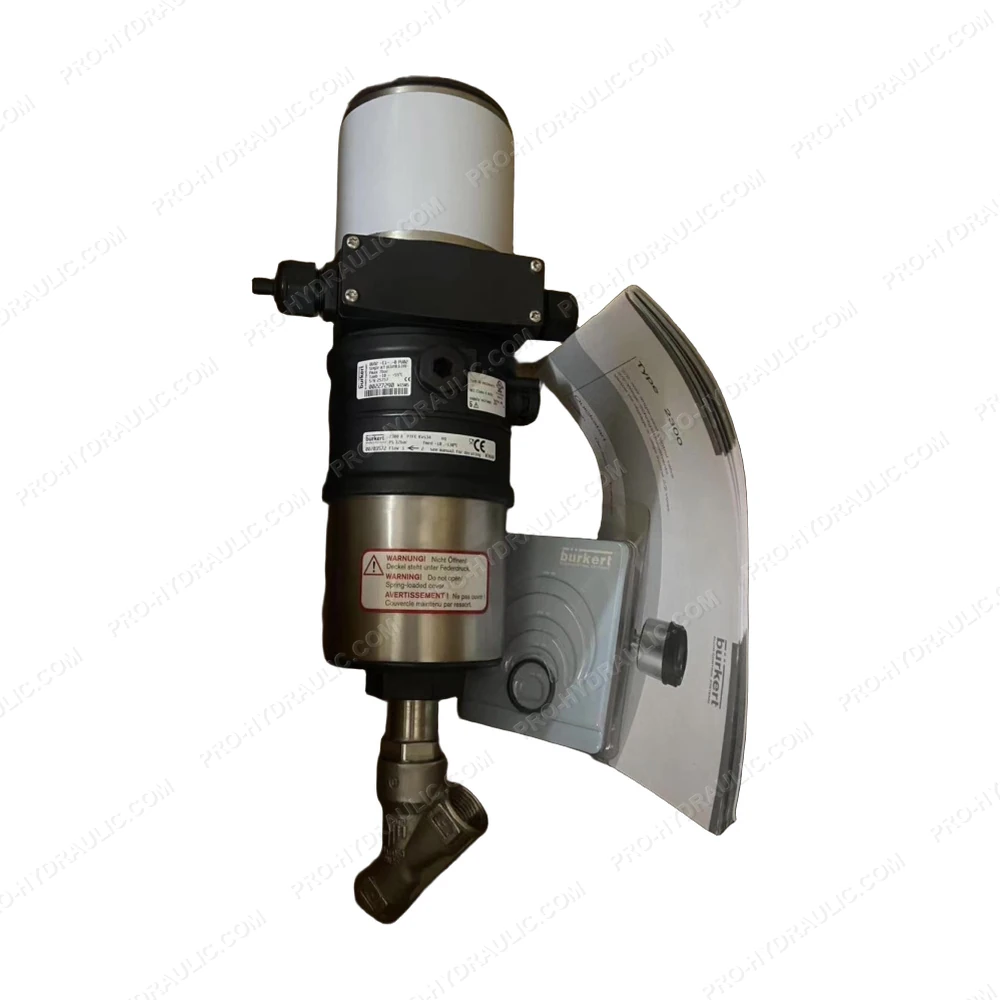

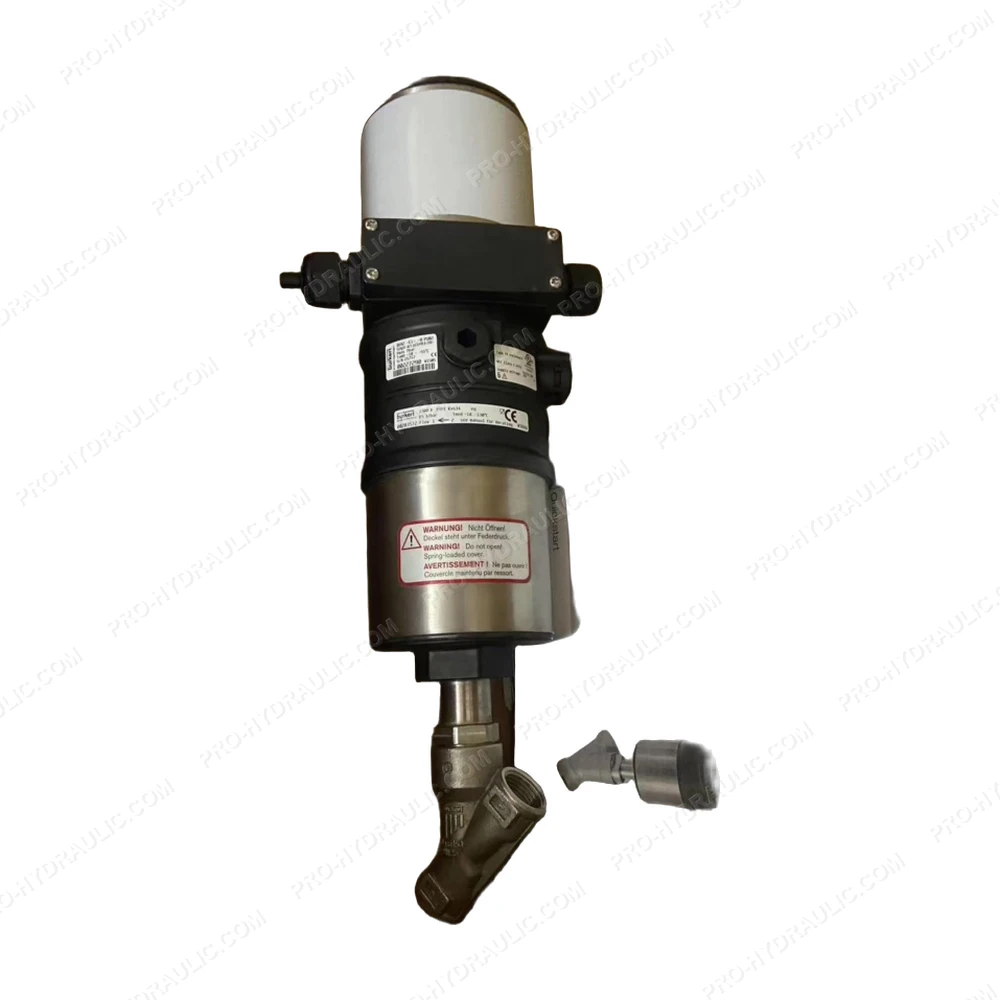

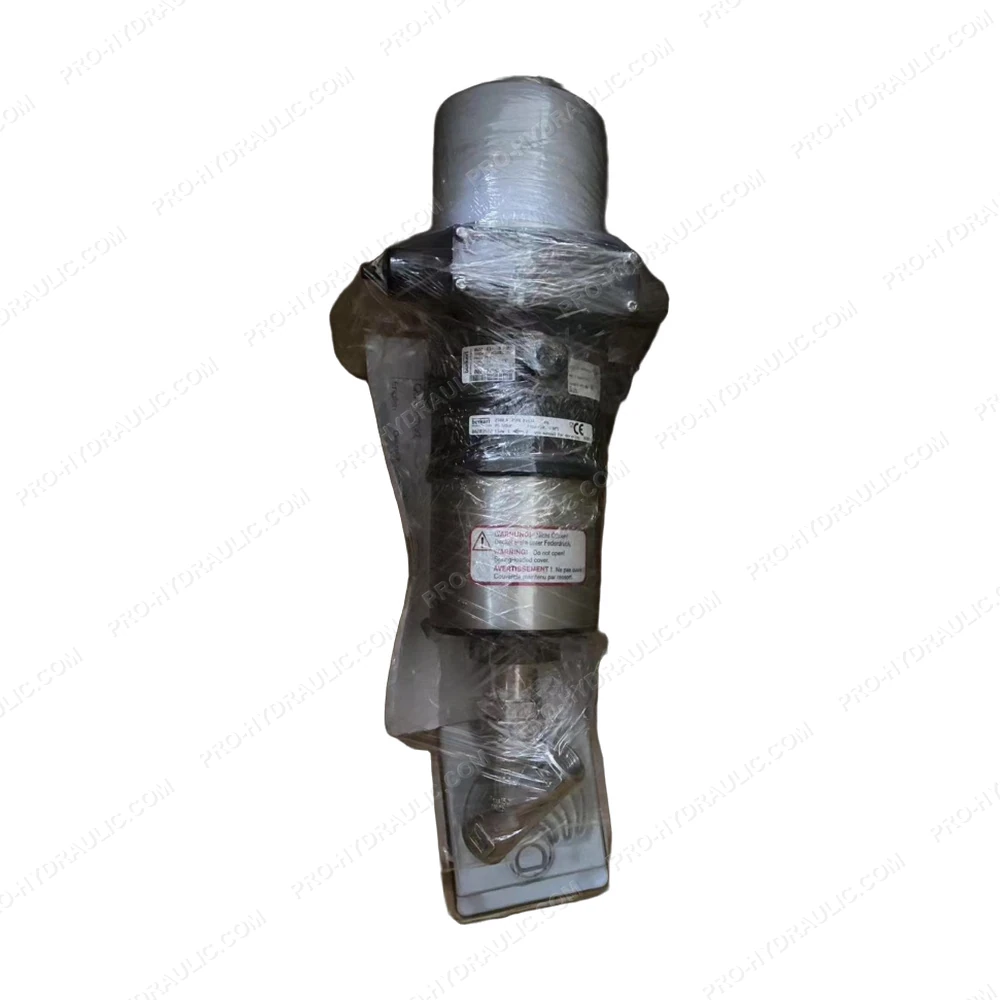

BURKERT 2300 A PTFE Kvs34 Pneumatically Operated Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine BURKERT 2300 A PTFE Kvs34 Angle Seat Valve. This Germany-made pneumatic valve features a PTFE seal and Kvs 34 flow rate, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
