Product Overview
The Bürkert 2301 / 8692 combination (part numbers 00262257 / 00306913) is a pneumatically operated 2/2-way globe valve with an integrated electro-pneumatic positioner, engineered for precise closed-loop control of neutral and slightly aggressive media in industrial process systems. The valve body (Type 2301) uses a parabolic or perforated plug trim actuated by a spring-return pneumatic piston actuator, while the Type 8692 positioner provides continuous 4–20 mA or 0–10 V setpoint control with integrated position feedback. This assembly delivers high-resolution modulating control, fast stroke response, and reliable shut-off in flow control loops where accurate throttling and repeatable positioning are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatically Operated Globe Valve with Positioner (Process & Pneumatic Valve) |
| Model Designation | Bürkert Type 2301 / Type 8692 (00262257 / 00306913) |
| Valve Function | 2/2-way globe valve, normally closed (NC) or normally open (NO) spring-return configuration |
| Actuation | Pneumatic piston actuator, single-acting with return spring |
| Control Input | 4–20 mA / 0–10 V setpoint via Type 8692 positioner |
| Pilot Pressure | Standard industrial instrument air (typically 3–7 bar, oil-free, dry) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per body/trim selection) |
| Body & Trim | Stainless steel or cast body with interchangeable parabolic / perforated plug trim |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded, clamp, or flange process connection) |
| Position Feedback | Integrated non-contact position sensing with analog/digital output options |
Engineering Features & Advantages
- Precision Performance: The Type 8692 positioner delivers high-resolution stroke control with minimal dead band, enabling accurate flow throttling and repeatable setpoint tracking in modulating process loops.
- Fast Dynamic Response: Direct pneumatic actuation combined with the positioner’s control algorithm provides rapid stroke times for improved loop stability and reduced process deviation.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The Bürkert 2301 / 8692 combination (part numbers 00262257 / 00306913) is a pneumatically operated 2/2-way globe valve with an integrated electro-pneumatic positioner, engineered for precise closed-loop control of neutral and slightly aggressive media in industrial process systems.
PRODUCT IMAGES

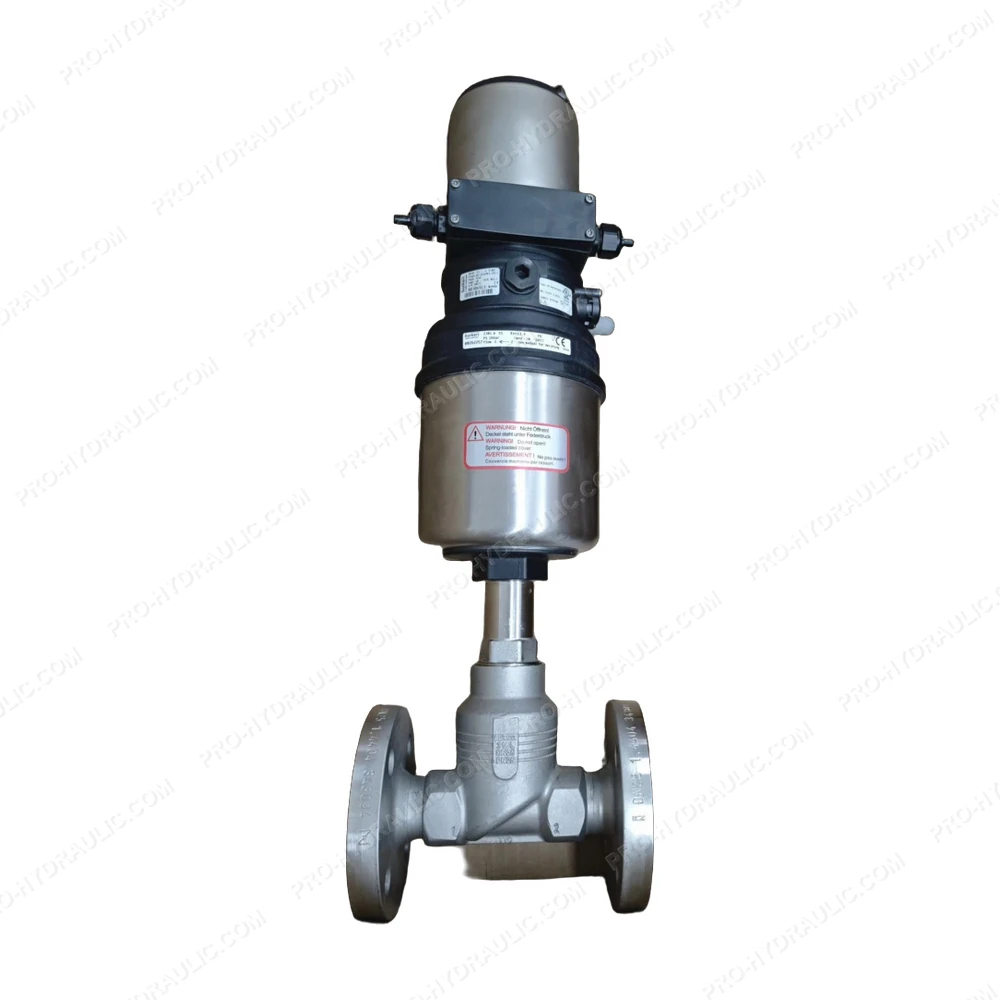

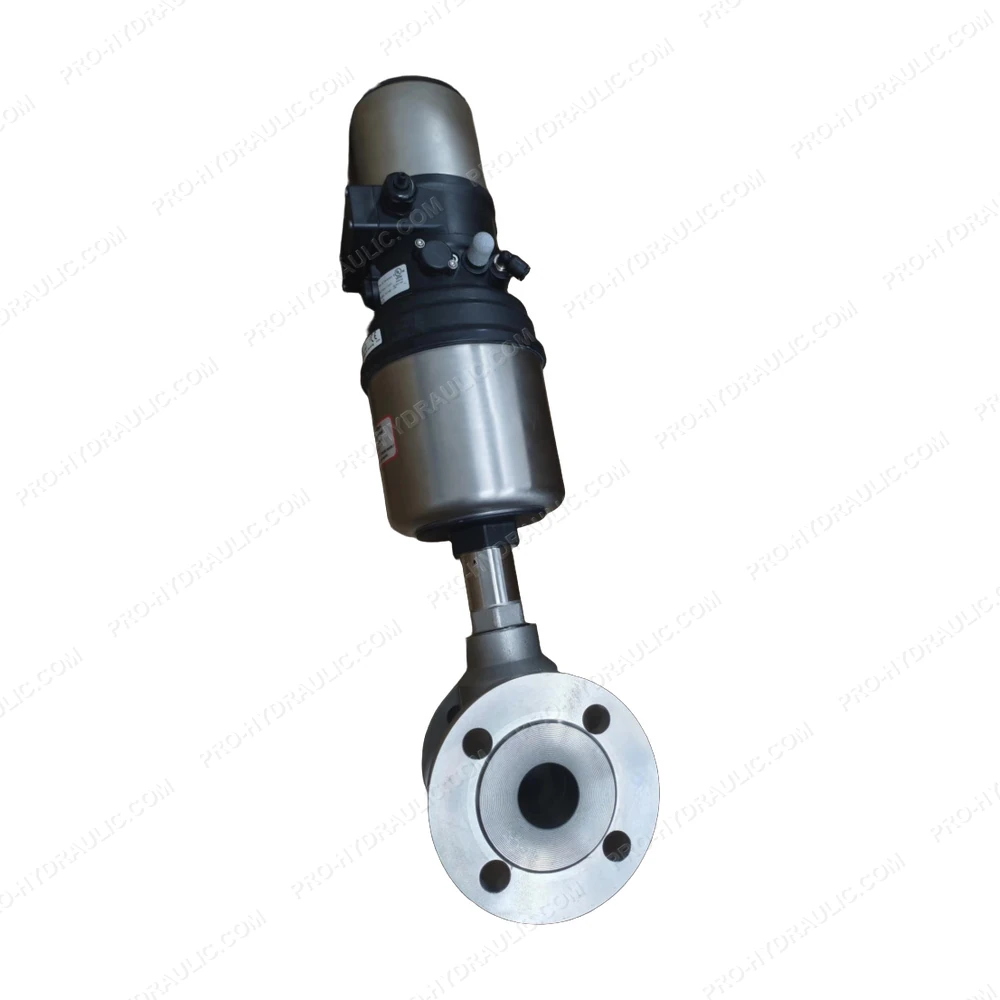

BURKERT 2301 / 8692 (00262257 / 00306913) Pneumatically Operated Globe Valve with Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 2301 / 8692 (00262257 / 00306913) Solenoid Valve with Electronic Control. This Germany-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
