Product Overview
The Burkert Type 2702 A 20.0 PTFE VA is a pneumatically actuated angle seat control valve engineered for precise flow regulation of neutral and aggressive media in industrial process systems. Manufactured by Burkert, a global leader in fluid control technology, this valve utilizes a piston-driven pneumatic actuator acting on an inclined valve spindle, delivering high flow rates with minimal pressure loss compared to conventional globe or ball valve designs. The angle seat configuration provides a self-draining flow path and excellent suitability for viscous, contaminated, or high-temperature media. With a PTFE (polytetrafluoroethylene) seat seal and a stainless steel (VA) body, the 2702 A 20.0 is purpose-built for chemically aggressive service environments where corrosion resistance and media compatibility are critical. As a pneumatically piloted control valve, it integrates seamlessly into automated process loops, responding to pilot air signals for open/close or modulating control duty.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Angle Seat Control Valve |
| Model Designation | Burkert 2702 A 20.0 PTFE VA |
| Nominal Line Size | DN 20 (3/4″) port connection |
| Body Material | Stainless Steel (VA / 316L grade) |
| Seat Seal Material | PTFE (Polytetrafluoroethylene) |
| Actuation Type | Pneumatic piston actuator (single or double acting) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, media-dependent) |
| Pilot Air Pressure | Typical 3–10 bar control air supply |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded or clamp process connection) |
| Flow Characteristic | Angle seat design for high flow capacity and low pressure drop |
Engineering Features & Advantages
- Precision Performance: The inclined angle seat geometry delivers high flow coefficients (Kv) with minimal turbulence and pressure loss, enabling accurate flow control across a wide range of process media.
- Superior Chemical Resistance: The combination of a stainless steel (VA) body and PTFE seat seal ensures compatibility with aggressive, corrosive, and high-purity fluids, extending service life in demanding chemical processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The Burkert Type 2702 A 20.0 PTFE VA is a pneumatically actuated angle seat control valve engineered for precise flow regulation of neutral and aggressive media in industrial process systems.
PRODUCT IMAGES

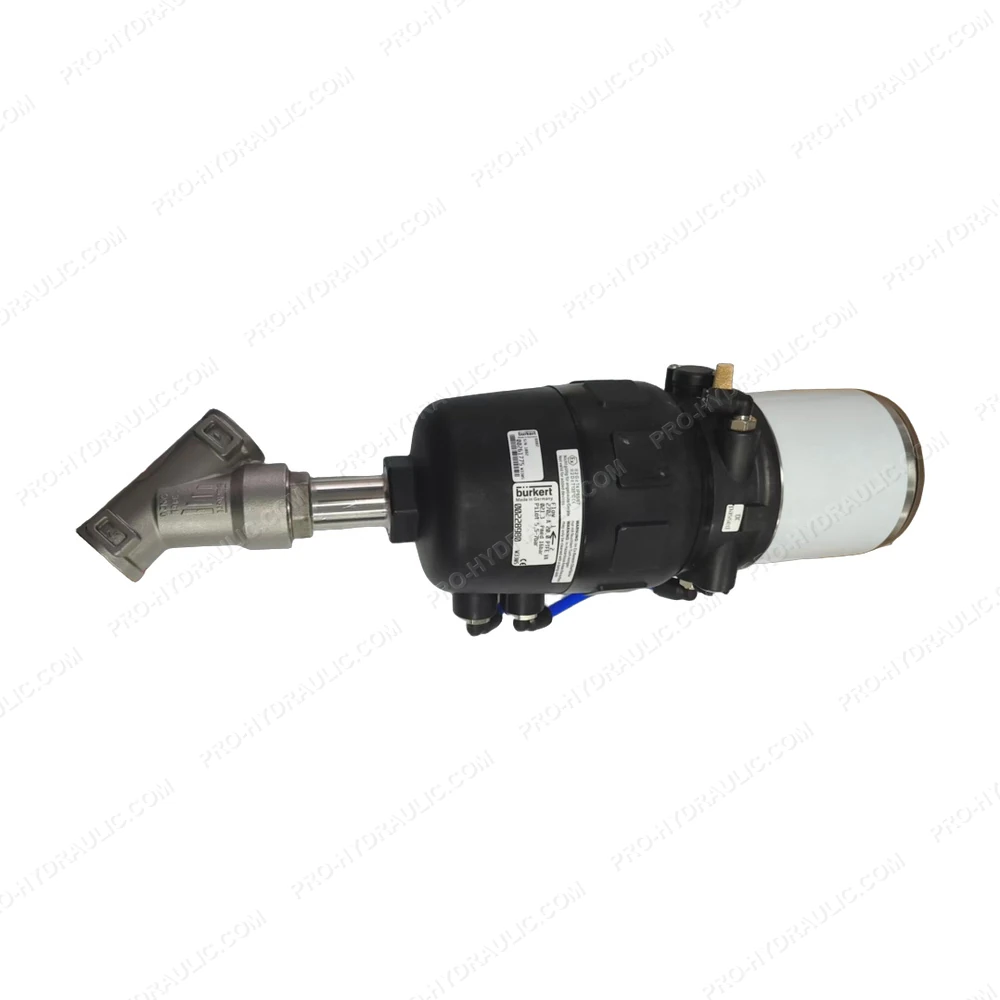

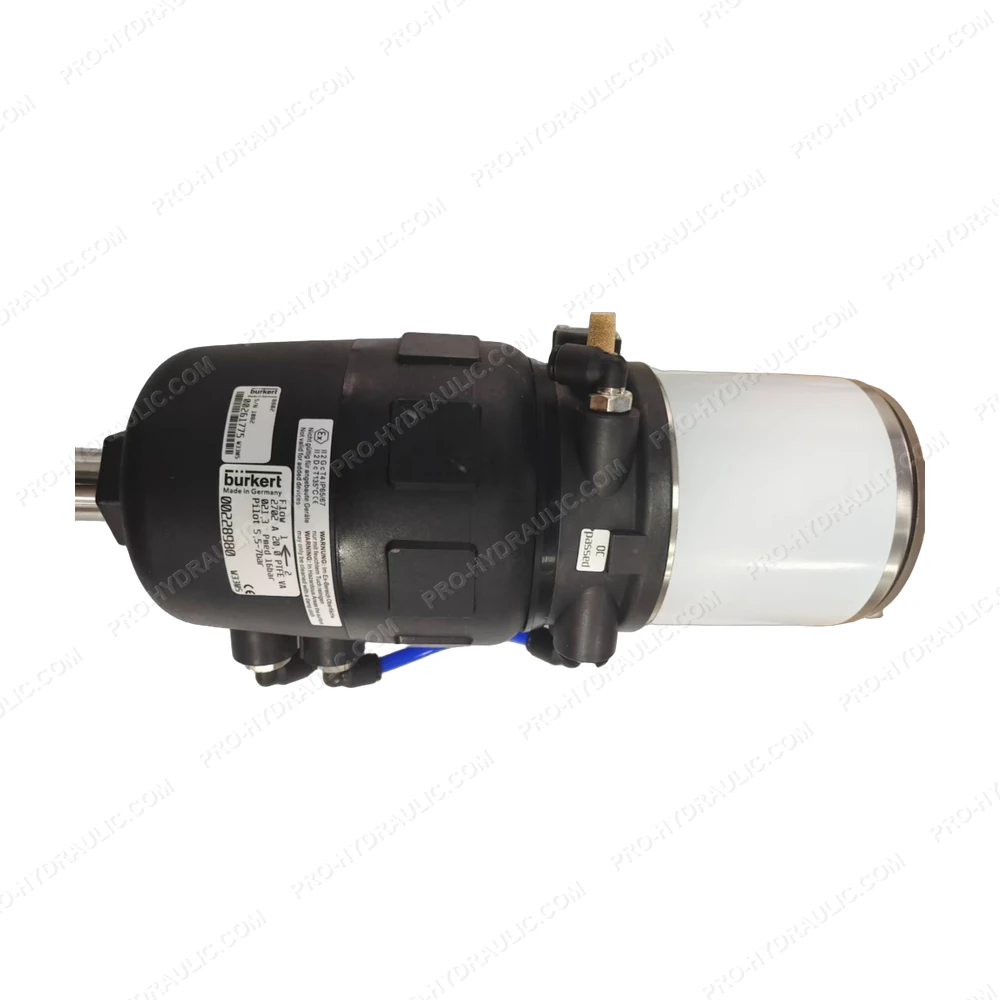

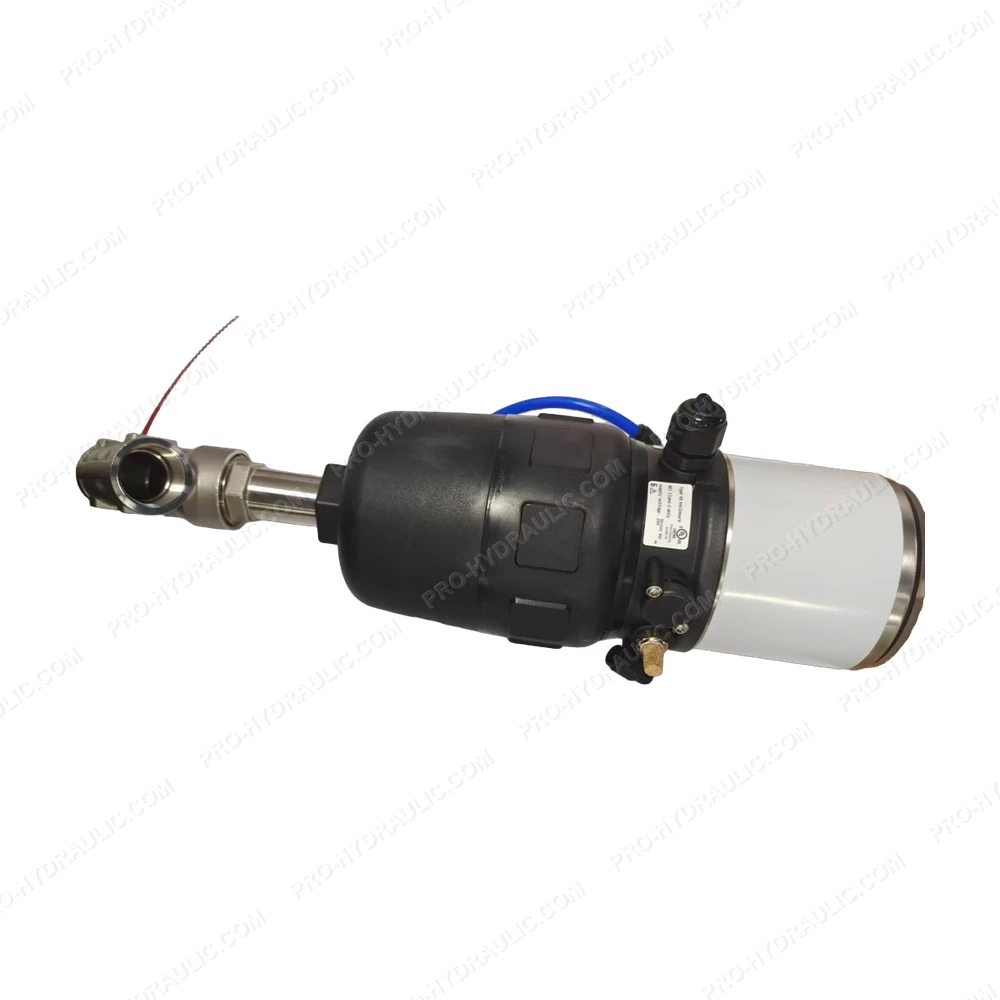

BURKERT 2702 A 20.0 PTFE VA Pneumatic Angle Seat Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine BURKERT 2702 A 20.0 PTFE VA Solenoid Valve. This Germany-made 24V DC hydraulic component features a 2/2-way normally closed design with PTFE and stainless steel wetted parts, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
