Product Overview
The Burkert Type 2702 (Model 2702 A 50,0 PTFE VA / 00165520) is a pneumatically actuated angle seat control valve engineered for precise regulation of neutral and aggressive media in industrial process lines. Manufactured by Burkert, a global leader in fluid control technology, this valve utilizes a piston-driven pneumatic actuator acting on a globe-style angle seat design, delivering high flow rates with minimal pressure loss. The angled body geometry optimizes flow characteristics and allows for self-draining installation, making it ideal for hygienic and high-cycle process applications. With a 50.0 mm nominal port size and PTFE (polytetrafluoroethylene) sealing combined with a stainless steel (VA) body, this valve provides excellent chemical resistance and long service life in demanding process environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Angle Seat Control Valve |
| Model Designation | 2702 A 50,0 PTFE VA / 00165520 |
| Nominal Port Size | DN 50 (50.0 mm) |
| Body Material | Stainless Steel (VA / 316L equivalent) |
| Seal Material | PTFE (Polytetrafluoroethylene) |
| Actuation Type | Pneumatic Piston Actuator (Spring Return / Double Acting) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, media dependent) |
| Control Air Pressure | Typically 3–10 bar (pilot air) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Threaded or Clamp) |
| Flow Characteristic | Linear / Modified Equal Percentage (Angle Seat Design) |
Engineering Features & Advantages
- Precision Performance: The angle seat design provides high flow capacity with low pressure drop, while the PTFE seal ensures tight shut-off and excellent chemical compatibility with aggressive media.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the robust stainless steel body and pneumatic piston actuator deliver millions of maintenance-free cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement for Burkert Type 2702 installations without modification.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The angled body geometry optimizes flow characteristics and allows for self-draining installation, making it ideal for hygienic and high-cycle process applications.
PRODUCT IMAGES

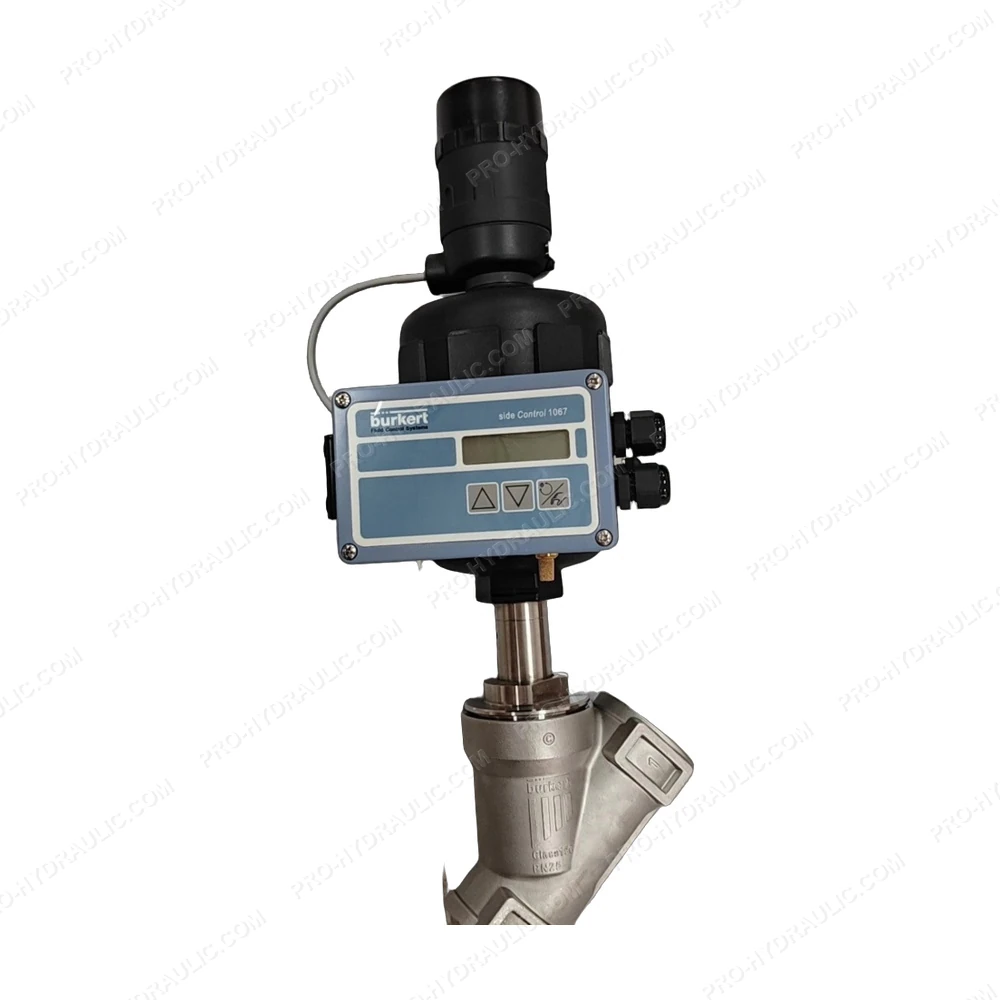

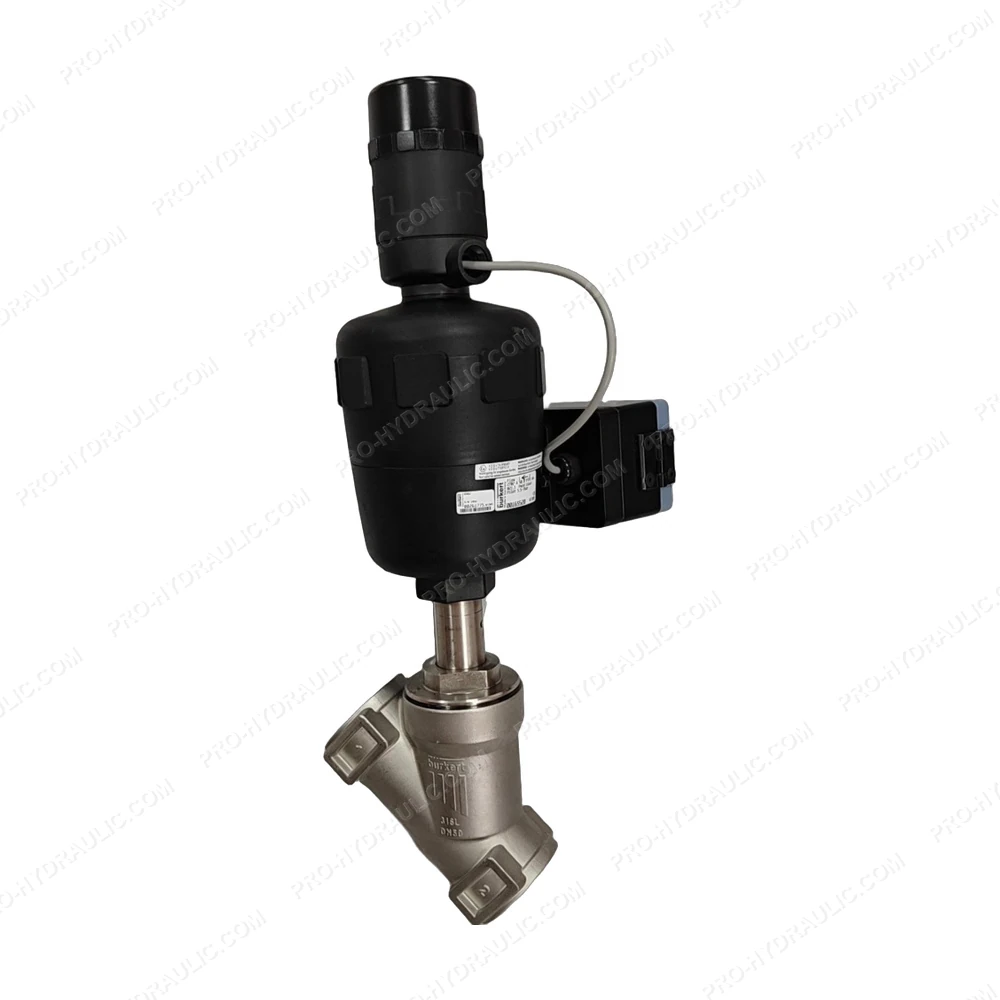

BURKERT 2702 A 50,0 PTFE VA / 00165520 Pneumatic Angle Seat Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 2702 A 50,0 PTFE VA / 00165520 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 2/2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
