The BURKERT 6519 is a heavy-duty industrial micro solenoid valve engineered for precise fluid control in compact pneumatic and process systems. Its direct-acting, wet-pin armature design ensures reliable switching of neutral gases and liquids at low pressures, with a minimal footprint for high-density manifold mounting.
BURKERT 6519 Technical Specifications
| Valve Type | Direct-acting 2/2-way micro solenoid valve |
|---|---|
| Function | Normally closed (NC) or normally open (NO) |
| Orifice Size | 0.8 mm to 1.2 mm |
| Flow Coefficient (Kv) | 0.018 to 0.045 m³/h |
| Pressure Range | 0 to 6 bar (depending on orifice and seal material) |
| Body Material | PPS (polyphenylene sulfide) or brass |
| Seal Material | FKM (fluoroelastomer) or EPDM |
| Port Connection | Flanged or cartridge, sub-base mounting |
| Coil Type | Wet-pin armature, encapsulated coil |
| Voltage Options | 12 VDC, 24 VDC, 24 VAC/DC, 110 VAC, 230 VAC |
| Power Consumption | 1.5 W to 2.5 W |
| Duty Cycle | Continuous (100% ED) |
| Protection Class | IP65 (with cable plug) |
| Media | Neutral gases and liquids, filtered (≤ 5 µm) |
| Temperature Range | -10 °C to +55 °C (ambient and media) |
Key Engineering Features
- Direct-acting wet-pin armature for reliable operation at zero pressure differential
- Compact micro design enables high-density integration on manifolds and sub-bases
- Encapsulated coil with high chemical resistance and long service life
- Fast response times and low power consumption for continuous duty
- Available with FKM or EPDM seals for compatibility with a wide range of media
- Simple electrical connection via standard cable plug (DIN 43650)
Industrial Applications
- Medical and laboratory equipment for precise dosing and switching of gases and reagents
- Analytical instrumentation and process control systems
- Pneumatic control circuits in packaging and assembly machinery
- Water treatment and chemical dosing systems
- Printing and textile machinery requiring compact valve solutions
- Automotive test benches and fuel cell systems
For technical inquiries, dimensional drawings, or replacement support for BURKERT 6519, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

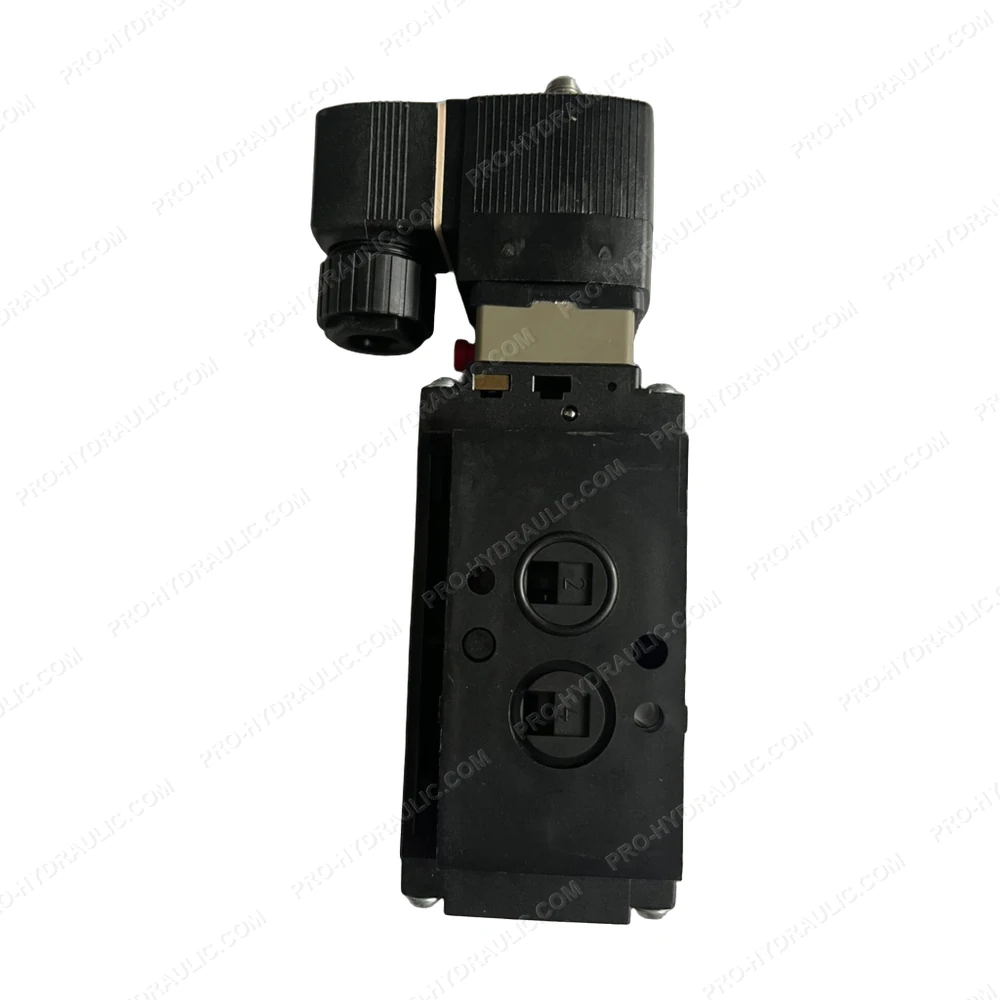

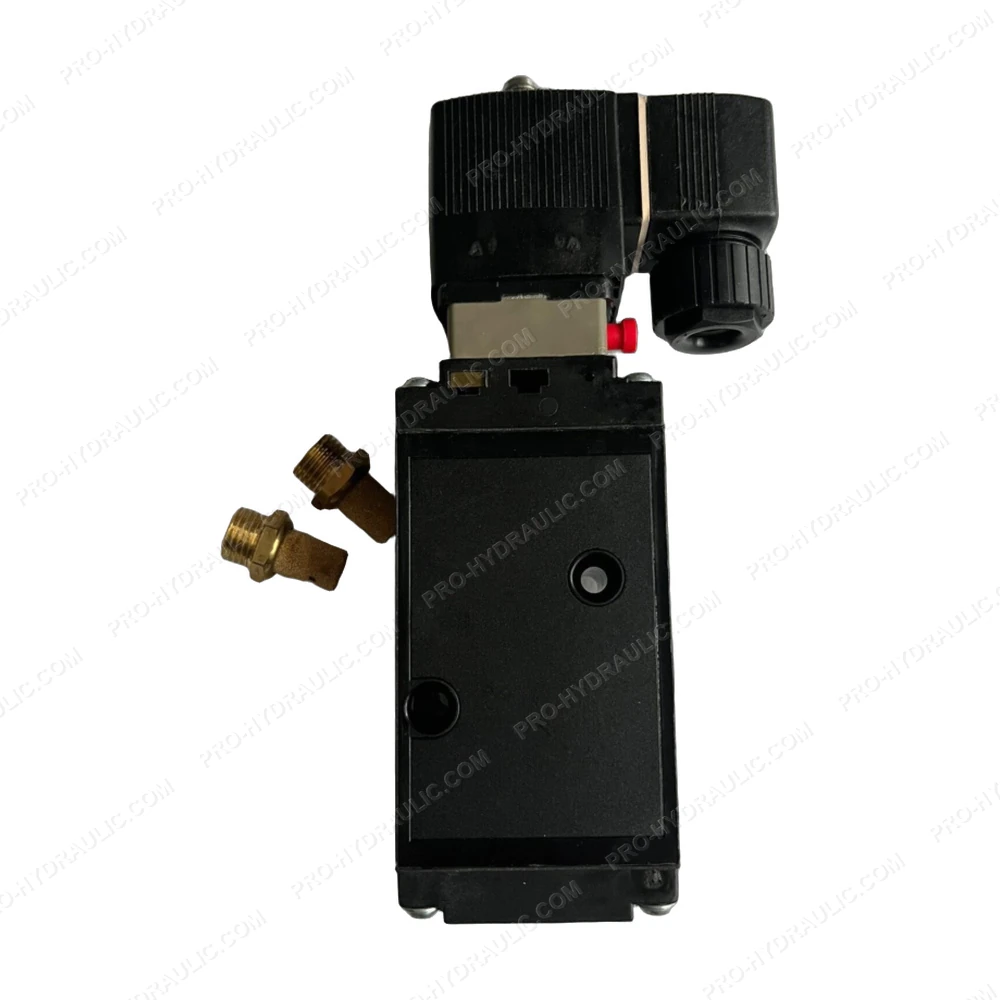

BURKERT 6519 Micro Solenoid Valve
