Product Overview
The Bürkert Type 8802 is a modular continuous control valve system engineered for precise regulation of neutral and aggressive media in industrial process and pneumatic control loops. Designated by model code 8802 2300 A 25.0 PTFE VA D29 (part number 20018598), this configuration combines a pneumatically actuated control valve body with a PTFE-lined, stainless steel (VA) wetted path, delivering accurate modulating control rather than simple on/off switching. The valve operates on a balanced plug-and-seat principle, where a pneumatic pilot signal positions the actuator stem proportionally to modulate flow through the valve orifice. With a nominal line size of DN25 and a PTFE/VA construction, the unit is purpose-built for corrosive and high-purity service in continuous process environments, integrating seamlessly into distributed control systems (DCS) and PLC-driven process lines.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Continuous Control Valve (Process & Pneumatic Valve) |
| Model Designation | 8802 2300 A 25.0 PTFE VA D29 |
| Part Number | 20018598 |
| Nominal Line Size | DN25 (25.0 mm nominal orifice / connection size) |
| Body / Wetted Material | Stainless Steel (VA) with PTFE lining / seal |
| Actuation Type | Pneumatic piston actuator for continuous modulating control |
| Operating Pressure | Standard Industrial Grade (up to rated bar per body rating) |
| Control Signal | Proportional pneumatic pilot signal (continuous positioning) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Continuous proportional positioning of the valve plug enables accurate flow, pressure, or temperature modulation, eliminating the cycling losses associated with on/off control and improving overall process stability.
- Corrosion-Resistant Construction: The PTFE-lined wetted path and stainless steel (VA) body provide excellent chemical resistance, making the valve suitable for aggressive, neutral, and high-purity media where standard elastomeric seals would degrade.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust pneumatic actuator designed for high cycle life and consistent stroke repeatability.
- Modular System Architecture: The Type 8802 platform allows flexible combination of valve bodies, actuators, and positioners, simplifying spare parts management and future reconfiguration.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BURKERT standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal line size of DN25 and a PTFE/VA construction, the unit is purpose-built for corrosive and high-purity service in continuous process environments, integrating seamlessly into distributed control systems (DCS) and PLC-driven process lines.
PRODUCT IMAGES

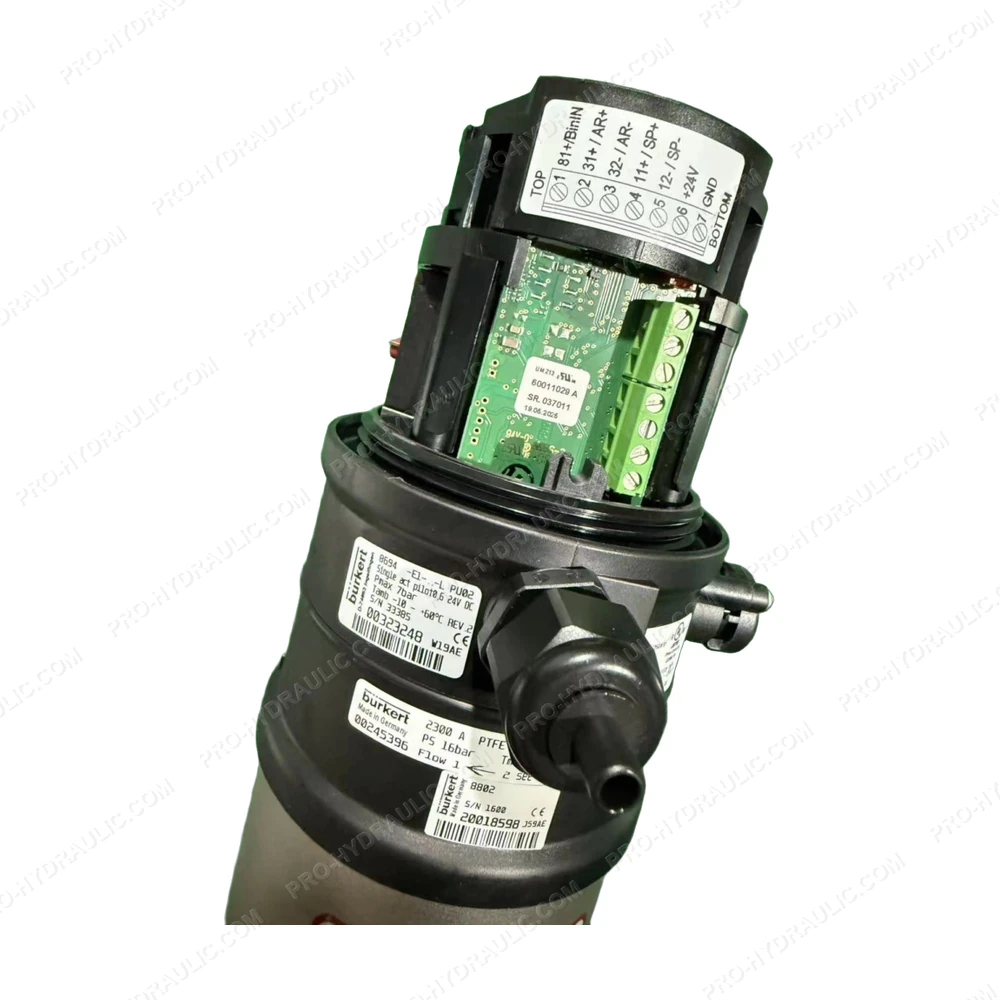

BURKERT 8802 2300 A 25.0 PTFE VA D29 / 20018598 Continuous Control Valve System
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Burkert 8802 2300 A 25.0 PTFE VA D29 / 20018598 Solenoid Valve. This Germany-made 230V AC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
