Product Overview
The CASAPPA PLP20.14D0-82S1-LGE/GD-N is a precision-engineered external gear pump from the Casappa PLP20 series, a globally recognized family of cast iron bodied gear pumps designed for robust industrial and mobile hydraulic service. This model operates on the proven external gear principle, in which two precision-ground, case-hardened gear sets rotate within a high-tolerance aluminum or cast iron housing to trap and displace hydraulic fluid in a continuous, pulsation-free flow. With a nominal displacement of 14 cm³/rev, the PLP20.14D0-82S1-LGE/GD-N delivers dependable flow output at pressures up to 250 bar, making it an ideal primary or auxiliary pump for demanding circuits requiring stable volumetric efficiency and long service life. The unit is configured with a standard European 4-bolt mounting flange, a 1:8 tapered drive shaft, and a rear port configuration, allowing direct drop-in replacement of OEM-installed Casappa pumps without modification to existing hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Gear Pump (External Gear, Fixed Displacement) |
| Model Designation | CASAPPA PLP20.14D0-82S1-LGE/GD-N |
| Series / Family | Casappa PLP20 Series |
| Nominal Displacement | 14 cm³/rev (14.0 cc per revolution) |
| Operating Pressure | Continuous up to 250 bar; peak up to 280 bar |
| Speed Range | Up to 3,000 rpm (continuous duty dependent on fluid viscosity) |
| Rotation Direction | Clockwise (standard configuration, viewed from drive shaft end) |
| Mounting & Connection | Standard ISO 4-bolt flange; 1:8 tapered drive shaft; rear port configuration |
| Body Material | High-strength cast iron / aluminum alloy housing |
| Gear Construction | Case-hardened, precision-ground external spur gears |
| Sealing | NBR / FKM seals compatible with mineral hydraulic oils |
Engineering Features & Advantages
- Precision Performance: The hydraulic gear pump (external gear, fixed displacement) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CASAPPA OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 250 bar, supporting stable operation across the full working range.
Typical Industrial Applications
The unit is configured with a standard European 4-bolt mounting flange, a 1:8 tapered drive shaft, and a rear port configuration, allowing direct drop-in replacement of OEM-installed Casappa pumps without modification to existing hydraulic systems.
PRODUCT IMAGES

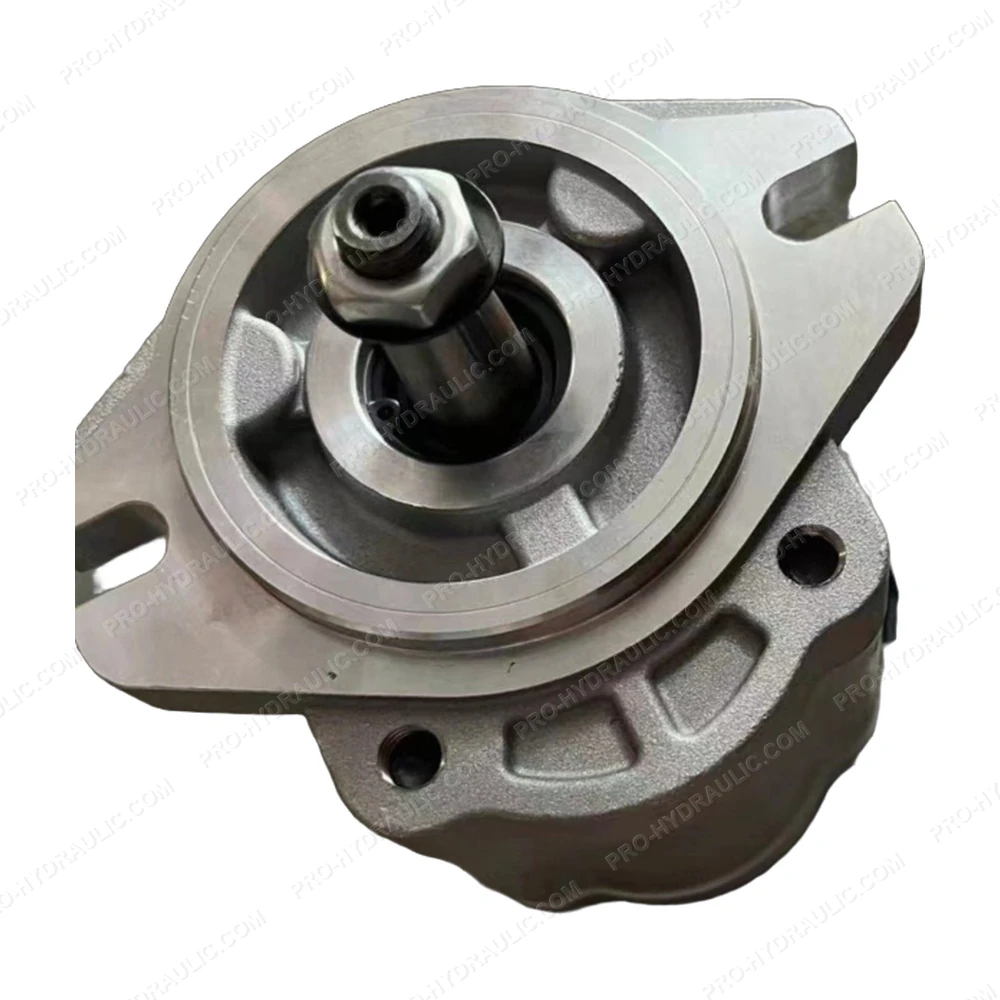

CASAPPA PLP20.14D0-82S1-LGE/GD-N Hydraulic Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CASAPPA PLP20.14D0-82S1-LGE/GD-N Gear Pump. This Italy-made hydraulic component features a high-pressure gear design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
