Product Overview
The CASAPPA PLP20.25D0-82E2-LEB/EA-N-EL-FS is a precision-engineered external gear pump from the Casappa PLP20 series, a globally recognized platform for reliable medium-pressure hydraulic power generation. This unit operates on the positive displacement principle, utilizing a pair of precisely machined, intermeshing spur gears that rotate within a high-tolerance aluminum alloy casing. As the gears rotate, fluid is trapped between the gear teeth and the casing wall and displaced from the suction side to the pressure side, delivering a smooth, continuous flow proportional to the drive speed. With a nominal displacement of 25 cm³/rev, this pump is designed to serve as the primary pressure source in industrial and mobile hydraulic circuits, offering dependable performance, compact installation dimensions, and excellent power-to-weight characteristics.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Gear Pump (External Gear, Positive Displacement) |
| Model Designation | PLP20.25D0-82E2-LEB/EA-N-EL-FS |
| Series / Brand | Casappa PLP20 Series |
| Nominal Displacement | 25 cm³/rev (per model code “25”) |
| Operating Pressure | Standard Industrial Grade (up to rated continuous pressure for PLP20 series) |
| Mounting & Connection | Standard ISO / Casappa Flange & Port Interface |
| Shaft Configuration | Tapered / Splined / Keyed (per “D0” designation) |
| Porting Configuration | Side Ports (per “82E2” designation) |
| Seal / Elastomer | NBR / FKM (per “N” / “FS” designation) |
Engineering Features & Advantages
- Precision Gear Tooth Geometry: The intermeshing spur gears are manufactured to tight tolerances, ensuring minimal internal leakage, high volumetric efficiency, and consistent flow delivery across the operating speed range.
- Robust Aluminum Alloy Casing: The lightweight yet rigid body construction provides excellent heat dissipation and structural integrity, extending service life under continuous industrial duty cycles.
- Low Noise & Smooth Operation: Optimized gear profile and bearing support reduce pressure pulsation and operating noise, making the PLP20 suitable for noise-sensitive environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high duty cycles, temperature fluctuations, and contaminated fluid environments when properly filtered.
- Direct Fit Replacement: Precision-manufactured to original CASAPPA specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal displacement of 25 cm³/rev, this pump is designed to serve as the primary pressure source in industrial and mobile hydraulic circuits, offering dependable performance, compact installation dimensions, and excellent power-to-weight characteristics.
PRODUCT IMAGES

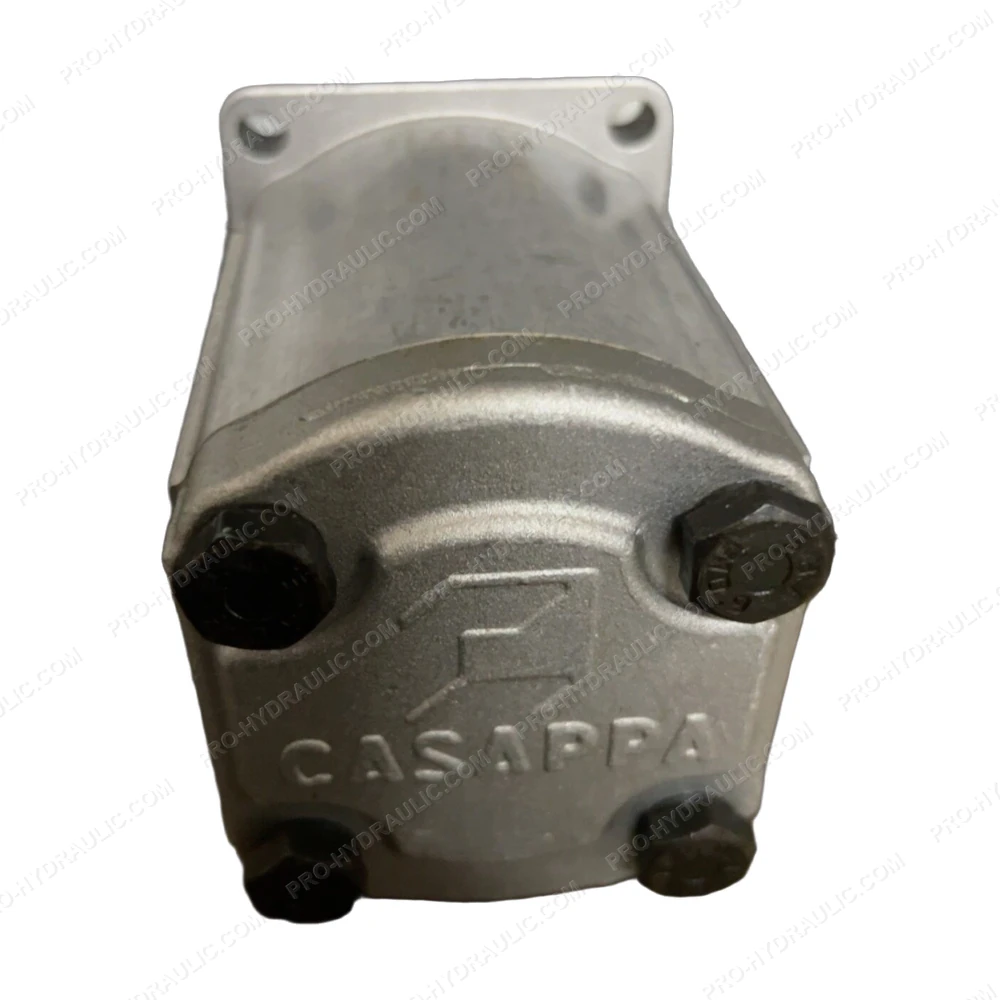

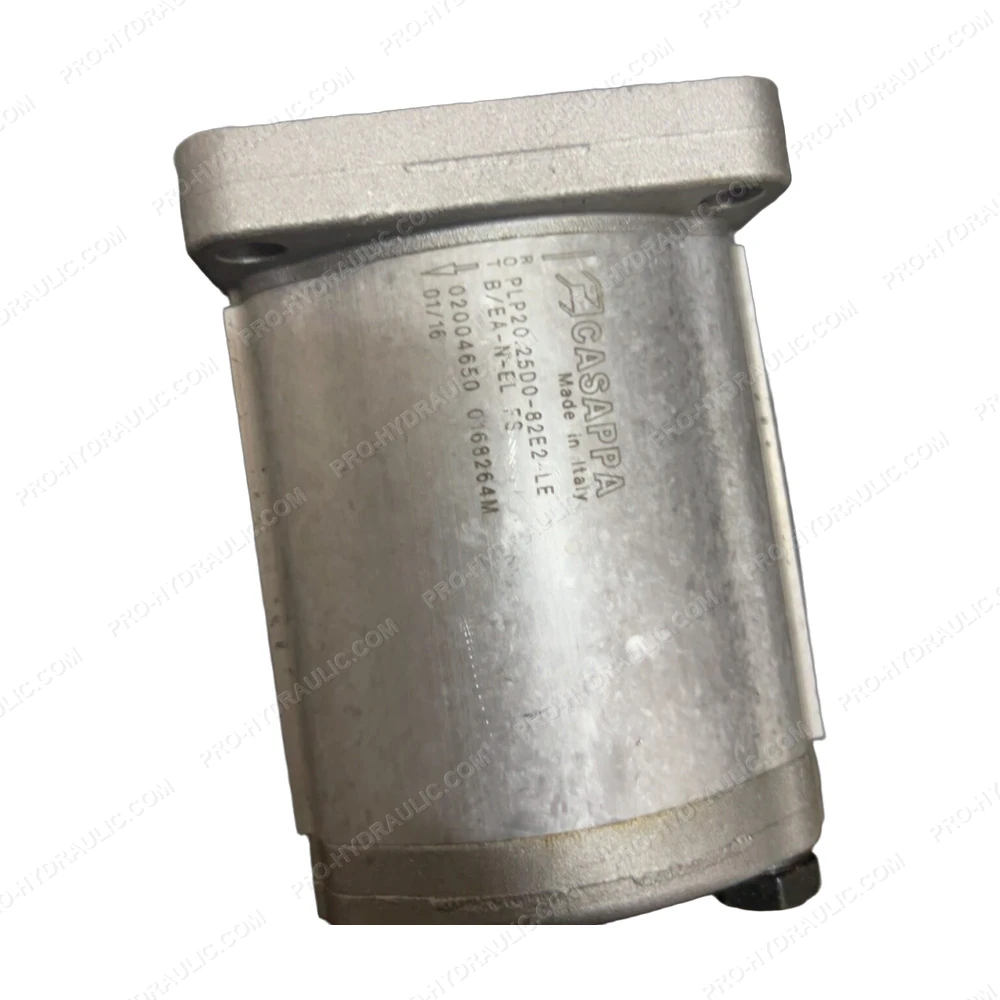

CASAPPA PLP20.25D0-82E2-LEB/EA-N-EL-FS Hydraulic Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CASAPPA PLP20.25D0-82E2-LEB/EA-N-EL-FS Gear Pump. This Italy-made 25 cc/rev hydraulic component features a high-pressure cast iron design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
