Product Overview
The CAT PCR-5B-30A-FP-9394A (OEM Reference: 452-6210) is a pilot operated check valve engineered for precise load-holding and controlled flow management within demanding industrial hydraulic circuits. Manufactured to Caterpillar’s stringent OEM standards, this modular valve functions by permitting free flow in one direction while blocking reverse flow until a pilot pressure signal is applied to release the internal poppet. This design ensures reliable load retention, prevents actuator drift, and protects downstream components from pressure surges. As a critical component within flow control and modular valve assemblies, it integrates seamlessly into manifold and subplate-mounted systems, delivering dependable leak-free performance in high-cycle industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Check Valve (Flow Control & Modular Valve) |
| Model Designation | PCR-5B-30A-FP-9394A / 452-6210 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Pilot Ratio | Standard Pilot-to-Load Ratio for Controlled Release |
| Mounting & Connection | Standard ISO / Manufacturer Modular Interface |
| Sealing Method | Precision Poppet & Seat, Leak-Free Metal-to-Metal / Elastomer Seal |
| Flow Direction | Free Flow One Way / Pilot-Release Reverse Flow |
Engineering Features & Advantages
- Precision Performance: The pilot operated poppet design delivers positive shut-off with minimal internal leakage, ensuring accurate load holding and preventing actuator creep in static conditions.
- Controlled Pilot Release: A calibrated pilot piston responds to external pressure signals to open the check valve smoothly, enabling controlled lowering of suspended loads and synchronized circuit operation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components resistant to contamination and pressure spikes.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including the 452-6210 reference, ensuring drop-in installation without modification.
- Modular Integration: Designed for seamless mounting within modular valve stacks and manifold systems, reducing piping complexity and potential leak points.
Typical Industrial Applications
This pilot operated check valve is widely deployed in heavy industrial scenarios including plastic injection molding machines requiring precise mold clamping and ejection control, metallurgical presses where load holding and controlled descent are critical, construction and marine hydraulic systems for boom and outrigger lock circuits, and CNC machine tools where accurate positioning and thermal stability of hydraulic actuators are essential. Its robust construction also suits mining equipment, agricultural machinery, and any application demanding reliable pilot-controlled flow blocking and release.
PRODUCT IMAGES

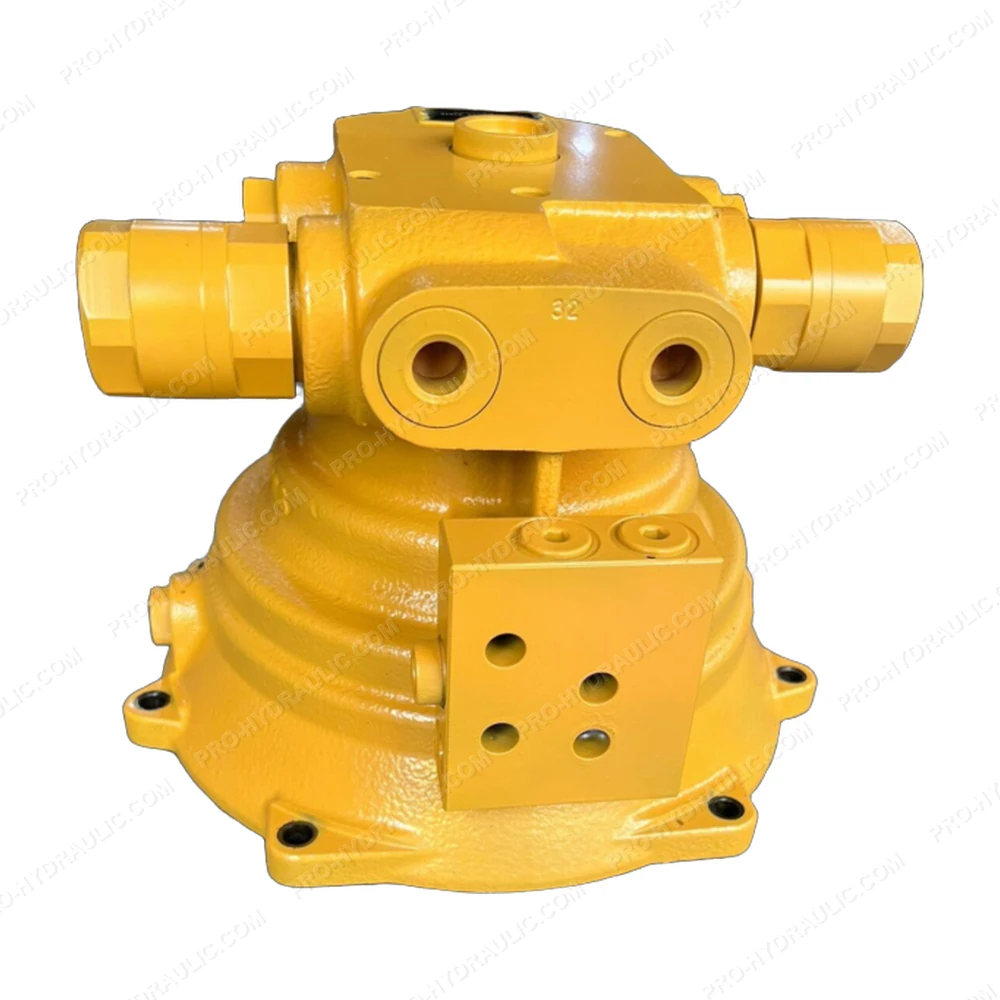

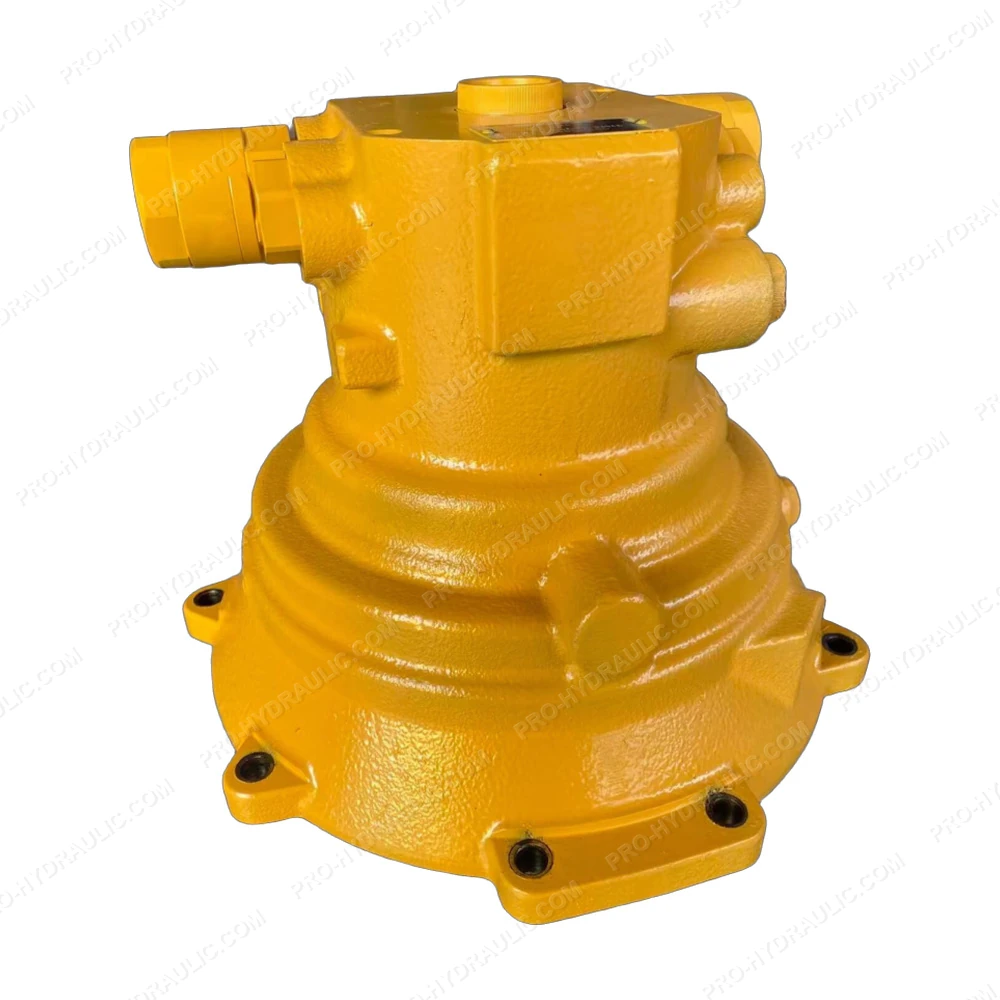

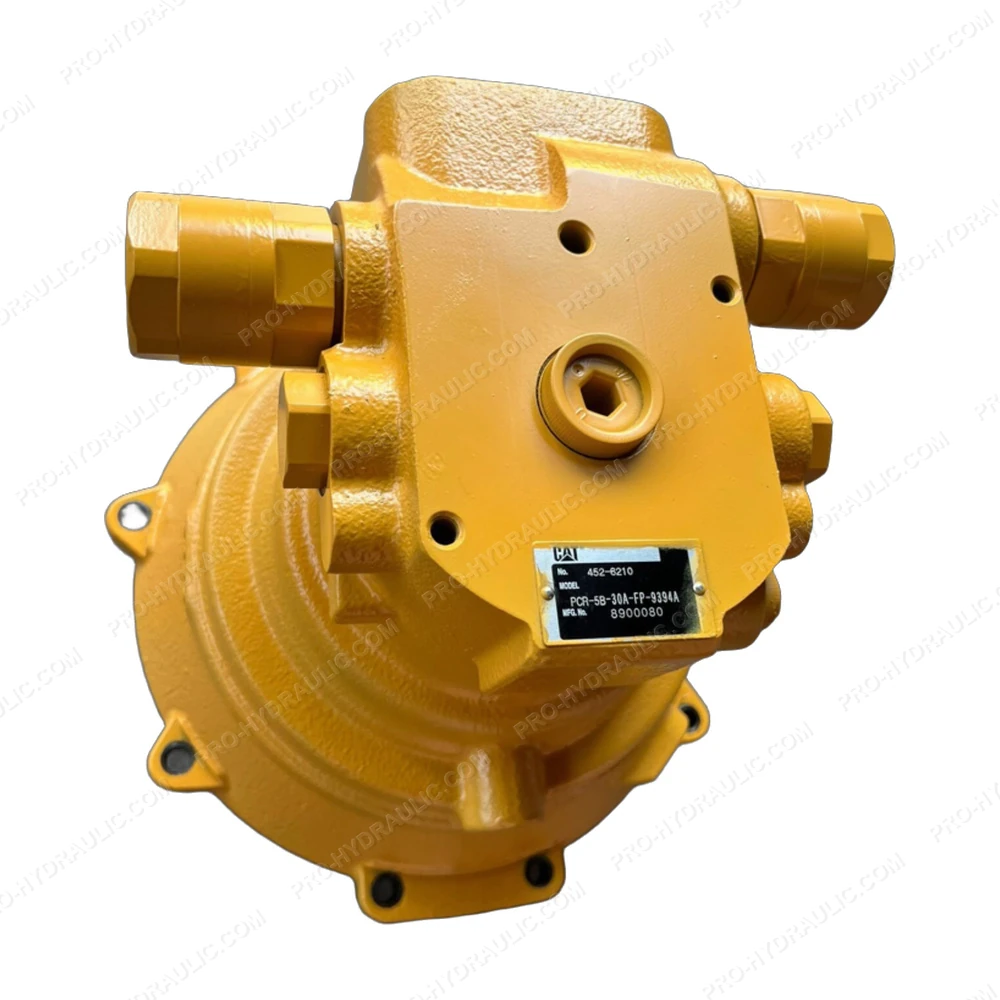

CAT PCR-5B-30A-FP-9394A / 452-6210 Pilot Operated Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CAT PCR-5B-30A-FP-9394A / 452-6210 Pilot Operated Check Valve. This US-made hydraulic component features a robust poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
