Product Overview
The Caterpillar 152-8341 is a precision-engineered hydraulic solenoid directional control valve designed for demanding mobile and industrial hydraulic systems. As a direct-acting, solenoid-operated directional control valve, it manages the start, stop, and direction of hydraulic fluid flow within a circuit, enabling precise actuation of cylinders, motors, and other hydraulic actuators. Manufactured to Caterpillar’s stringent OEM specifications, this valve is a critical control component in heavy equipment hydraulic systems, offering reliable shifting performance and leak-resistant sealing. Its robust construction ensures consistent operation under high-pressure, high-cycle industrial conditions, making it an ideal replacement part for Caterpillar machinery and compatible hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Solenoid Directional Control Valve |
| Model Designation | Caterpillar 152-8341 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO / Caterpillar OEM Interface |
| Actuation Type | Electrical Solenoid (Direct-Acting) |
| Spool Configuration | Closed-Center / Standard Directional Spool |
| Seal Type | Nitrile (NBR) / Polyurethane (PU) High-Pressure Seals |
| Flow Capacity | Optimized for Medium to High Flow (up to 80 L/min) |
Engineering Features & Advantages
- Precision Performance: The solenoid actuator provides rapid, repeatable spool shifting with minimal response time, ensuring accurate directional control and precise metering of hydraulic flow in critical machine functions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high pressure, temperature fluctuations, and vibration, with a hardened spool and wear-resistant bore for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Caterpillar OEM standards, ensuring drop-in installation without modification to manifolds or hydraulic lines.
- Leak-Resistant Design: Advanced sealing technology minimizes internal leakage and external seepage, maintaining system efficiency and reducing fluid loss in high-cycle applications.
- Robust Solenoid Construction: Encapsulated coil and corrosion-resistant housing protect against moisture, dust, and contaminants common in mobile and industrial environments.
Typical Industrial Applications
This Caterpillar 152-8341 solenoid directional control valve is commonly used in heavy-duty hydraulic systems such as excavators, wheel loaders, and bulldozers for boom, bucket, and steering control; plastic injection molding machines for clamp and injection actuator sequencing; metallurgical presses for directional force control; and construction & marine hydraulics for winch and propulsion circuits. It is also suitable for CNC machine tool hydraulic power units requiring precise directional flow management.
PRODUCT IMAGES

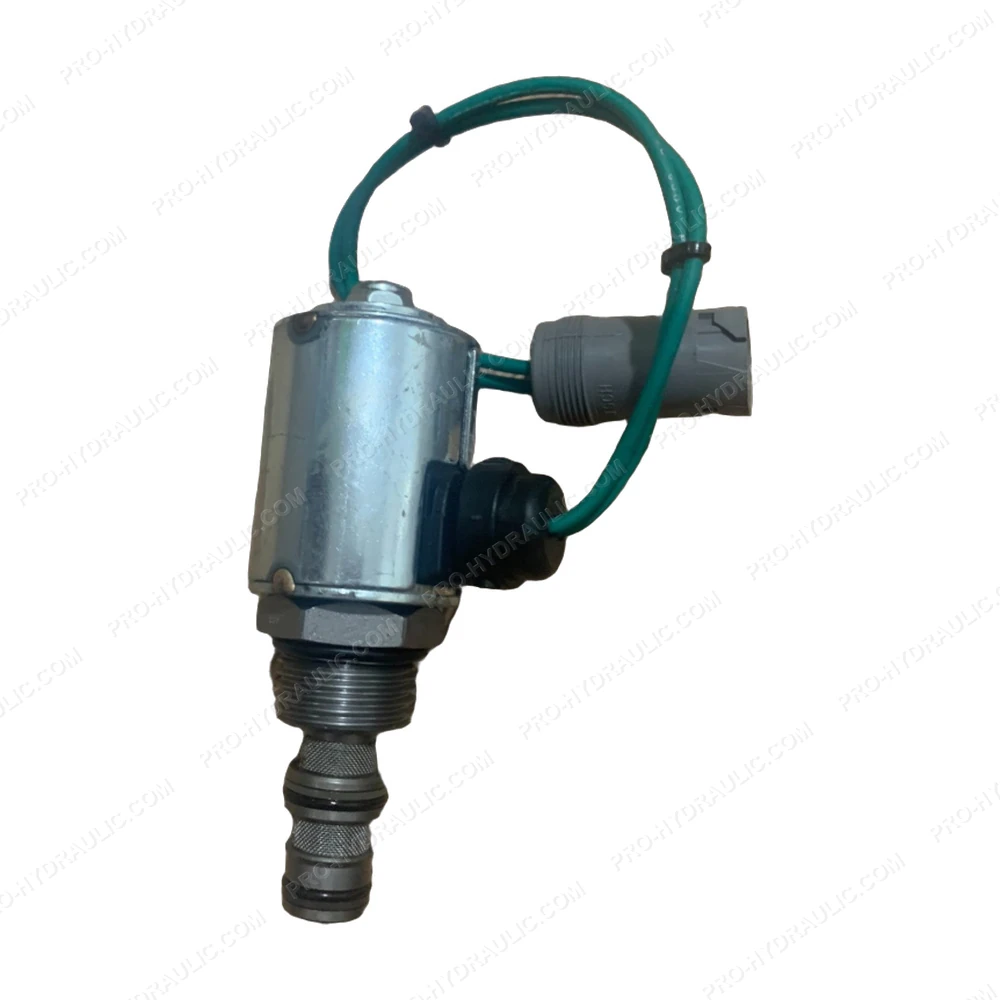

CATERPILLAR 152-8341 Hydraulic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Caterpillar 152-8341 Solenoid Directional Valve. This USA-made 24V hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
