Product Overview
The CHELIC 3M310-08 is a 5/2-way pneumatic solenoid valve from the 3M300 series, engineered for precise directional control of compressed air in industrial automation and process systems. Manufactured by CHELIC, a recognized Taiwanese brand in pneumatic control technology, this valve utilizes a balanced spool-and-sleeve design actuated by an electrical solenoid, with spring return for reliable de-energized positioning. The 3M310-08 features a 1/4″ port size (08 designation) and is designed for inline or manifold mounting, making it a direct-fit control component for pneumatic cylinders, actuators, and air-driven process equipment. Its compact body, fast response, and high cycle life make it a standard choice for OEM machinery and plant retrofit applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way Directional Control) |
| Model Designation | 3M310-08 |
| Series | CHELIC 3M300 Series |
| Valve Function | 5/2-Way, Single Solenoid, Spring Return |
| Port Size | 1/4″ (08 designation) |
| Operating Pressure | Standard Industrial Grade (approx. 0.15 – 0.8 MPa / 1.5 – 8 bar) |
| Working Medium | Filtered Compressed Air (lubricated or non-lubricated) |
| Solenoid Voltage | Common industrial coils (DC 12V/24V, AC 110V/220V options) |
| Mounting & Connection | Inline or Manifold Mount, Threaded Port Connection |
| Body Material | Aluminum Alloy Body with Precision Spool |
Engineering Features & Advantages
- Precision Spool Metering: Balanced spool-and-sleeve construction delivers accurate directional control and consistent flow characteristics across the full pressure range.
- Fast Solenoid Response: Low-inertia solenoid actuation ensures rapid shifting for high-cycle automated processes, minimizing machine cycle time.
- Spring Return Fail-Safe: Single solenoid with spring return automatically resets to the de-energized position on power loss, supporting safe system behavior.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CHELIC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its compact body, fast response, and high cycle life make it a standard choice for OEM machinery and plant retrofit applications.
PRODUCT IMAGES

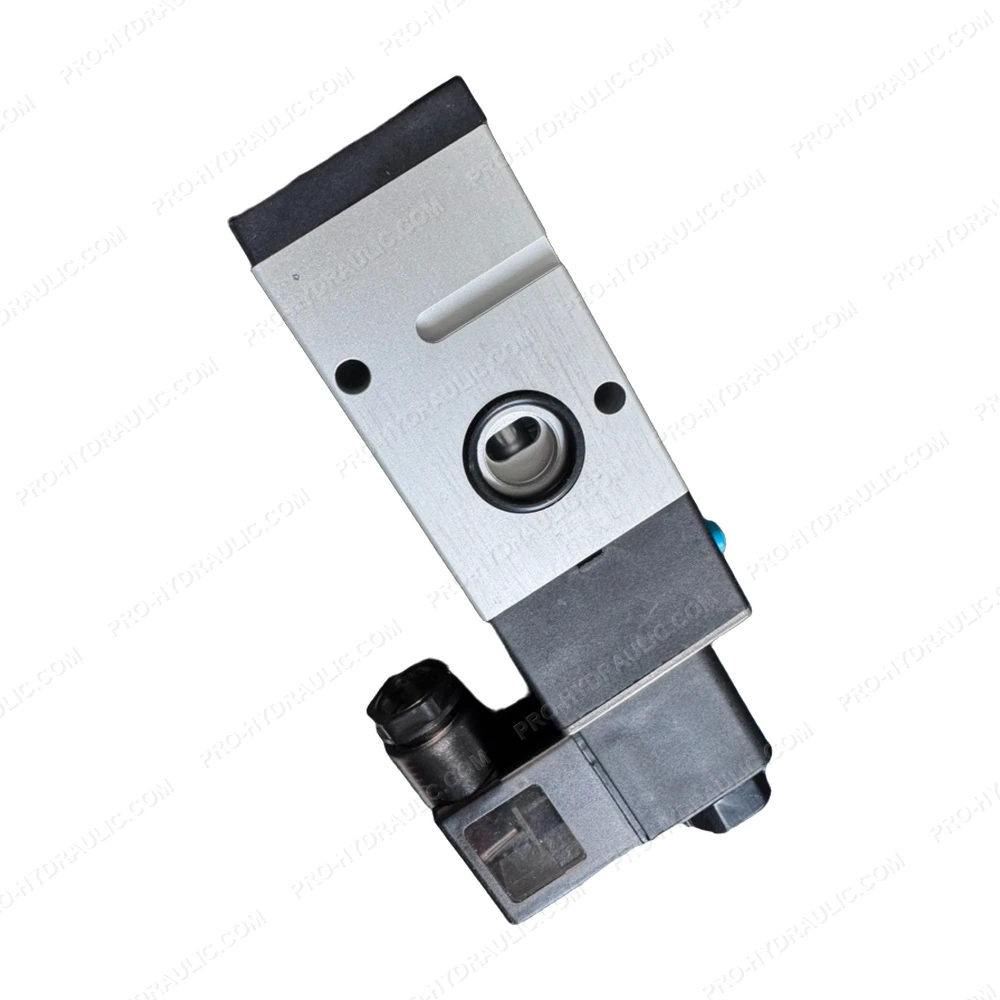

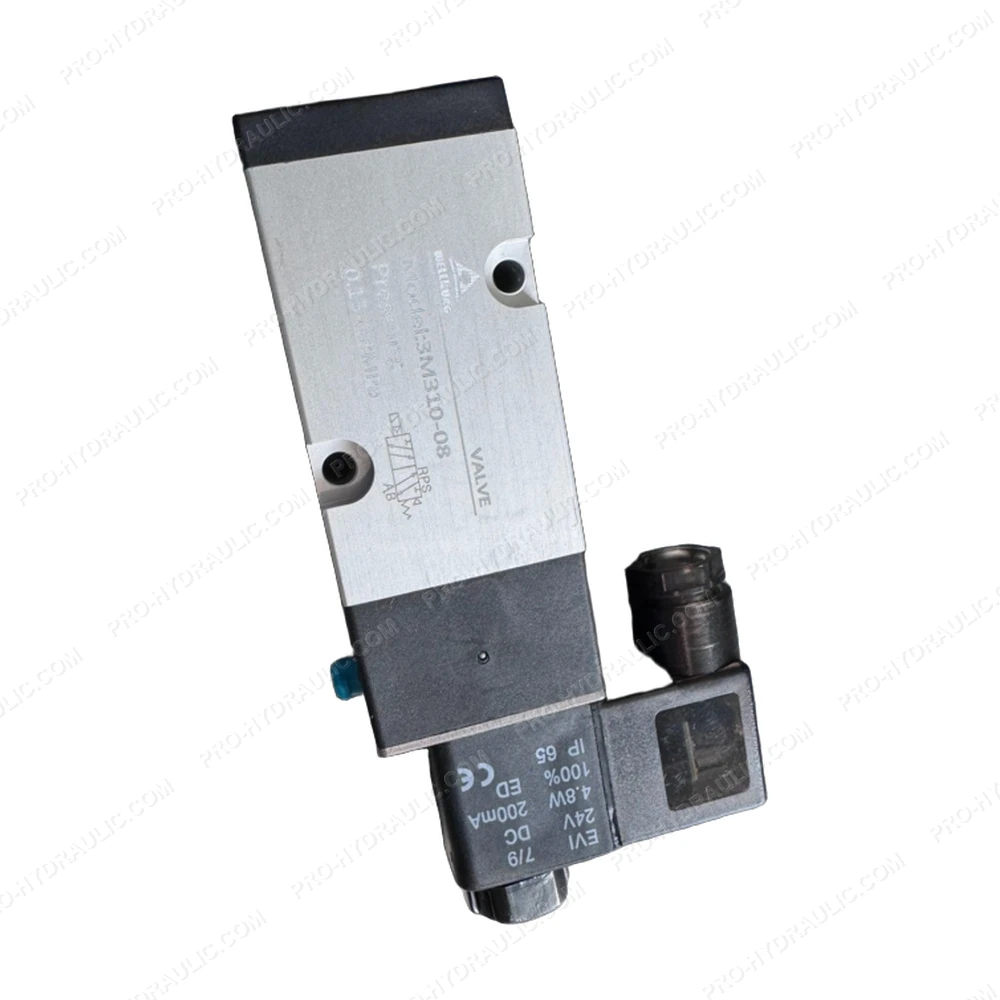

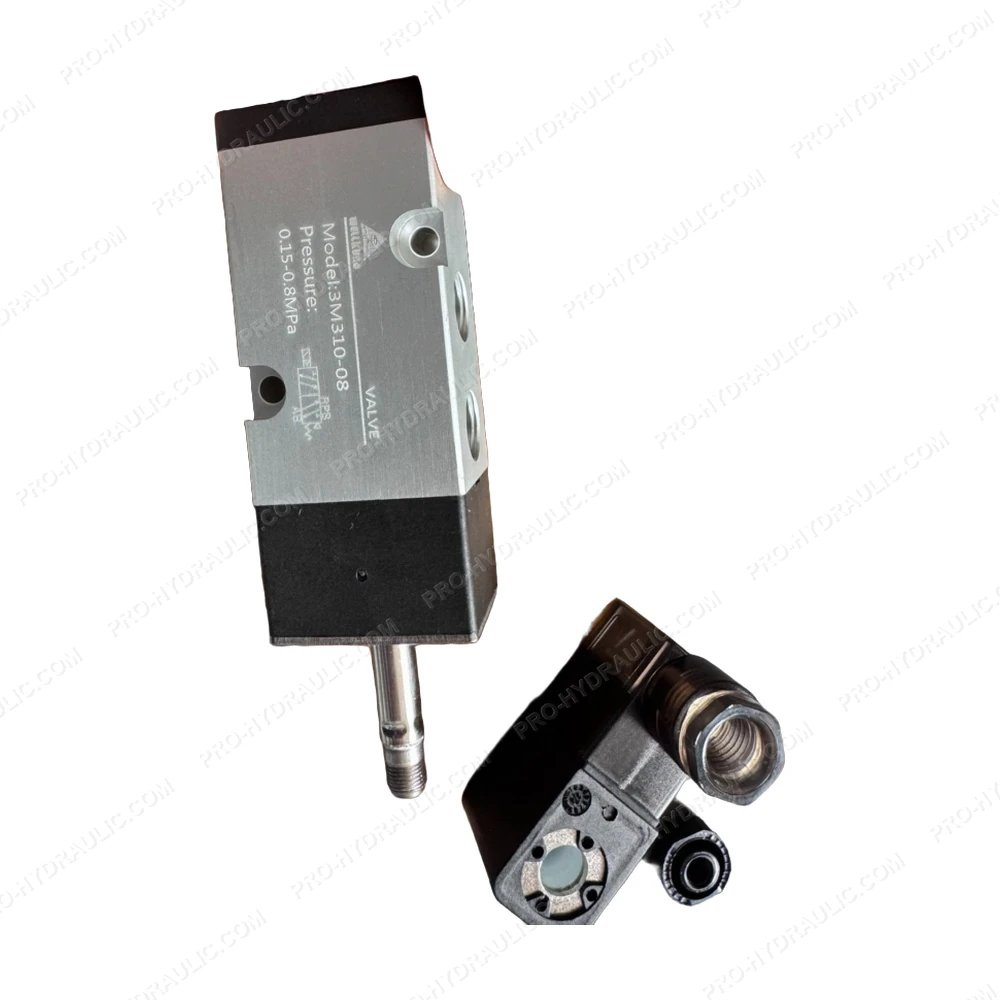

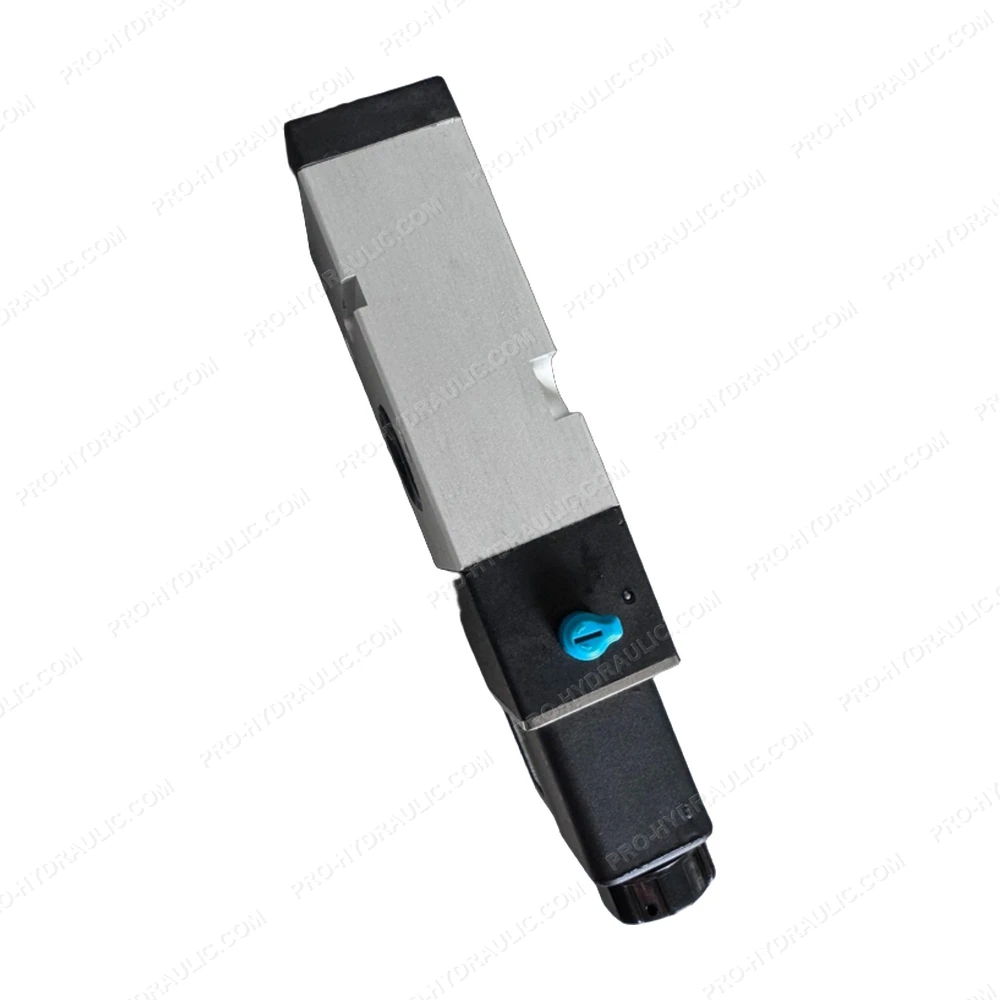

CHELIC 3M310-08 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CHELIC 3M310-08 Solenoid Directional Valve. This Taiwan-made 24V DC hydraulic component features a 3-position 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
