Product Overview
The CHIA WANG DMD-35-C6-280/78 is a high-performance, pilot-operated directional control valve engineered for demanding industrial hydraulic circuits. Manufactured by CHIA WANG, a recognized Taiwanese specialist in hydraulic valve technology, the DMD-35 series is designed to manage the start, stop, and directional change of hydraulic fluid flow within a system. This valve utilizes a robust spool-type design, actuated via a solenoid or pilot pressure mechanism (as denoted by the C6 configuration), ensuring precise control over double-acting cylinders or hydraulic motors. With a nominal flow capacity of 280 L/min and a pressure rating of 78 bar (or 78 kg/cm² depending on the specific rating convention), this component serves as a critical control element in heavy-duty machinery, offering reliable switching performance and minimal pressure drop.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Directional Control Valve (Spool Type) |
| Model Designation | DMD-35-C6-280/78 |
| Operating Pressure | Up to 315 bar (Rated working pressure for DMD series) |
| Nominal Flow Rate | 280 L/min (Max recommended) |
| Actuation Type | Solenoid / Pilot Operated (C6 Configuration) |
| Mounting & Connection | Subplate Mounting (ISO 4401 / CETOP Standard) |
Engineering Features & Advantages
- Precision Spool Metering: The DMD-35 series features a precision-ground spool and sleeve assembly that ensures minimal internal leakage and precise flow control, allowing for accurate positioning of actuators in complex hydraulic circuits.
- High Flow Capacity: Engineered to handle a nominal flow of 280 L/min, this valve is suitable for high-volume systems without causing excessive pressure drop or heat generation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the valve body is constructed from high-tensile cast iron, providing excellent resistance to shock and vibration.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CHIA WANG DMD series standards, ensuring seamless integration into existing manifolds and power units.
Typical Industrial Applications
This directional control valve is ideally suited for heavy-duty industrial scenarios requiring reliable flow direction changes, including plastic injection molding machines, metallurgical presses, hydraulic power units for construction machinery, and specialized CNC machine tools. Its robust design ensures dependable performance in environments where high cycle rates and consistent pressure holding are critical.

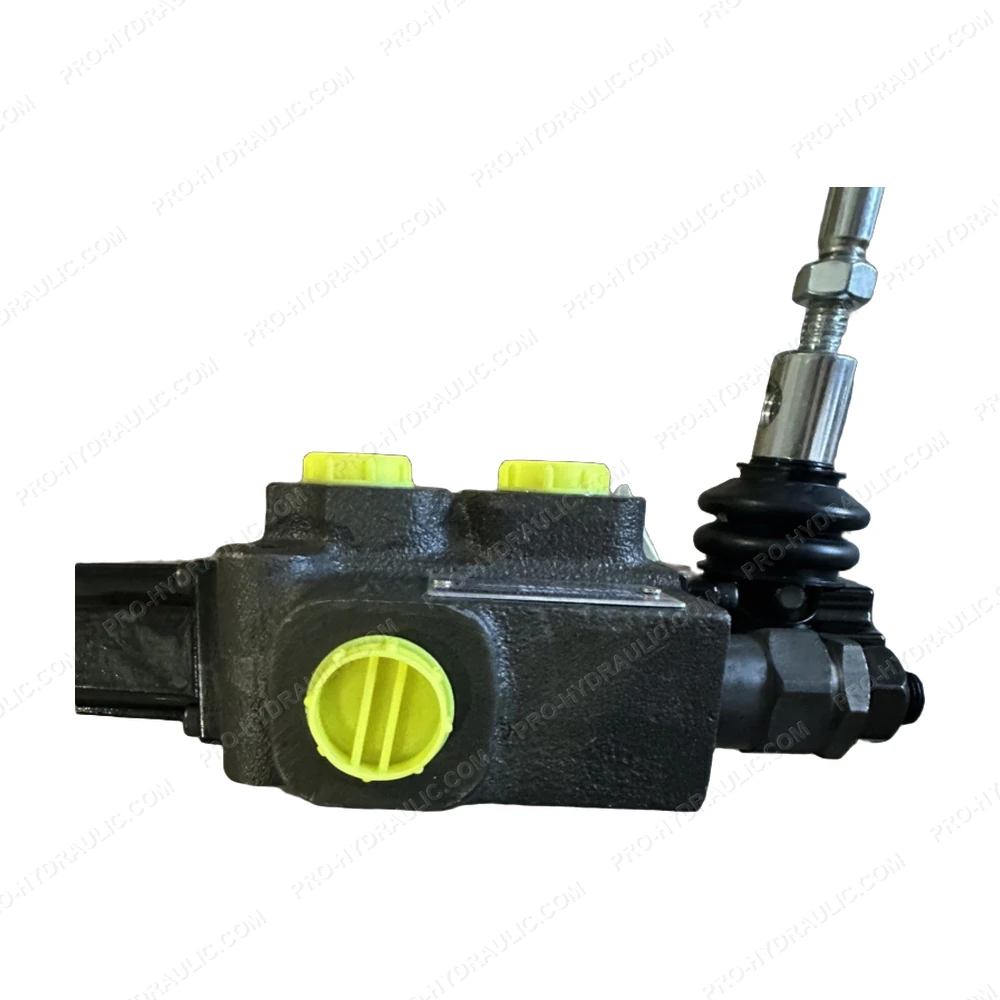

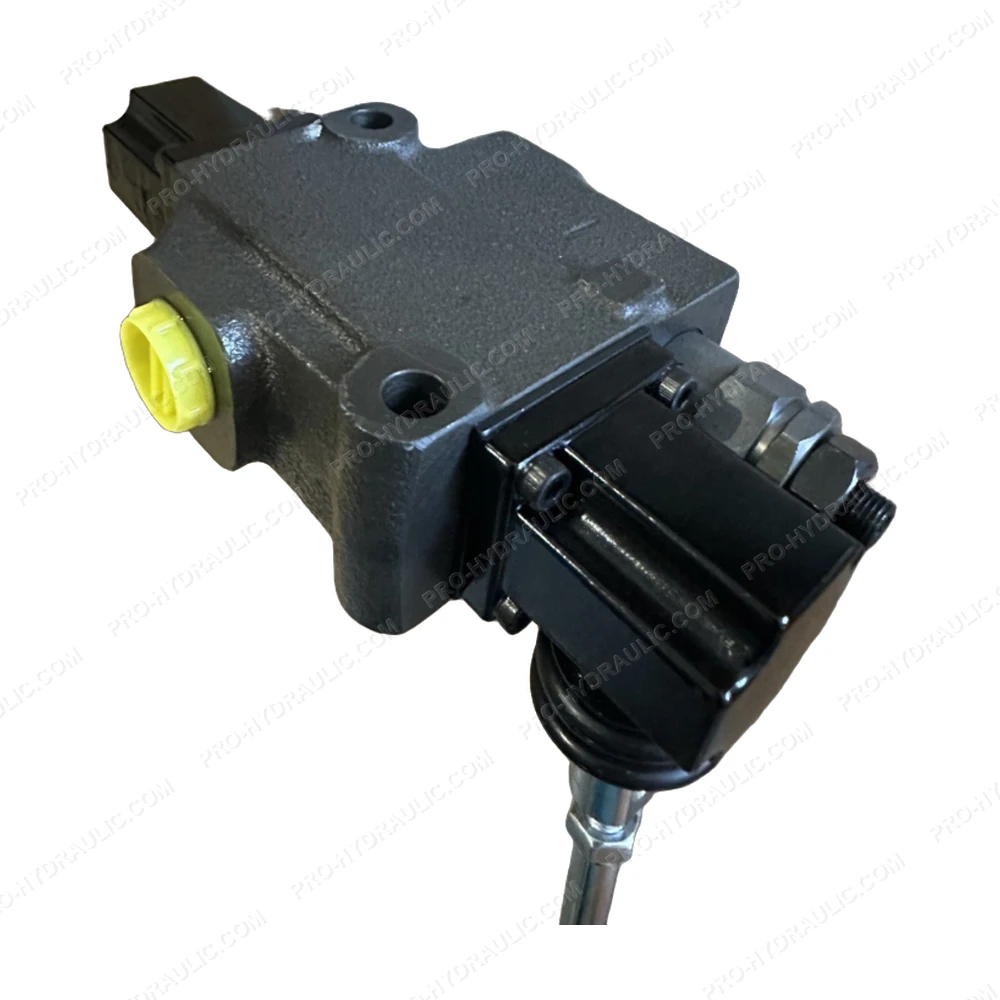

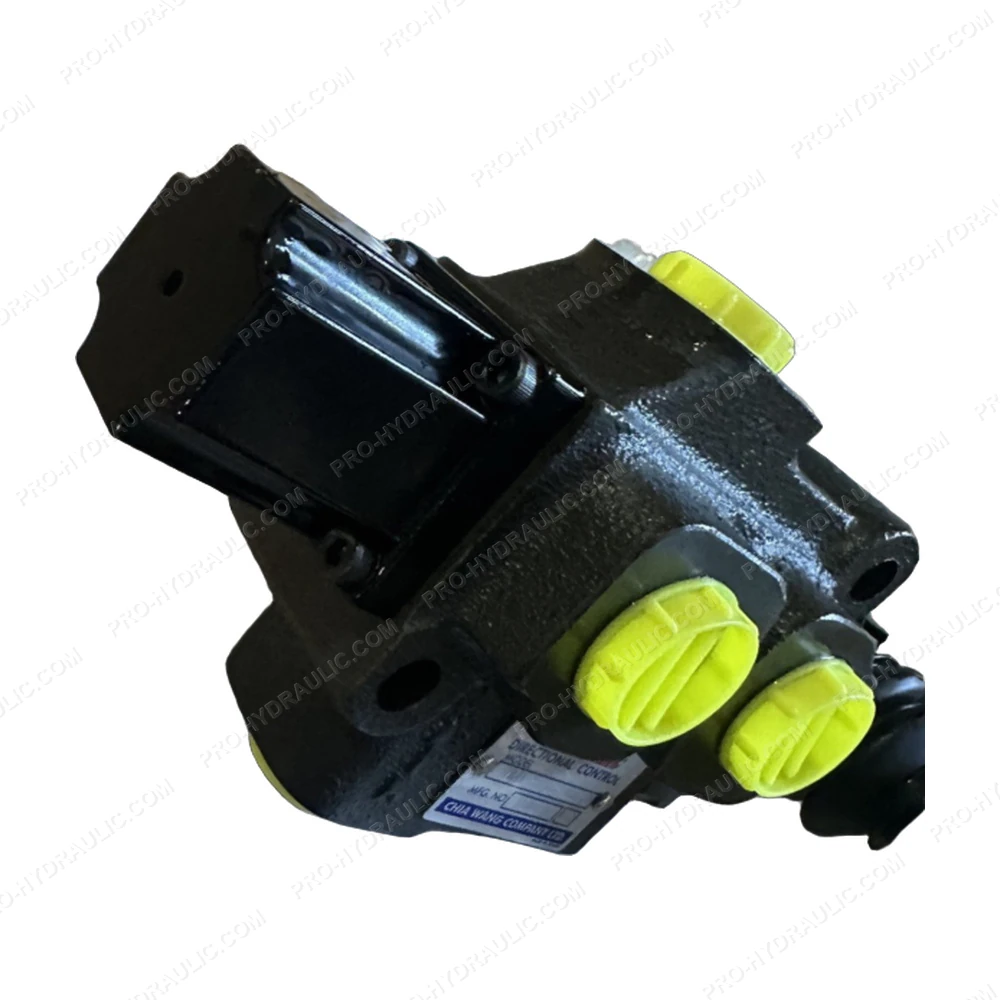

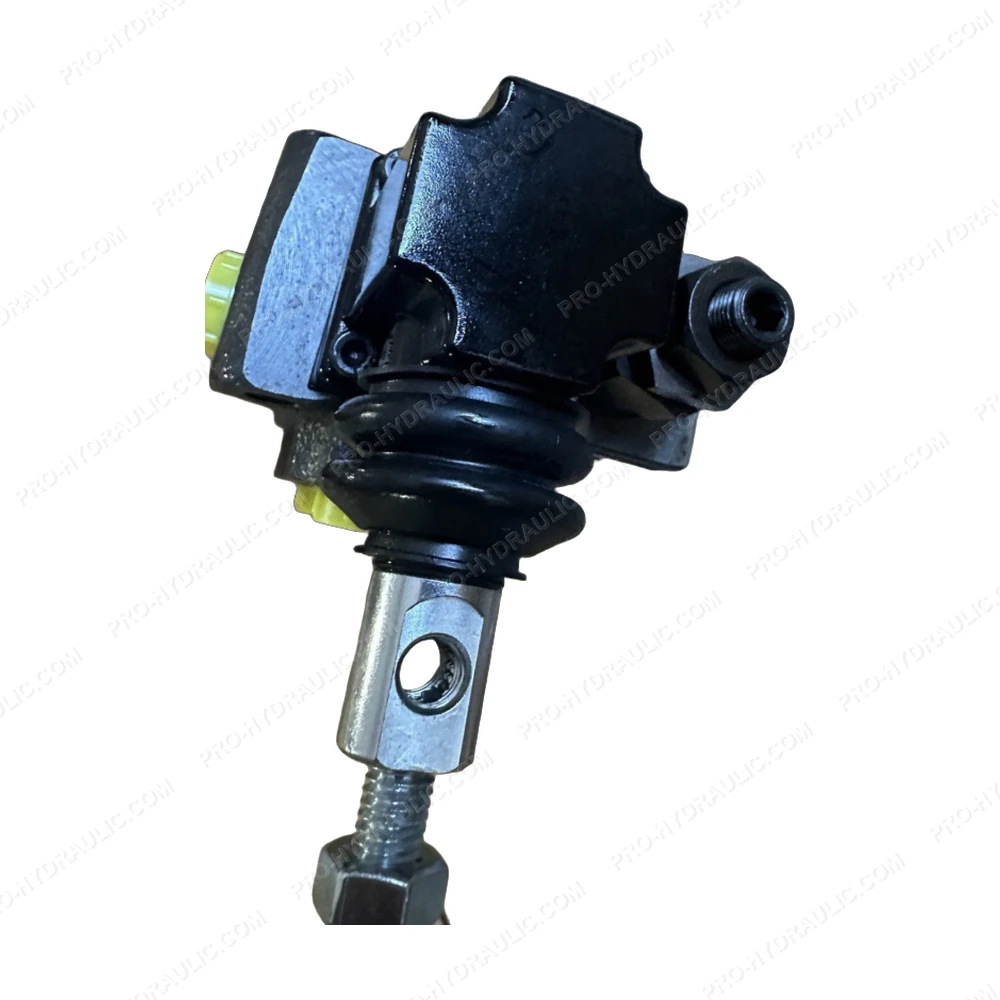

PRODUCT IMAGES
CHIA WANG DMD-35-C6-280/78 Hydraulic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CHIA WANG DMD-35-C6-280/78 Solenoid Directional Valve. This Taiwan-made 280 bar hydraulic component features a direct-acting spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
