Product Overview
The CKD 3QRB110-M5-D2H-3 is a compact, direct-acting pneumatic solenoid valve from CKD Corporation’s 3QRB series, engineered for precise directional control of compressed air in general process and pneumatic circuits. Utilizing a balanced poppet/spool actuation principle, this 3-port valve shifts upon electrical energization of its solenoid coil, directing supply air to the actuator port while exhausting the opposite port. Its M5 threaded ports and compact body make it ideally suited for manifold or sub-base mounting in space-constrained pneumatic control panels, providing fast response and reliable switching for cylinders, air grippers, and other pneumatic actuators in automated industrial systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 3QRB110-M5-D2H-3 |
| Manufacturer | CKD Corporation |
| Valve Function | 3-Port, 2-Position Directional Control |
| Port Size | M5 Metric Threaded Ports |
| Operating Pressure | Standard Pneumatic Grade (approx. 0.1 – 0.7 MPa) |
| Actuation | Electrical Solenoid (D2H coil rating) |
| Mounting & Connection | Direct / Manifold Mounting, M5 Threaded Interface |
Engineering Features & Advantages
- Precision Performance: Fast, repeatable spool actuation ensures accurate directional control and minimal response delay in high-cycle pneumatic circuits.
- Compact & Lightweight: Space-saving body design with M5 ports enables dense manifold mounting and reduced panel footprint.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions with durable solenoid coil and sealing construction.
- Direct Fit Replacement: Exact dimensional and functional compatibility with CKD 3QRB series OEM standards for drop-in service.
Typical Industrial Applications
Suitable for pneumatic cylinder and actuator control in automated assembly lines, packaging machinery, plastic injection molding machines, CNC machine tool clamping circuits, and general factory automation systems requiring reliable directional air control.
PRODUCT IMAGES

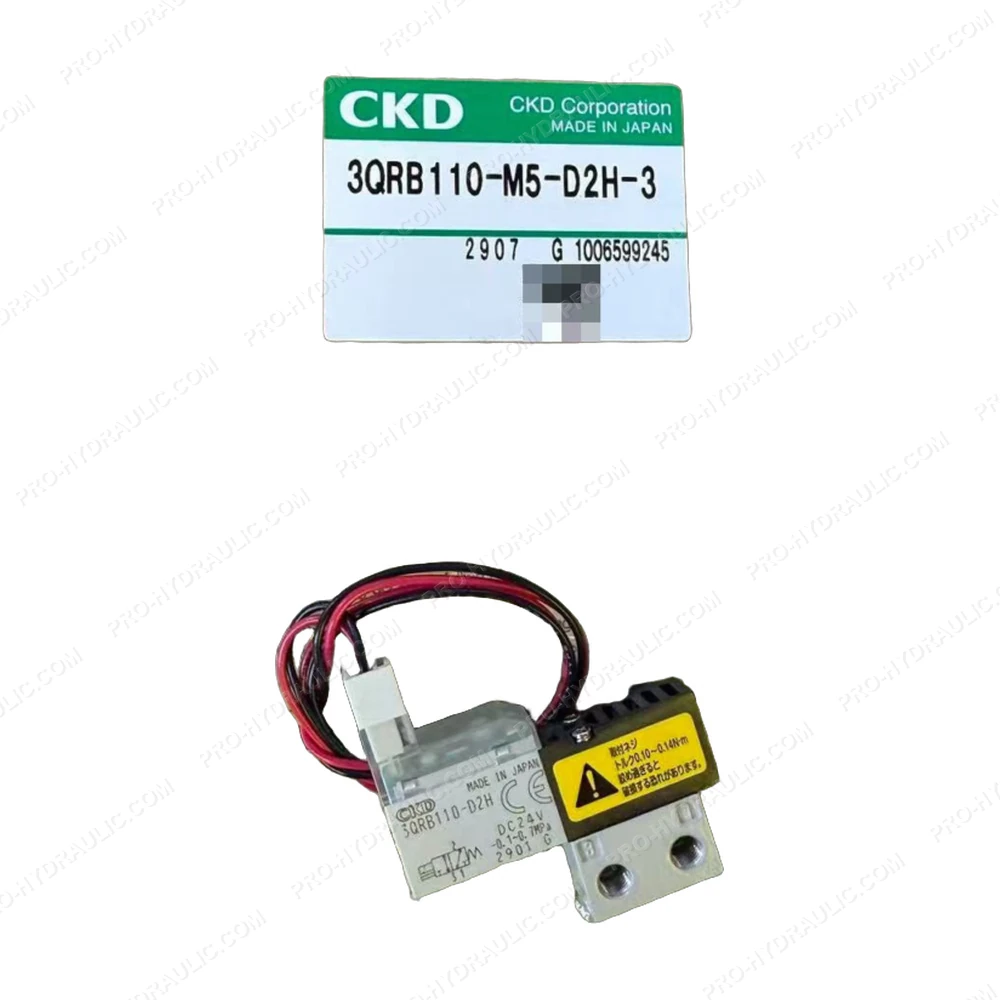

CKD 3QRB110-M5-D2H-3 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD 3QRB110-M5-D2H-3 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
