Product Overview
The CKD 4F310E-TP-DC24V-CN is a high-reliability, explosion-proof pneumatic solenoid valve engineered by CKD Corporation, a globally recognized leader in fluid control technology. Operating on a 24V DC coil, this 5-port, 2-position directional control valve is designed to manage compressed air and inert gas circuits with exceptional precision and safety. Its explosion-proof construction makes it the ideal choice for hazardous industrial environments where volatile atmospheres demand intrinsically safe and robust components. The valve serves as a critical control element in automated pneumatic systems, providing reliable directional control for double-acting cylinders and other pneumatic actuators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Explosion-Proof Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 4F310E-TP-DC24V-CN |
| Operating Pressure | 0.2 – 0.8 MPa (Standard Industrial Grade) |
| Mounting & Connection | Manifold / Sub-base Mounted, Standard ISO Interface |
| Coil Voltage | 24V DC |
| Valve Function | 5-Port, 2-Position (5/2) |
| Protection Class | Explosion-Proof Certified (Hazardous Location Rated) |
Engineering Features & Advantages
- Precision Performance: The 5/2 spool configuration ensures rapid and accurate directional control of pneumatic actuators, minimizing response time and maximizing cycle efficiency in automated processes.
- Explosion-Proof Safety: Specifically engineered for hazardous environments, the valve housing and coil assembly prevent internal sparks from igniting external volatile gases or dust, ensuring operational safety in chemical and petrochemical applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the 4F310E series offers exceptional durability with high cycle life and resistance to contamination in compressed air lines.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards, ensuring seamless integration into existing pneumatic manifolds and control panels.
Typical Industrial Applications
This explosion-proof solenoid valve is ideally suited for critical pneumatic control in hazardous or demanding environments, including: chemical processing plants and refineries where volatile vapors are present; paint and coating manufacturing facilities requiring intrinsic safety; oil and gas extraction equipment; and heavy-duty automation systems in metallurgical and automotive manufacturing lines.
PRODUCT IMAGES

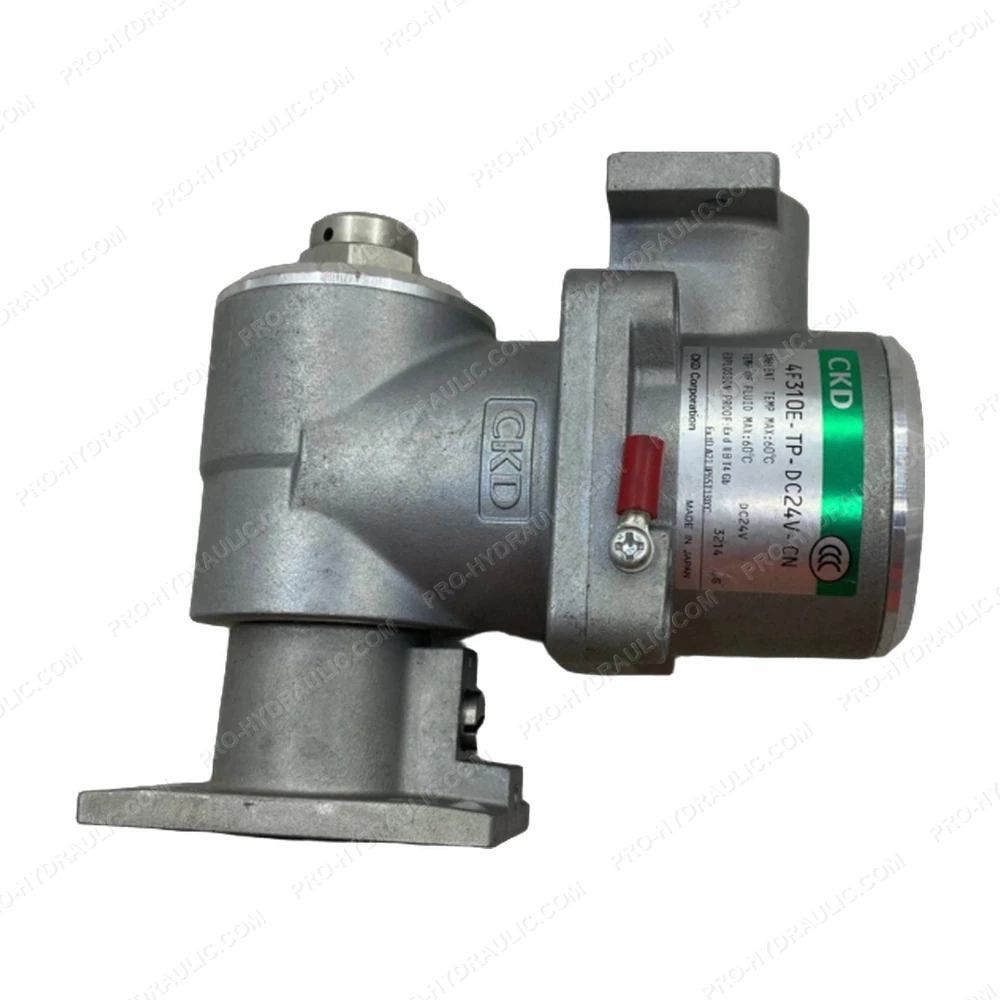

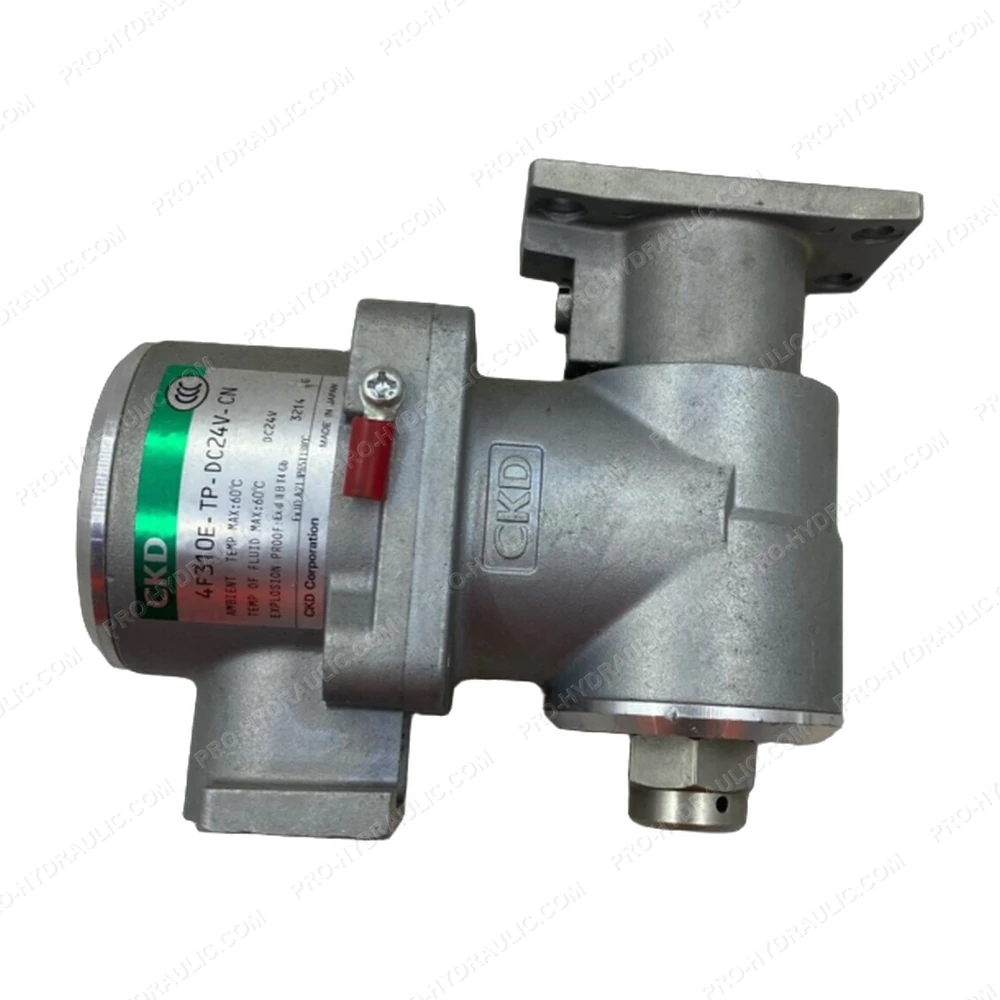

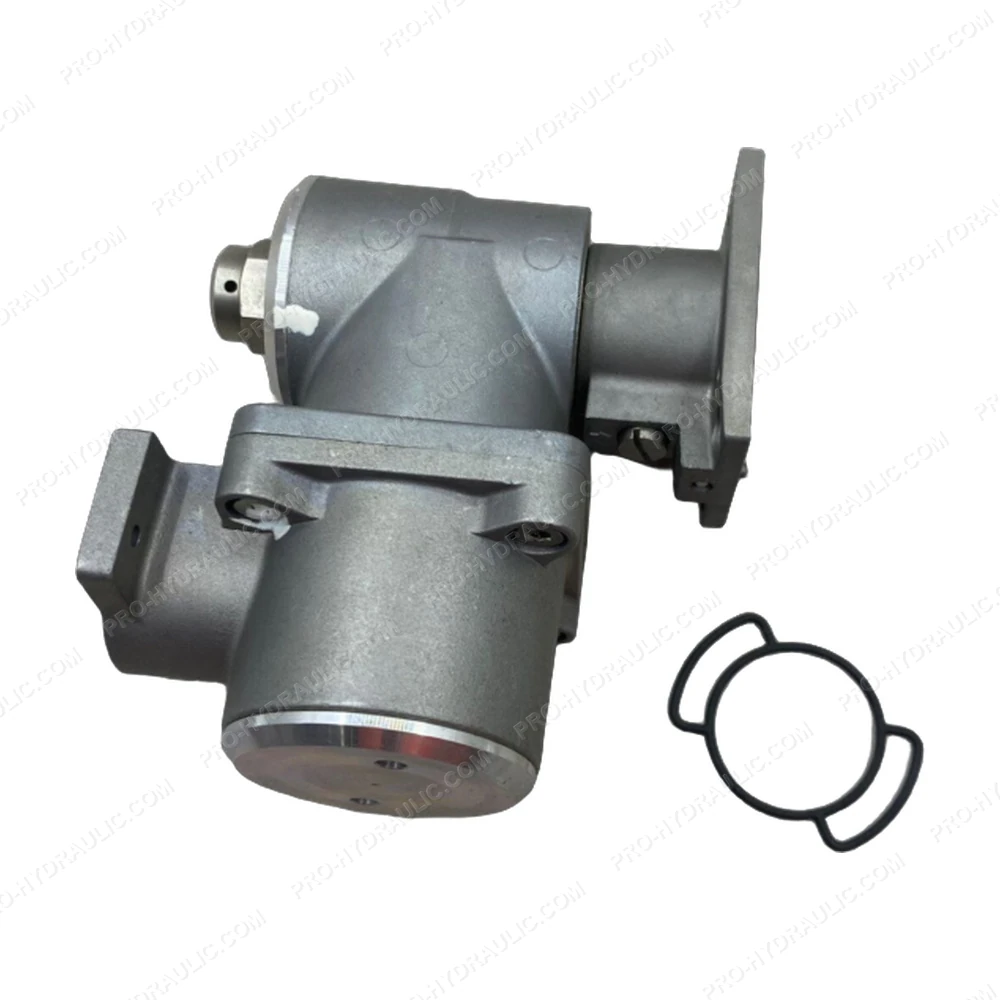

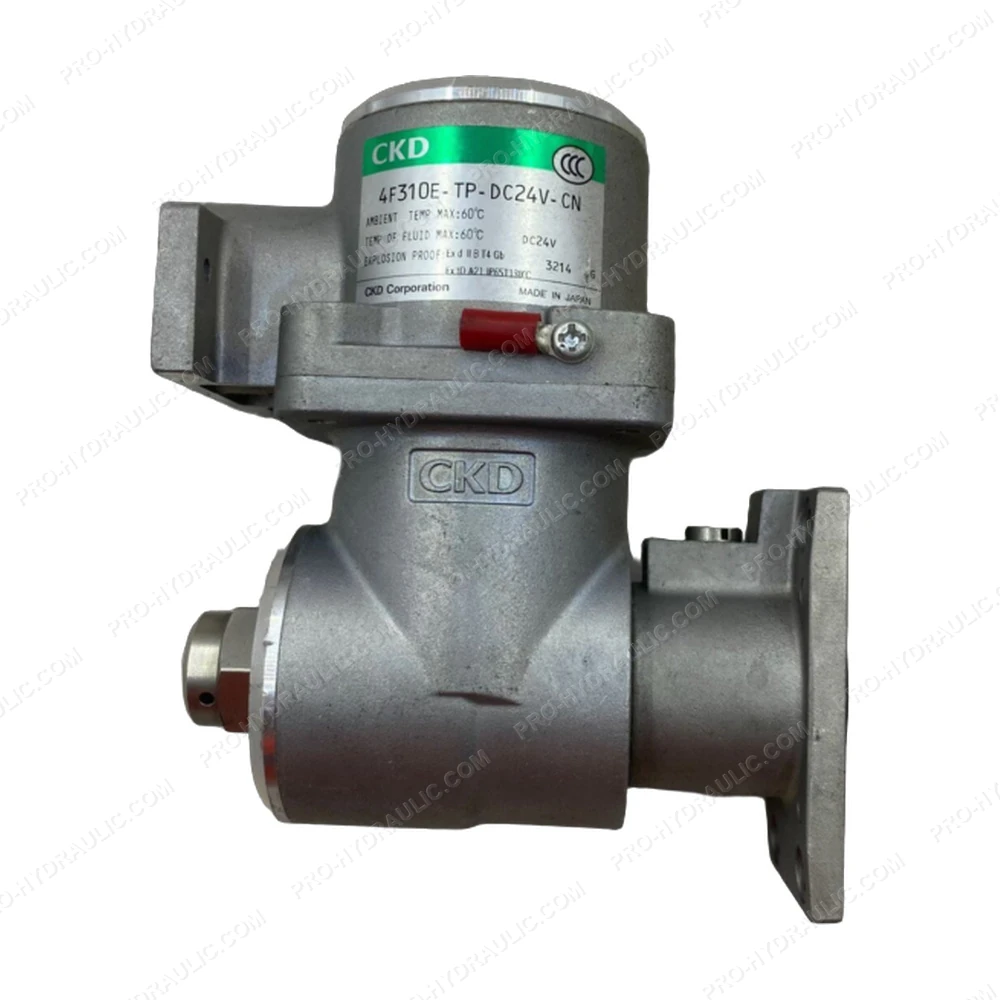

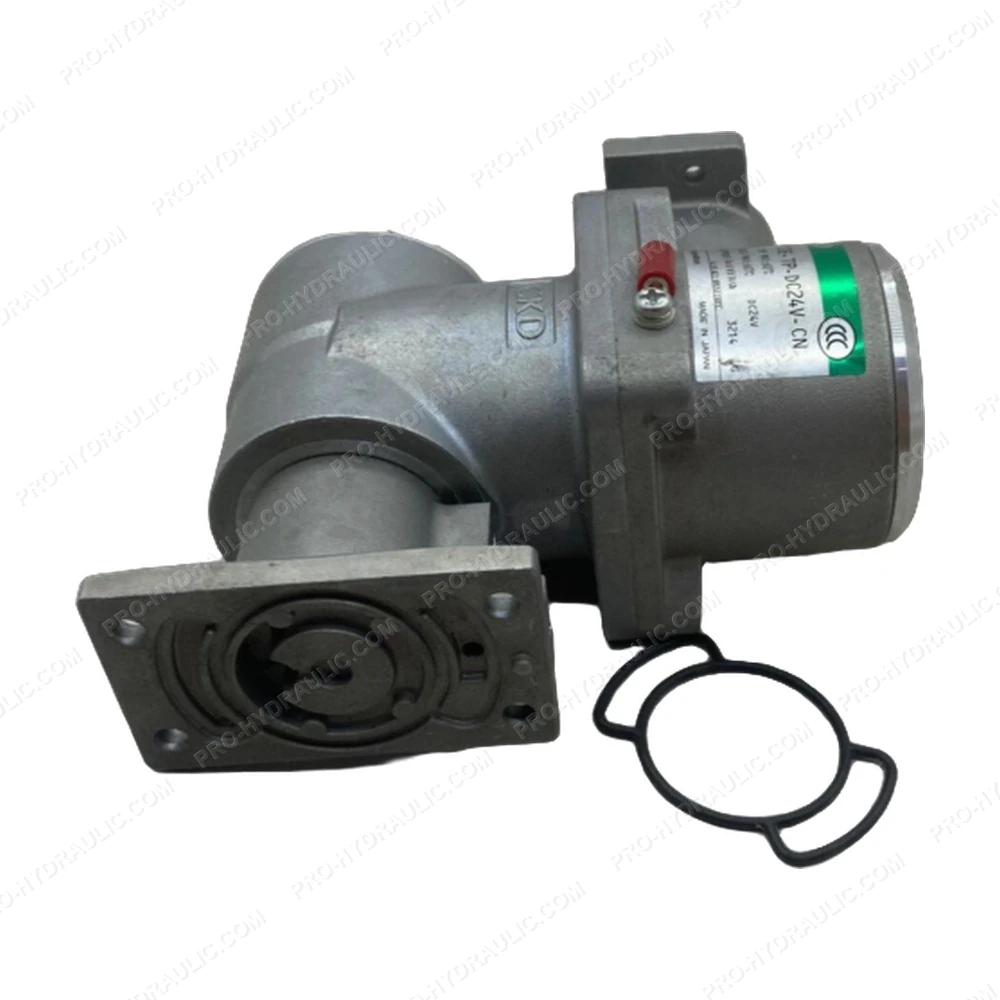

CKD 4F310E-TP-DC24V-CN Explosion-Proof Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD 4F310E-TP-DC24V-CN Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
