Product Overview
The CKD 4F620E-15-TP is a robust, explosion-proof pneumatic solenoid valve engineered for precise directional control of compressed air and inert gases in demanding industrial environments. Manufactured by CKD Corporation, a global leader in fluid control technology, this 5-port, 2-position (5/2) valve utilizes a spool-and-sleeve actuation mechanism driven by a solenoid pilot. Its explosion-proof coil housing (designated by the “E” suffix) is designed to contain internal arcs or sparks, preventing ignition of surrounding flammable atmospheres. This valve serves as a critical pilot or main control element in automated pneumatic circuits, offering high flow capacity and reliable shifting for actuators, cylinders, and air-operated process equipment.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Explosion-Proof) |
| Model Designation | 4F620E-15-TP |
| Valve Function | 5/2 Way, 2-Position, Single Solenoid |
| Operating Pressure | 0.2 – 0.8 MPa (2 – 8 bar) standard pneumatic range |
| Port Size | 1/4″ (Rc/NPT) – indicated by “15” in model code |
| Mounting & Connection | Sub-base / Manifold Mounting, ISO 5599-1 interface compatible |
| Explosion-Proof Rating | Ex d / Flameproof enclosure (ATEX / IECEx compliant) |
| Coil Voltage | Standard AC/DC options (e.g., 24 VDC, 110 VAC, 220 VAC) |
| Seal Material | NBR (Nitrile) / FKM (Viton) for chemical resistance |
Engineering Features & Advantages
- Precision Performance: Balanced spool design ensures rapid, consistent shifting with minimal pressure drop, enabling precise actuator control and high cycle rates.
- Explosion-Proof Construction: The “E” series coil housing is engineered to contain internal explosions and prevent flame propagation, certified for use in hazardous zones (gas groups IIA, IIB, IIC).
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable anodized aluminum body and hardened spool for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD 4F series and ISO 5599-1 sub-base standards, ensuring drop-in interchangeability.
- Direct Fit Replacement: Precision-manufactured to original CKD specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The CKD 4F620E-15-TP is a robust, explosion-proof pneumatic solenoid valve engineered for precise directional control of compressed air and inert gases in demanding industrial environments.
PRODUCT IMAGES

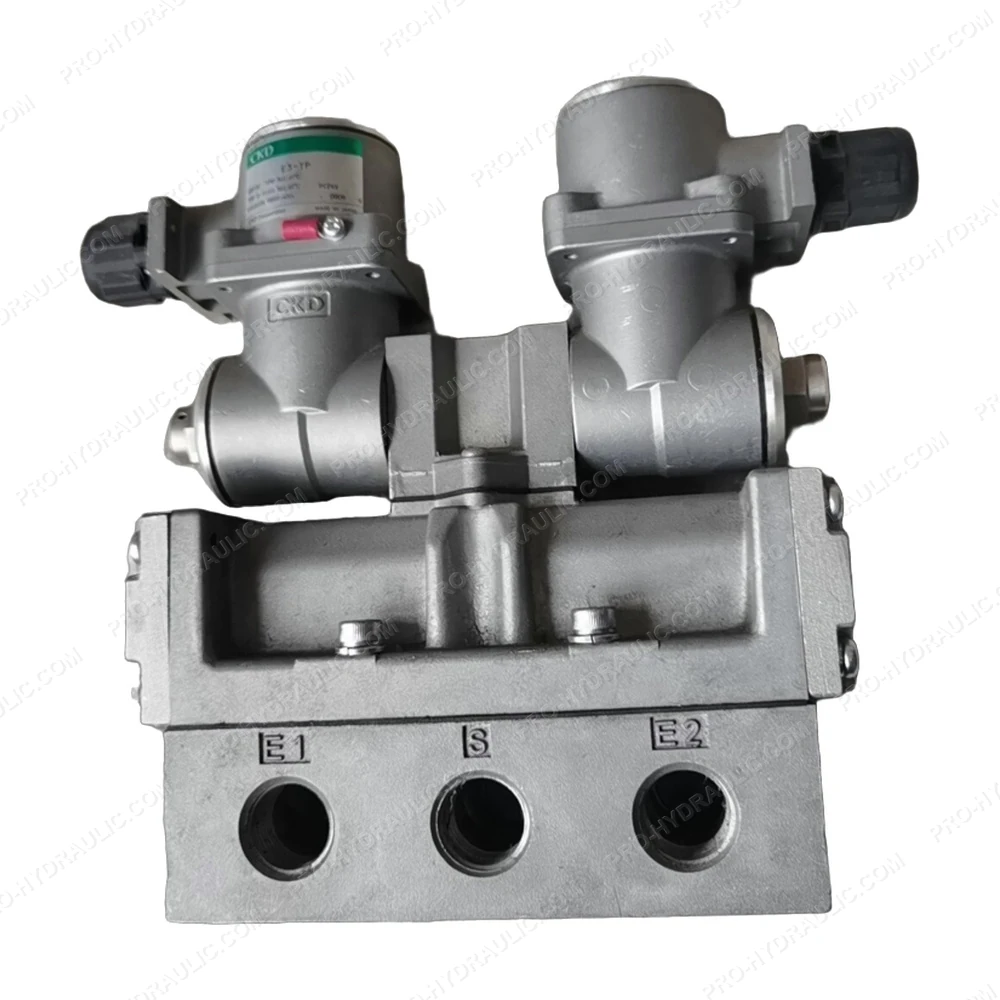

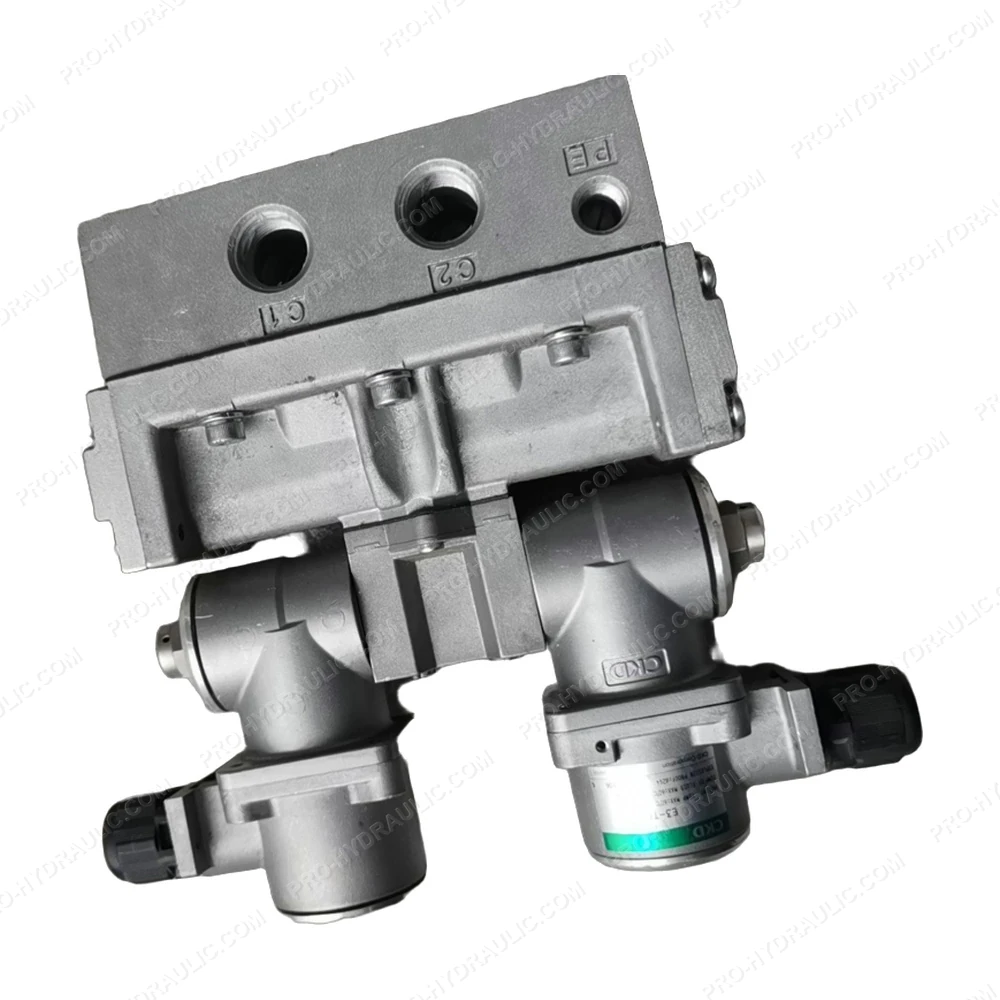

CKD 4F620E-15-TP Explosion-Proof Pneumatic Solenoid Valve
