Product Overview
The CKD ADK11-20A-02E-DC24V is a pilot operated 2-port solenoid valve engineered by CKD Corporation for precise on/off control of neutral gases and liquids in industrial process and pneumatic circuits. Utilizing a two-position, normally closed (energized-to-open) pilot architecture, the valve employs a small solenoid-driven pilot stage to actuate the main valve element, allowing reliable sealing and high flow capacity with minimal electrical power consumption. The 24V DC coil delivers fast, repeatable actuation, making this valve a dependable choice for automated fluid control, air preparation lines, and general process media handling where leak-tight shutoff and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated 2-Port Solenoid Valve (Process & Pneumatic Valve) |
| Model Designation | ADK11-20A-02E-DC24V |
| Manufacturer | CKD Corporation |
| Valve Configuration | 2-Port, 2-Position, Normally Closed (N.C.) |
| Actuation Principle | Pilot Operated (Diaphragm / Piston Pilot Stage) |
| Coil Voltage | 24V DC |
| Port Size | 02 (1/4″ Standard Port Connection) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, pilot dependent) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Pilot Actuation: The pilot operated design enables reliable opening and closing of the main valve element with low power input, ensuring consistent response and tight shutoff across the rated pressure range.
- Fast 24V DC Response: The DC solenoid coil provides rapid, repeatable energization and de-energization, ideal for automated process control and high-cycle industrial duty.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing and durable internal components that resist wear and media contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The CKD ADK11-20A-02E-DC24V is widely deployed in pneumatic and process fluid control systems, including air preparation and compressed air distribution lines, automated packaging and assembly machinery, general industrial process media shutoff, and OEM equipment requiring reliable 2-port solenoid isolation. Its pilot operated 2-port design makes
PRODUCT IMAGES

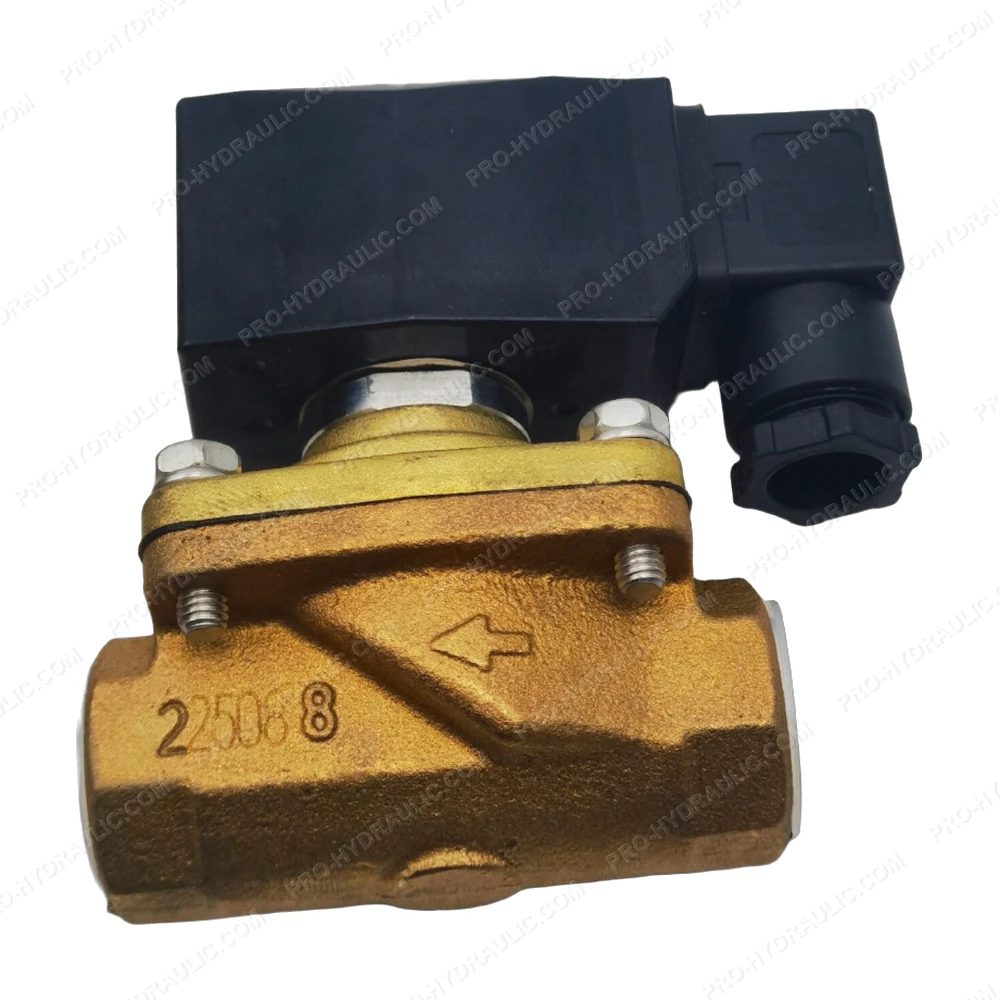

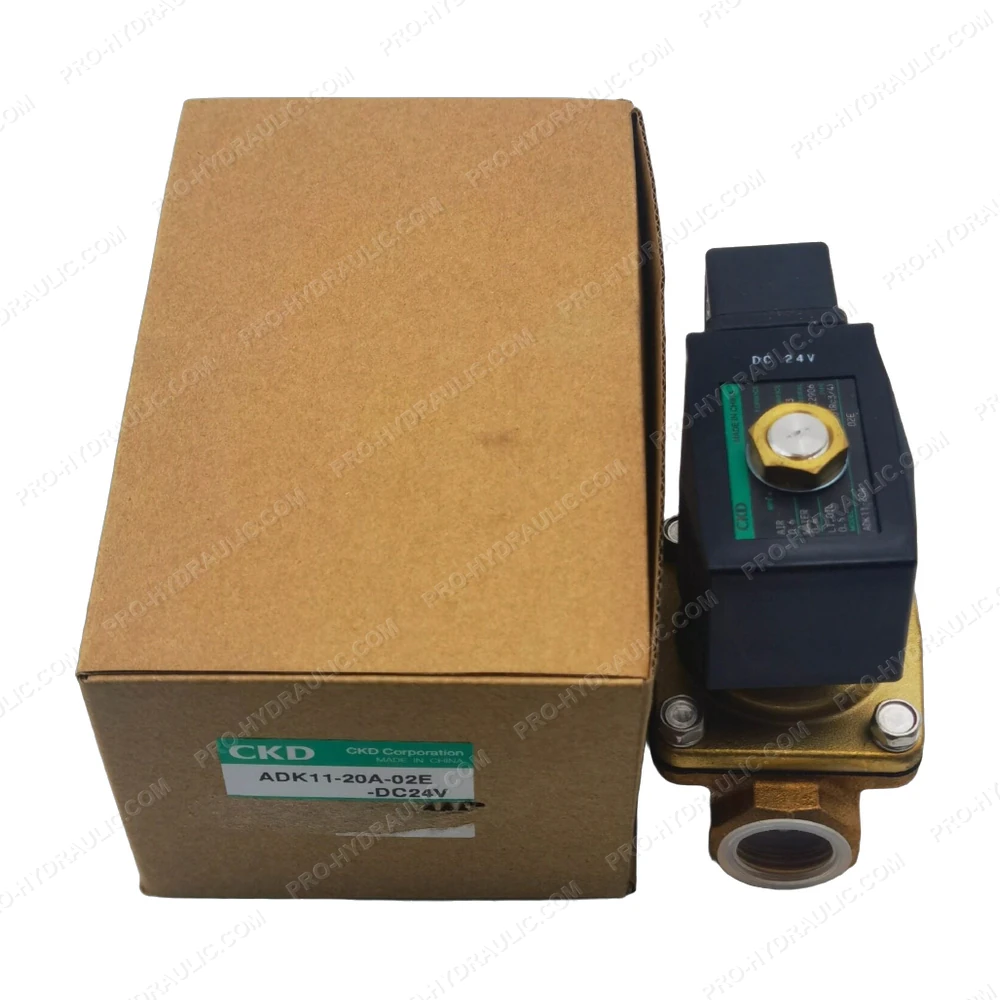

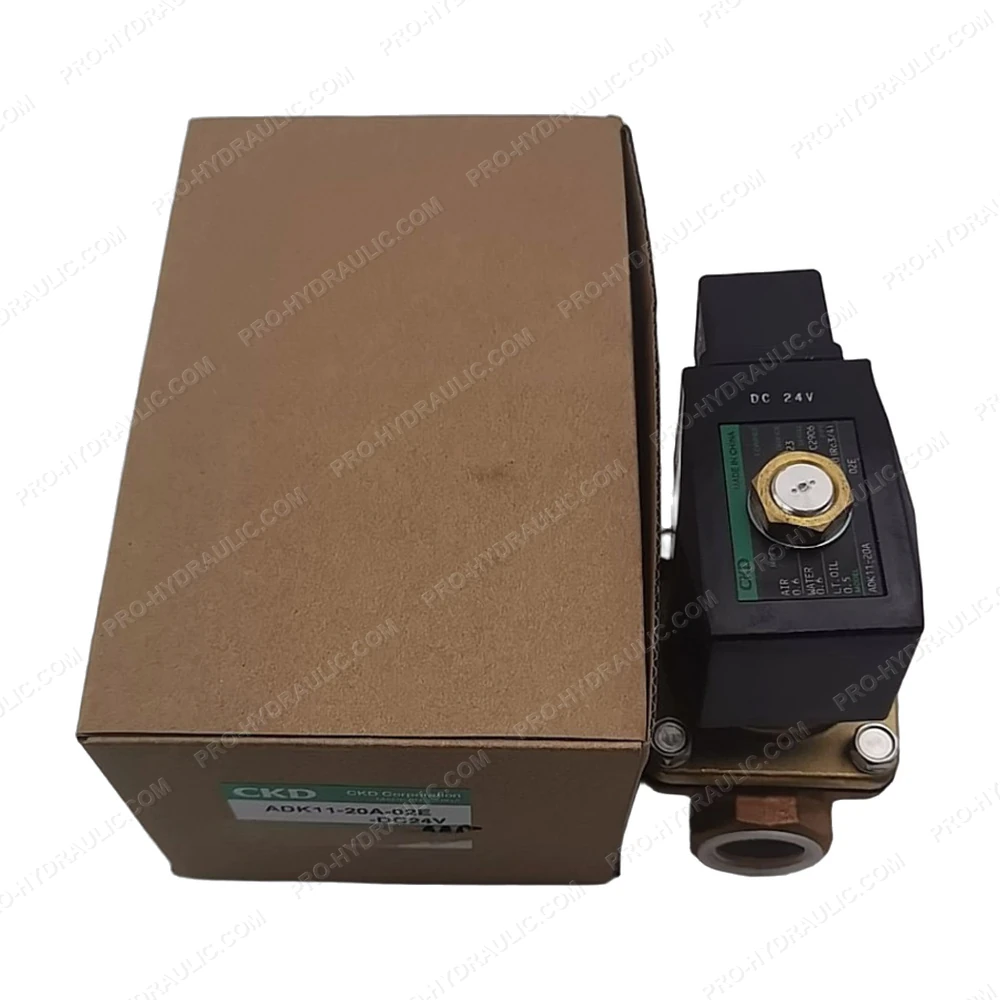

CKD ADK11-20A-02E-DC24V Pilot Operated 2-Port Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD ADK11-20A-02E-DC24V Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
