The CKD AMD01-8BUS4US-4-1 is a heavy-duty industrial pneumatic valve engineered for precise directional control of compressed air in automated process systems. It features a robust spool-and-sleeve design with a wet-pin armature and solenoid pilot actuation, ensuring rapid response and long service life under continuous duty cycles.
CKD AMD01-8BUS4US-4-1 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 5/2-way solenoid directional valve |
| Actuation | Electrical solenoid, wet-pin armature |
| Mounting Standard | CETOP / ISO 5599-1, size 1 |
| Port Size | 1/4″ (G or NPT) |
| Operating Pressure | 0.15 to 1.0 MPa (1.5 to 10 bar) |
| Coil Voltage | 24 VDC (standard), other voltages available |
| Flow Rate | Up to 1200 l/min (ANR) |
| Media | Filtered compressed air, non-lubricated or lubricated |
| Body Material | Aluminum alloy, anodized |
| Seal Material | NBR (nitrile rubber) |
| Temperature Range | -10°C to +60°C (ambient and media) |
Key Engineering Features
- Wet-pin solenoid armature design for high switching frequency and extended coil life
- CETOP/ISO 5599-1 mounting interface enables direct drop-in replacement and manifold integration
- Precision-ground spool and sleeve assembly ensures minimal leakage and consistent shift response
- Manual override (non-locking) standard for commissioning and emergency operation
- Compact aluminum body with anodized finish for corrosion resistance in industrial environments
- Electrical connection via DIN 43650 plug or flying leads, depending on configuration
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation of cylinders and rotary actuators
- Process control in food, beverage, and pharmaceutical lines
- Material handling and sorting systems
- Machine tool and CNC equipment air circuits
- General factory automation and robotics end-effectors
For technical inquiries, dimensional drawings, or replacement support for CKD AMD01-8BUS4US-4-1, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

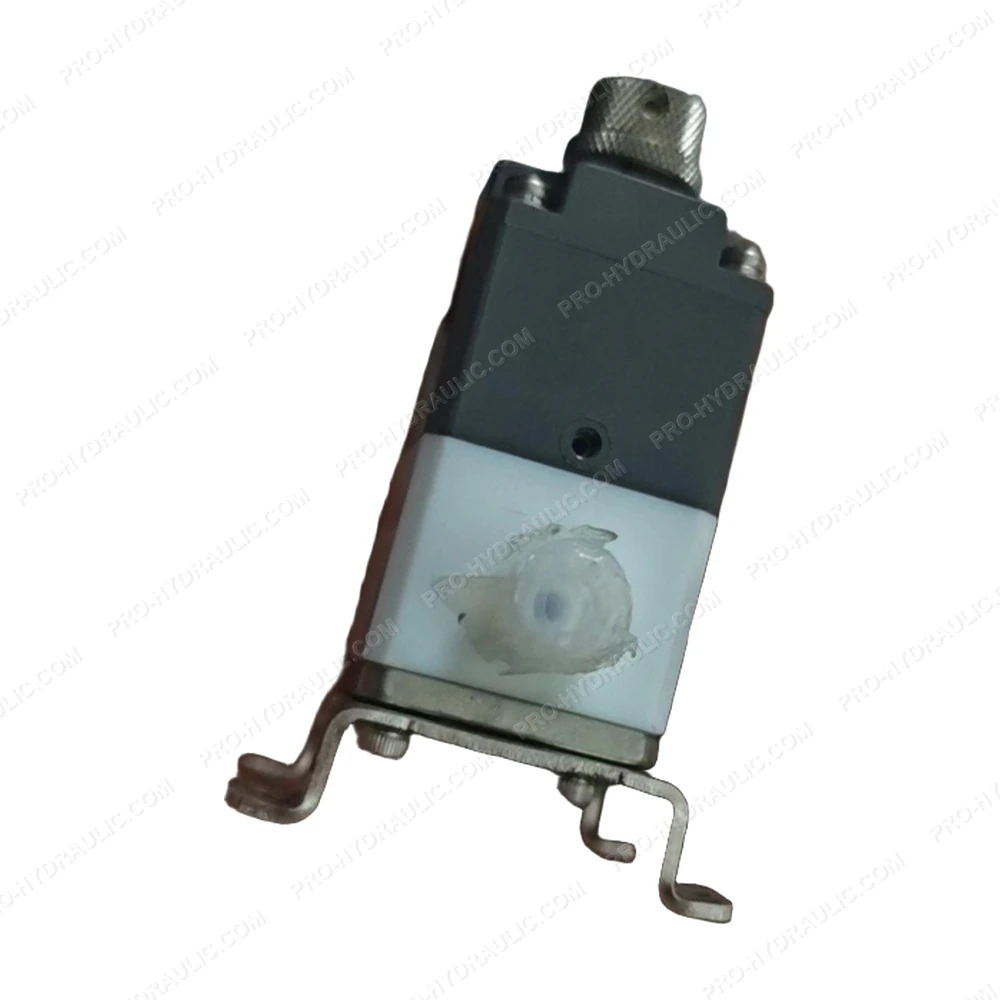

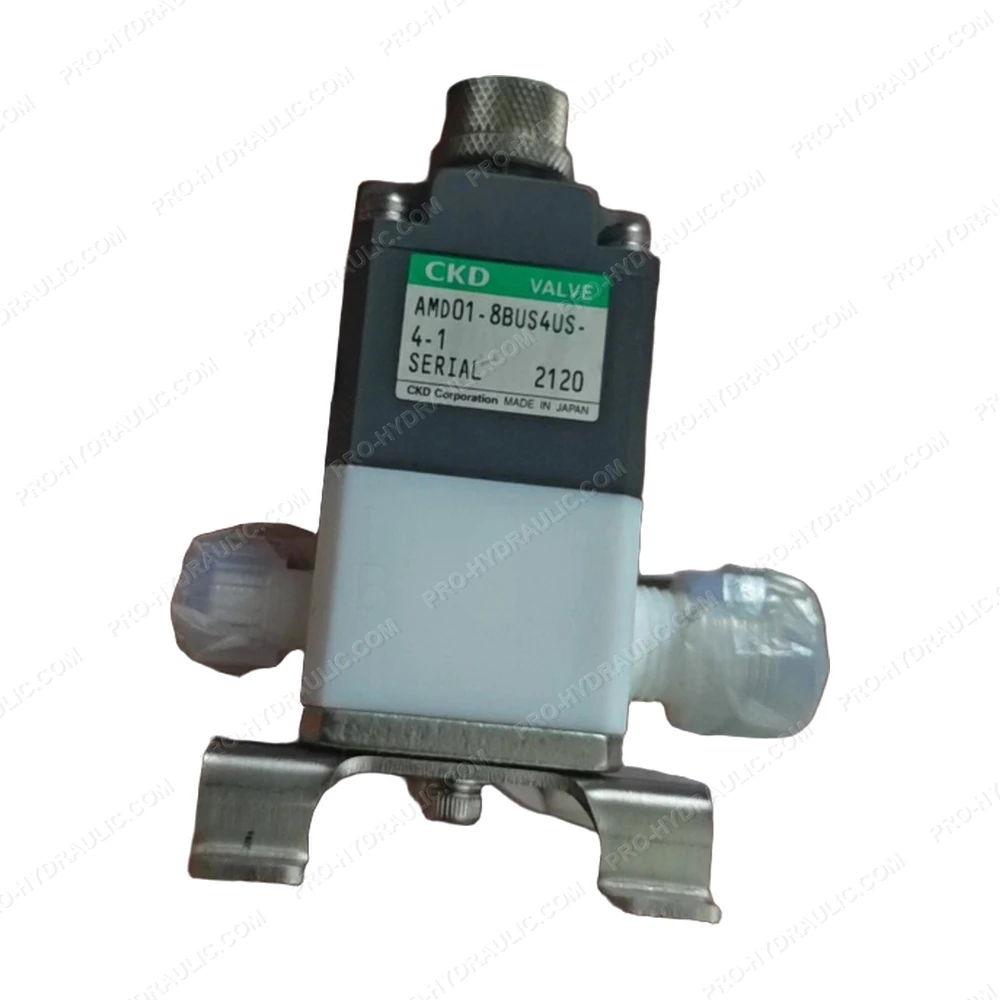

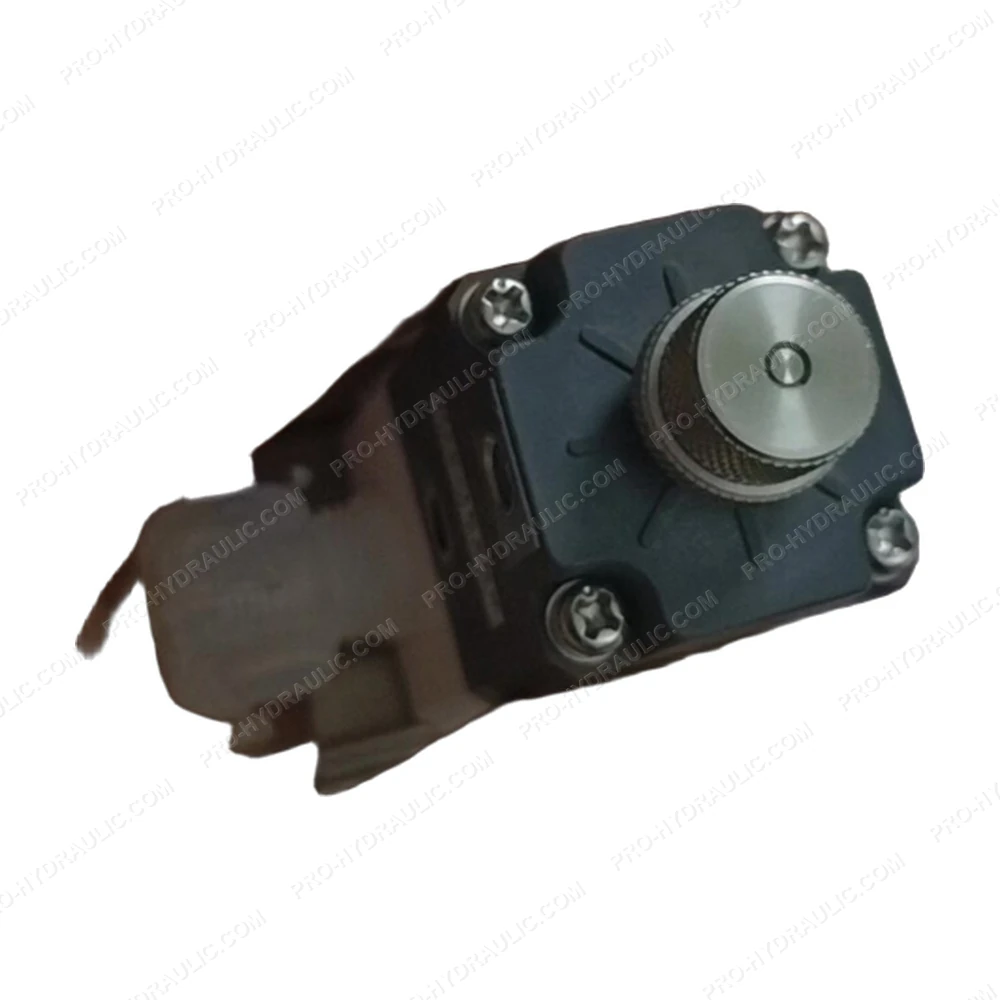

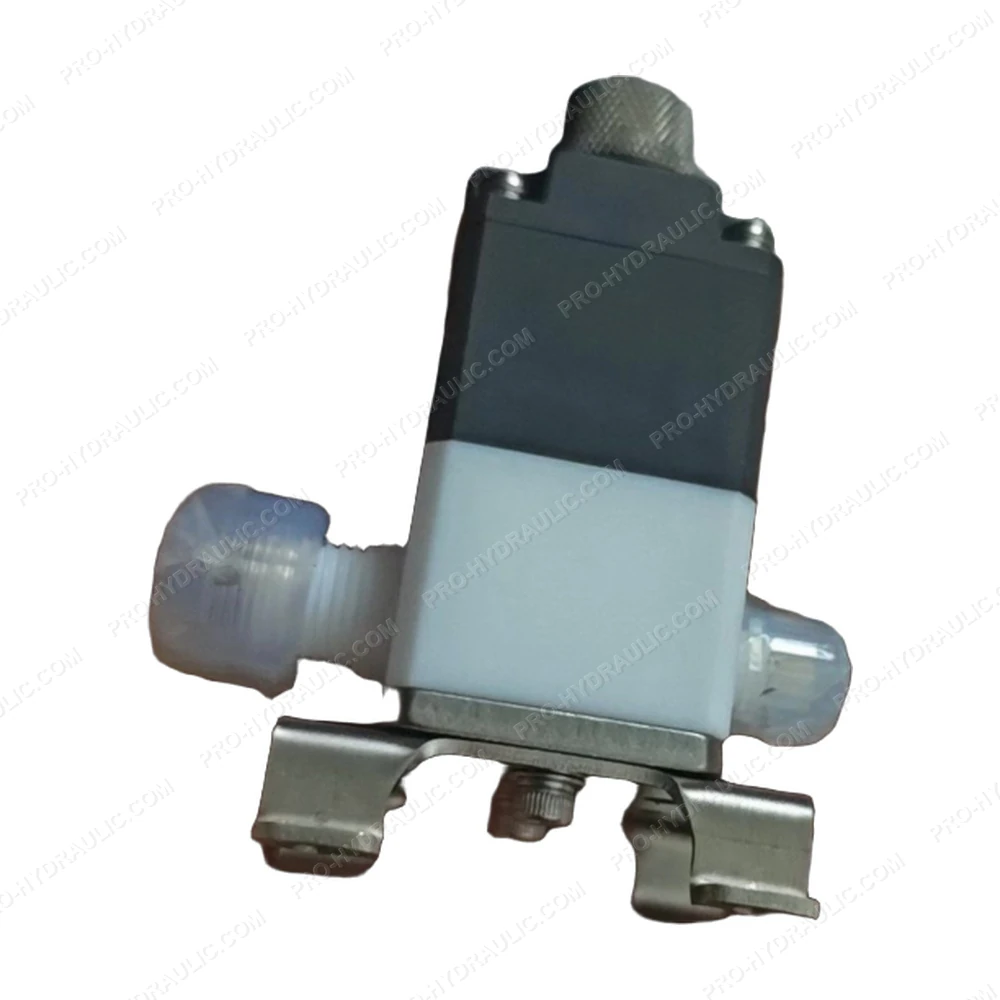

CKD AMD01-8BUS4US-4-1 Pneumatic Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the CKD AMD01-8BUS4US-4-1 Pneumatic Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
