Product Overview
The CKD AMD01-X1289 is a pneumatically actuated (air-operated) chemical liquid valve engineered for precise, contamination-free control of aggressive and high-purity process media. Manufactured by CKD Corporation, a globally recognized leader in fluid control technology, this valve utilizes an air-driven piston actuator to open and close a chemically inert valve body, delivering reliable on/off and directional control of chemical liquids within industrial process lines. Unlike hydraulic pumps, the AMD01-X1289 performs no fluid displacement or pressure generation; its sole function is the controlled routing, isolation, and shut-off of process fluid. The valve is purpose-built for integration into automated chemical delivery, dosing, and circulation systems where leak-tight sealing, chemical compatibility, and rapid actuation response are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valves > Process & Pneumatic Valves > General Process & Pneumatic Valves |
| Model Designation | AMD01-X1289 |
| Actuation Method | Air Operated (Pneumatic Piston Actuator) |
| Valve Function | On/Off & Directional Control of Chemical Liquids |
| Operating Pressure | Standard Industrial Grade (Up to rated process bar) |
| Pilot Air Pressure | Standard Pneumatic Supply Range (approx. 0.3–0.7 MPa) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Body & Seal Material | Chemical-Resistant Construction (PTFE / PFA / Corrosion-Resistant Alloy) |
Engineering Features & Advantages
- Precision Performance: The air-operated piston actuator delivers fast, repeatable open/close response with consistent sealing force, ensuring accurate metering and isolation of chemical liquids without drift or leakage.
- Chemical Compatibility: Wetted components are constructed from chemically inert materials, allowing safe handling of corrosive, high-purity, and reactive process fluids.
- Leak-Tight Sealing: Advanced seat and diaphragm sealing geometry prevents cross-contamination and media loss, protecting both process integrity and the surrounding environment.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust actuator and valve body designed to withstand demanding duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, enabling straightforward drop-in replacement and simplified maintenance.
Typical Industrial Applications
The CKD AMD01-X1289 air-operated chemical liquid valve is deployed across a wide range of heavy industrial and process environments, including: chemical dosing and delivery systems in semiconductor and electronics manufacturing; process fluid control in plastic injection molding and industrial cleaning lines; reagent and coolant routing in metallurgical and surface treatment plants; and automated chemical circulation and isolation circuits
PRODUCT IMAGES

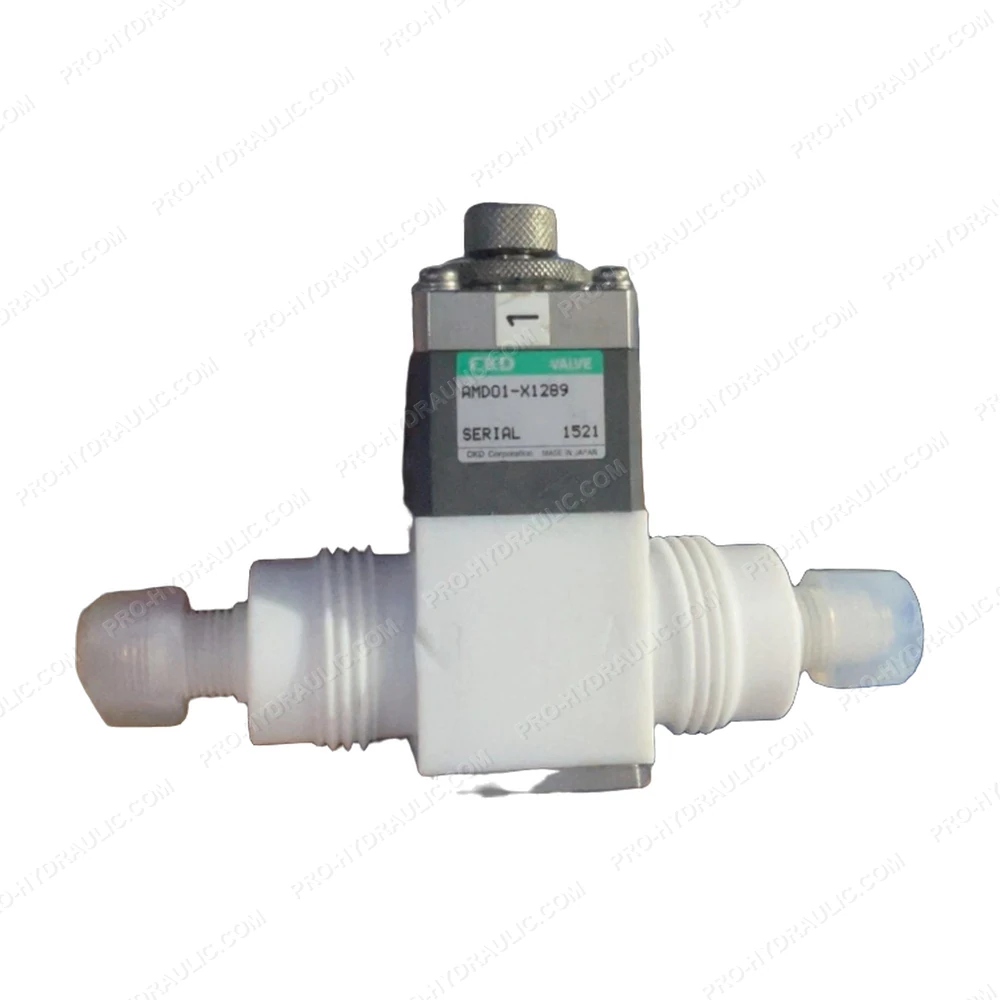

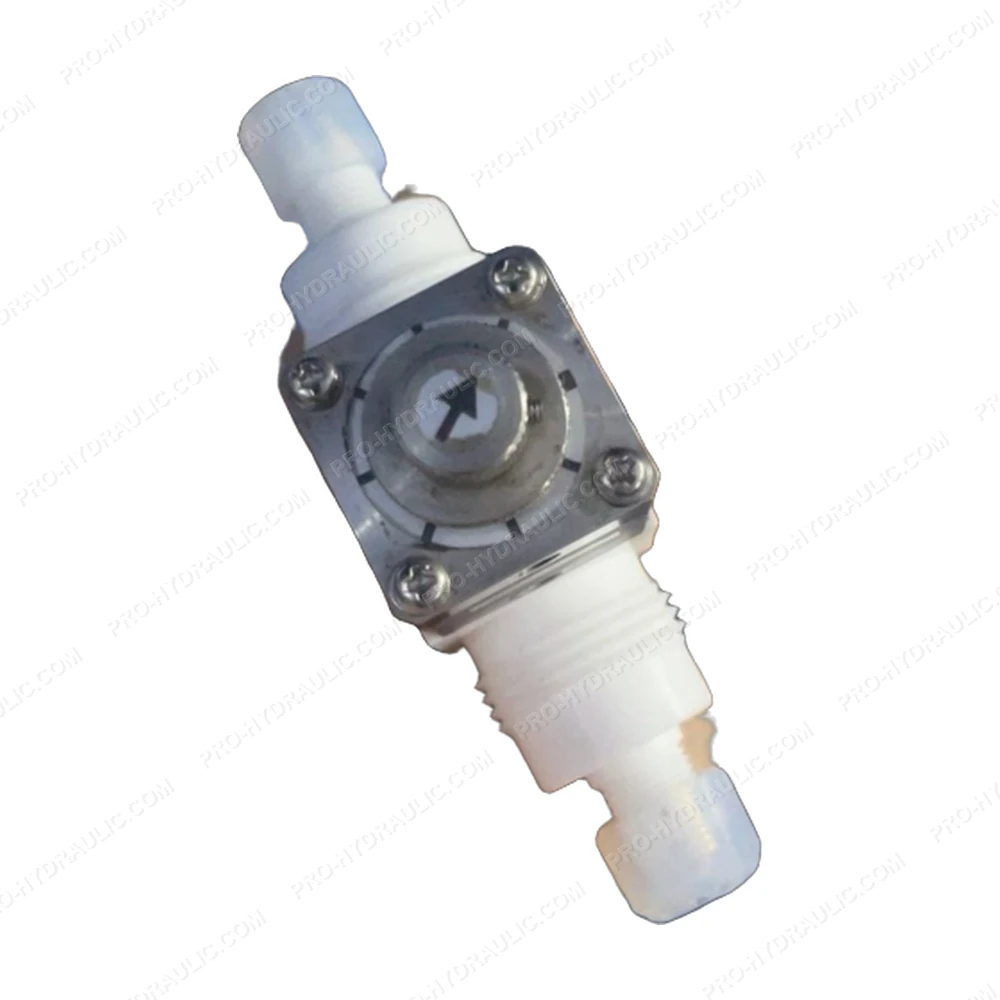

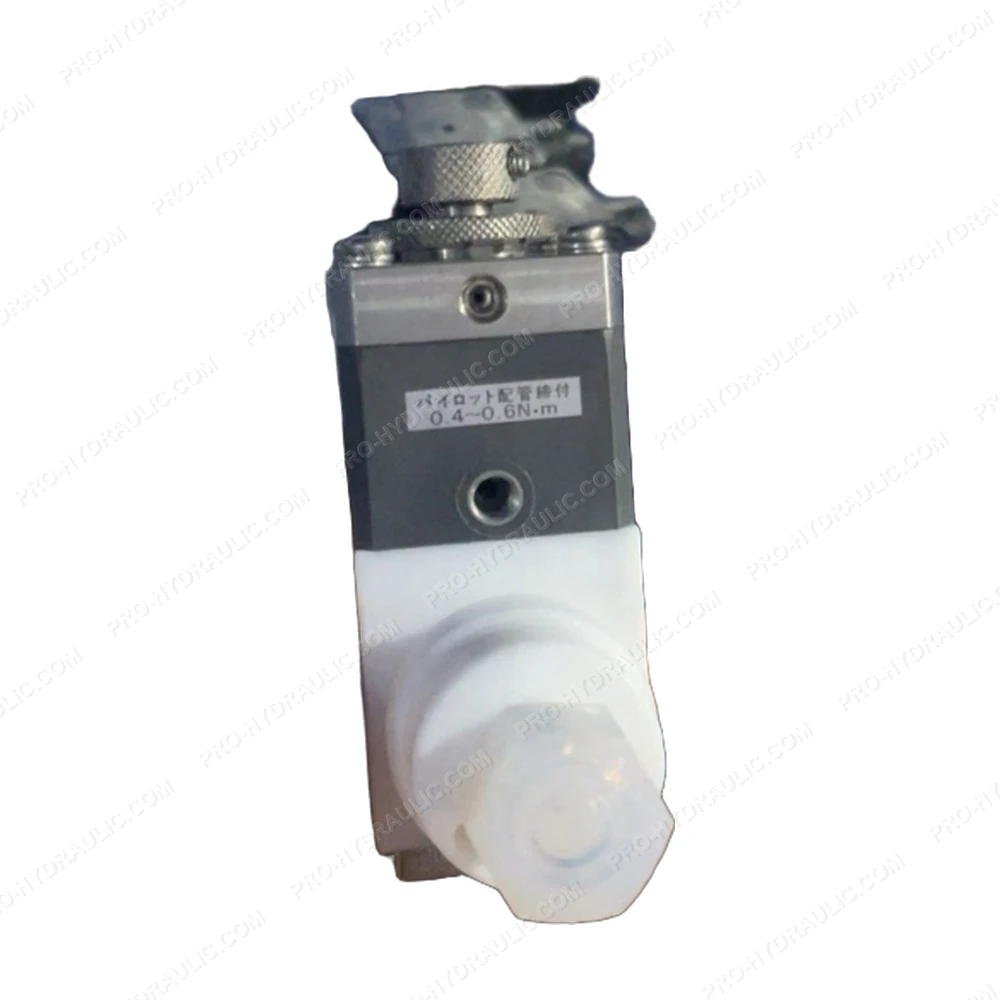

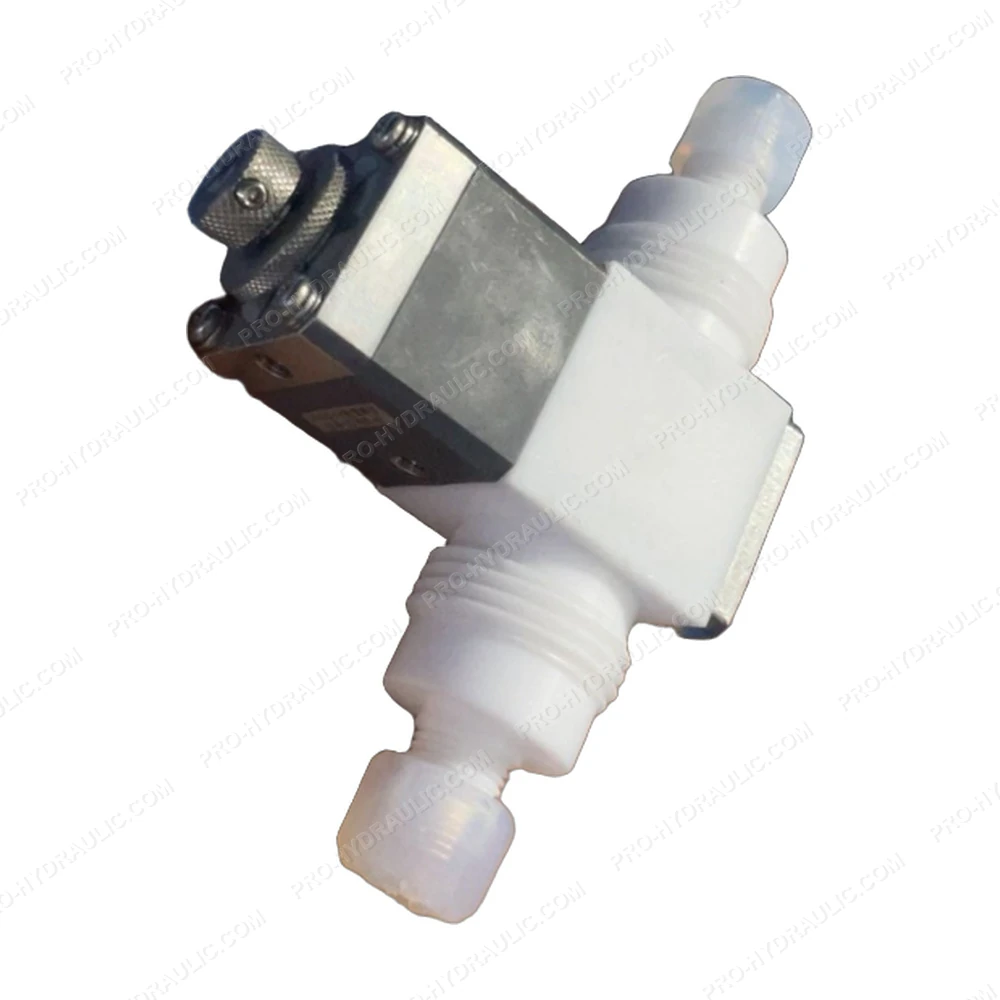

CKD AMD01-X1289 Air Operated Chemical Liquid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD AMD01-X1289 Solenoid Directional Control Valve. This Japan-made 24 VDC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
