Product Overview
The CKD AMD01-X55S is a precision-engineered chemical liquid valve manufactured by CKD Corporation, a globally recognized leader in fluid control technology. Designed for the safe and accurate handling of aggressive chemical media, this valve operates as a direct-acting, normally closed (N.C.) process valve suitable for high-purity and corrosive fluid applications. Its wetted components are constructed from chemical-resistant fluoropolymer and high-grade stainless steel materials, ensuring long-term durability and media compatibility in demanding industrial environments. The AMD01-X55S is specifically configured for integration into automated chemical delivery systems, offering reliable shut-off and flow control for acids, bases, solvents, and other reactive liquid chemistries.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Chemical Liquid Valve (Process & Pneumatic Valve) |
| Model Designation | AMD01-X55S |
| Manufacturer | CKD Corporation |
| Valve Type | Direct-acting, Normally Closed (N.C.) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Wetted Materials | Chemical-resistant fluoropolymer (PTFE/PFA) and stainless steel |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Seal Material | PTFE / PFA diaphragm seal |
| Actuation | Pneumatic / Solenoid pilot |
Engineering Features & Advantages
- Precision Performance: Direct-acting valve mechanism ensures rapid and repeatable response for accurate chemical dosing and shut-off, minimizing dead volume and fluid retention.
- Chemical Compatibility: Fluoropolymer wetted path and PTFE/PFA diaphragm construction provide excellent resistance to aggressive acids, bases, and solvents, preventing contamination and extending service life.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust body design that withstands thermal cycling and vibration in automated process lines.
- Leak-Tight Sealing: Diaphragm isolation design eliminates packing and stem leakage paths, ensuring zero external leakage and maintaining system purity.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The CKD AMD01-X55S chemical liquid valve is widely deployed in semiconductor wet-process equipment for precise chemical delivery, in chemical processing plants for reagent dosing and transfer lines, in pharmaceutical manufacturing for high-purity fluid handling, and in analytical laboratory systems requiring contamination-free valve operation. Its chemical-resistant construction and reliable pneumatic actuation make it
PRODUCT IMAGES

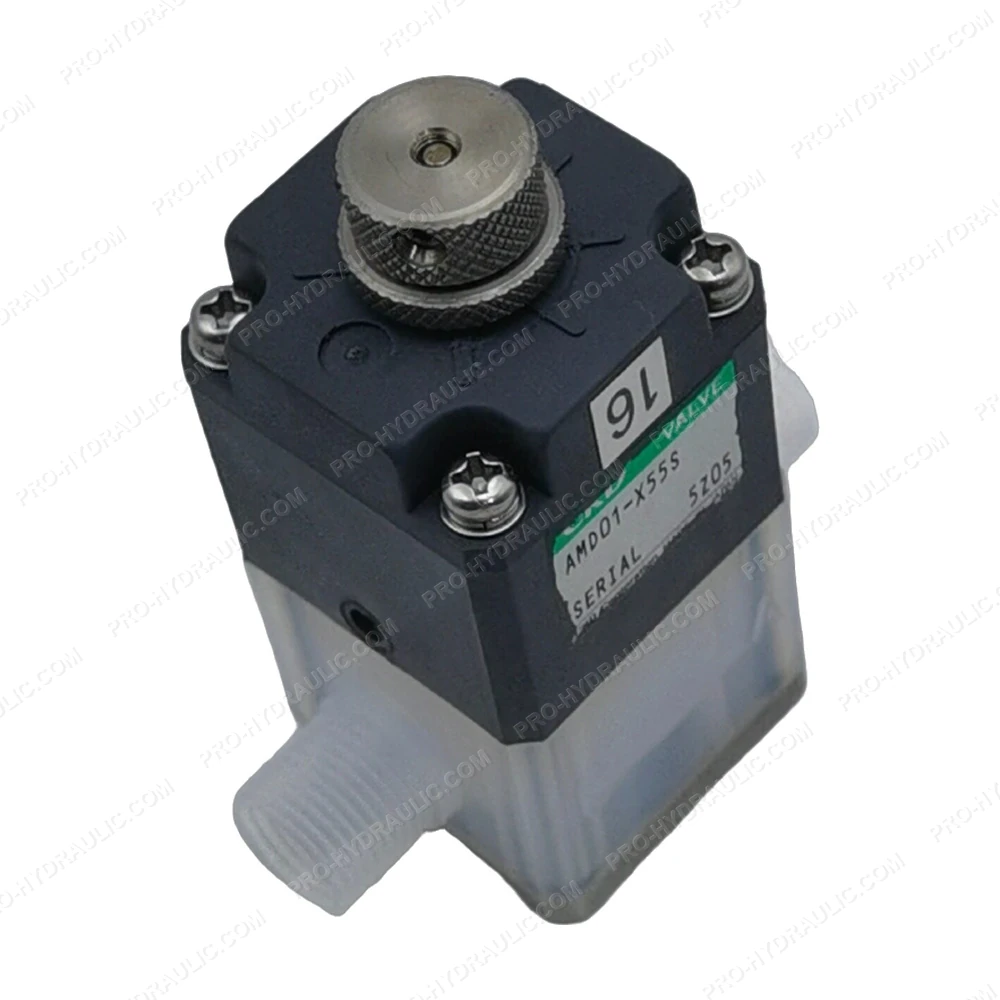

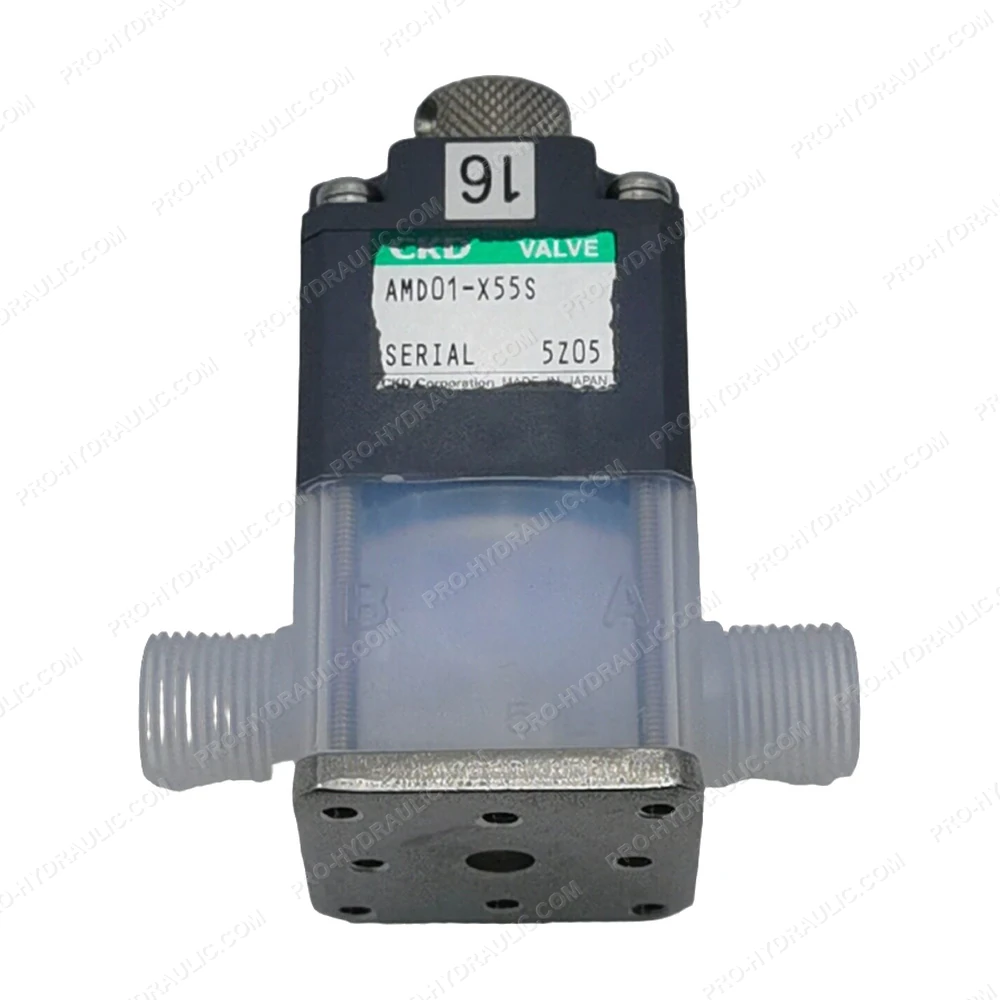

CKD AMD01-X55S Chemical Liquid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD AMD01-X55S Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
