Product Overview
The CKD AMD512-X0087 is a pneumatically actuated chemical liquid valve engineered for precise, leak-free control of aggressive and high-purity media in industrial fluid handling systems. Manufactured by CKD Corporation, a globally recognized leader in fluid control technology, this air-operated valve utilizes a compressed-air pilot signal to actuate a diaphragm or piston-driven sealing mechanism, isolating the process fluid from the actuator assembly. Its design is optimized for chemical compatibility, corrosion resistance, and repeatable shut-off performance, making it a critical component in automated process lines where contamination control and operational safety are paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Air Operated Chemical Liquid Valve (Process & Pneumatic Valve) |
| Model Designation | AMD512-X0087 |
| Operating Pressure | Standard Industrial Grade (Up to rated bar; consult factory for specific pressure rating) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (CKD proprietary port configuration) |
| Actuation Type | Air Operated (Pneumatic Pilot) |
| Body Material | Corrosion-Resistant Alloy / Engineered Polymer (Chemical Service Rated) |
| Seal Material | PTFE / FKM / EPDM (Media-Dependent Selection) |
Engineering Features & Advantages
- Precision Performance: The air-operated pilot mechanism delivers fast, repeatable actuation with minimal air consumption, ensuring precise flow control and tight shut-off for chemical liquid dosing and transfer applications.
- Chemical Compatibility: Wetted components are constructed from materials specifically selected for resistance to aggressive chemicals, solvents, and corrosive media, extending service life and maintaining fluid purity.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust actuator housing and diaphragm/piston seal design that minimizes wear and maintenance downtime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards, ensuring drop-in replacement without modification to existing piping or control systems.
- Leak-Free Sealing: Advanced seat and seal geometry provides bubble-tight closure, preventing cross-contamination and product loss in critical process lines.
Typical Industrial Applications
This valve is ideally suited for chemical dosing and transfer systems in semiconductor wet processing, pharmaceutical and biotech fluid handling, water treatment and wastewater management, and automated chemical blending and dispensing lines. It is also commonly deployed in food and beverage processing where sanitary and corrosion-resistant fluid control is required, as well as in laboratory and pilot-scale process rigs demanding precise, repeatable pneumatic actuation.
PRODUCT IMAGES

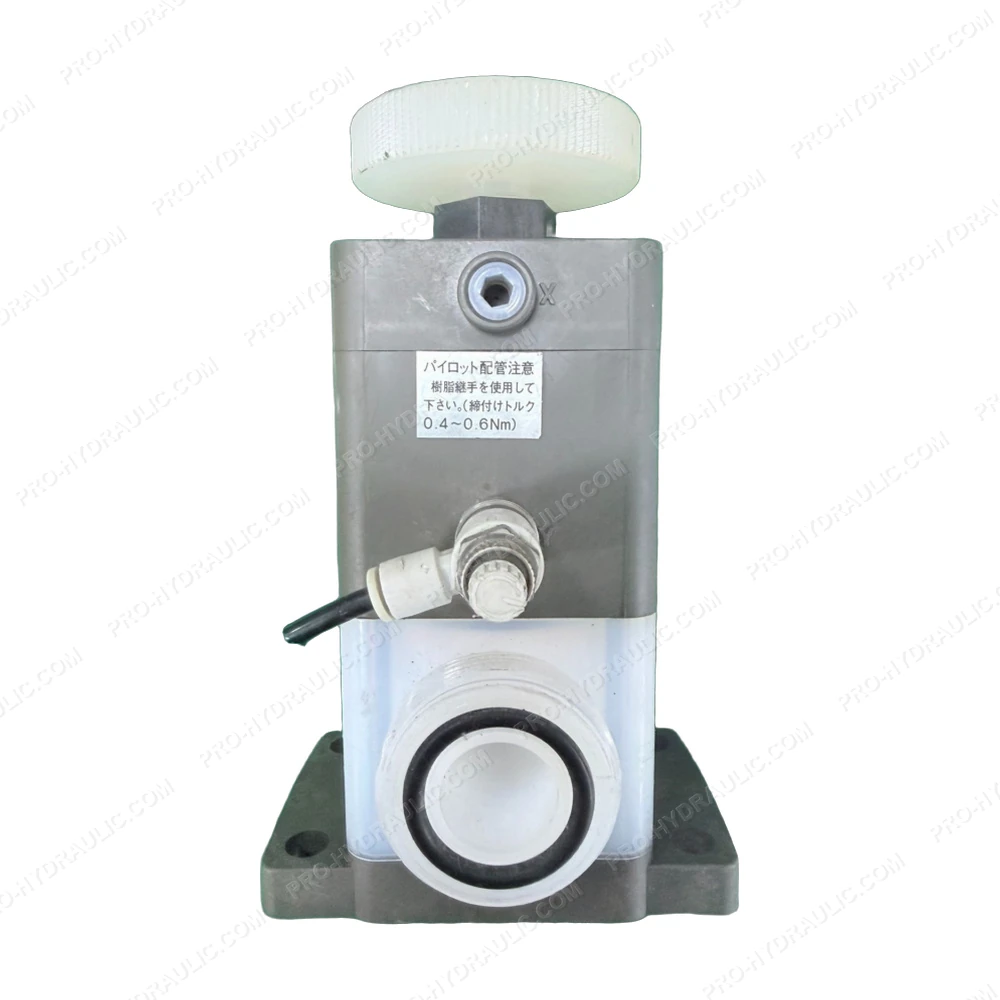

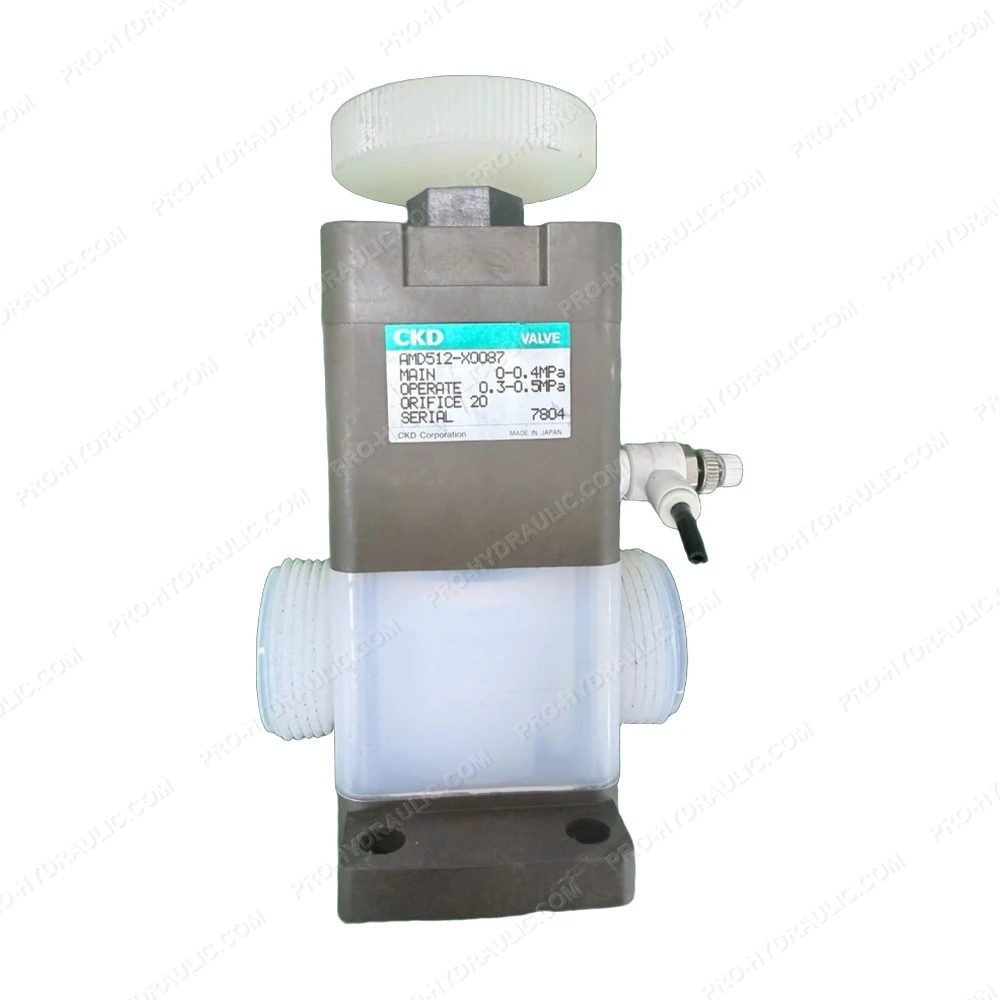

CKD AMD512-X0087 Air Operated Chemical Liquid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD AMD512-X0087 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
