Product Overview
The CKD AMD513R-25BUP-00N4H is a pneumatically actuated chemical liquid valve engineered by CKD Corporation for precise, contamination-free control of aggressive and high-purity process fluids. Operating on a normally closed, air-operated piston actuation principle, this valve uses an external pilot air signal to drive the valve element against a return spring, delivering positive shut-off and repeatable open/close cycling without exposing the solenoid or actuator to the media. The AMD series is purpose-built for fluid handling circuits where chemical compatibility, leak-tight sealing, and fast response are critical, making it a dependable control component in semiconductor wet processes, chemical dosing skids, and industrial fluid transfer systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Air Operated Chemical Liquid Valve (Process & Pneumatic Valve) |
| Model Designation | AMD513R-25BUP-00N4H |
| Manufacturer | CKD Corporation |
| Actuation Type | External Pilot Air Operated (Normally Closed) |
| Port Size | 25A (1 inch) Nominal Process Connection |
| Body / Wetted Material | Chemical-Resistant Resin / Corrosion-Resistant Wetted Path |
| Seal Material | Chemical-Grade Elastomer (Media Compatible) |
| Pilot Air Pressure | Standard Industrial Grade (approx. 0.3–0.5 MPa) |
| Operating Pressure | Standard Industrial Grade (Up to rated process bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: Air-operated piston actuation delivers fast, repeatable open/close response with positive shut-off, ensuring accurate metering and isolation of chemical liquids in critical process lines.
- Chemical Compatibility: Wetted-path construction and chemical-grade sealing materials resist attack from aggressive process fluids, extending service life in corrosive media handling.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust actuator isolated from the media to protect the pilot circuit.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards for drop-in service and minimal downtime.
Typical Industrial Applications
Ideally suited for semiconductor and electronics wet-process
PRODUCT IMAGES

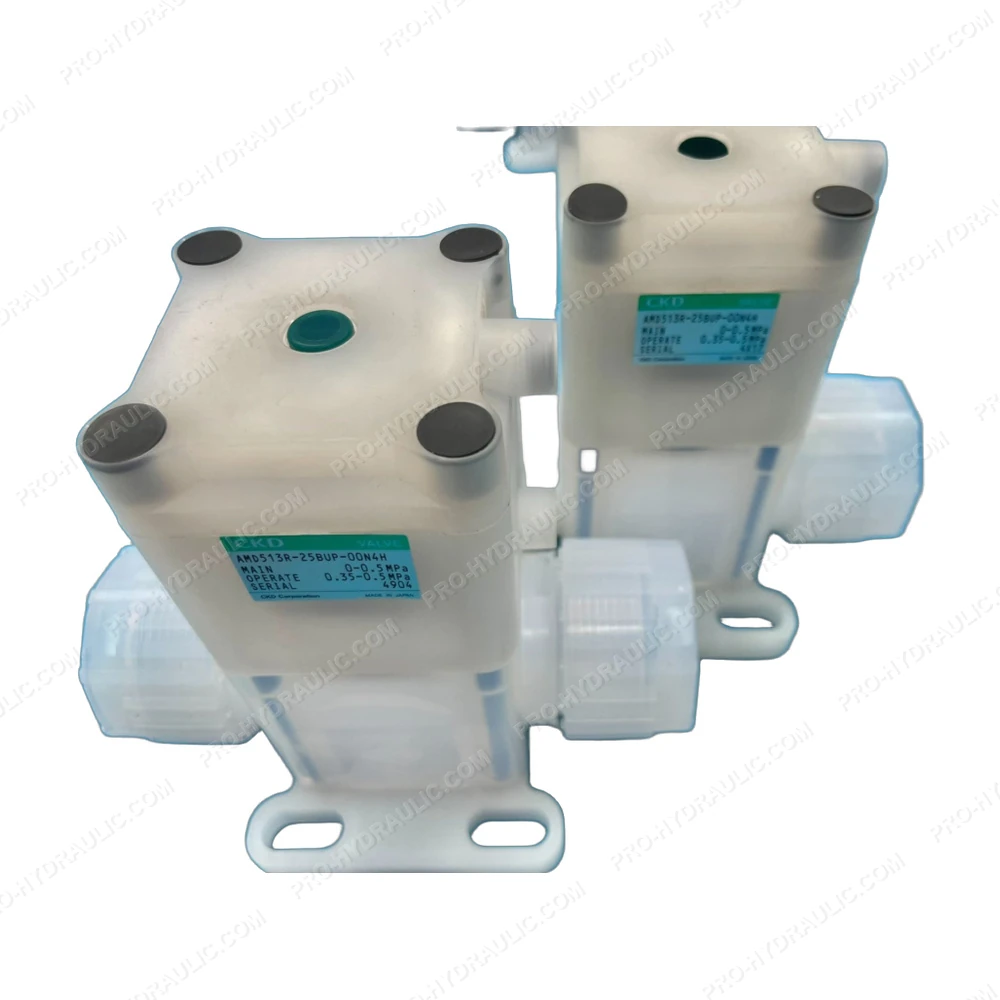

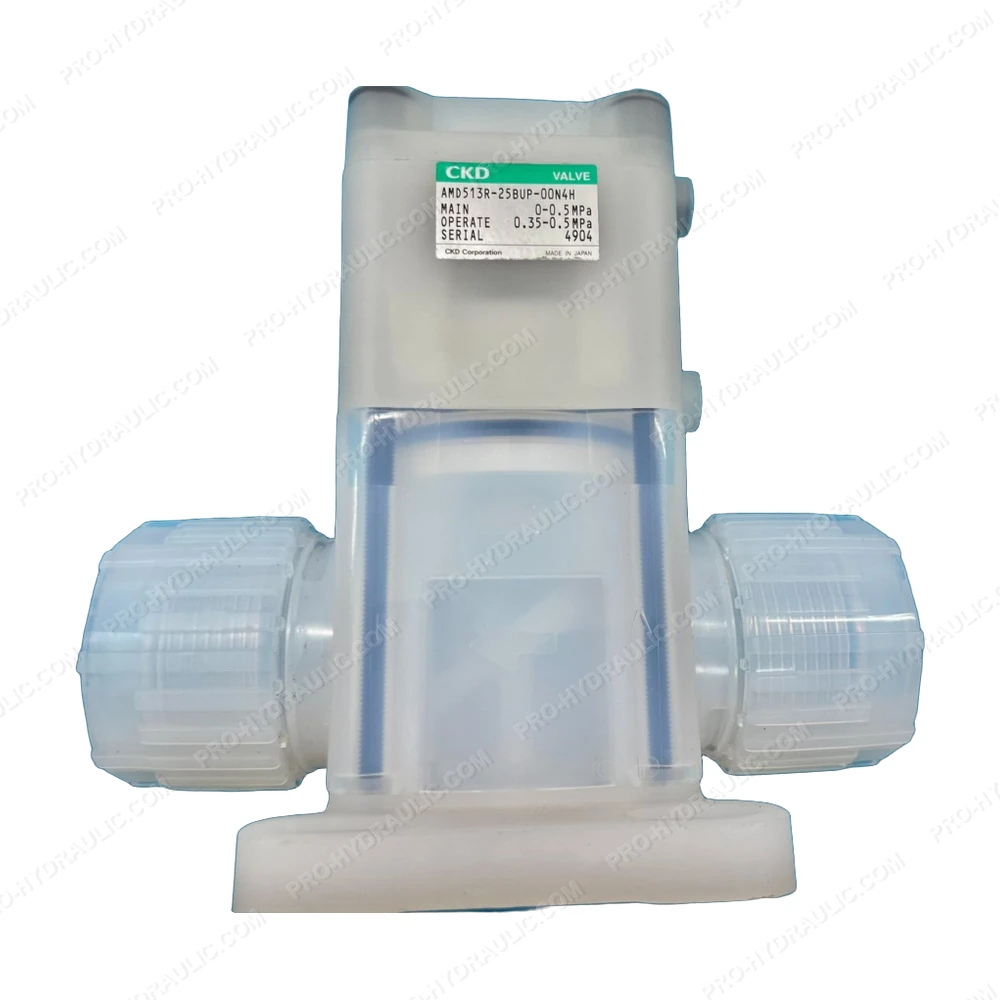

CKD AMD513R-25BUP-00N4H Air Operated Chemical Liquid Valve
