Product Overview
The CKD AMG302-10BUP-0-PL / AMG302-X0219-2PLXS is a pneumatically actuated process valve engineered by CKD Corporation for precision control of chemical liquids and high-purity process fluids in industrial fluid handling systems. Operating on an air-operated diaphragm or piston actuation principle, this valve provides reliable on/off and directional control of aggressive chemical media without exposing the working fluid to electrical components or contamination sources. The AMG302 series is designed for integration into automated process lines where chemical compatibility, leak-tight sealing, and repeatable actuation are critical. With a robust body construction and chemically resistant wetted materials, this valve serves as a dependable control element in dosing, transfer, and circulation circuits across semiconductor, chemical processing, and industrial fluid systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Air Operated Chemical Liquid Valve (Process & Pneumatic Valve) |
| Model Designation | AMG302-10BUP-0-PL / AMG302-X0219-2PLXS |
| Manufacturer | CKD Corporation |
| Actuation Type | Pneumatic (Air Operated), Normally Closed / Normally Open Configuration |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, per CKD AMG302 series specification) |
| Port Size | 10B (Nominal 10 mm / 3/8″ class process connection) |
| Body & Seal Material | Chemical-resistant wetted materials (PTFE / PFA / corrosion-resistant alloy per AMG302 series) |
| Mounting & Connection | Standard ISO / Manufacturer Interface, threaded or flange process connection |
Engineering Features & Advantages
- Precision Performance: Air-operated actuation delivers fast, repeatable valve response with consistent sealing force, ensuring accurate on/off control of chemical liquids in automated process loops.
- Chemical Compatibility: Wetted components are selected for resistance to aggressive chemical media, minimizing corrosion, swelling, and seal degradation in demanding fluid service.
- Leak-Tight Sealing: Optimized seat and diaphragm/piston sealing geometry prevents cross-contamination and media loss during both open and closed states.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable actuator housing and wear-resistant internal components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards, enabling drop-in replacement without system modification.
Typical Industrial Applications
This CKD AMG302 air operated chemical liquid valve is typically deployed in semiconductor and electronics wet-process chemical delivery systems, chemical dosing and transfer skids in water treatment and surface finishing plants, automated fluid handling circuits in pharmaceutical and fine chemical production, and general industrial process lines requiring reliable pneumatic control of
PRODUCT IMAGES

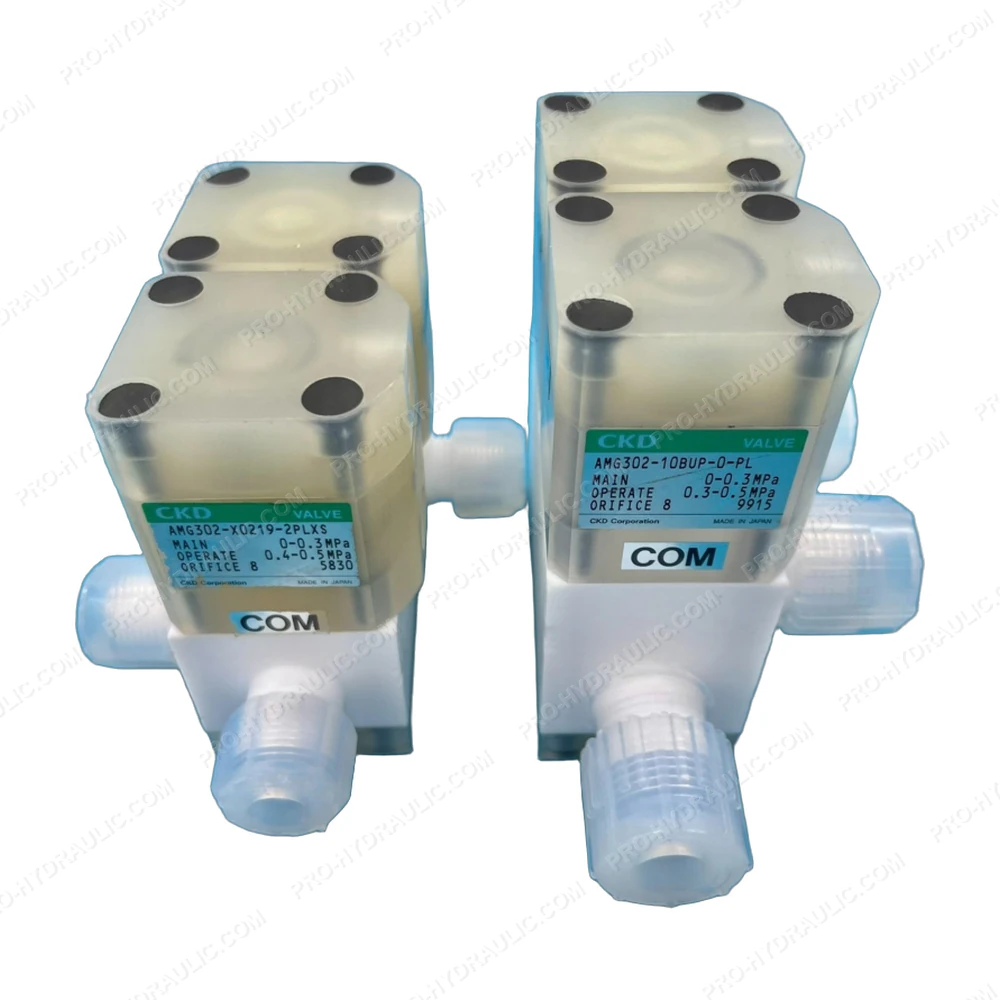

CKD AMG302-10BUP-0-PL / AMG302-X0219-2PLXS Air Operated Chemical Liquid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD AMG302-10BUP-0-PL / AMG302-X0219-2PLXS Solenoid Valve. This Japan-made 24V DC hydraulic component features a 2-position, spring-return design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
