Product Overview
The CKD CVSE2-15A-05-03RSB-3 is a high-precision fluid control solenoid valve from CKD Corporation’s CVSE2 series, engineered for accurate directional control of air and process fluids in automated industrial systems. This 5-port, 3-position solenoid valve utilizes a balanced spool and sleeve design actuated by a compact, low-power solenoid pilot, delivering fast, repeatable switching with minimal pressure drop across the flow path. As a core component in pneumatic and general process control circuits, it governs actuator extension, retraction, and neutral positioning in response to electrical signals from PLC or relay logic, making it an essential building block for reliable machine automation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Fluid Control Solenoid Valve (5-Port, 3-Position Directional Valve) |
| Model Designation | CVSE2-15A-05-03RSB-3 |
| Manufacturer | CKD Corporation |
| Valve Configuration | 5-Port, 3-Position (Closed Center) |
| Actuation Type | Solenoid Pilot Actuated, Spring Return |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Response Time | Fast switching, suitable for high-cycle automation |
Engineering Features & Advantages
- Precision Performance: Balanced spool and sleeve construction ensures consistent shifting force, minimal leakage, and accurate flow metering across all three positions for repeatable actuator control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable solenoid coil and wear-resistant sealing elements rated for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to manifolds, subplates, or electrical connections.
- Compact & Efficient: Low-power solenoid design reduces heat generation and electrical load, while the compact body enables dense manifold mounting in space-constrained control cabinets.
Typical Industrial Applications
The CKD CVSE2-15A-05-03RSB-3 is widely deployed in plastic injection molding machines for mold opening, clamping, and ejector sequencing; in CNC machine tools and automated assembly lines for tool changer and gripper actuation; in packaging and material handling equipment for diverter and indexing cylinder control; and in general process automation systems where precise, high-cycle pneumatic directional control is required for reliable machine operation.
PRODUCT IMAGES

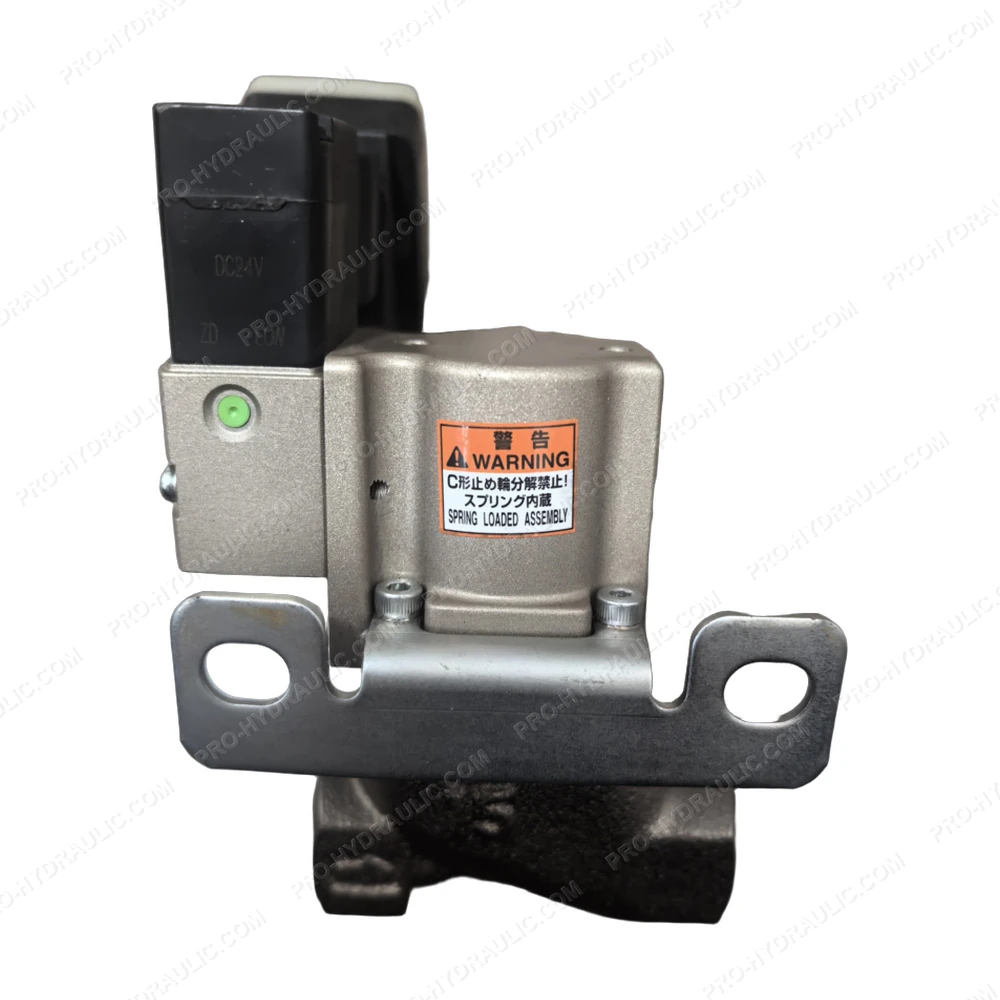

CKD CVSE2-15A-05-03RSB-3 Fluid Control Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD CVSE2-15A-05-03RSB-3 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic valve features a 5-port 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
