Product Overview
The CKD EVD-1500-208AN-C3L1-3 is a high-precision electro-pneumatic proportional valve engineered by CKD Corporation, a globally recognized manufacturer of advanced fluid control components. Operating on a direct-acting, solenoid-driven proportional principle, this valve converts an analog electrical input signal (voltage or current) into a linearly proportional pneumatic output pressure or flow. Unlike standard on/off solenoid valves, the EVD-1500 series provides infinitely variable control of air or inert gas, enabling precise regulation of actuator speed, force, and positioning within closed-loop industrial systems. Its compact, modular architecture makes it a direct-fit solution for demanding process automation, packaging machinery, and semiconductor manufacturing equipment where repeatable, low-hysteresis pneumatic modulation is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Proportional Valve (Process & Pneumatic Valve) |
| Model Designation | EVD-1500-208AN-C3L1-3 |
| Manufacturer | CKD Corporation |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, dependent on port configuration) |
| Control Signal | Analog Proportional Input (Voltage / Current, model-dependent) |
| Actuation Method | Direct-Acting Proportional Solenoid |
| Mounting & Connection | Standard ISO / Manufacturer Interface with threaded pneumatic ports |
| Media Compatibility | Filtered Compressed Air / Inert Gases |
Engineering Features & Advantages
- Precision Proportional Metering: The direct-acting solenoid and precision spool/poppet assembly deliver a linear output response with minimal hysteresis, ensuring accurate, repeatable pressure and flow control across the full command range.
- Fast Dynamic Response: Optimized magnetic circuit and low-inertia internal components provide rapid signal tracking, making the EVD-1500 suitable for high-cycle process control and closed-loop feedback applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation, wear-resistant sealing, and contamination-tolerant internal geometry.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD OEM standards, allowing drop-in replacement without modification to manifolds, brackets, or electrical interfaces.
- Compact Modular Design: Space-efficient body construction facilitates dense panel mounting and integration into multi-valve pneumatic control blocks.
Typical Industrial Applications
The CKD EVD-1500-208AN-C3L1-3 is deployed across a wide range of precision process and automation environments, including semiconductor wafer fabrication equipment (gas flow and pressure regulation), plastic injection molding machines (proportional clamping and ejection force control), packaging and labeling machinery (tension and position modulation), CNC machine tools and automated assembly systems (actuator speed and force profiling
PRODUCT IMAGES

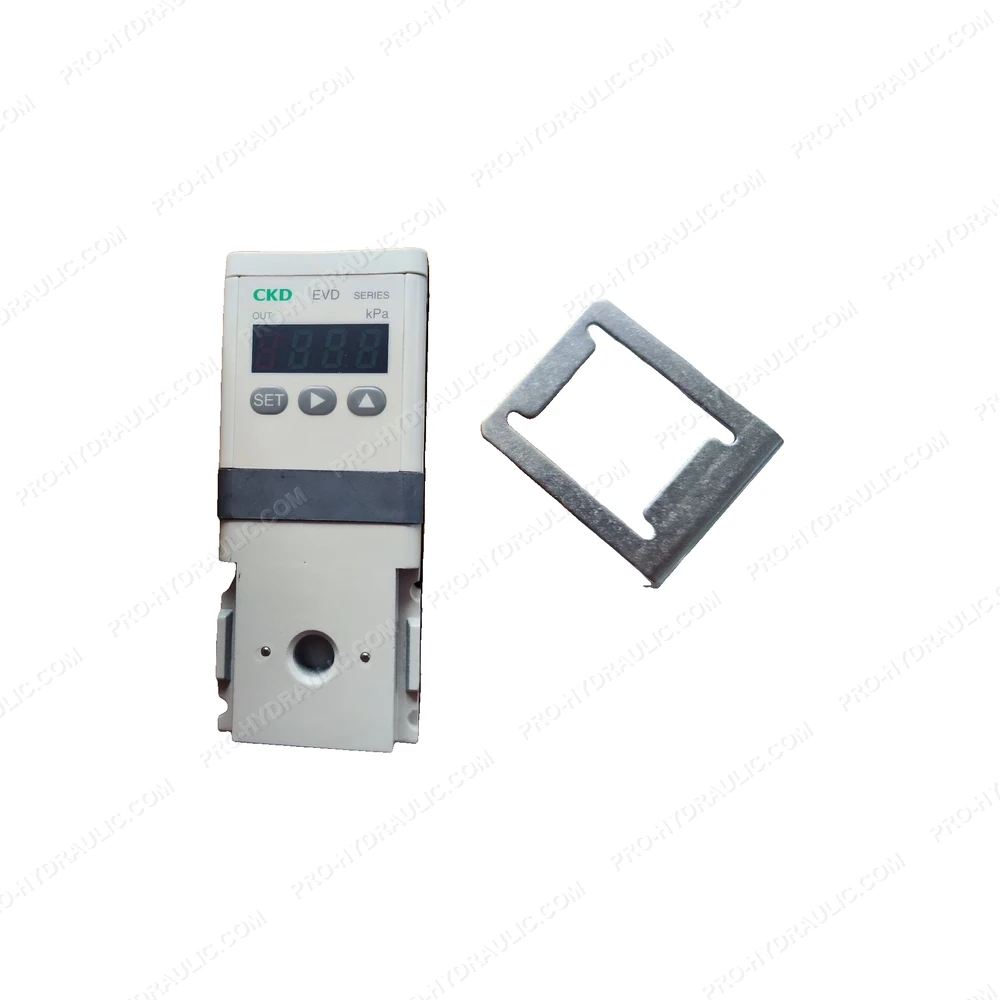

CKD EVD-1500-208AN-C3L1-3 Electro-Pneumatic Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD EVD-1500-208AN-C3L1-3 Solenoid Directional Control Valve. This Japan-made 208V AC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
