Product Overview
The CKD EVS2-500-1H6AV-3-FL is a precision-engineered pneumatic solenoid valve from CKD Corporation’s EVS2 series, designed for reliable directional control of compressed air in industrial automation and process systems. This multi-port solenoid valve utilizes a balanced spool and sleeve mechanism actuated by a solenoid pilot, delivering fast, repeatable switching of pneumatic circuits. The EVS2-500-1H6AV-3-FL is configured as a 5-port, 2-position valve with a single solenoid, spring-return configuration, making it ideal for controlling double-acting cylinders and other pneumatic actuators requiring dependable directional control. Its compact body, high flow capacity, and robust sealing design ensure long service life and consistent performance in demanding factory environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | EVS2-500-1H6AV-3-FL |
| Valve Configuration | 5-Port, 2-Position, Single Solenoid, Spring Return |
| Operating Pressure | Standard Industrial Grade (0.1 – 0.7 MPa typical pneumatic range) |
| Actuation Type | Solenoid Pilot Actuated, Spool & Sleeve Design |
| Mounting & Connection | Manifold / Sub-base Mounting, Standard Port Interface |
| Seal Material | NBR / FKM (application dependent) |
Engineering Features & Advantages
- Precision Spool & Sleeve Mechanism: The balanced spool design ensures low friction, minimal leakage, and precise directional control with fast response times for high-cycle pneumatic applications.
- High Flow Capacity: Optimized internal flow paths deliver high Cv values, enabling rapid actuation of cylinders and reduced cycle times in automated processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid construction and durable sealing for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original CKD EVS2 series mounting and port standards, ensuring drop-in replacement without system modification.
- Compact & Lightweight: Space-saving body design facilitates dense manifold installations and reduces overall panel footprint.
Typical Industrial Applications
The CKD EVS2-500-1H6AV-3-FL pneumatic solenoid valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold opening/closing and ejection control, metallurgical presses for clamping and positioning circuits, construction and marine hydraulics for pneumatic actuator sequencing, and CNC machine tools for tool changers, clamping, and automated material handling systems. Its reliable directional control also suits packaging machinery, assembly lines, and general factory automation requiring precise pneumatic circuit switching.
PRODUCT IMAGES

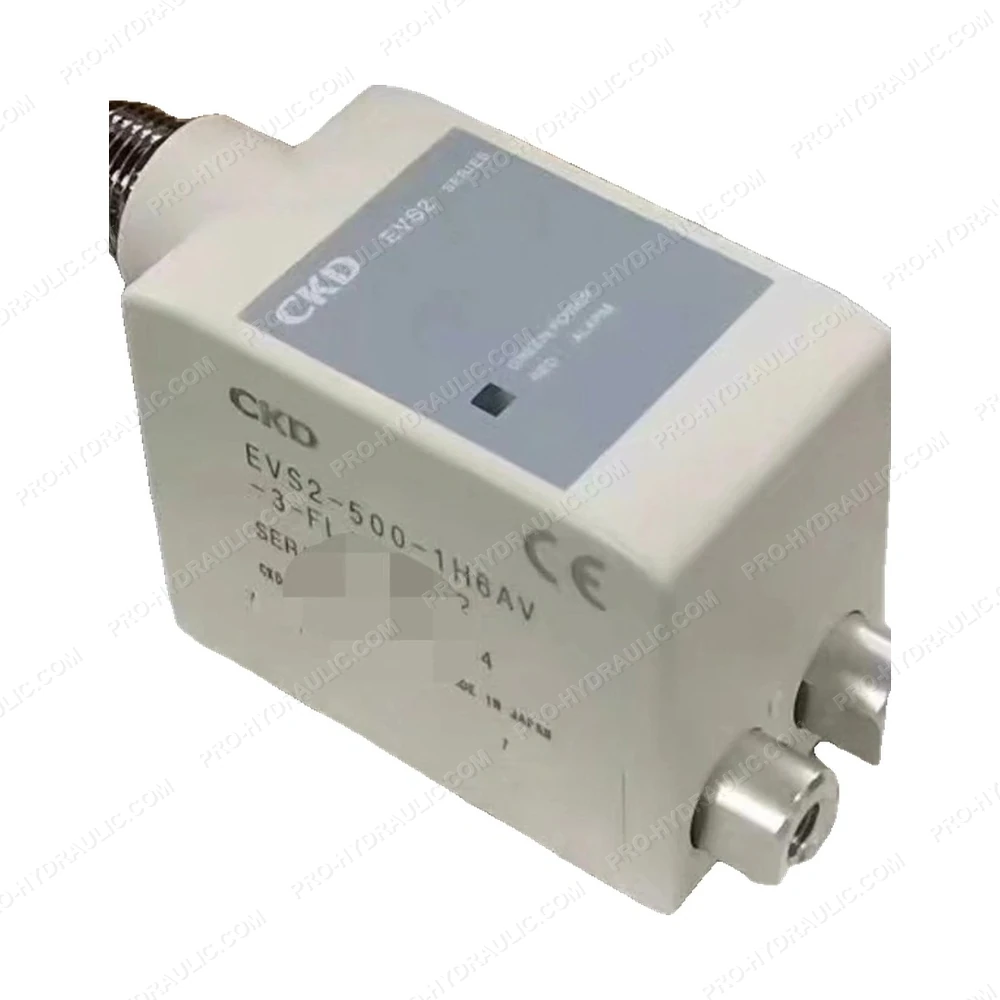

CKD EVS2-500-1H6AV-3-FL Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine CKD EVS2-500-1H6AV-3-FL Solenoid Operated Directional Control Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
