The CKD MMD30-15BUS-10 is a heavy-duty industrial pneumatic process valve engineered for precise fluid control in demanding automated systems. This direct-acting, normally closed valve features a robust piston actuation mechanism that ensures consistent sealing and rapid response across a wide pressure range. Its compact, manifold-mountable design allows for high-density integration into pneumatic control panels and process skids.
CKD MMD30-15BUS-10 Technical Specifications
| Attribute | Specification |
|---|---|
| Valve Type | Pneumatic Process Valve, Direct-Acting |
| Actuation | Piston Actuated, Normally Closed |
| Port Size | 1/2 inch (15A) |
| Body Material | Stainless Steel / Brass (consult factory) |
| Seal Material | NBR / FKM (application dependent) |
| Operating Pressure Range | 0.1 to 1.0 MPa |
| Fluid Temperature Range | -10 to 80°C (NBR) / -10 to 120°C (FKM) |
| Mounting | Manifold / Sub-base |
| Electrical Connection | DIN Connector / Terminal Box (if solenoid pilot) |
Key Engineering Features
- Direct-acting piston design for reliable operation without minimum pressure differential.
- Compact manifold mounting reduces installation footprint and piping complexity.
- High cycle life with wear-resistant seals and precision-machined spool.
- Fast response time for accurate process control and sequencing.
- Corrosion-resistant body options for harsh industrial environments.
Industrial Applications
- Automated assembly and manufacturing lines.
- Chemical and petrochemical process control.
- Food and beverage processing (with appropriate seals).
- Pharmaceutical and biotechnology fluid handling.
- Water treatment and industrial cooling systems.
For technical inquiries, dimensional drawings, or replacement support for CKD MMD30-15BUS-10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

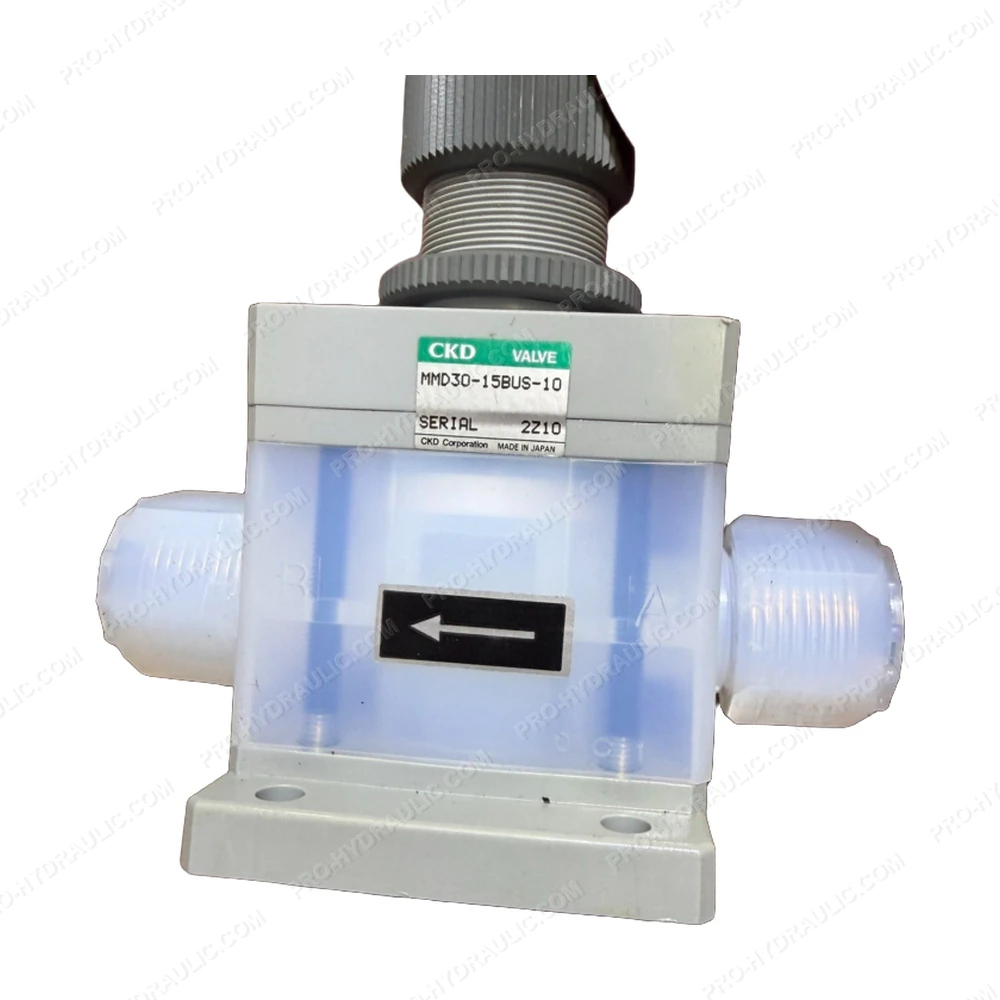

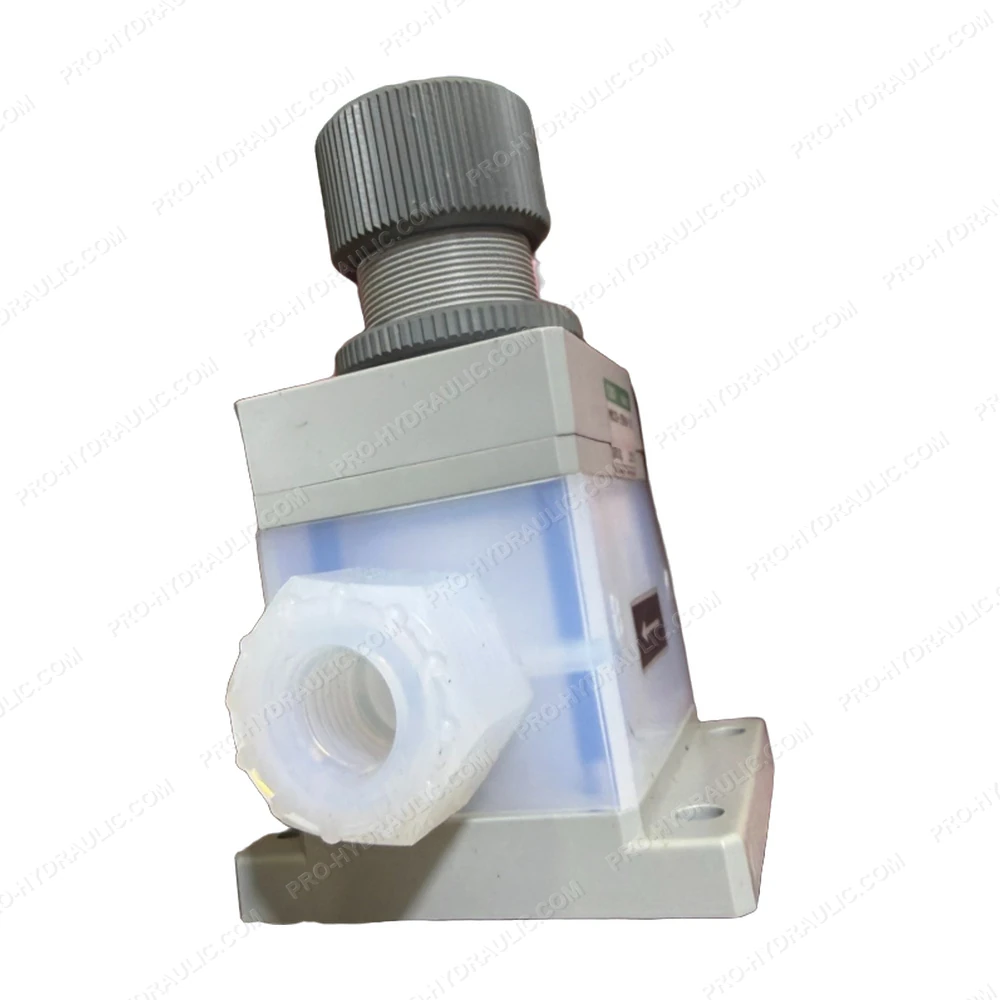

CKD MMD30-15BUS-10 Pneumatic Process Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the CKD MMD30-15BUS-10 Pneumatic Process Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
