The CKD SAB1W-25A-0 is a heavy-duty industrial pneumatic process valve engineered for reliable shut-off and flow control of air, water, and compatible media in automated fluid systems. This 1-inch (25A) ported valve uses a piston-actuated design with a durable elastomeric seal, providing tight bubble-tight closure and long cycle life without electrical solenoids or coils.
CKD SAB1W-25A-0 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SAB1W-25A-0 |
| Brand | CKD |
| Valve Type | Pneumatic process valve, 2-port |
| Port Size | 25A (1 inch) |
| Actuation | Piston-type, air pilot |
| Operating Pressure | 0.1 to 1.0 MPa (air), 0 to 0.7 MPa (water) |
| Media | Air, water, inert gases, compatible fluids |
| Body Material | Stainless steel or bronze (depending on variant) |
| Seal Material | NBR or FKM |
| Temperature Range | -5 to 60°C (NBR), -10 to 120°C (FKM) |
| Connection | Threaded (Rc, NPT, G) |
Key Engineering Features
- Piston-actuated design for high flow capacity and fast response
- Bubble-tight shut-off with precision-machined seat and elastomeric seal
- Compact, lightweight construction for space-constrained installations
- Corrosion-resistant body and trim for water and mild chemical service
- Manual override option available for emergency operation
- Compatible with standard air pilot signals (0.3 to 0.7 MPa)
Industrial Applications
- Automated water and coolant lines in manufacturing
- Pneumatic conveying and air blow-off systems
- Process fluid control in food, beverage, and pharmaceutical equipment
- Machine tool and packaging machinery fluid circuits
- General industrial automation and factory utility networks
For technical inquiries, dimensional drawings, or replacement support for CKD SAB1W-25A-0, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

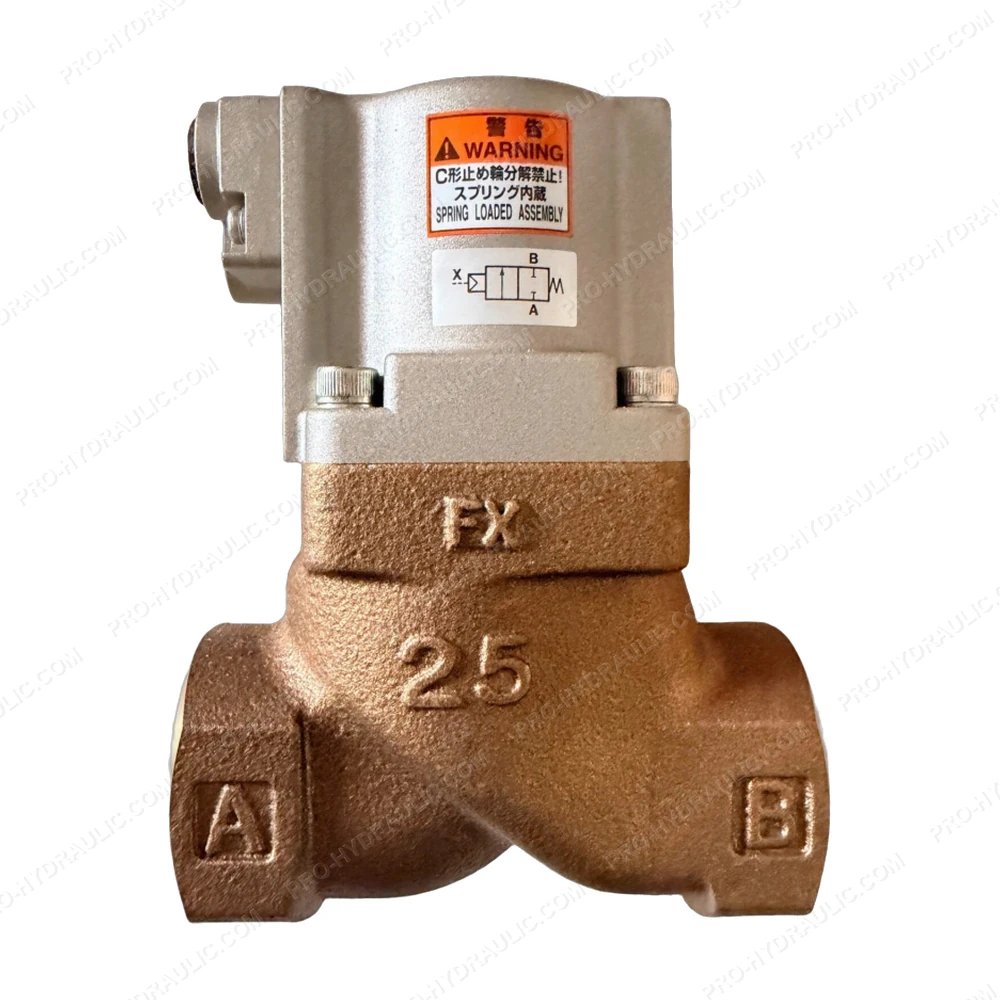

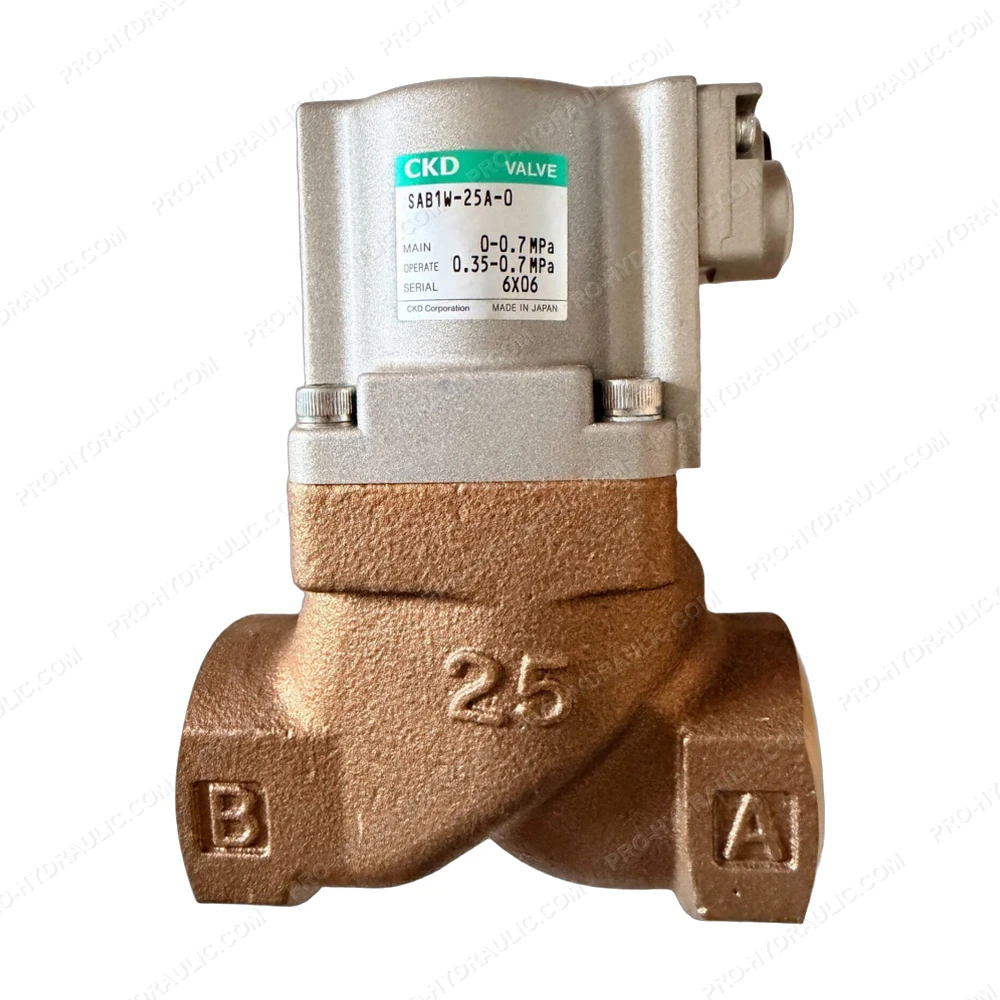

CKD SAB1W-25A-0 Pneumatic Process Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the CKD SAB1W-25A-0 Pneumatic Process Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
