Product Overview
The COAX 5-VMK 10 NC 54 10C1 1/2CD 24R is a high-performance coaxial solenoid valve engineered by COAX (a Müller Co-ax brand), a globally recognized manufacturer of externally controlled and pressure-compensated coaxial valves. This valve operates on a unique coaxial working principle in which the solenoid actuator is arranged coaxially with the flow path, allowing the medium to flow directly through the armature and seat assembly. The 5-VMK series is a 2/2-way normally closed (NC) coaxial solenoid valve designed for demanding industrial process and pneumatic applications. With a 1/2″ connection and a 24V DC solenoid coil, this valve delivers reliable, leak-free shut-off and precise flow control for neutral and slightly aggressive gaseous and liquid media. Its pressure-compensated design ensures consistent switching performance regardless of system pressure fluctuations, making it an ideal choice for critical isolation, dosing, and control duties in industrial hydraulic and pneumatic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Coaxial Solenoid Valve (2/2-Way, Normally Closed) |
| Model Designation | COAX 5-VMK 10 NC 54 10C1 1/2CD 24R |
| Valve Function | 2/2-Way, Normally Closed (NC) — opens when energized |
| Actuation Type | Direct-acting solenoid, coaxial armature design |
| Operating Pressure | Pressure-compensated; rated for standard industrial process pressures (up to approx. 40 bar, depending on media and orifice) |
| Nominal Connection Size | 1/2″ (DN15) — 1/2CD port configuration |
| Solenoid Voltage | 24V DC (24R coil designation) |
| Seal / Body Configuration | 10C1 seal and body variant; 54 series housing |
| Mounting & Connection | Inline threaded connection, standard COAX interface |
| Media Compatibility | Neutral gases, liquids, and slightly aggressive media (dependent on seal material) |
Engineering Features & Advantages
- Coaxial Pressure-Compensated Design: The unique coaxial construction balances the armature against system pressure, enabling reliable switching from zero to full rated pressure without minimum pressure differential requirements.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original COAX standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its pressure-compensated design ensures consistent switching performance regardless of system pressure fluctuations, making it an ideal choice for critical isolation, dosing, and control duties in industrial hydraulic and pneumatic circuits.
PRODUCT IMAGES

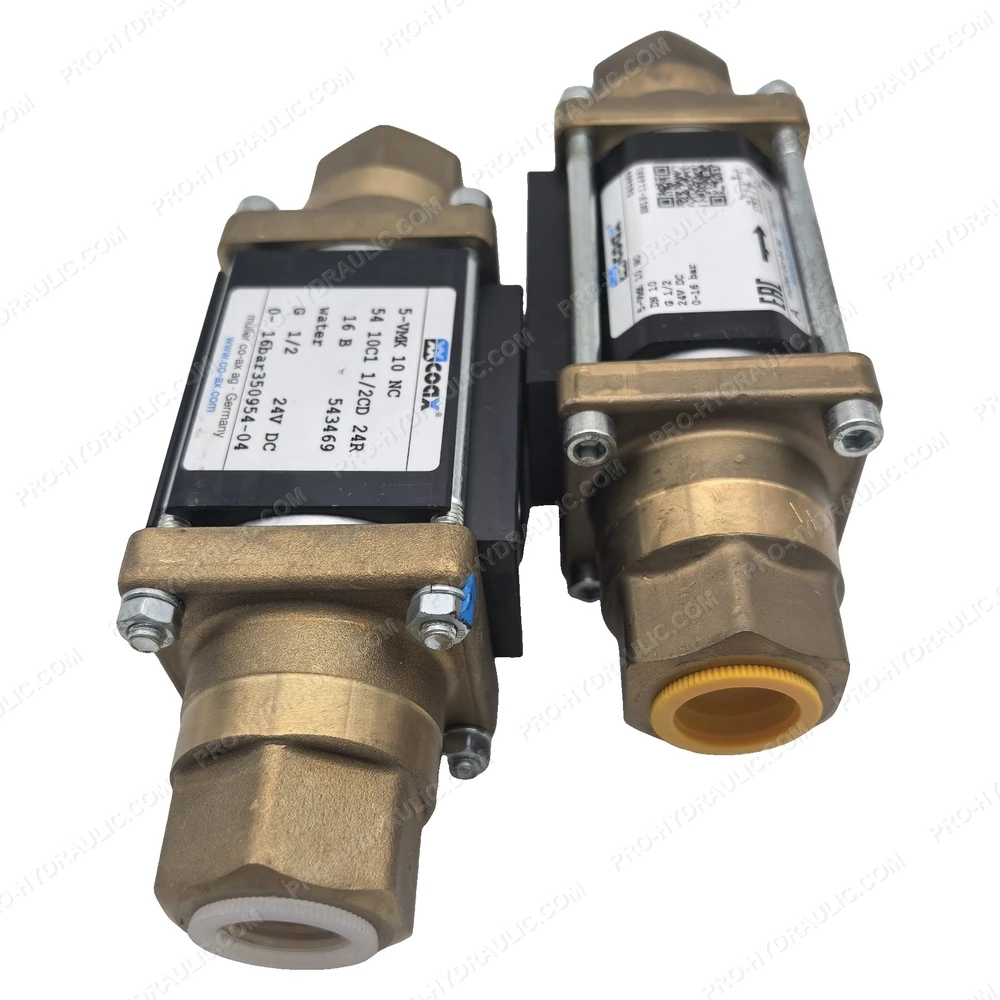

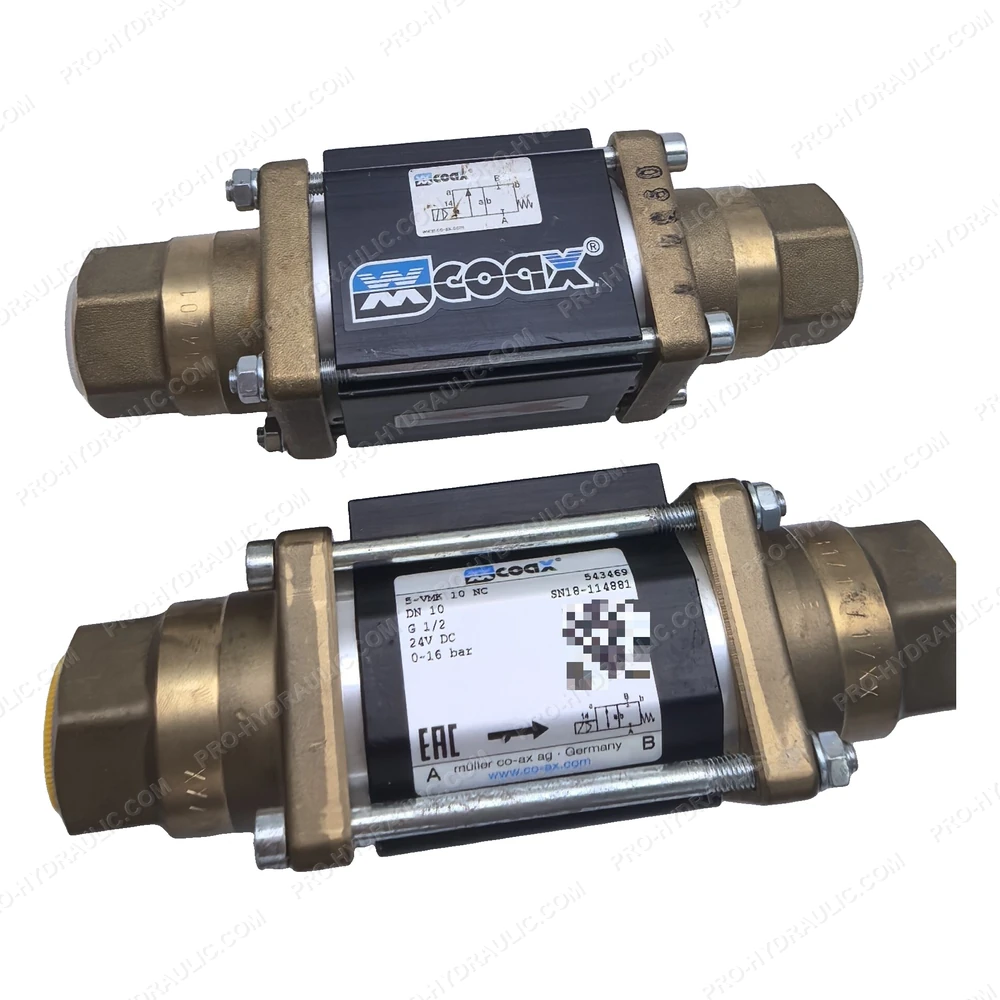

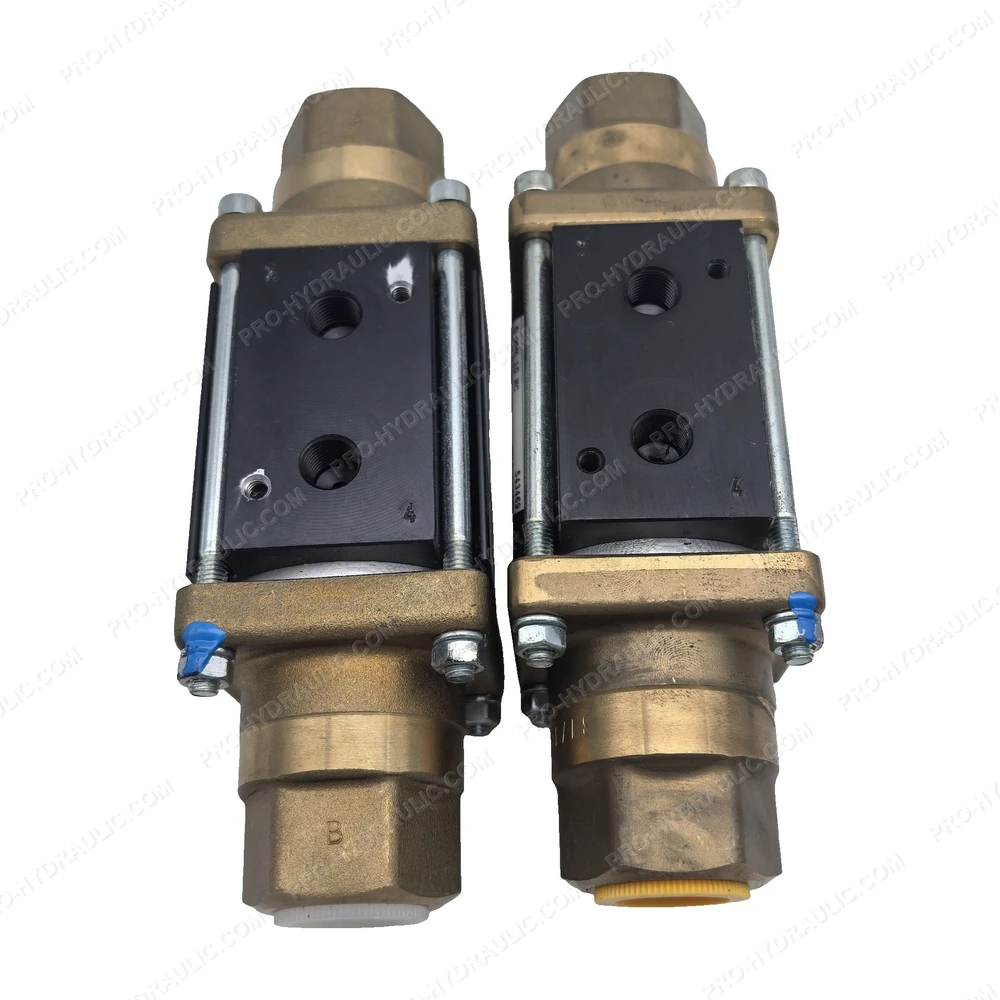

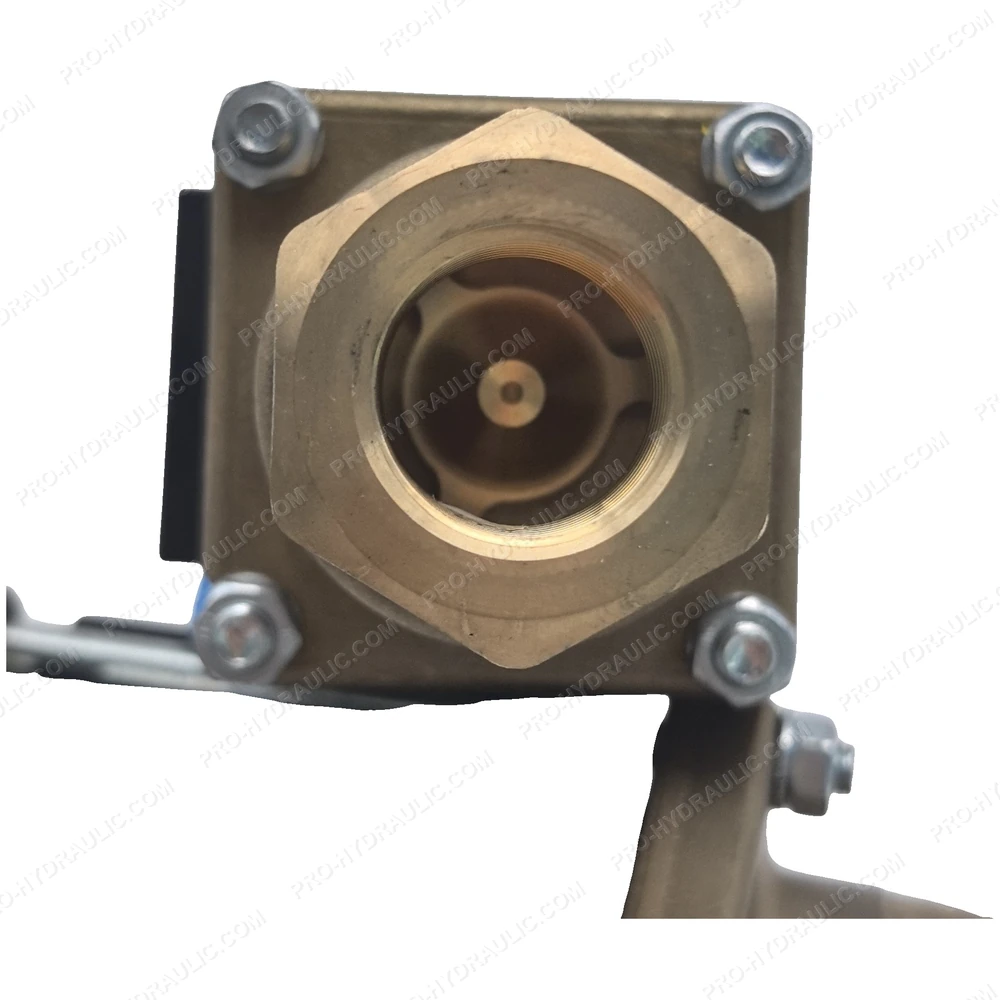

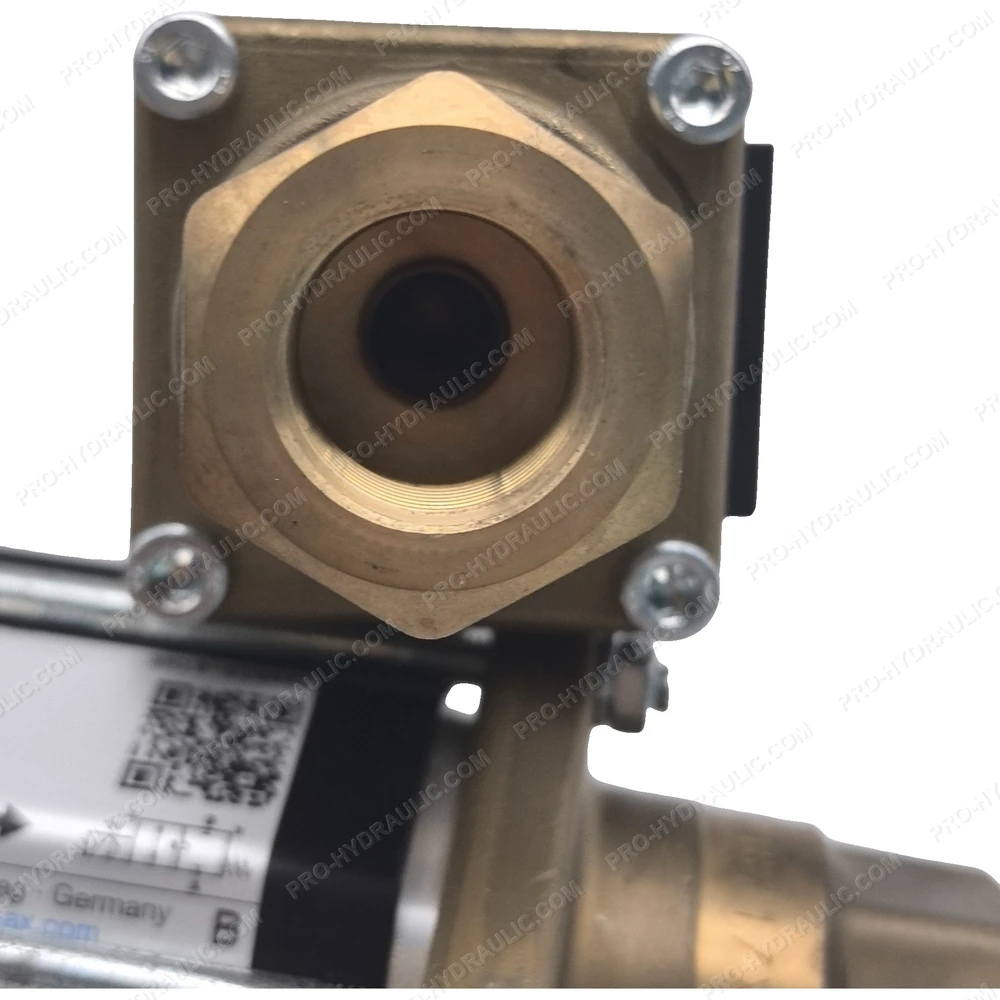

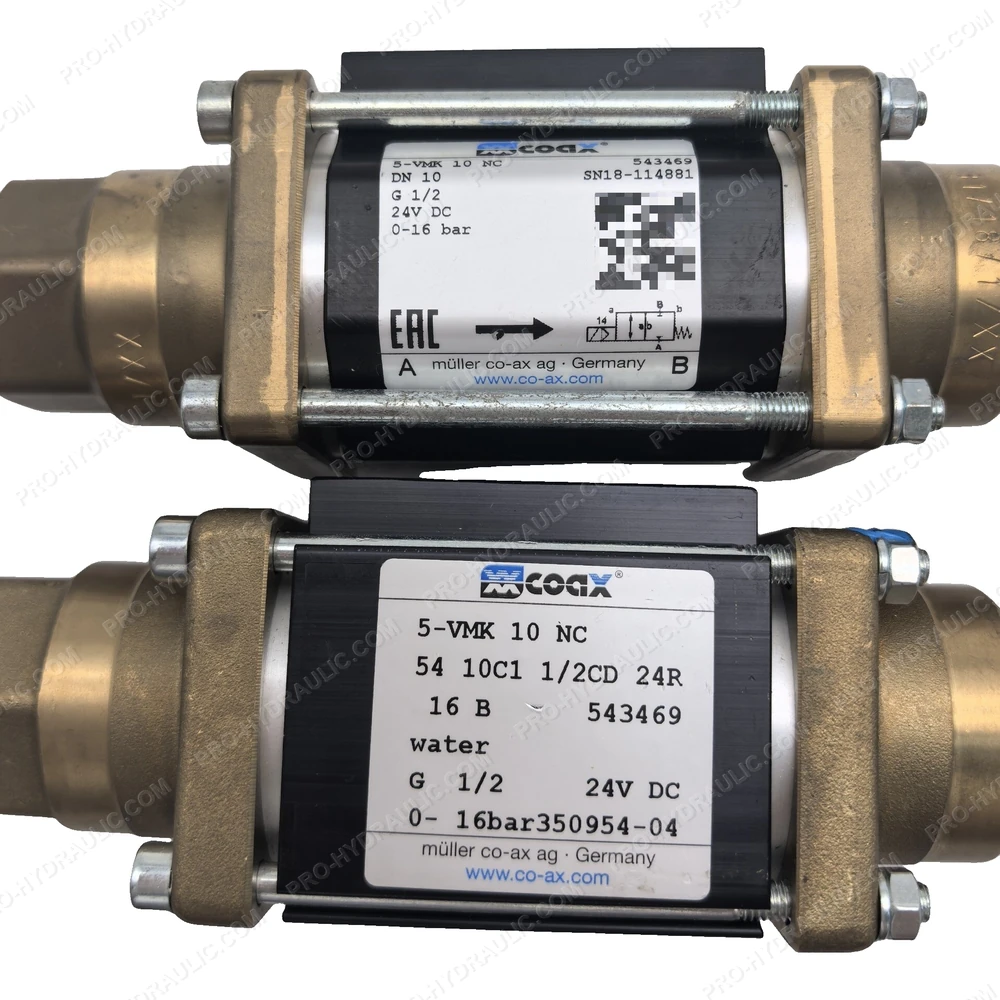

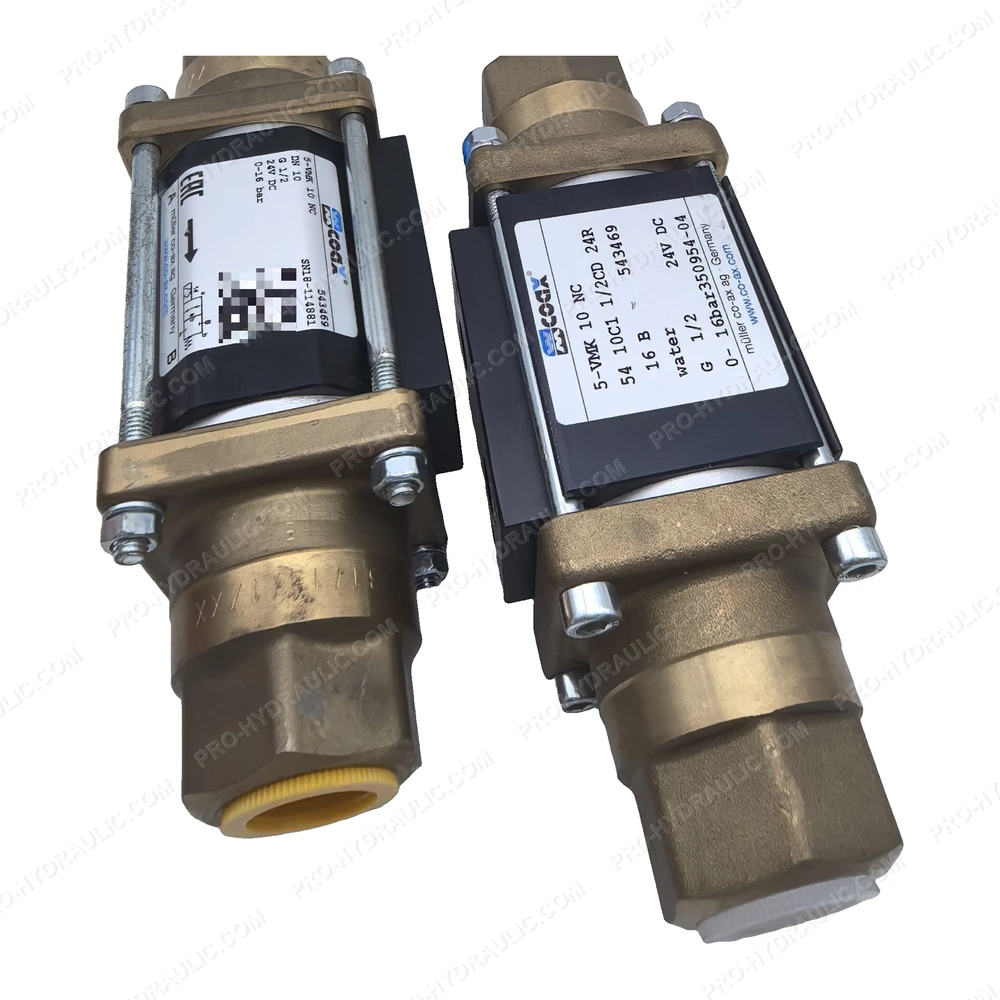

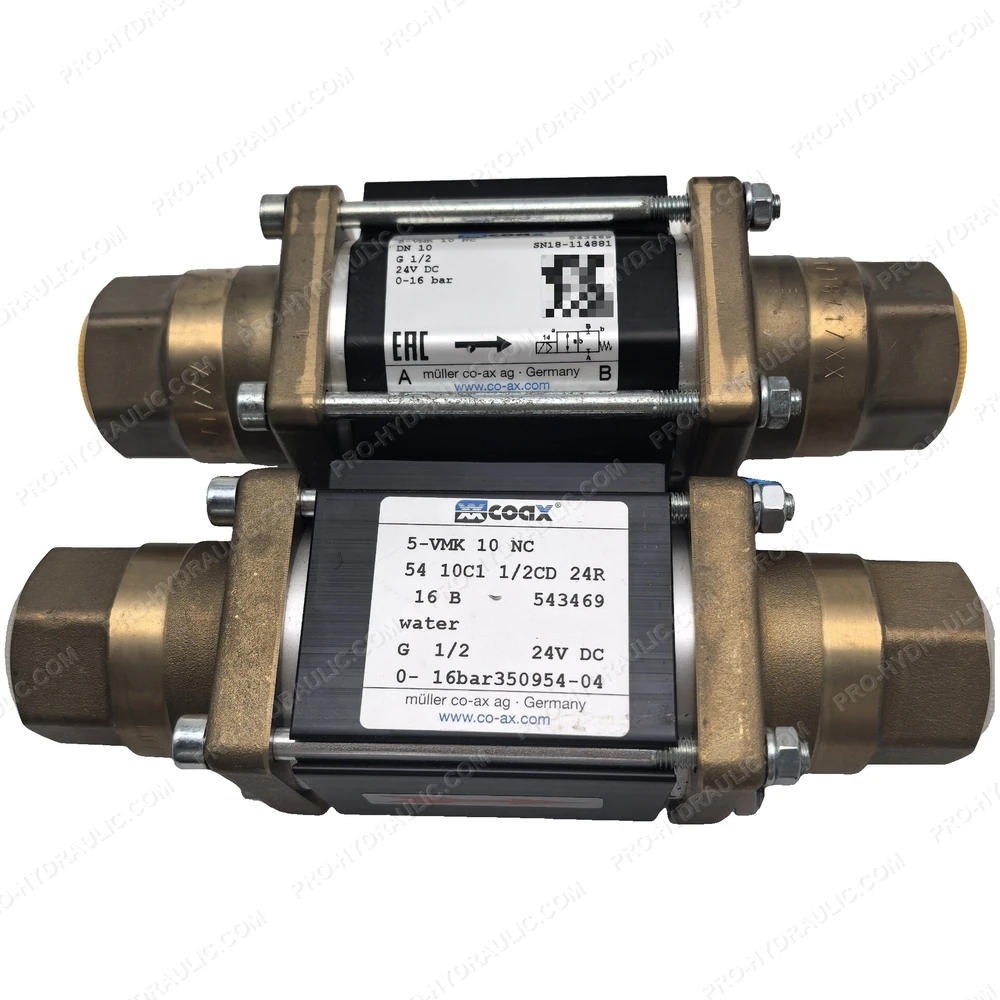

COAX 5-VMK 10 NC 54 10C1 1/2CD 24R Coaxial Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine COAX 5-VMK 10 NC 54 10C1 1/2CD 24R Solenoid Operated Directional Poppet Valve. This German-made 24V DC hydraulic component features a normally closed 2-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
