Product Overview
The COAX Modul MK 10 NC is a coaxial valve module engineered by COAX (a brand of Müller Coax AG), a globally recognized specialist in coaxial valve technology. Unlike conventional spool or poppet valves, this module utilizes a coaxial working principle in which the actuator is arranged in-line with the flow path, allowing the medium to flow straight through the valve body with minimal deflection. The MK 10 NC designation indicates a normally closed (NC) configuration, meaning the valve remains sealed in the de-energized state and opens only upon actuation. This module is designed as a building-block component for integration into larger COAX modular valve assemblies, providing reliable on/off control of neutral and slightly aggressive media in industrial process and hydraulic circuits. Its pressure-balanced, flow-through design delivers high flow capacity relative to its compact size, making it a preferred solution for demanding sealing and switching duties in process engineering systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Coaxial Valve Module (Normally Closed) |
| Model Designation | COAX Modul MK 10 NC |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per COAX MK series) |
| Mounting & Connection | COAX Modular Interface / Standard Threaded Port Connection |
| Working Principle | Coaxial, pressure-balanced, flow-through design |
| Valve Function | 2/2-way on/off, normally closed (NC) |
| Actuation | Modular actuator interface (electric, pneumatic, or hydraulic pilot options) |
| Sealing | Elastomer seat seal, media-compatible |
Engineering Features & Advantages
- Precision Performance: The coaxial, pressure-balanced design ensures fast, reliable switching with minimal actuation force and virtually zero leakage in the closed position, delivering precise on/off control of process media.
- Straight-Through Flow Path: In-line inlet and outlet geometry minimizes pressure drop and turbulence, providing high flow capacity and low noise operation compared to angled seat valves.
- Modular Construction: Designed as a building-block module for integration into COAX modular valve systems, enabling flexible configuration of multi-function valve assemblies.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust materials and a wear-resistant seat design ensuring long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original COAX MK series module standards for drop-in replacement and system expansion.
Typical Industrial Applications
The COAX Modul MK 10 NC is widely deployed in process and industrial systems requiring dependable normally closed on/off control. Typical applications include plastic injection molding machines and temperature control units, metallurgical and metalworking equipment, chemical and process engineering plants handling neutral to slightly aggressive media, and general industrial hydraulic and pneumatic circuits
PRODUCT IMAGES

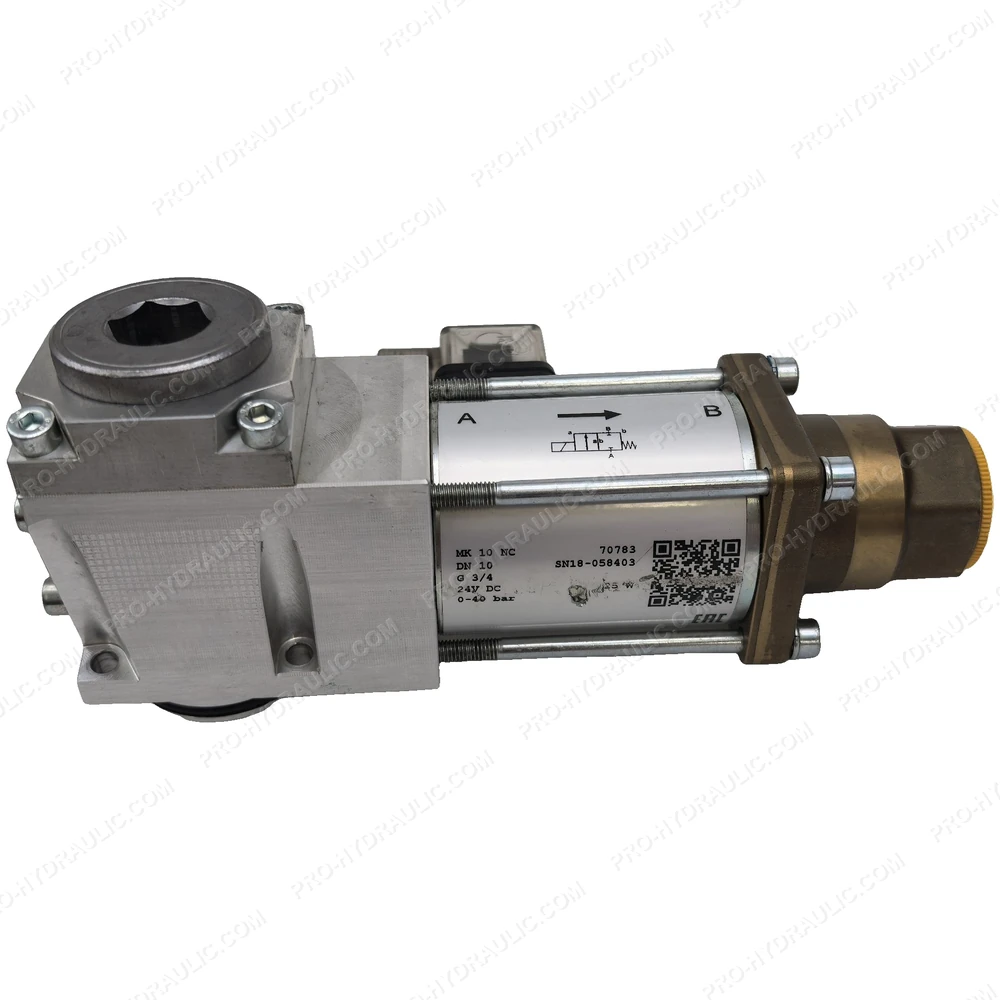

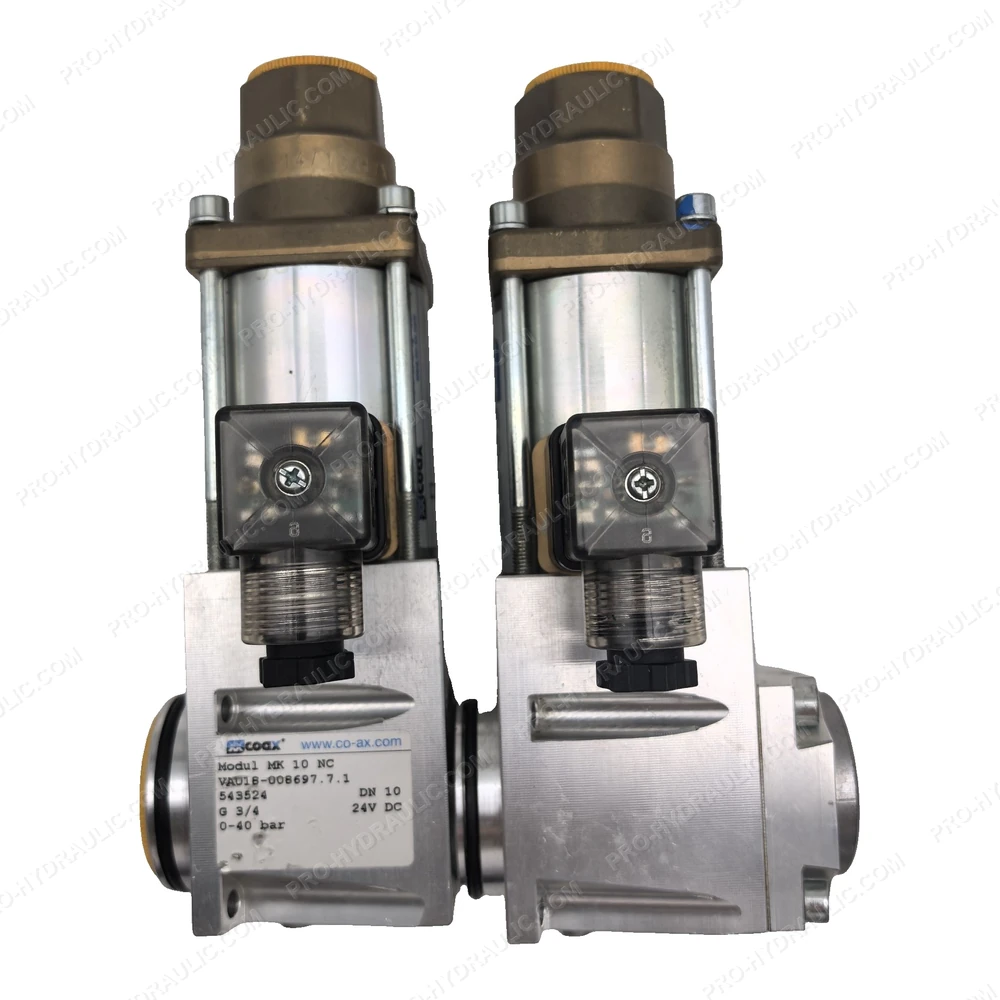

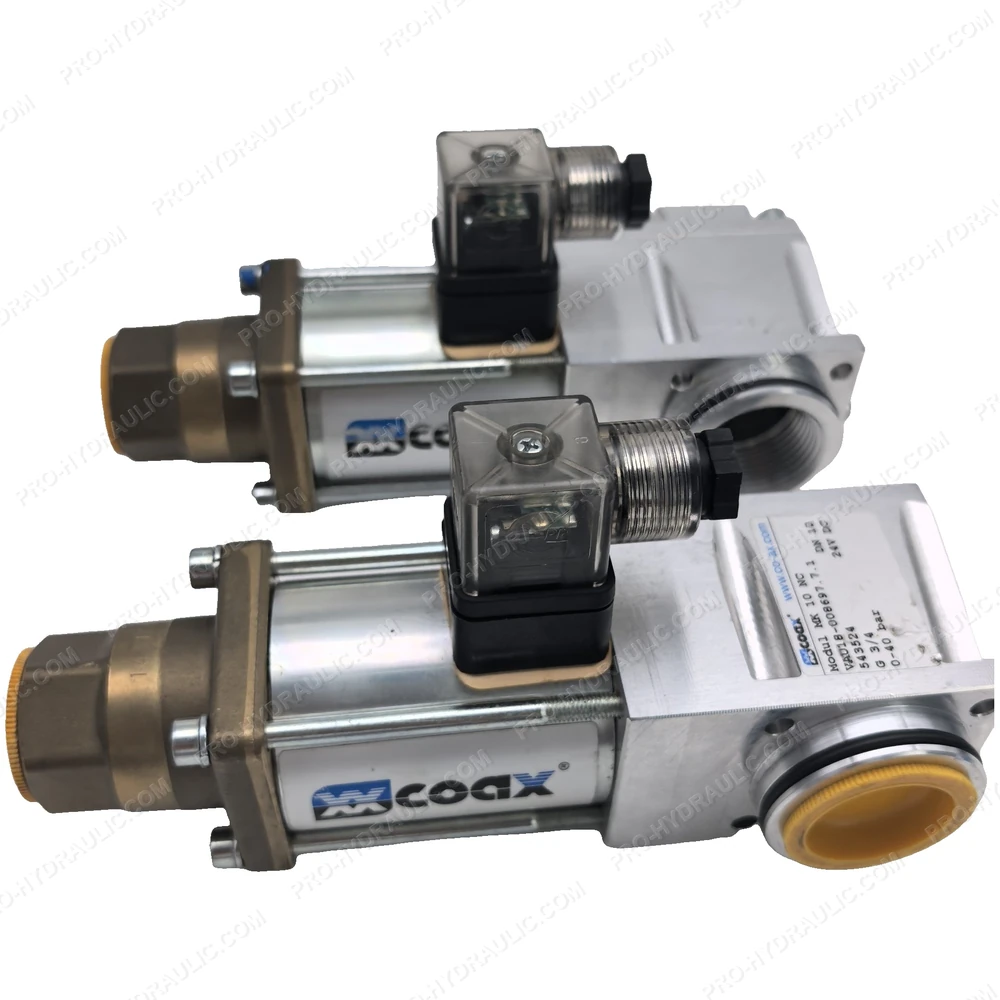

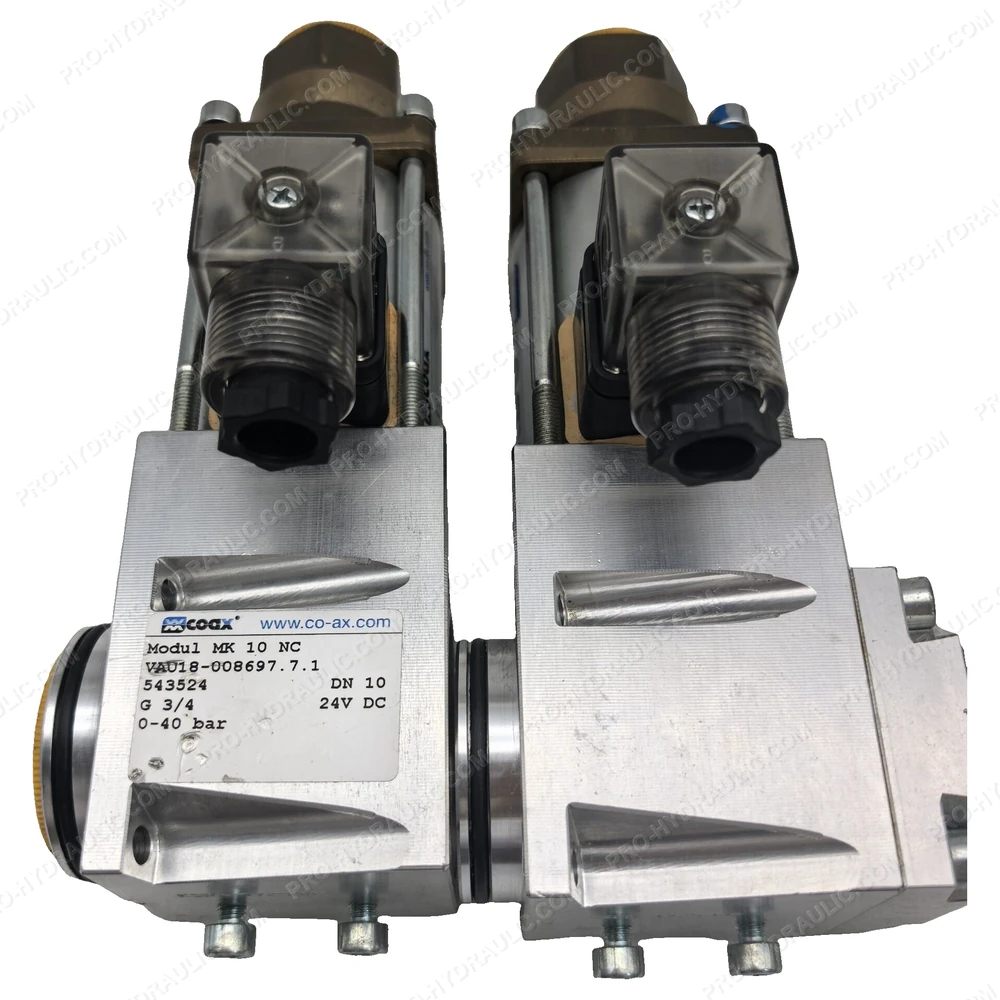

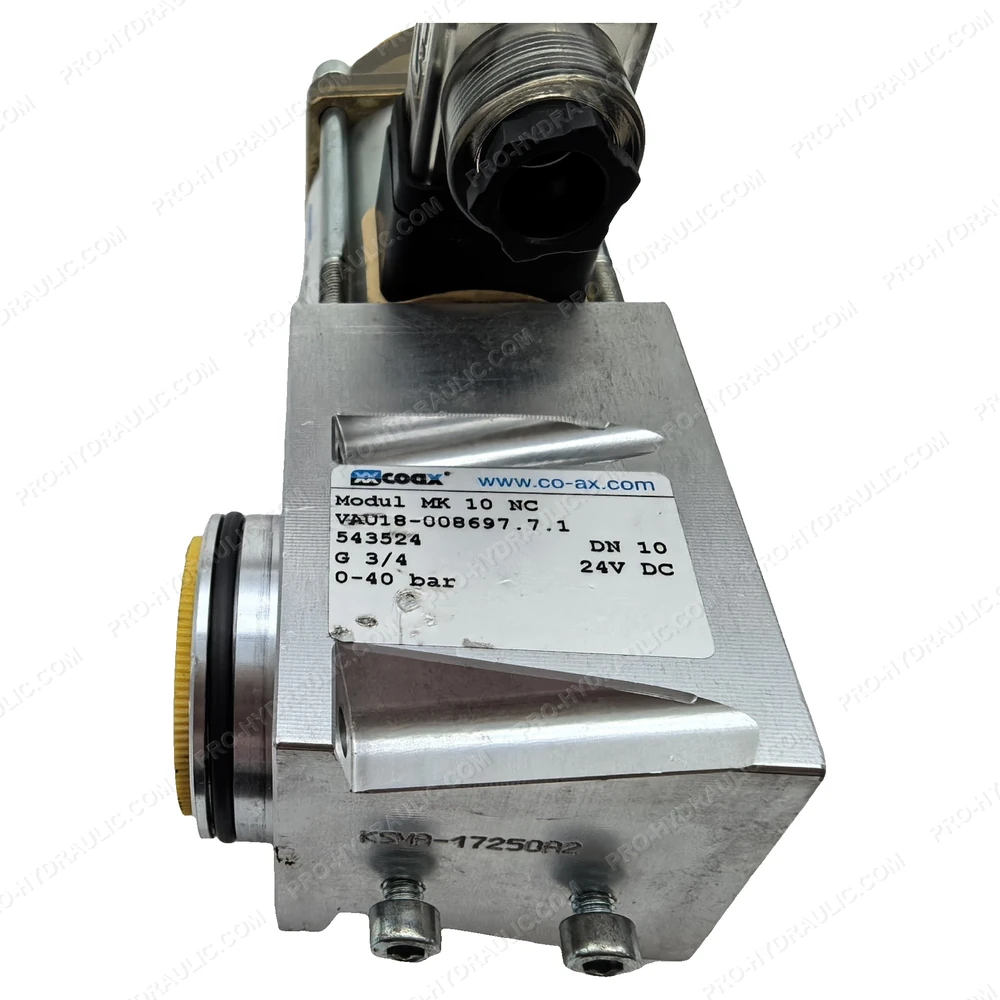

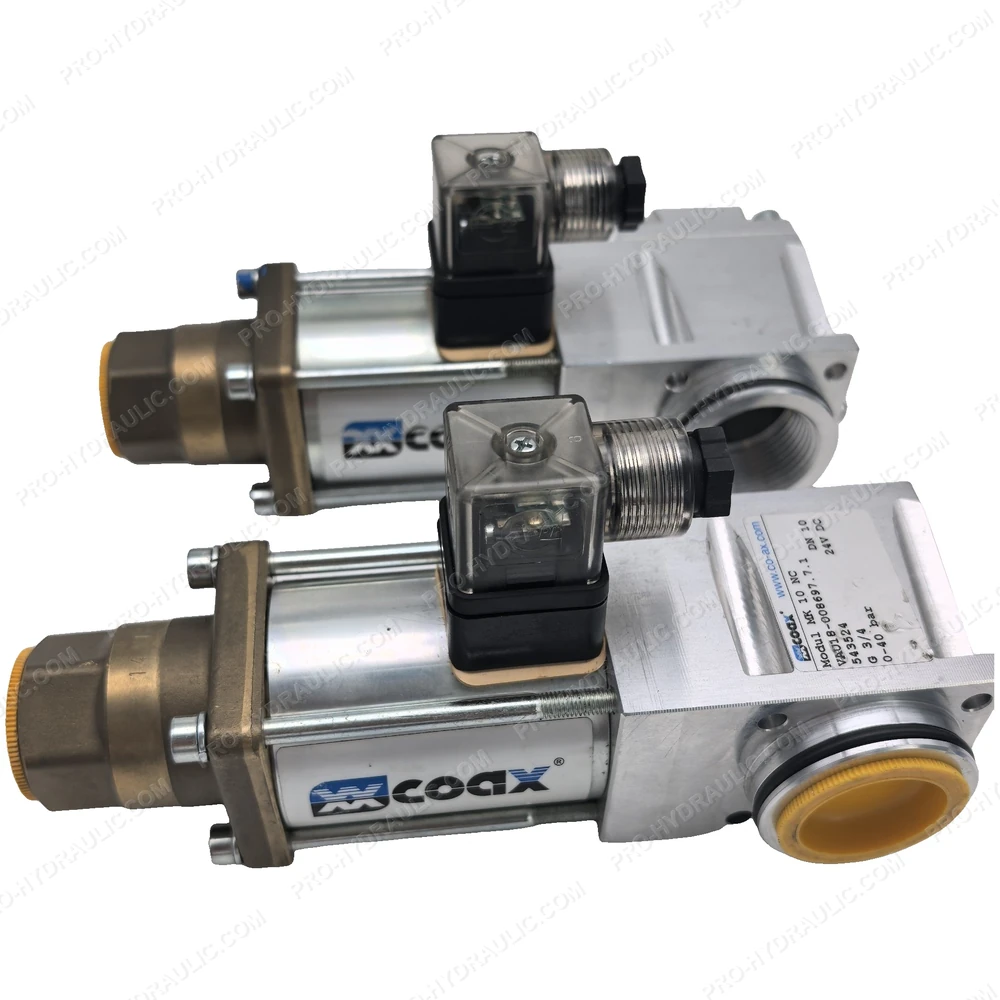

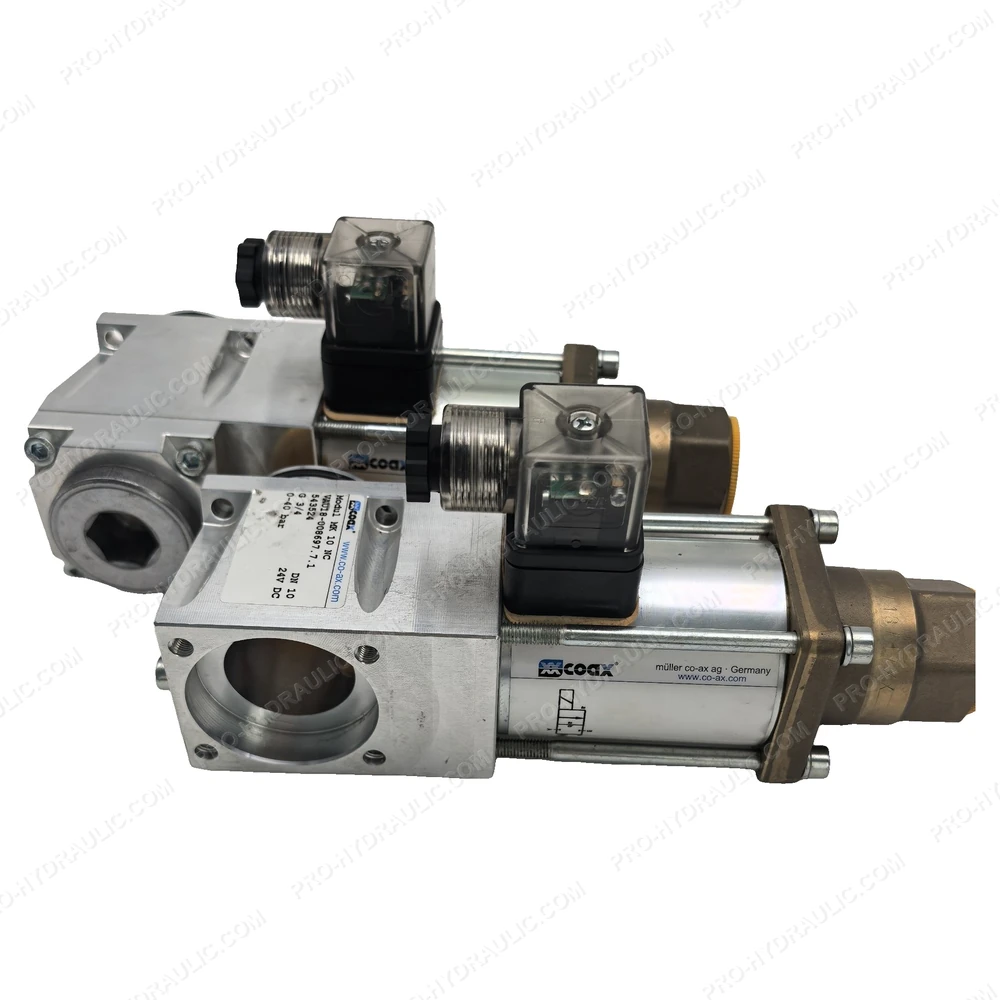

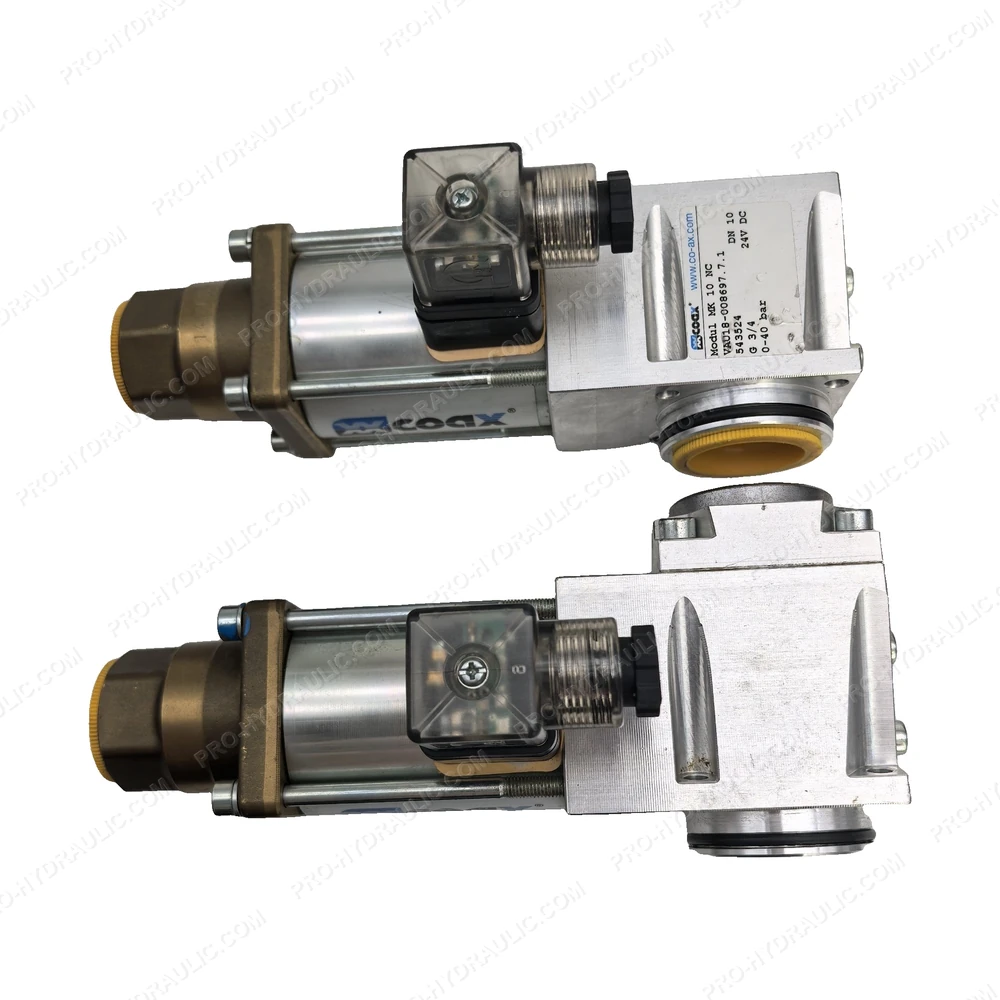

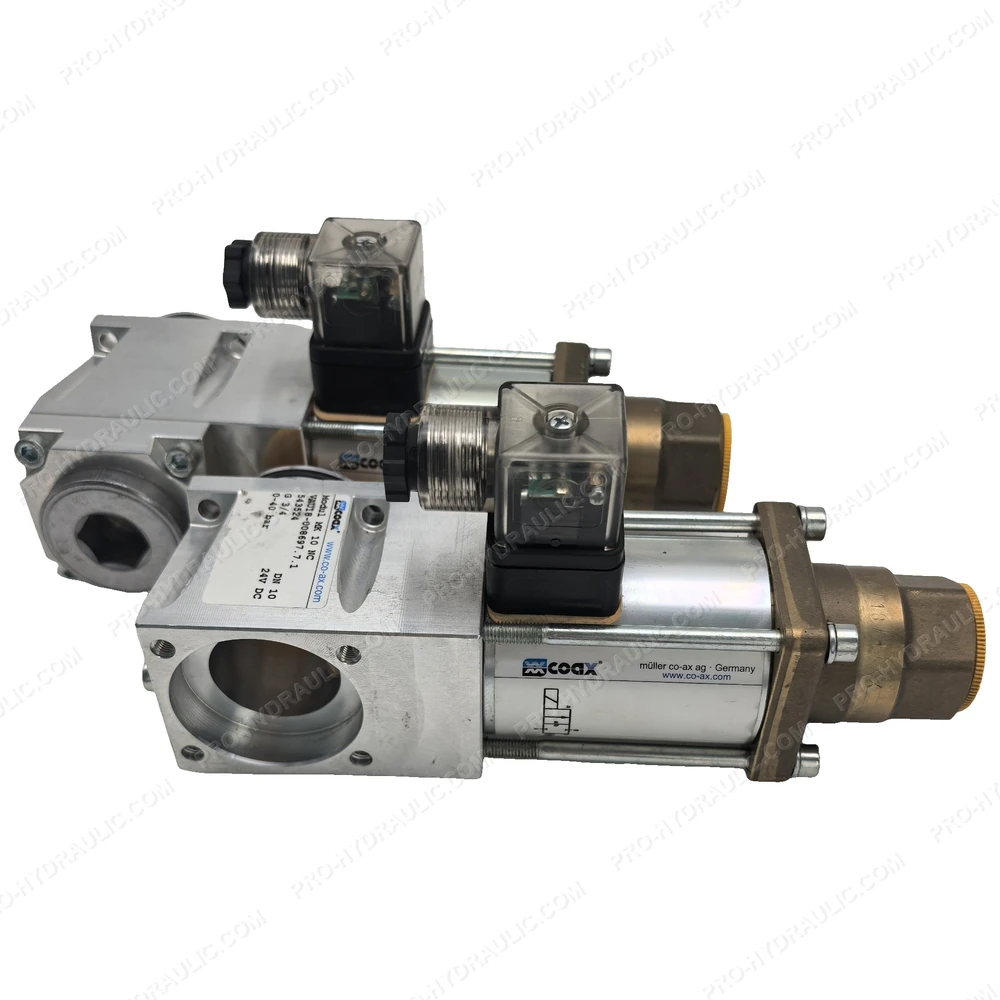

COAX Modul MK 10 NC Coaxial Valve Module
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine COAX Modul MK 10 NC Solenoid Directional Seat Valve. This German-made 24V DC hydraulic component features a compact modular design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
