Product Overview
The COMPACT C25 SR-2C IMP is a pneumatically actuated industrial process valve designed for precise media control in demanding fluid and gas handling systems. Manufactured by COMPACT, a recognized name in pneumatic and process valve technology, this model utilizes a spring-return (SR) pneumatic actuator with a 2-way, normally closed (2C) configuration. The “IMP” designation indicates an imperial port configuration, making it directly compatible with standard NPT/BSP threaded piping systems common in North American and international industrial installations. The valve operates via a pilot air signal acting on a piston or diaphragm actuator, which drives the valve stem and sealing element to open or close the flow path. Its compact, robust construction allows for reliable on/off isolation and process control in space-constrained manifolds, skids, and OEM equipment where a positive shutoff and fast actuation response are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Process Valve (2-Way, Spring Return) |
| Model Designation | C25 SR-2C IMP |
| Actuation Type | Pneumatic, Spring Return (SR) |
| Valve Configuration | 2-Way, Normally Closed (2C) |
| Port Connection | Imperial Thread (NPT/BSP) — “IMP” Designation |
| Operating Pressure | Standard Industrial Grade (up to rated bar; consult factory for specific media ratings) |
| Pilot Air Supply | Typical 3–8 bar (43–116 psi) instrument air |
| Mounting & Connection | Inline threaded mounting, standard ISO / Manufacturer Interface |
| Body Material | Industrial-grade metallic body (consult datasheet for specific alloy) |
Engineering Features & Advantages
- Precision Performance: The spring-return pneumatic actuator ensures fail-safe closure upon loss of pilot air, providing reliable process isolation and protecting downstream equipment from unintended media flow.
- Fast Actuation Response: Optimized piston/diaphragm design delivers rapid opening and closing cycles, making the C25 SR-2C IMP suitable for batch dosing, emergency shutoff, and automated sequence control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust stem sealing and corrosion-resistant wetted parts to withstand aggressive media and high-cycle duty.
- Compact Footprint: The space-saving body design allows dense manifold mounting and integration into OEM skids where installation envelope is limited.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original COMPACT standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The “IMP” designation indicates an imperial port configuration, making it directly compatible with standard NPT/BSP threaded piping systems common in North American and international industrial installations.
PRODUCT IMAGES

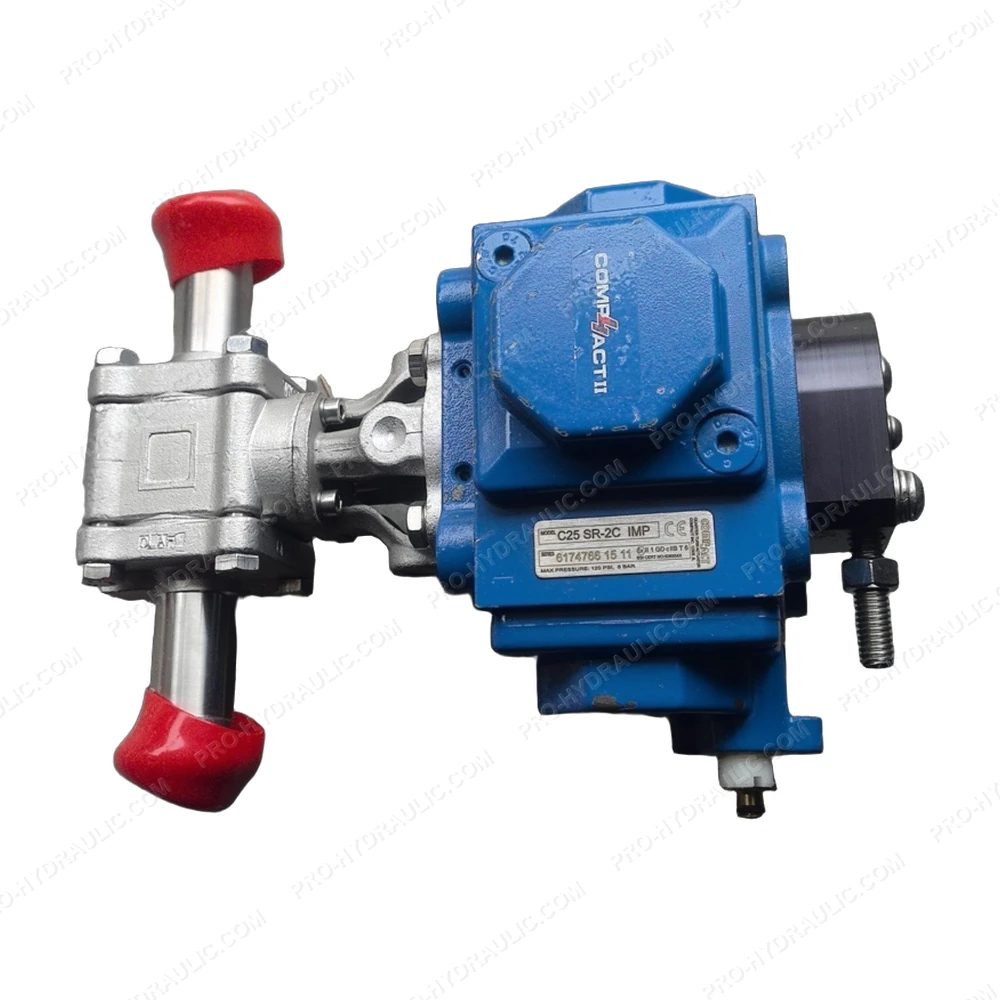

COMPACT C25 SR-2C IMP Pneumatic Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine COMPACT C25 SR-2C IMP Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 2-way spring-return design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
