The DAMCOS 160G5107 / DPHS-Block is a heavy-duty industrial modular valve block engineered for precise flow control and pressure management in hydraulic actuator circuits. Designed as a compact DPHS (Double Pilot Hydraulic System) block, it integrates pilot-operated check and directional control functions within a single manifold body, eliminating external piping and reducing potential leak points.
DAMCOS 160G5107 / DPHS-Block Technical Specifications
| Parameter | Specification |
|---|---|
| Component Type | Modular Valve Block / DPHS Block |
| Mounting Standard | DAMCOS actuator interface (direct mount) |
| Function | Pilot-operated check, flow control, pressure relief |
| Operating Pressure | Up to 350 bar (5075 psi) |
| Flow Capacity | Up to 40 L/min |
| Port Connections | BSPP / SAE (application-specific) |
| Body Material | Zinc-nickel plated steel |
| Seal Material | NBR / FKM (temperature dependent) |
| Fluid Compatibility | Mineral oil, synthetic hydraulic fluids |
| Temperature Range | -20°C to +80°C |
Key Engineering Features
- Integrated DPHS circuit reduces external piping and installation time
- Pilot-operated check valve prevents load drift and ensures actuator holding
- Modular design allows direct mounting to DAMCOS actuators without adapters
- Precision-machined spool and seat for minimal internal leakage
- Corrosion-resistant body plating for harsh marine and offshore environments
- Field-adjustable pressure and flow settings for application flexibility
Industrial Applications
- Marine and offshore valve actuation systems
- Oil and gas process control manifolds
- Heavy-duty hydraulic power units
- Industrial automation and press systems
- Shipboard steering and hatch control circuits
For technical inquiries, dimensional drawings, or replacement support for DAMCOS 160G5107 / DPHS-Block, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

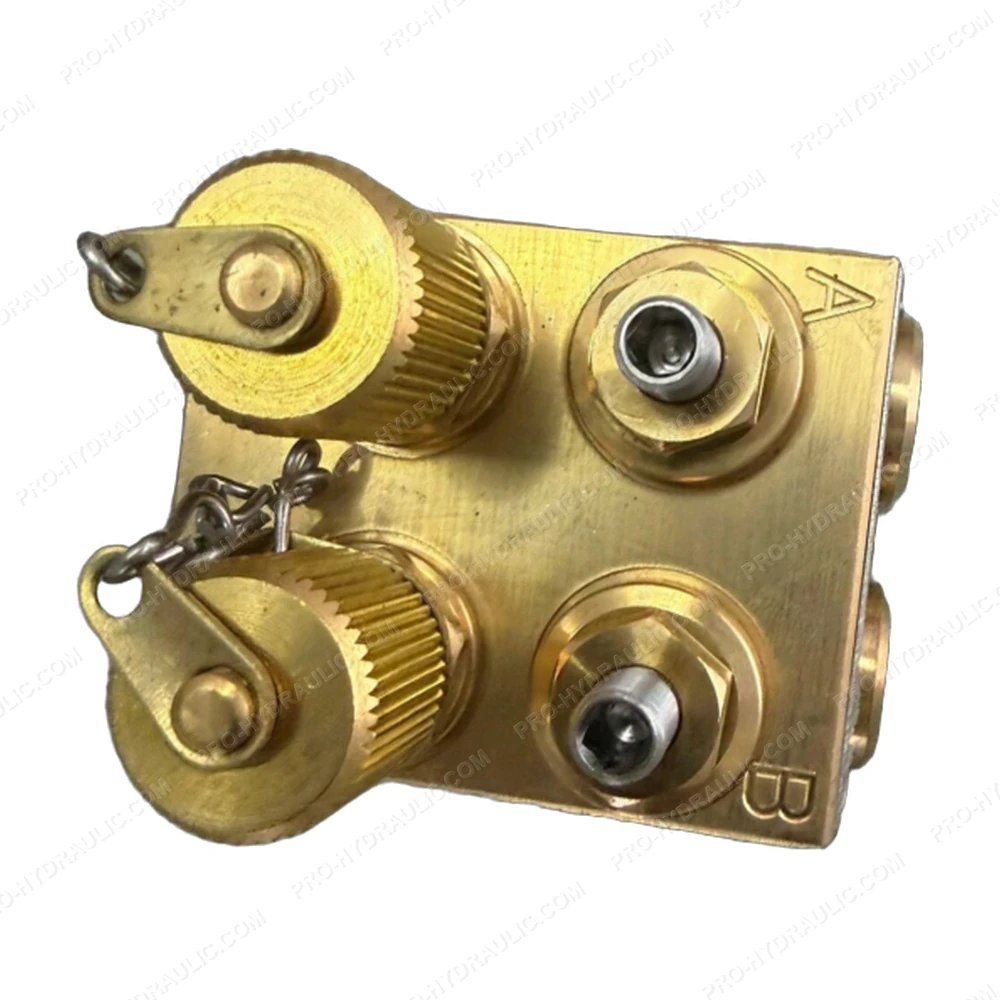

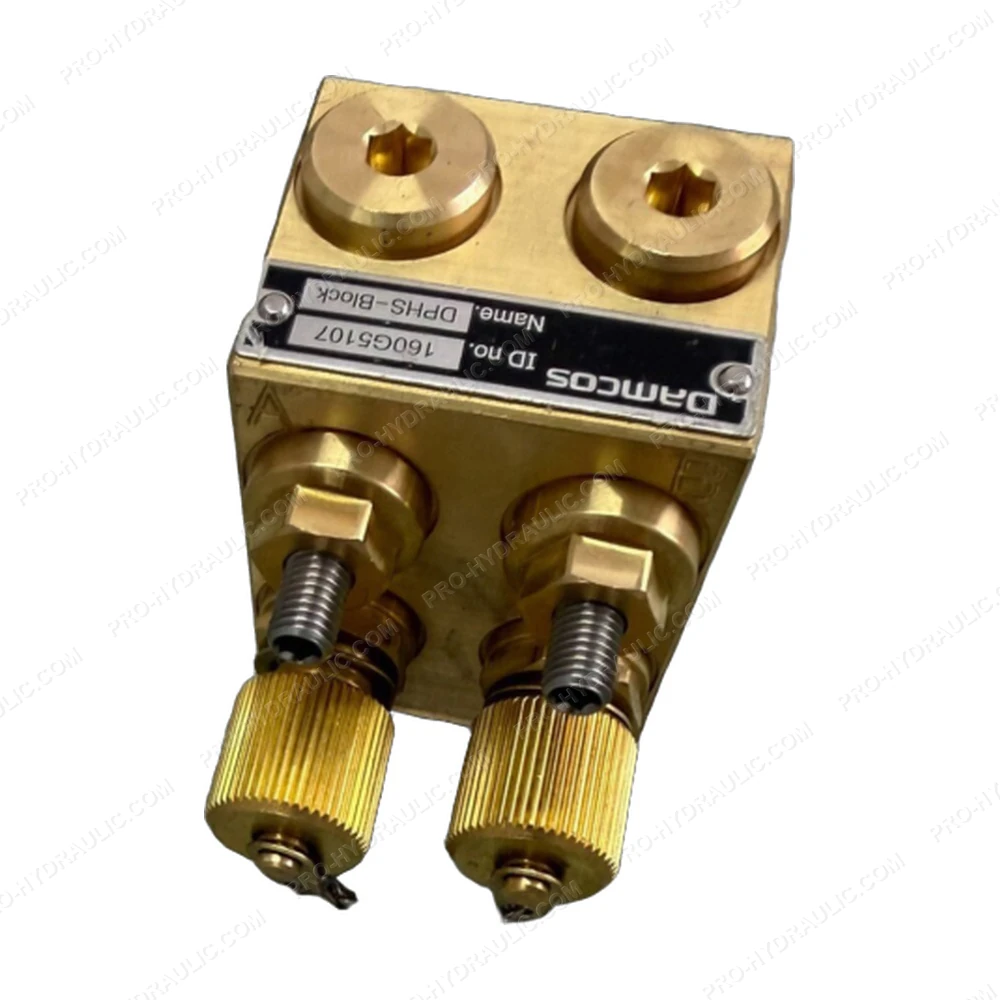

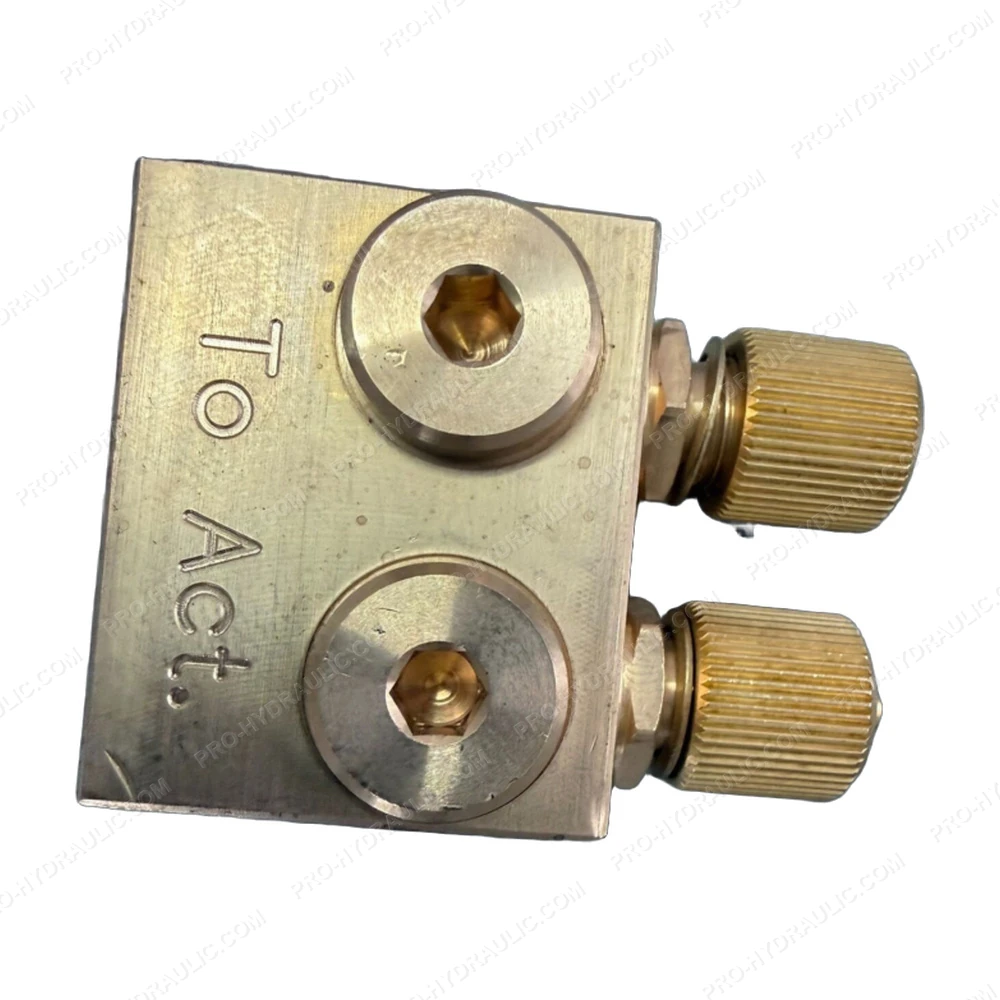

DAMCOS 160G5107 / DPHS-Block Modular Valve Block
