Product Overview
The Danfoss 300AA00382A / MCSCP230AW0B0010 is a high-performance solenoid-operated directional control valve engineered for precise hydraulic flow management in demanding industrial circuits. Part of the Danfoss MCSCP series, this valve utilizes a robust spool-and-sleeve design actuated by a wet-armature AC solenoid, delivering reliable directional control of hydraulic actuators, cylinders, and motors. The MCSCP230AW0B0010 configuration features a 230V AC solenoid coil with a spring-offset, two-position, four-way spool function, making it ideal for applications requiring dependable shifting, load holding, and rapid response within standard industrial hydraulic power units. Its modular construction allows for seamless integration into manifold blocks and subplate mounting systems, ensuring minimal pressure drop and consistent performance across a wide range of operating conditions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | 300AA00382A / MCSCP230AW0B0010 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Interface |
| Solenoid Voltage | 230V AC (50/60 Hz) |
| Spool Configuration | 4-Way, 2-Position, Spring Offset |
| Flow Capacity | Up to 60 L/min (nominal) |
| Seal Material | NBR (Buna-N) / FKM Optional |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, accurate flow metering, and long service life under high-cycle operation.
- Wet-Armature Solenoid Design: The 230V AC wet-armature solenoid provides high shifting force, quiet operation, and excellent resistance to contamination, reducing downtime in dirty industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust cast iron or aluminum body and tested to withstand pressure spikes and thermal cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Fast Response & Low Hysteresis: Optimized spool geometry and solenoid force characteristics deliver rapid actuation and consistent repeatability for precise motion control.
Typical Industrial Applications
This solenoid directional valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold clamping and ejection control, metallurgical presses for ram direction and pressure holding, construction and marine hydraulics for boom and outrigger actuation, and CNC machine tools for tool changer and clamping circuit management
PRODUCT IMAGES

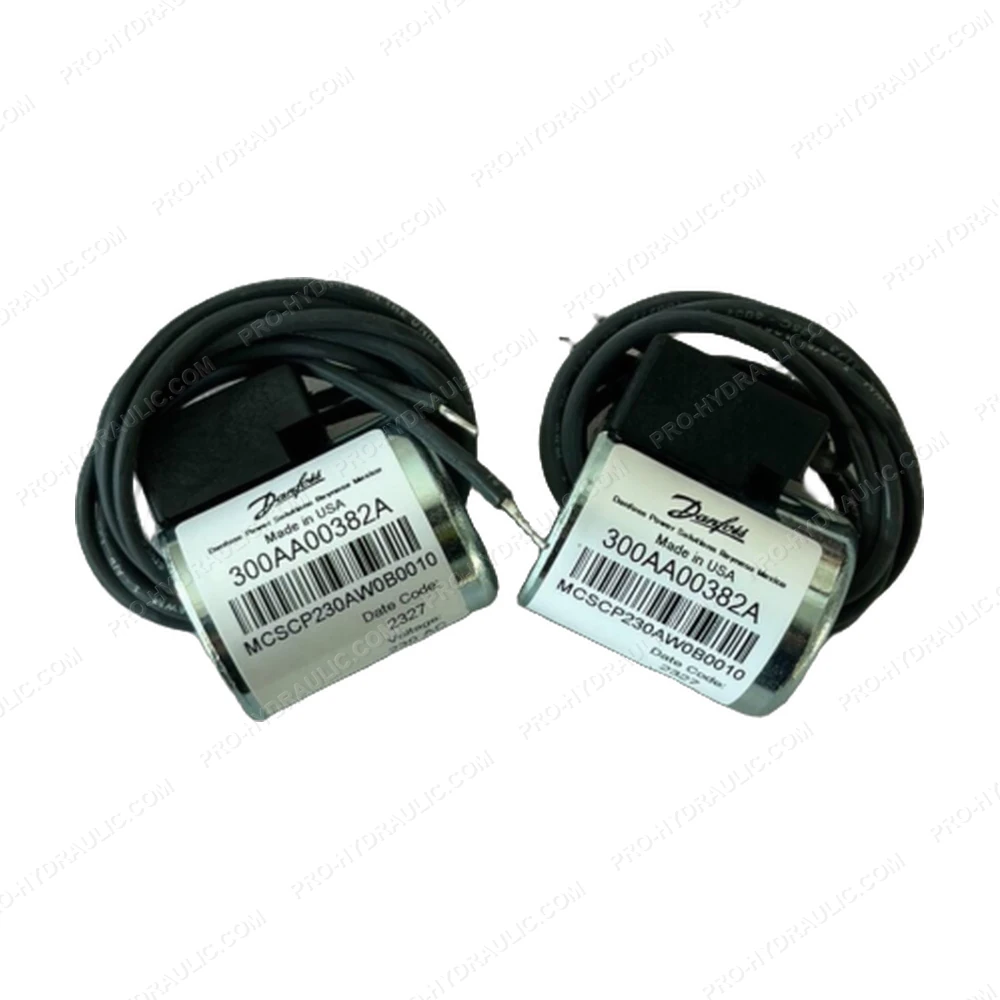

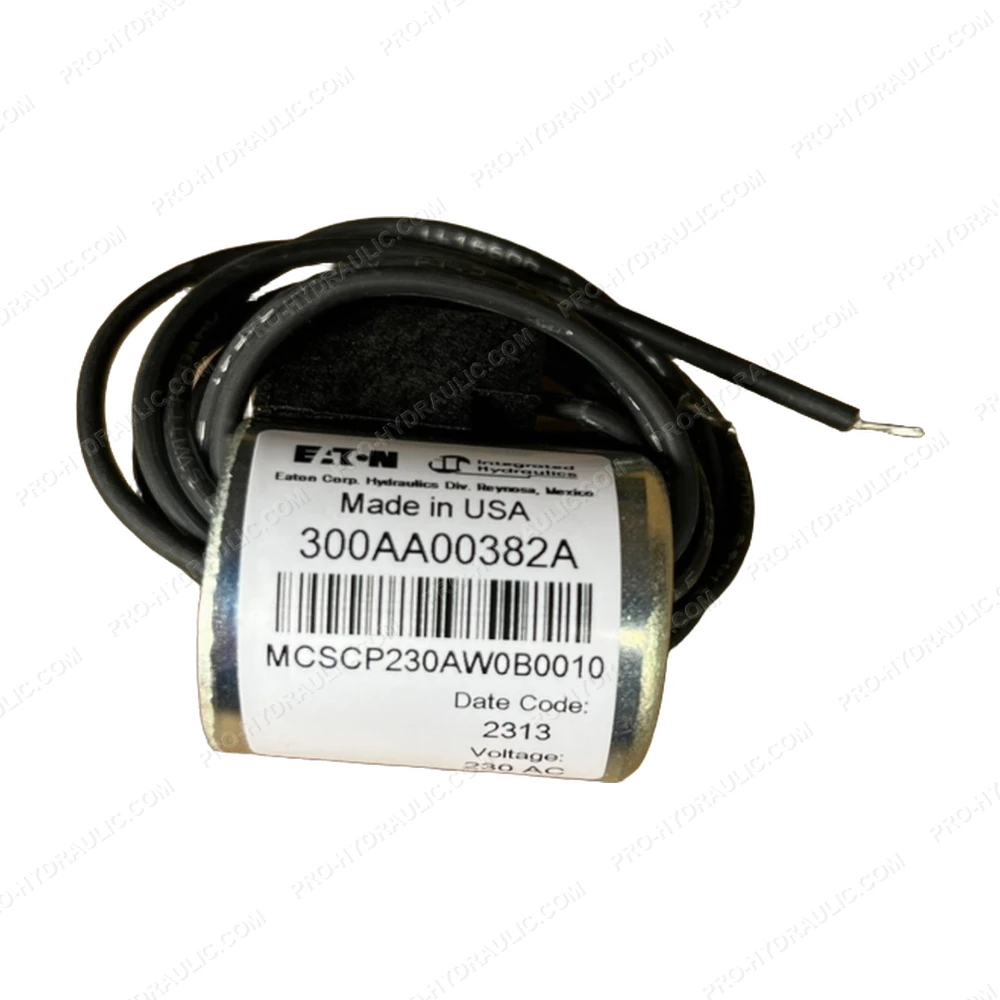

Danfoss 300AA00382A / MCSCP230AW0B0010 Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss 300AA00382A / MCSCP230AW0B0010 Solenoid Directional Valve. This Denmark-made 230V AC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
