Product Overview
The Danfoss D1P260RATPSNTEA4Y3D208025025NNFSFSNNNNN (Material Number: 83101382) is a high-performance variable displacement axial piston pump from the Danfoss D1P Series, engineered for demanding open-circuit hydraulic systems. Utilizing a robust swashplate design with axial pistons and a precision cylinder barrel, this pump delivers exceptional pressure capability, high volumetric efficiency, and precise displacement control. With a nominal displacement of 260 cm³/rev, the D1P260 is designed to serve as the central pressure source in heavy-duty industrial and mobile hydraulic power units, offering reliable performance under continuous high-load operation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Variable Displacement Axial Piston Pump |
| Model Designation | D1P260RATPSNTEA4Y3D208025025NNFSFSNNNNN |
| Material Number | 83101382 |
| Nominal Displacement | 260 cm³/rev |
| Operating Pressure | Up to 350 bar continuous / 400 bar peak (standard D1P high-pressure rating) |
| Control Type | Variable displacement with integrated control (per model code configuration) |
| Mounting & Connection | Standard SAE / ISO mounting flange with SAE split-flange ports |
| Circuit Type | Open circuit |
Engineering Features & Advantages
- Precision Performance: Swashplate-type axial piston design with finely machined cylinder barrel and pistons ensures high volumetric efficiency, smooth displacement modulation, and stable pressure output across the full speed range.
- High Power Density: The 260 cm³/rev displacement delivers substantial flow capacity in a compact envelope, making it ideal for high-power hydraulic systems where space and weight are critical.
- Advanced Displacement Control: Variable displacement mechanism allows precise adjustment of output flow to match system demand, reducing energy consumption and heat generation compared to fixed-displacement solutions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with hardened internal components, robust bearings, and high-quality sealing for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss OEM standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
This Danfoss D1P260 axial piston pump is widely deployed in heavy industrial and mobile hydraulic systems, including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine hydraulic power units, CNC machine tool hydraulic power packs, and offshore/energy sector hydraulic drive systems requiring reliable high-pressure variable flow.
PRODUCT IMAGES

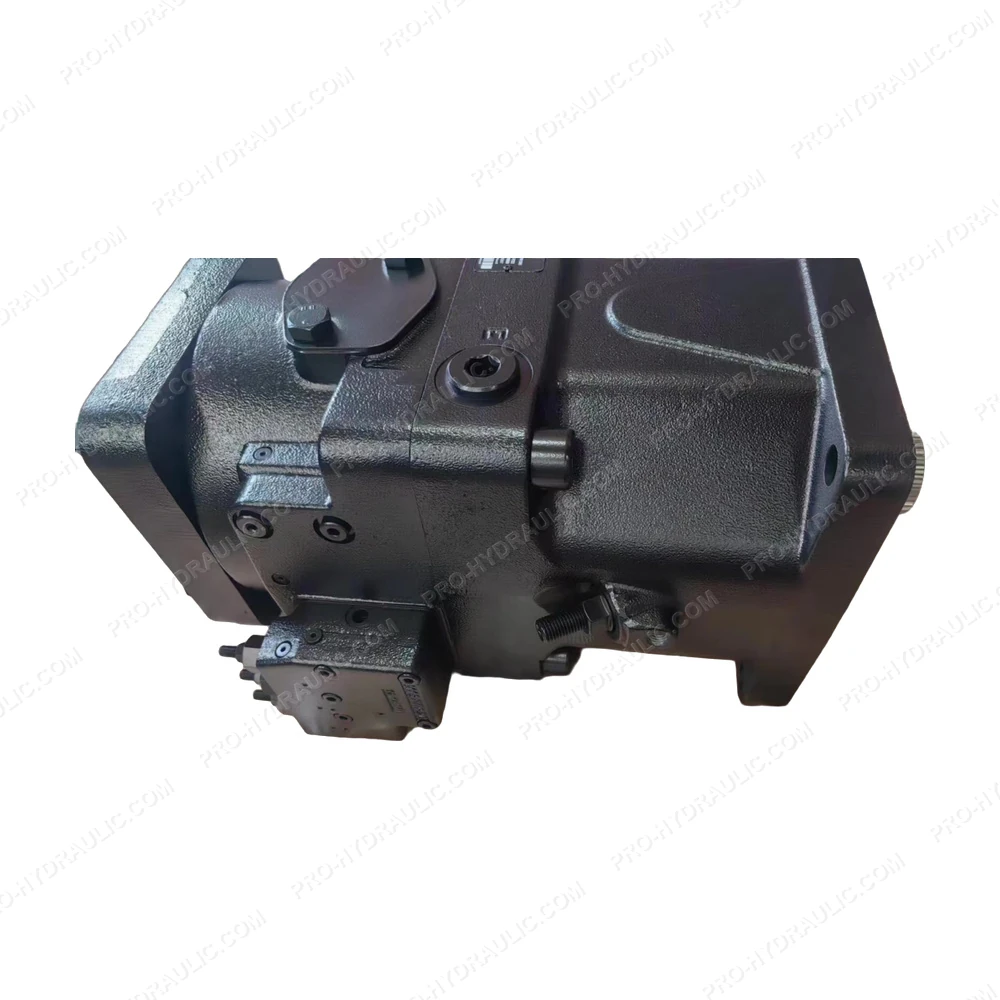

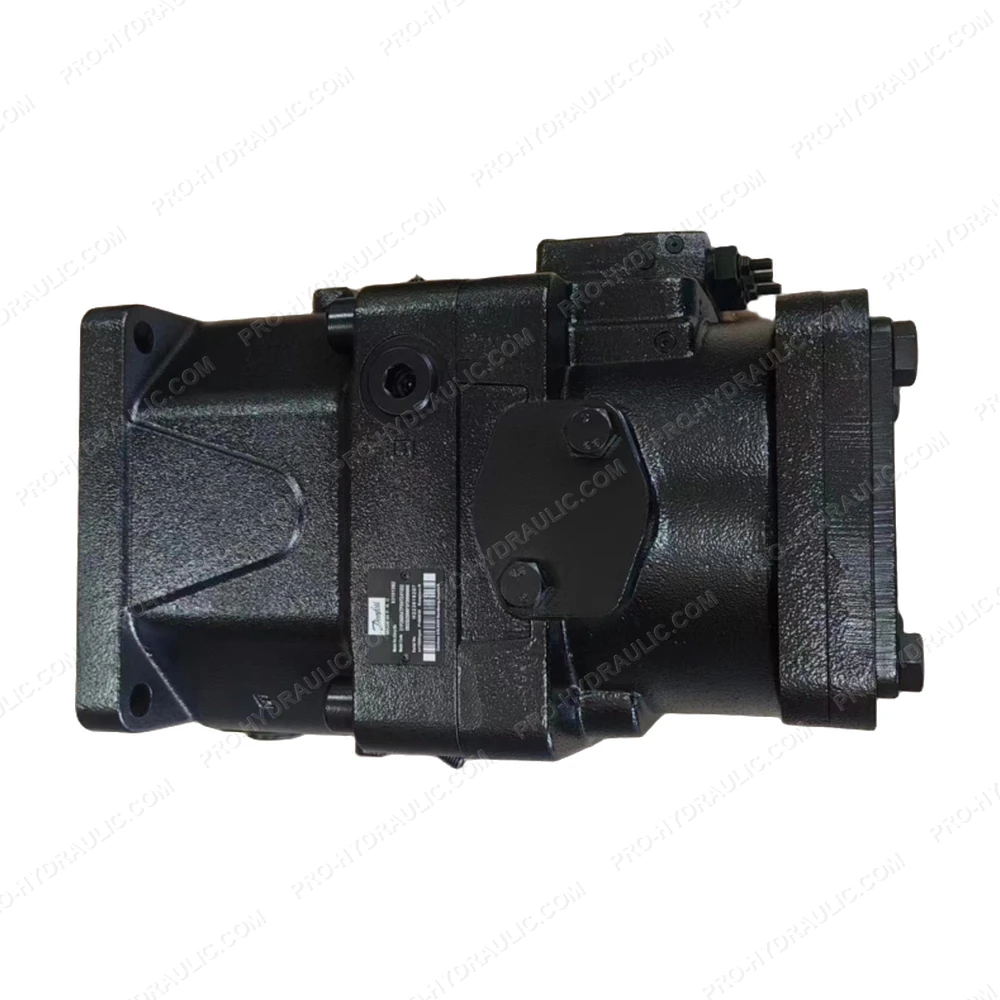

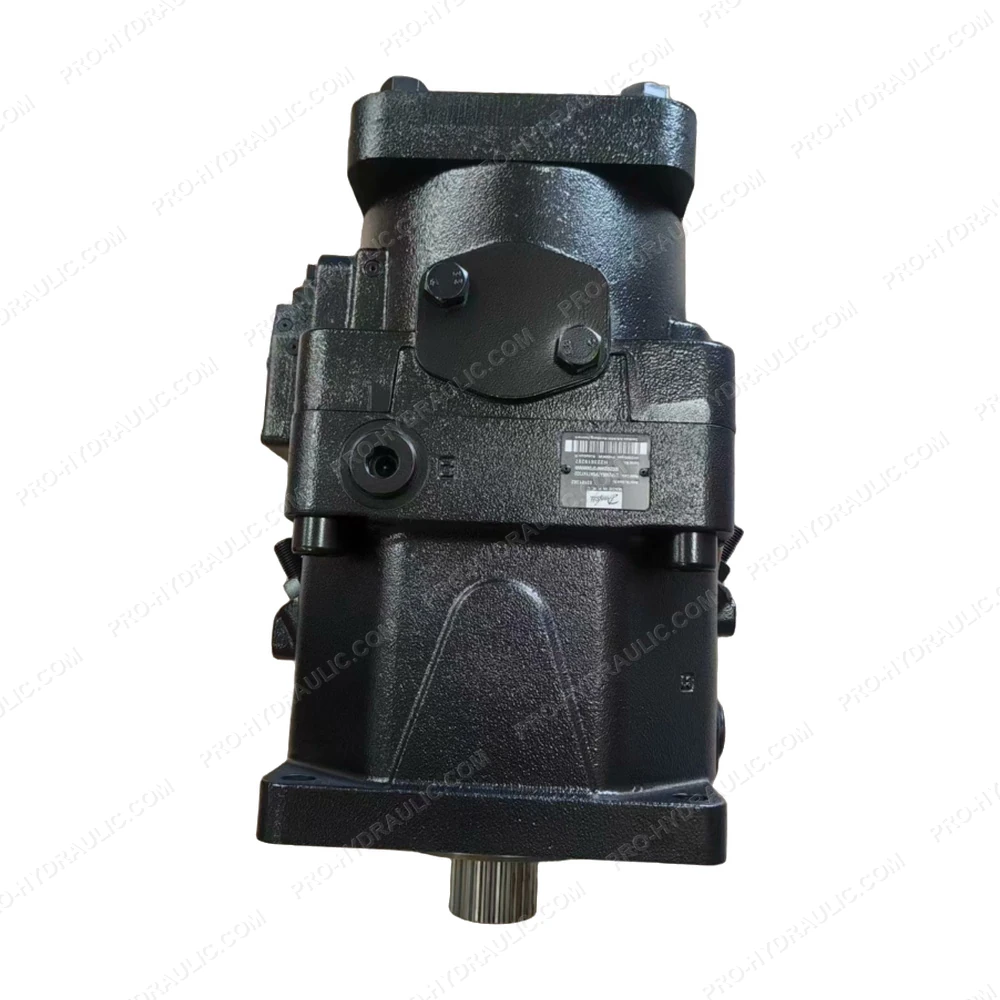

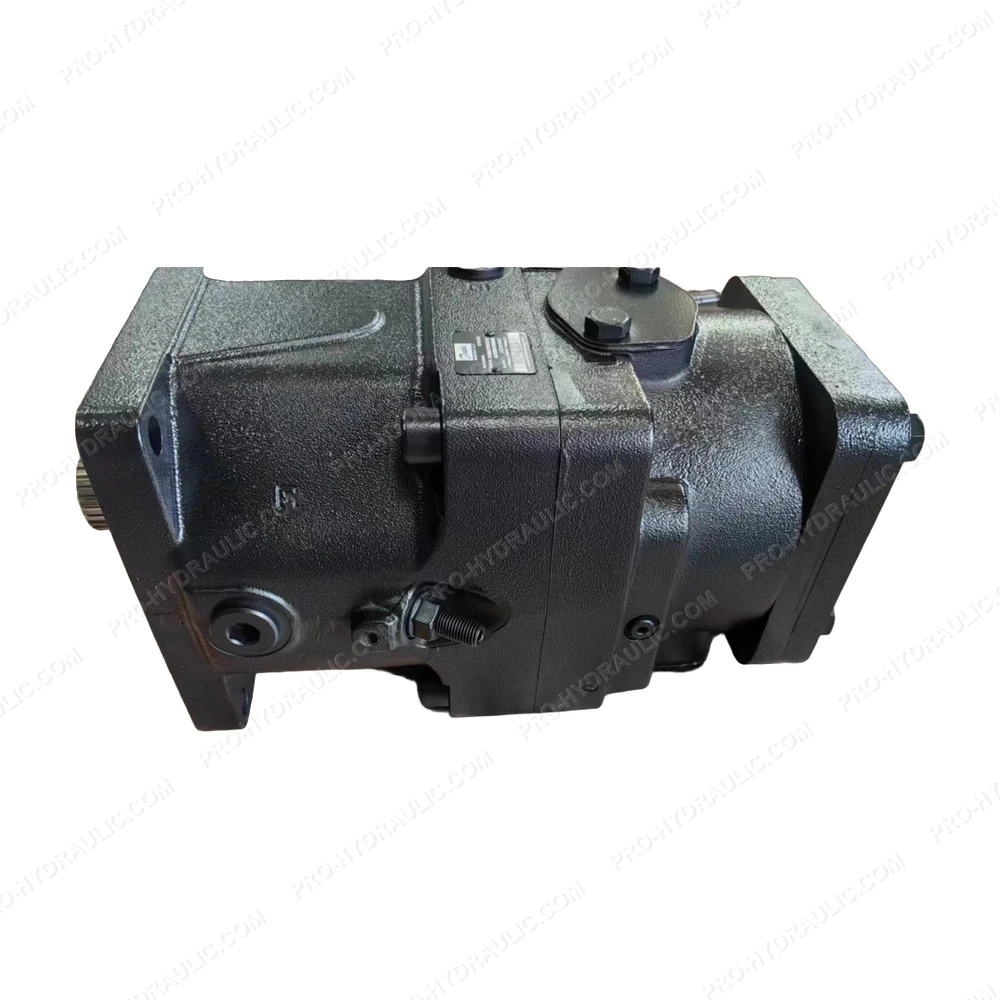

DANFOSS D1P260RATPSNTEA4Y3D208025025NNFSFSNNNNN / 83101382 Variable Displacement Axial Piston Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine DANFOSS D1P260RATPSNTEA4Y3D208025025NNFSFSNNNNN / 83101382 Variable Displacement Axial Piston Pump. This Denmark-made hydraulic component features a swashplate design, delivering leak-free, reliable fluid power for heavy-duty industrial systems.
