Product Overview
The DANFOSS FAR1-10-S-0 (ER10619232801) is a high-performance screw-in cartridge directional valve engineered for precise control of hydraulic fluid flow direction in compact manifold and integrated circuit designs. Manufactured by Danfoss, a global leader in mobile and industrial hydraulic solutions, this 2-position, 3-way (2/3) directional spool valve operates on a direct-acting solenoid principle, delivering reliable switching performance in demanding hydraulic systems. The FAR1 series is specifically designed for space-constrained applications where traditional inline valve bodies are impractical, allowing engineers to integrate directional control directly into custom manifold blocks. With a nominal flow capacity of approximately 10 L/min and a maximum operating pressure of up to 350 bar, this cartridge valve is ideally suited for pilot circuits, actuator control, and load-holding functions in mobile and industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Cartridge Directional Control Valve (Screw-in Cartridge) |
| Model Designation | FAR1-10-S-0 / ER10619232801 |
| Valve Configuration | 2-Position, 3-Way (2/3) Directional Spool |
| Actuation Type | Direct-Acting Solenoid (Spring Return) |
| Nominal Flow Rate | 10 L/min (FAR1-10 size designation) |
| Operating Pressure | Up to 350 bar (standard industrial grade) |
| Mounting & Connection | Screw-in cartridge, ISO 7784-2 / Danfoss cavity standard |
| Seal Material | NBR (Buna-N) / FKM available on request |
| Fluid Compatibility | Mineral-based hydraulic oil, HLP/HM per DIN 51524 |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage and consistent directional control, even under high cyclic duty. The 2/3 configuration provides reliable switching between extend, retract, and neutral positions for single-acting or pilot-operated actuators.
- Compact Cartridge Integration: The screw-in cartridge design eliminates the need for external piping and bulky valve bodies, enabling direct installation into custom manifold blocks. This reduces system footprint, minimizes potential leak points, and simplifies hydraulic circuit architecture.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the FAR1-10-S-0 features a robust solenoid coil and corrosion-resistant internal components, ensuring long service life in mobile hydraulics, industrial power units, and offshore applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original DANFOSS OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a nominal flow capacity of approximately 10 L/min and a maximum operating pressure of up to 350 bar, this cartridge valve is ideally suited for pilot circuits, actuator control, and load-holding functions in mobile and industrial machinery.
PRODUCT IMAGES

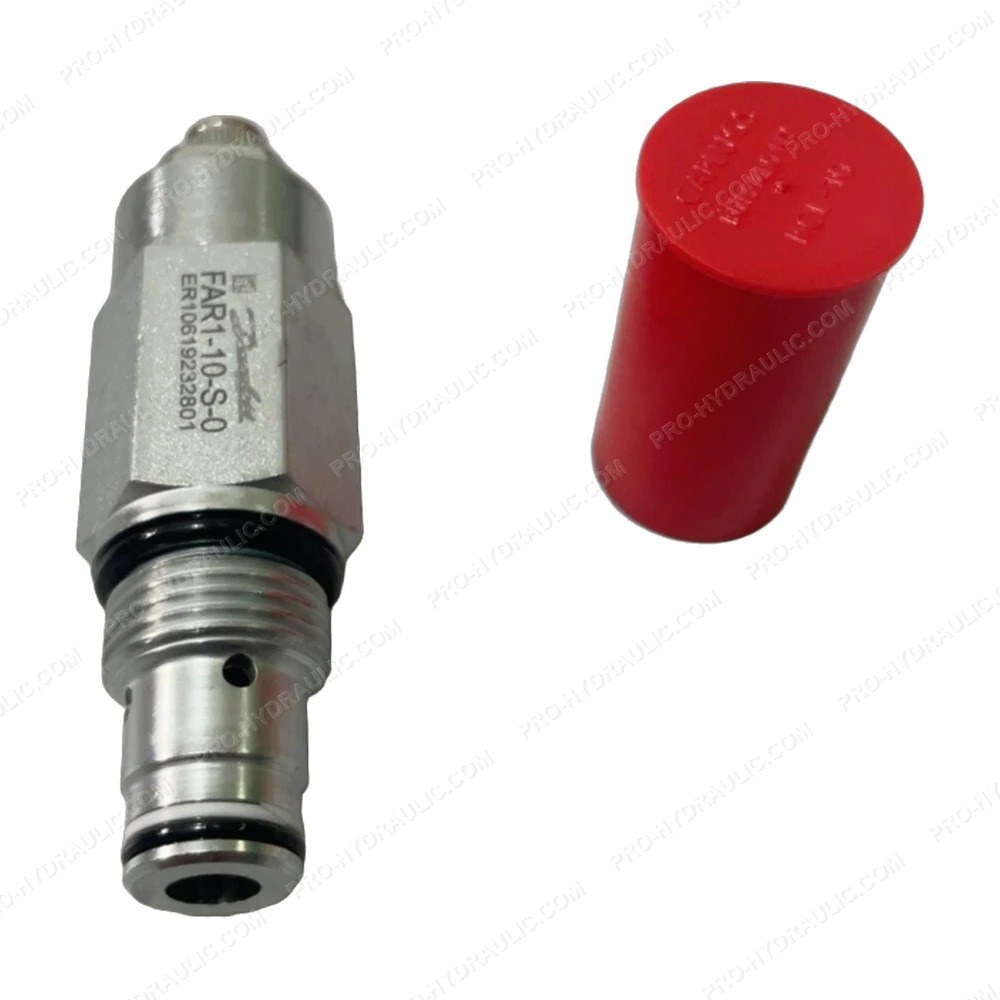

DANFOSS FAR1-10-S-0 / ER10619232801 Cartridge Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine DANFOSS FAR1-10-S-0 / ER10619232801 Solenoid Operated Directional Valve. This Denmark-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
