Product Overview
The Danfoss KDG4V-5-33C50N-M-U-H7-30 (material number 02-157268) is a high-performance proportional directional control valve from the Danfoss KDG4V series, engineered for precise, infinitely variable control of hydraulic actuator direction, speed, and position. This four-way, three-position (4/3) valve utilizes a proportional solenoid on one or both ends acting against a spring-centered spool, delivering smooth, stepless flow metering proportional to the electrical command signal. With a CETOP 5 (NG10 / ISO 4401-05) subplate mounting interface, the KDG4V-5 series is a direct-fit, drop-in replacement for Vickers KDG4V-5 and compatible proportional valve platforms, making it ideal for closed-loop and open-loop industrial motion control systems requiring high dynamic response and repeatable metering accuracy.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Control Valve (4-Way, 3-Position) |
| Model Designation | KDG4V-5-33C50N-M-U-H7-30 / 02-157268 |
| Manufacturer | Danfoss |
| Mounting Interface | CETOP 5 / NG10 / ISO 4401-05 Subplate Mounting |
| Spool Configuration | 4/3 (Four-Way, Three-Position), Spring-Centered |
| Spool Type Code | 33C50N — Meter-In / Meter-Out Proportional Control |
| Actuation | Proportional Solenoid (Single / Dual), Wet-Pin Design |
| Operating Pressure | Up to 315 bar (Rated Industrial Grade) |
| Rated Flow | Approx. 50 L/min Nominal (NG10 Class) |
| Electrical Interface | DIN 43650 / ISO 4400 Connector, H7 Coil Rating |
| Seal Material | NBR (Buna-N) — Standard Mineral Oil Compatibility |
Engineering Features & Advantages
- Precision Performance: The integrated proportional Solenoid (Single / Dual), Wet-Pin Design ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 50 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a CETOP 5 (NG10 / ISO 4401-05) subplate mounting interface, the KDG4V-5 series is a direct-fit, drop-in replacement for Vickers KDG4V-5 and compatible proportional valve platforms, making it ideal for closed-loop and open-loop industrial motion control systems requiring high dynamic response and repeatable metering accuracy.
PRODUCT IMAGES

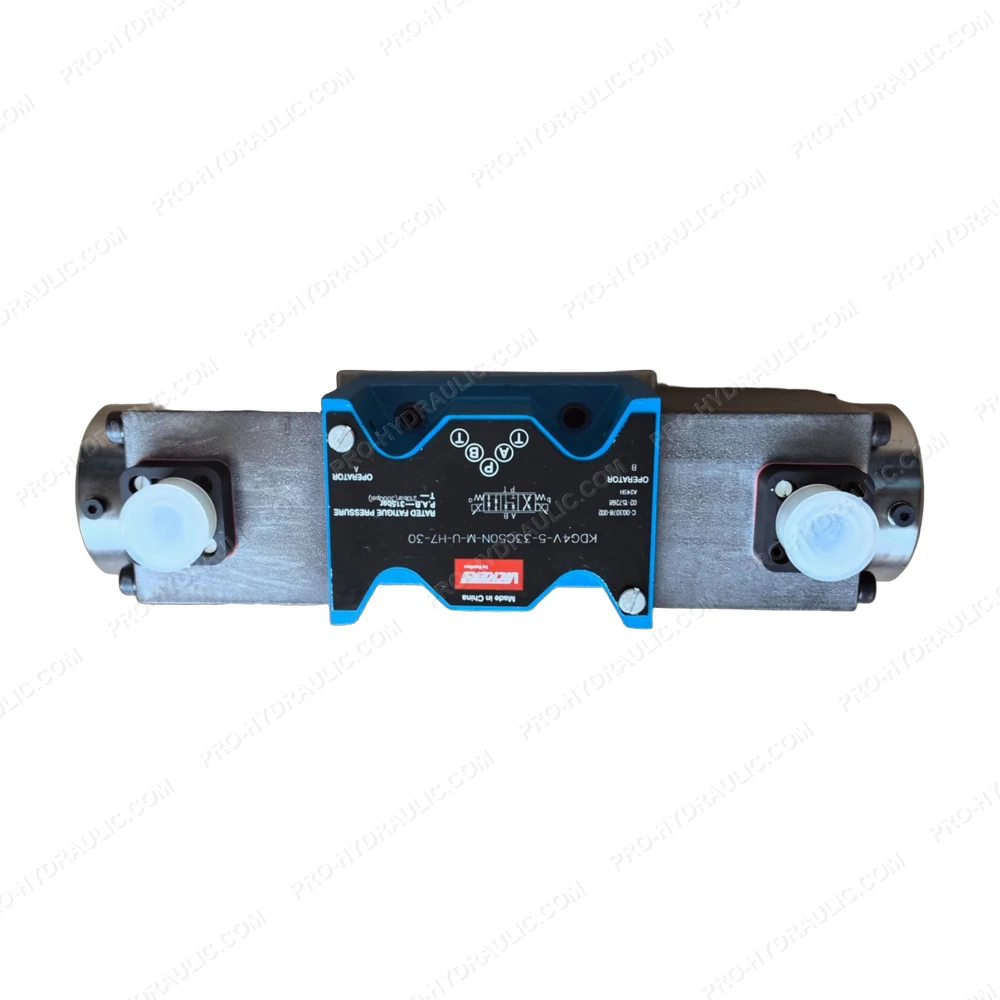

Danfoss KDG4V-5-33C50N-M-U-H7-30 / 02-157268 Proportional Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss KDG4V-5-33C50N-M-U-H7-30 / 02-157268 Proportional Directional Valve. This Germany-made high-response hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
