The DANFOSS KVEB81802 is a heavy-duty industrial proportional valve engineered for precise electrohydraulic flow and pressure control in demanding hydraulic circuits. As part of Danfoss’s KVEB series, it utilizes a proportional solenoid with a wet-pin armature and a precision-machined spool to deliver infinitely variable flow control proportional to the input current. This valve is designed for continuous duty in high-cycle industrial applications where accurate velocity and force control are critical.
DANFOSS KVEB81802 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Proportional Directional Valve |
| Actuation | Proportional Solenoid, Wet-Pin |
| Mounting Pattern | ISO 4401 / CETOP 3 (NG6) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Rated Flow | Up to 40 L/min |
| Supply Voltage | 24 V DC (nominal) |
| Protection Class | IP65 (with mating connector) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- Proportional solenoid with wet-pin armature for precise, hysteresis-minimized control
- Precision-ground spool and sleeve for low leakage and long service life
- ISO 4401 / CETOP 3 mounting interface for direct integration into standard manifolds
- High flow capacity relative to size, suitable for continuous duty cycles
- Optional integrated electronics available for closed-loop position or pressure control
Industrial Applications
- Injection molding machines – clamp and injection velocity control
- Hydraulic presses – proportional pressure and force regulation
- Machine tools – feed axis and spindle positioning
- Material handling – smooth acceleration and deceleration of heavy loads
- Test rigs – dynamic flow and pressure profiling
For technical inquiries, dimensional drawings, or replacement support for DANFOSS KVEB81802, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

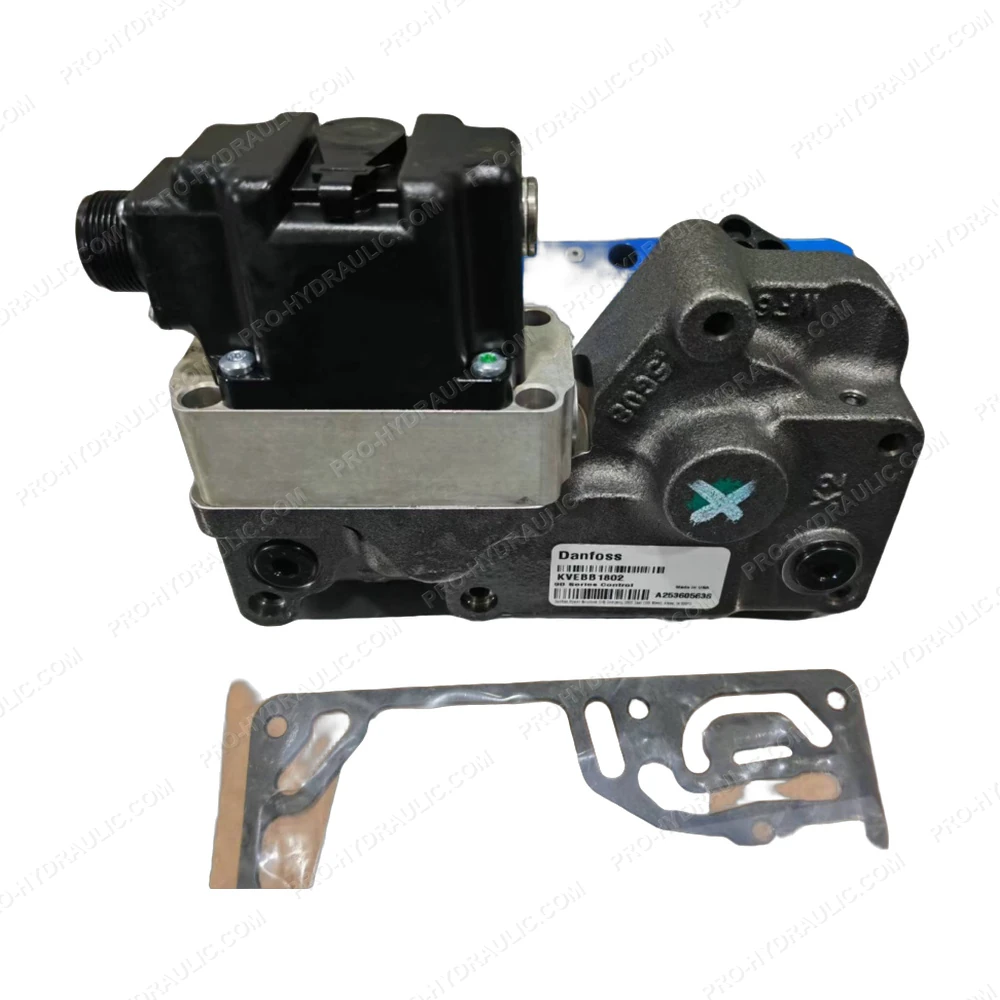

DANFOSS KVEB81802 Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the DANFOSS KVEB81802 Proportional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty hydraulic systems.
