Product Overview
The Danfoss M46-20901 axial piston pump, designated by the full ordering code MPV046CBBATABBCAA BDDCHAGGCNNN***, is a high-performance variable displacement piston pump from the Danfoss MPV series. It operates on the proven swashplate principle, where an inclined swashplate drives multiple pistons within a rotating cylinder barrel to generate precise, high-pressure hydraulic flow. The MPV046 frame size delivers a nominal displacement of 46 cm³/rev and is engineered for demanding industrial circuits requiring accurate pressure and flow control, high volumetric efficiency, and long service life. The comprehensive model code defines the exact configuration, including displacement, control type, mounting flange, shaft, ports, and seal options, ensuring a direct-fit solution for OEM and replacement applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Piston Pump (Axial Piston, Variable Displacement) |
| Model Designation | M46-20901 / MPV046CBBATABBCAA BDDCHAGGCNNN*** |
| Series / Frame Size | Danfoss MPV046 (46 cm³/rev nominal displacement) |
| Working Principle | Swashplate design with axial pistons and rotating cylinder barrel |
| Operating Pressure | Standard Industrial Grade (up to 350 bar continuous, 400 bar peak) |
| Displacement Control | Variable displacement via integral control (code-defined: pressure/load-sense options) |
| Mounting & Connection | Standard ISO / SAE mounting flange with keyed shaft; SAE split-flange ports |
| Seal & Fluid Compatibility | NBR / FKM seals; mineral hydraulic oil per ISO VG 32–68 |
Engineering Features & Advantages
- Precision Performance: Swashplate axial piston design delivers high volumetric and mechanical efficiency with precise displacement control, enabling accurate flow and pressure regulation across the full operating range.
- High Power Density: The 46 cm³/rev frame size provides substantial flow capacity in a compact envelope, ideal for space-constrained industrial power units.
- Robust Displacement Controls: Configurable control options (pressure compensator, load sensing, torque limiting) allow the pump to match system demand, reducing heat generation and energy consumption.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened piston/cylinder interfaces and precision-ground running surfaces for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss MPV046 OEM standards, ensuring drop-in installation without modification.
Typical Industrial Applications
The Danfoss MPV046 axial piston pump is widely deployed in heavy industrial hydraulic systems, including plastic injection molding machines, metallurgical presses and rolling mills
PRODUCT IMAGES

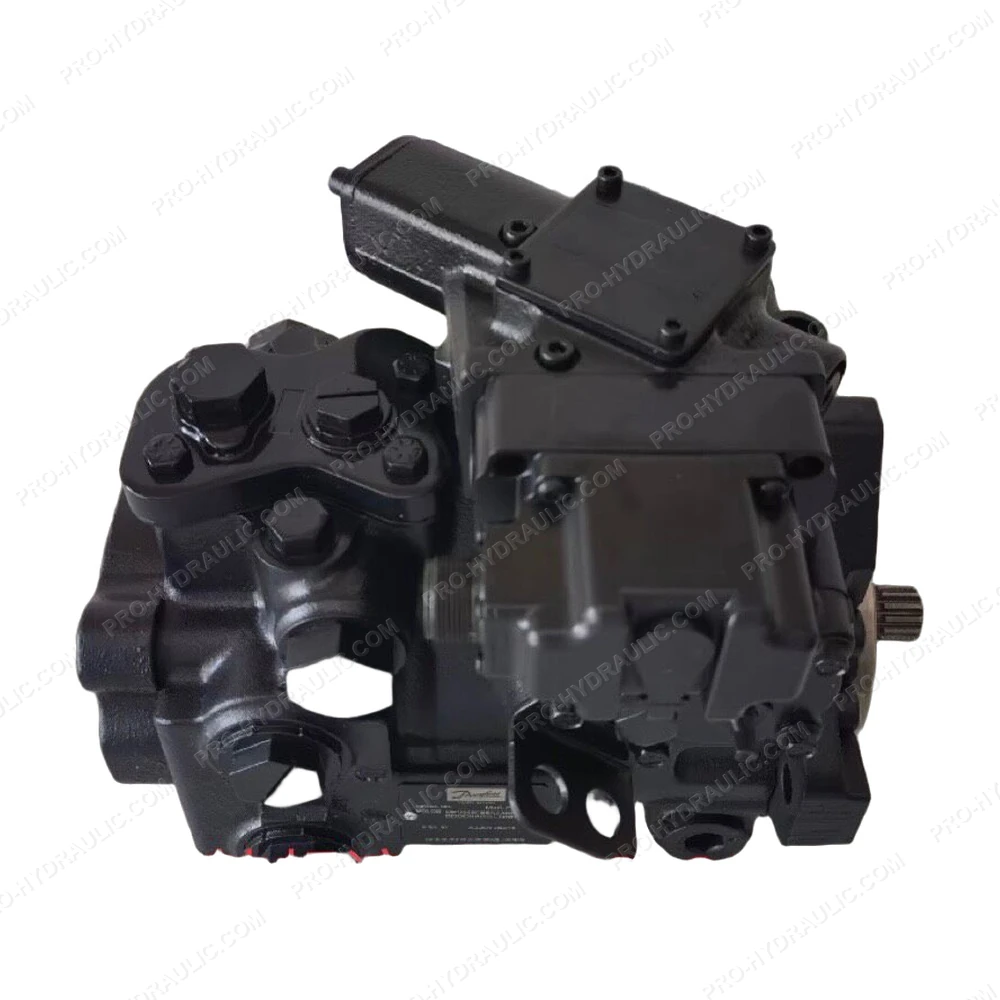

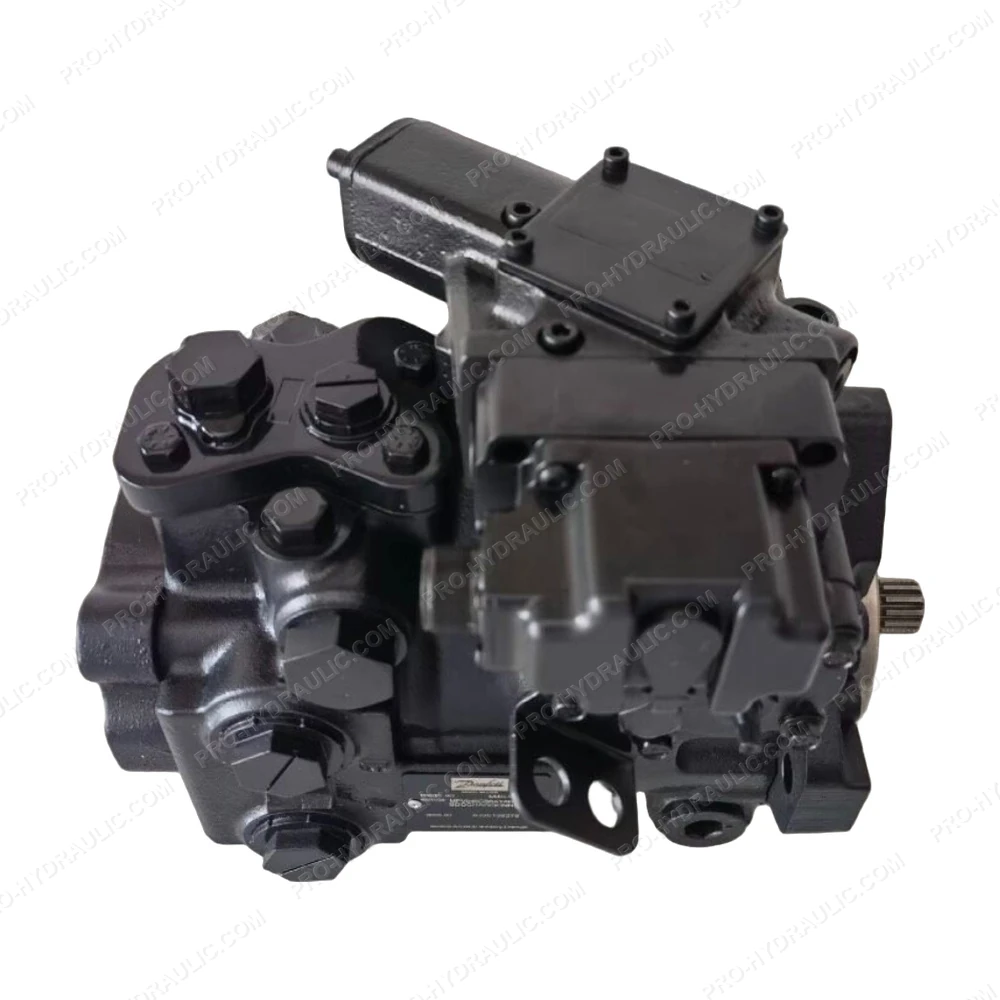

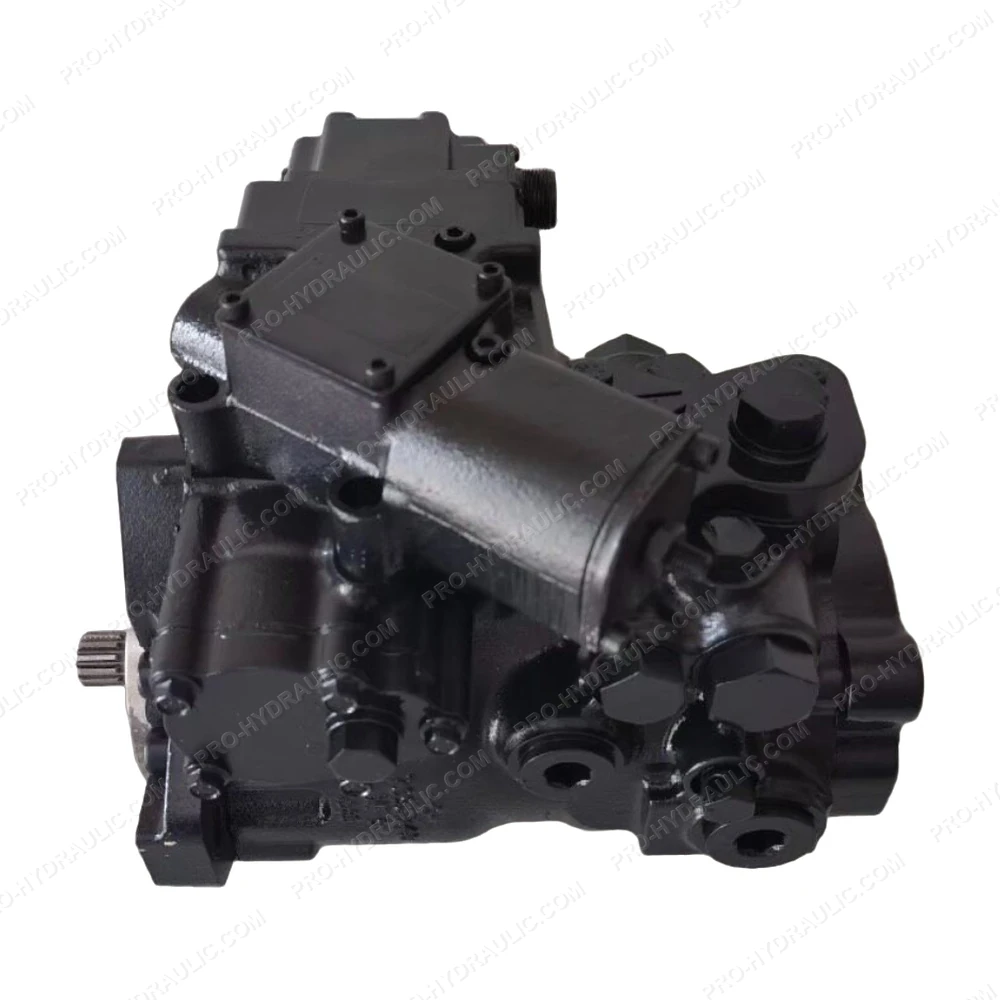

Danfoss M46-20901 / MPV046CBBATABBCAA BDDCHAGGCNNN*** Axial Piston Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss M46-20901 / MPV046CBBATABBCAA BDDCHAGGCNNN*** Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
