Product Overview
The Danfoss MCD-8337-04 is a high-performance proportional directional control valve engineered for precise, infinitely variable control of hydraulic flow direction and magnitude in demanding industrial systems. As part of Danfoss’s renowned MCD series, this valve utilizes a precision-machined spool and sleeve assembly actuated by a high-response proportional solenoid, enabling smooth, stepless regulation of actuator speed and position. Unlike on/off directional valves, the MCD-8337-04 provides proportional flow characteristics that are directly commanded by an analog or PWM electrical input signal, making it ideal for closed-loop motion control, velocity profiling, and synchronized multi-axis applications. Its robust construction and advanced spool geometry ensure minimal hysteresis, excellent repeatability, and long service life even under continuous duty cycles in harsh industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Control Valve |
| Model Designation | MCD-8337-04 |
| Operating Pressure | Up to 350 bar (5075 psi) rated, 420 bar peak |
| Nominal Flow Rate | Up to 40 L/min (10.5 gpm) at 70 bar pressure drop |
| Actuation Type | Proportional solenoid, single or dual coil configuration |
| Spool Configuration | 4-way, 3-position, closed-center or tandem-center options |
| Electrical Command Signal | 0–10 V DC, ±10 V DC, or 4–20 mA (via amplifier card) |
| Hysteresis | ≤ 3% of rated flow (typical) |
| Response Time | 10–25 ms (depending on signal and pressure conditions) |
| Mounting & Connection | ISO 4401 / CETOP 3 (NG6) subplate mounting; DIN 43650 electrical connector |
| Fluid Compatibility | Mineral oil, HLP/HM, phosphate ester (with appropriate seals) |
| Seal Material | NBR (standard), FKM (optional for high-temperature or special |
Engineering Features & Advantages
- Precision Performance: The proportional directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Danfoss specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 40 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Its robust construction and advanced spool geometry ensure minimal hysteresis, excellent repeatability, and long service life even under continuous duty cycles in harsh industrial environments.
PRODUCT IMAGES

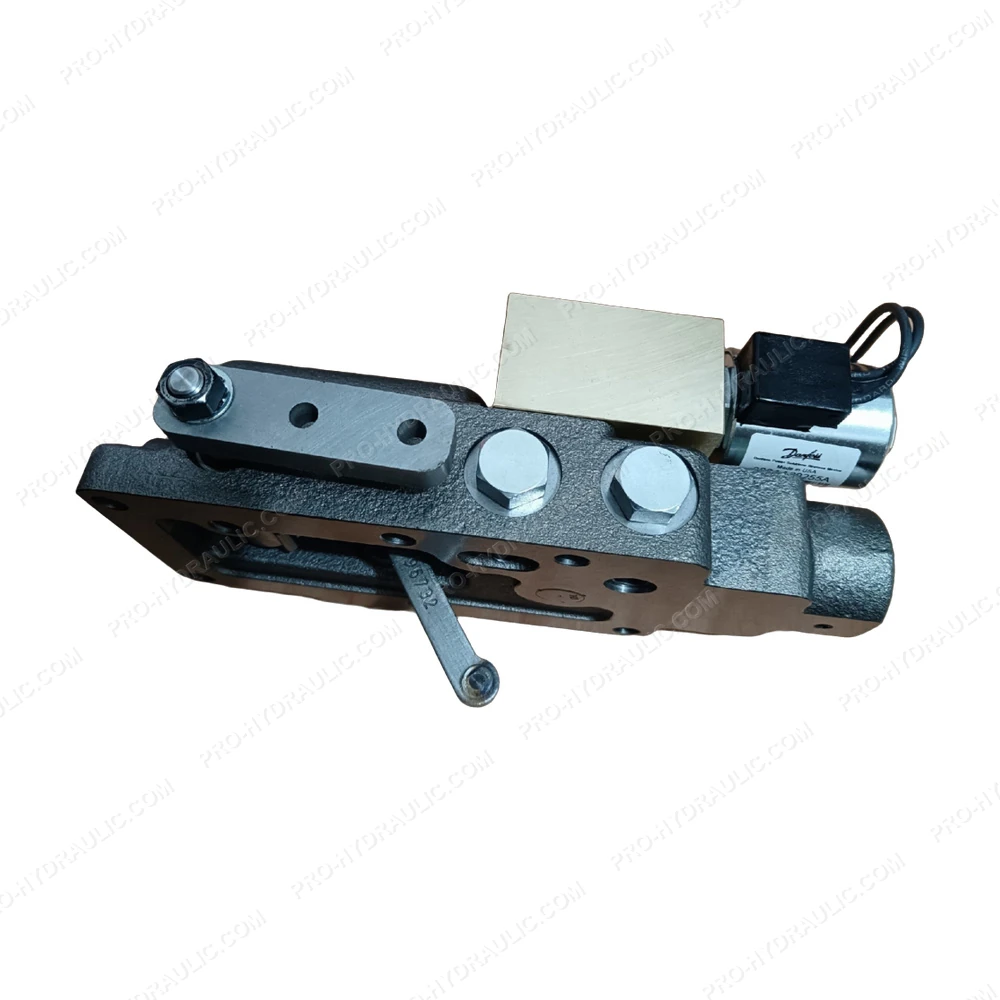

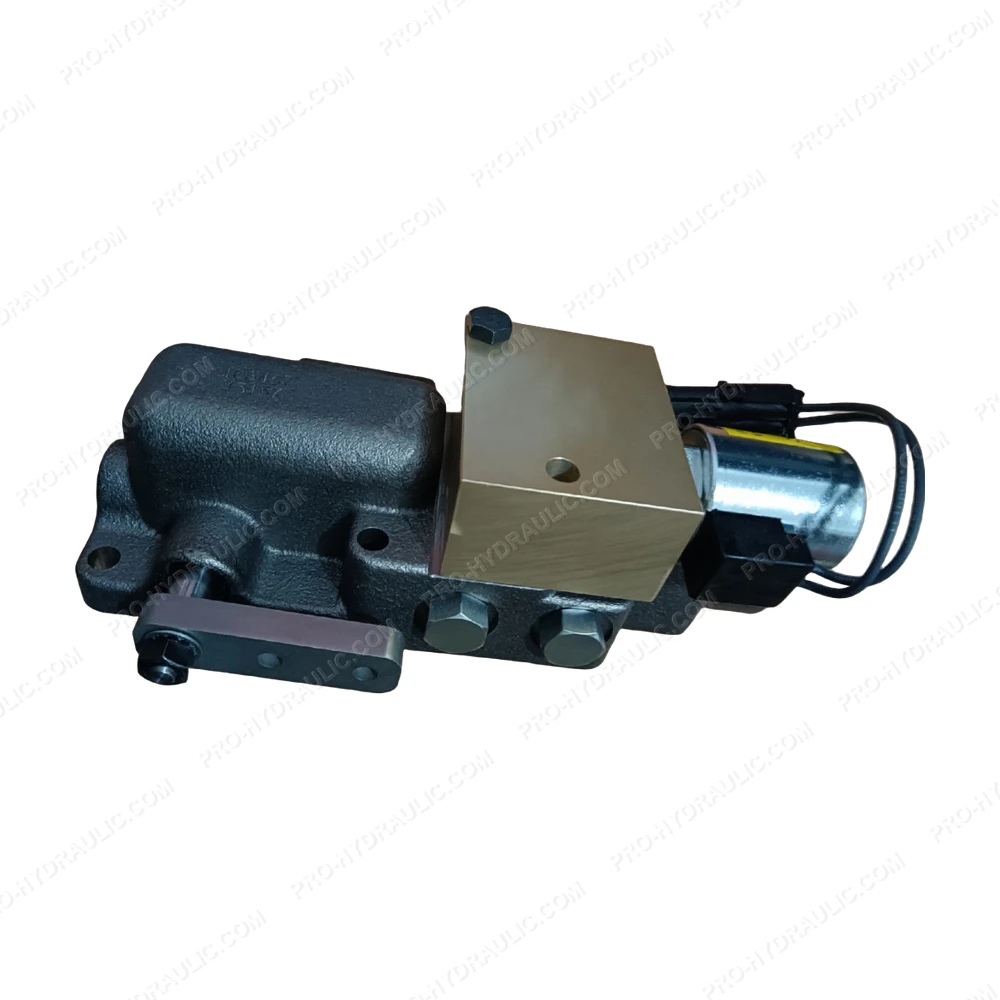

Danfoss MCD-8337-04 Proportional Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss MCD-8337-04 Proportional Directional Control Valve. This Denmark-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
