Product Overview
The Danfoss MCSCH230AG000010 (also referenced as 300AA00126A) is a high-performance two-way, two-position solenoid cartridge valve engineered for precise directional control within compact hydraulic manifolds and integrated circuits. Manufactured by Danfoss, a global leader in mobile and industrial hydraulics, this valve utilizes a direct-acting solenoid actuator to shift an internal spool or poppet, thereby opening or closing the flow path between the inlet and outlet ports. Its cartridge-style construction allows for space-saving installation directly into a machined cavity, eliminating the need for separate subplates and reducing potential leak points. Designed for robust industrial duty, the MCSCH230AG000010 provides reliable, leak-free switching for demanding applications requiring fast response and high cycle rates.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Cartridge Valve (Directional Control) |
| Model Designation | MCSCH230AG000010 / 300AA00126A |
| Operating Pressure | Up to 350 bar (5075 psi) rated, depending on configuration |
| Flow Capacity | Nominal 20–30 L/min (5.3–7.9 GPM), optimized for low-pressure drop |
| Actuation Type | Direct-acting solenoid, normally closed (NC) or normally open (NO) options |
| Mounting & Connection | Standard 2-way cartridge cavity per Danfoss MCS series; ISO 4401 interface compatible |
| Seal Material | NBR (Buna-N) standard; FKM (Viton) available for high-temperature or specialty fluids |
| Voltage Options | 12 VDC, 24 VDC, 110 VAC, 230 VAC (suffix dependent) |
Engineering Features & Advantages
- Precision Performance: The direct-acting solenoid design ensures rapid, consistent response times and precise flow control, minimizing pressure spikes and improving system dynamics in high-cycle applications.
- Industrial Reliability: Constructed with hardened, wear-resistant internal components and a robust solenoid coil, this valve is built for continuous operation under severe industrial conditions, including high pressure and vibration.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss OEM standards ensures drop-in replacement without modification to existing manifolds or circuitry.
- Compact Cartridge Design: Space-saving installation reduces manifold size and complexity, lowers leakage risk, and simplifies maintenance compared to traditional subplate-mounted valves.
- Versatile Configuration: Available in normally closed or normally open configurations, with multiple voltage and seal options to suit diverse hydraulic system requirements.
Typical Industrial Applications
This solenoid cartridge valve is ideal for a wide range of heavy industrial and mobile hydraulic systems, including: plastic injection molding machines (
PRODUCT IMAGES

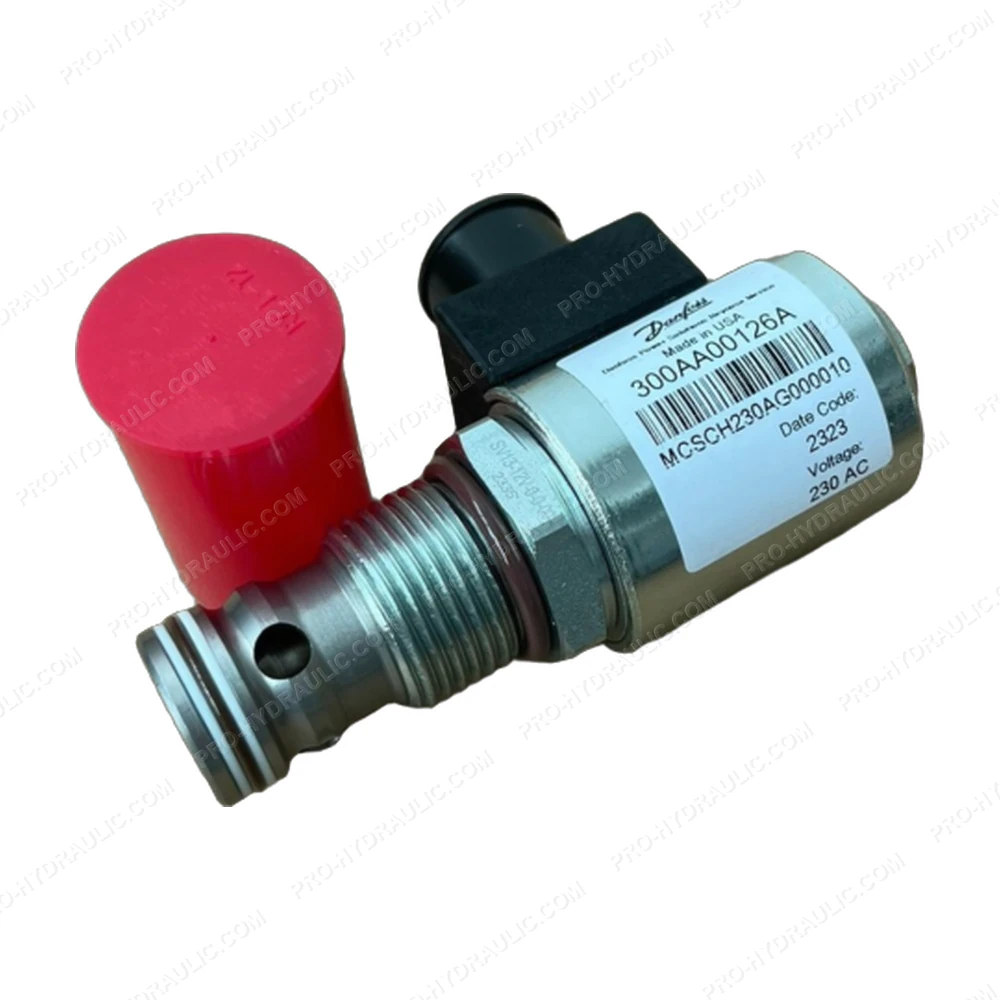

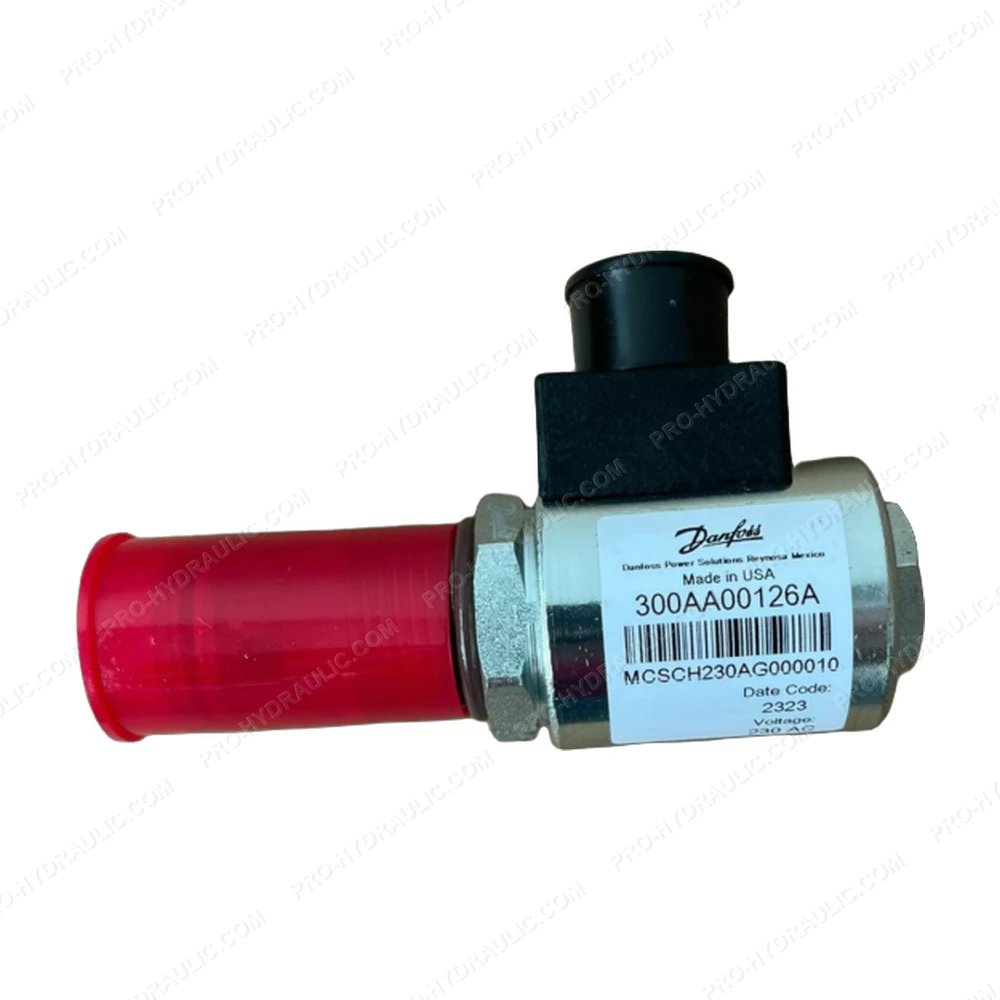

Danfoss MCSCH230AG000010 / 300AA00126A Solenoid Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss MCSCH230AG000010 / 300AA00126A Solenoid Cartridge Valve. This Denmark-made 230V AC hydraulic component features a 2-way normally closed poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
