Product Overview
The Danfoss MCV105C3023 is a high-performance proportional directional control valve engineered for precise, infinitely variable control of hydraulic actuator speed and direction. As part of the Danfoss MCV series, this valve utilizes a proportional solenoid actuator acting on a precision-machined spool to deliver metered flow proportional to the electrical input signal. Unlike simple on/off directional valves, the MCV105C3023 enables smooth acceleration and deceleration of cylinders and motors, reducing shock loads and improving system efficiency in demanding industrial and mobile hydraulic circuits. Its robust construction and reliable proportional characteristics make it an ideal choice for applications requiring accurate position, velocity, or force control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Control Valve |
| Model Designation | MCV105C3023 |
| Operating Pressure | Up to 350 bar (5075 psi) rated |
| Mounting & Connection | Standard ISO 4401 / CETOP interface, subplate mounting |
| Actuation Type | Proportional solenoid, single or dual stage |
| Flow Rate | Nominal 40–100 L/min (dependent on spool configuration) |
| Spool Type | Closed-center, proportional metering |
| Electrical Interface | Standard DIN 43650 connector, 12/24 VDC coil options |
Engineering Features & Advantages
- Precision Proportional Control: The valve spool is positioned by a proportional solenoid, providing infinitely variable flow control that is directly proportional to the input current. This allows for smooth, stepless adjustment of actuator speed and direction, eliminating the shock and noise associated with on/off valve switching.
- High-Resolution Metering: Precision-ground spool and sleeve assembly ensures minimal leakage, low hysteresis, and excellent repeatability, enabling accurate velocity and position control in closed-loop systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid construction and wear-resistant spool materials that ensure long service life even in high-cycle applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss MCV series valves, ensuring drop-in replacement without modification to manifolds or electrical connections.
- Optimized Dynamic Response: Fast solenoid response and optimized spool geometry deliver quick reaction times, making the valve suitable for dynamic motion control tasks.
Typical Industrial Applications
The Danfoss MCV105C3023 proportional directional control valve is widely used in heavy industrial and mobile hydraulic systems requiring precise motion control. Typical applications include plastic injection molding machines (for accurate injection and clamping control), metallurgical presses and rolling mills (for force and position regulation), construction and marine hydraulics (for smooth boom and winch operation), and CNC machine tools (for feed axis and
PRODUCT IMAGES

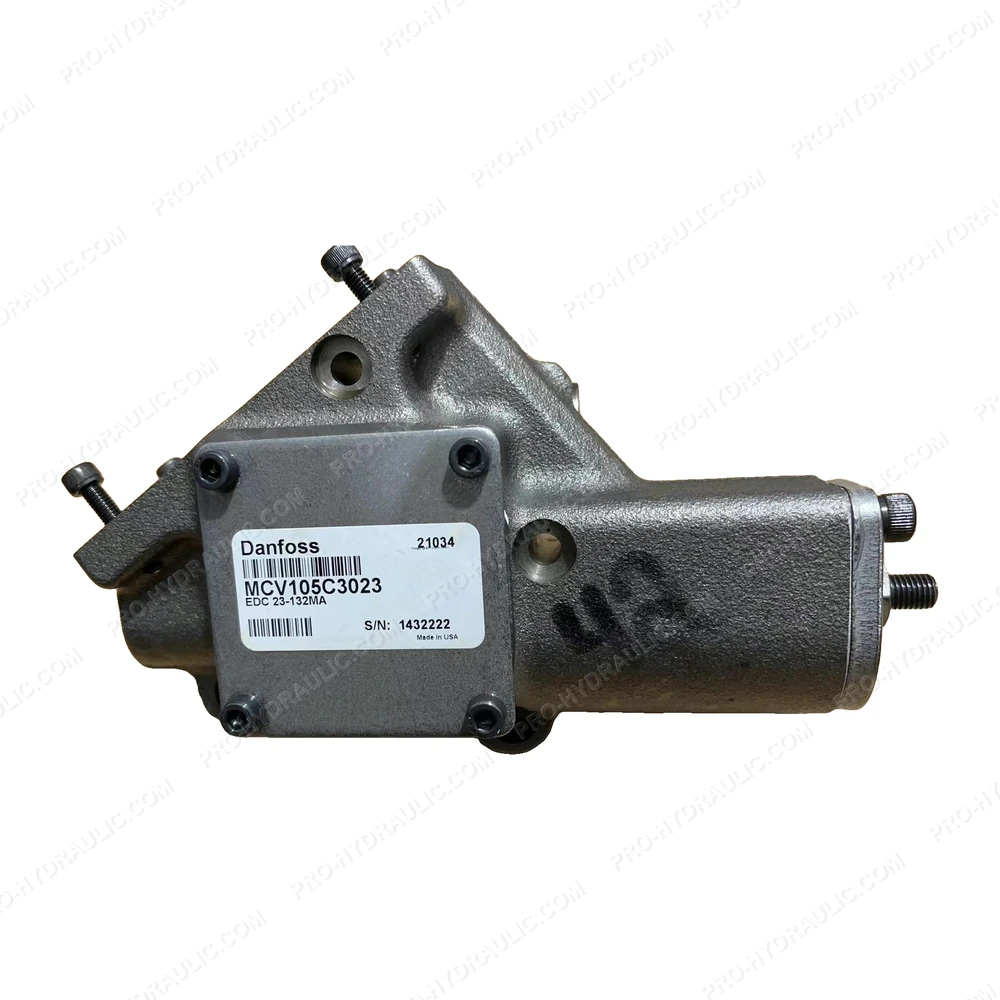

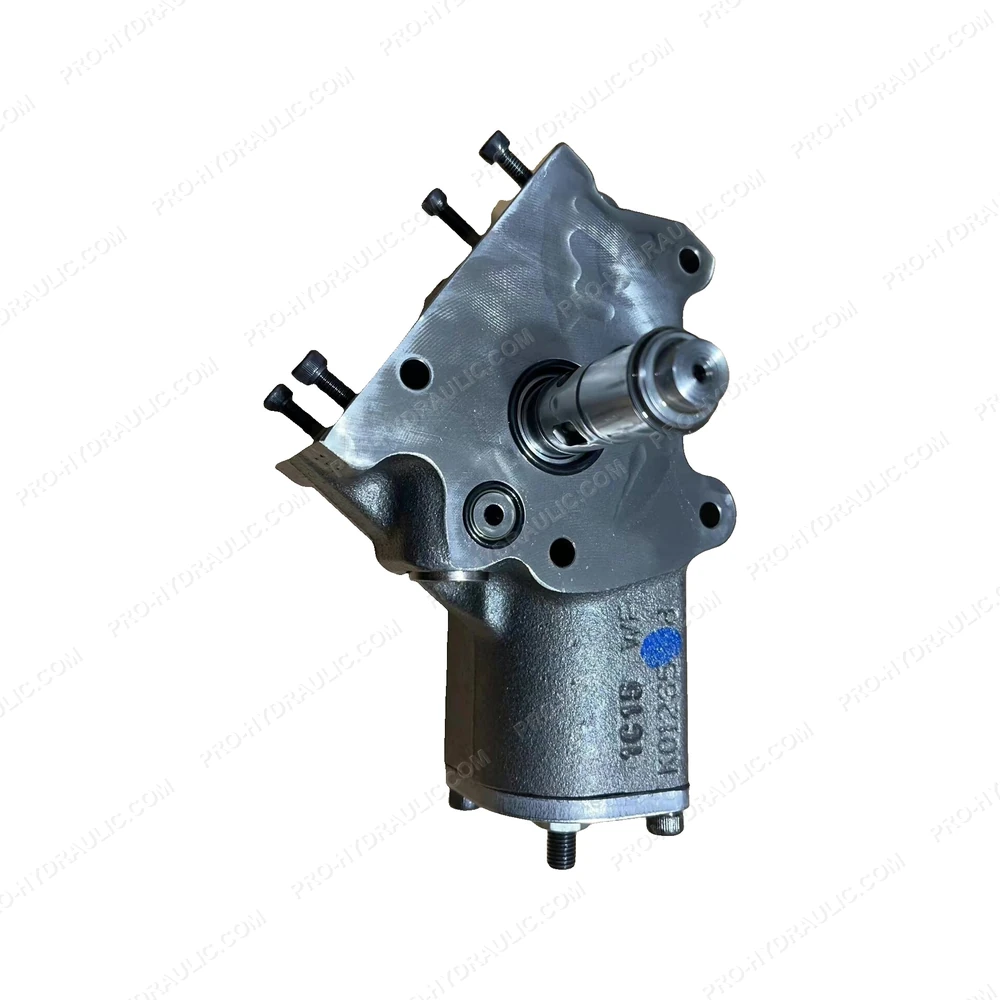

DANFOSS MCV105C3023 Proportional Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine DANFOSS MCV105C3023 Solenoid Operated Directional Control Valve. This Denmark-made hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
