Product Overview
The Danfoss NV1-10-K-0 (part number 565590) is a precision-engineered cartridge-style needle valve designed for fine manual flow control within hydraulic circuits. As a member of Danfoss’s NV series of modular cartridge valves, this unit functions as a variable restrictor, allowing operators to precisely meter and throttle hydraulic fluid flow in a compact, screw-in cartridge format. The needle valve operates on a simple yet highly effective principle: a tapered needle is threaded into a matching seat, and axial adjustment of the needle varies the annular orifice area, thereby controlling flow rate with high resolution. This cartridge design enables direct integration into custom manifold blocks and integrated hydraulic circuits, eliminating the need for external piping and reducing potential leak points. The NV1-10-K-0 is ideally suited for industrial systems requiring accurate, repeatable flow adjustment, such as actuator speed control, bleed-off circuits, and proportional flow regulation in demanding hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Cartridge Needle Valve (Flow Control & Modular Valve) |
| Model Designation | NV1-10-K-0 / 565590 |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Mounting & Connection | Cartridge / Screw-in Mounting, Standard ISO Cavity |
| Adjustment Type | Manual Needle Adjustment (Knob / Hex Key) |
| Flow Characteristic | Linear / Fine Metering via Tapered Needle |
| Seal Material | NBR / FKM (Standard Industrial Hydraulic Fluids) |
| Cavity Size | 10 Size (Nominal) |
Engineering Features & Advantages
- Precision Flow Metering: The tapered needle and matched seat geometry provide exceptionally fine adjustment resolution, enabling accurate control of actuator speeds and flow rates in sensitive hydraulic circuits.
- Compact Cartridge Design: The screw-in cartridge format minimizes installation space and allows direct integration into manifold blocks, reducing system complexity and external leak paths.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands high pressure and cyclic duty.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss OEM standards, ensuring drop-in replacement without modification.
- Leak-Free Sealing: High-quality seal materials and precision machining ensure reliable sealing across the full operating pressure range.
Typical Industrial Applications
The Danfoss NV1-10-K-0 cartridge needle valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for precise mold movement control, metallurgical presses requiring accurate ram speed regulation, construction and marine hydraulic systems for actuator damping and speed adjustment, and CNC machine tools where fine flow control is essential for tool positioning and feed rate stability. Its
PRODUCT IMAGES

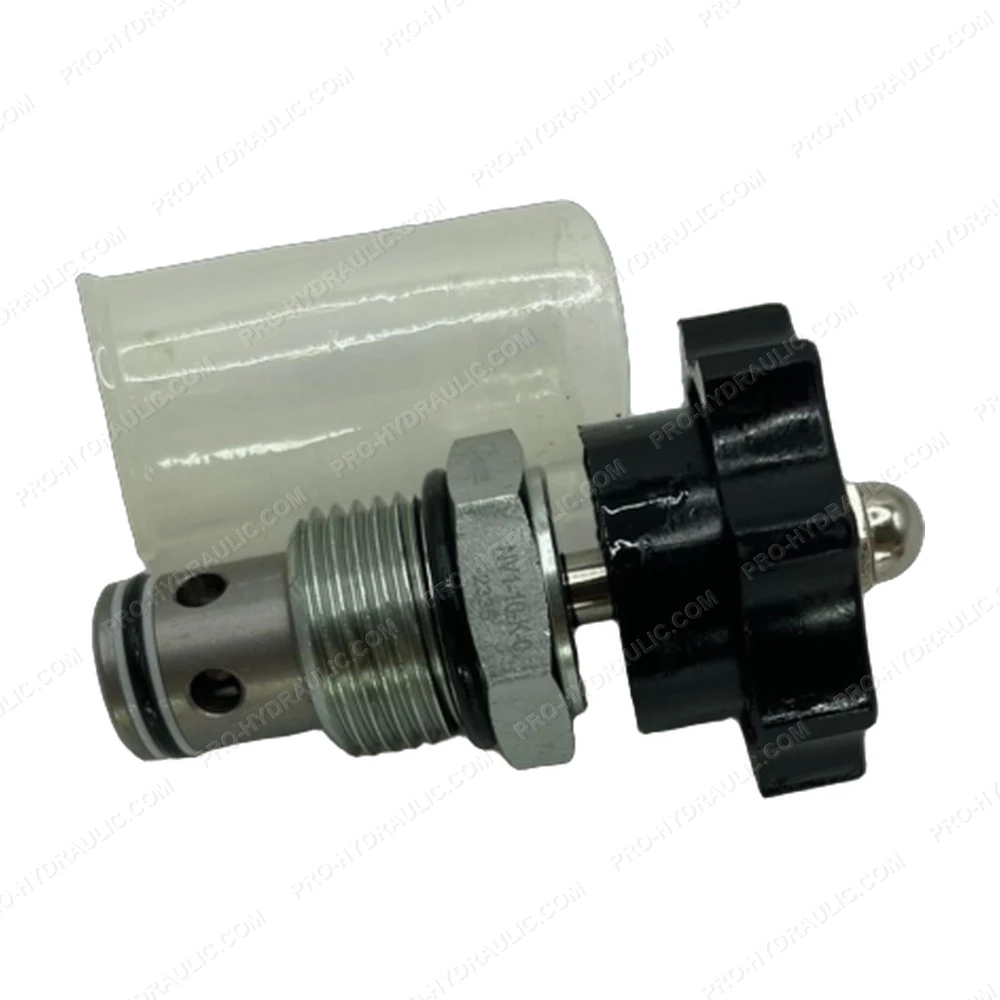

Danfoss NV1-10-K-0 / 565590 Cartridge Needle Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss NV1-10-K-0 / 565590 Needle Valve. This Denmark-made hydraulic component features a fine adjustment needle design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
