Product Overview
The Danfoss OSPM 32 ON (Part Number: 150L2103) is a high-performance, open-center hydraulic steering unit designed for precise directional control in hydrostatic steering systems. As a member of the Danfoss OSPM series, this unit functions as a rotary spool and sleeve valve, translating mechanical steering wheel input into proportional hydraulic flow to the steering cylinder. The “32” designates a nominal displacement of 32 cm³/rev, providing a balanced steering ratio for medium to heavy-duty vehicles. The “ON” suffix indicates an Open Center, Non-reaction (Non-Load Reaction) configuration, meaning the steering wheel does not transmit hydraulic kickback to the operator, ensuring safe and fatigue-free operation in harsh industrial and mobile environments. This unit is a direct-fit replacement for OEM part 150L2103 and is engineered for seamless integration into existing hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Steering Unit (Directional Control Valve) |
| Model Designation | OSPM 32 ON / 150L2103 |
| Nominal Displacement | 32 cm³/rev (per steering wheel revolution) |
| Operating Pressure | Up to 175 bar (2500 psi) continuous; 210 bar (3000 psi) intermittent |
| Control Type | Open Center, Non-Reaction (ON) |
| Mounting & Connection | Standard ISO 4-bolt flange; Port connections per Danfoss OSPM standard (G 1/2 or equivalent) |
| Steering Column Interface | Tapered shaft with keyway (standard Danfoss OSPM) |
| Fluid Compatibility | Mineral-based hydraulic oil (HLP, HVLP per DIN 51524) |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Engineering Features & Advantages
- Precision Metering & Directional Control: The rotary spool and sleeve design ensures precise proportional flow control, allowing for smooth and accurate steering response with minimal dead band.
- Non-Reaction Steering (ON Configuration): Eliminates hydraulic feedback to the steering wheel, reducing operator fatigue and preventing sudden wheel movements when traversing uneven terrain or encountering high steering loads.
- Open Center Circuit Efficiency: In the neutral position, the open center allows full pump flow to pass through the unit at low pressure, minimizing heat generation and enabling the use of fixed-displacement pumps in continuous-duty systems.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Danfoss specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The “ON” suffix indicates an Open Center, Non-reaction (Non-Load Reaction) configuration, meaning the steering wheel does not transmit hydraulic kickback to the operator, ensuring safe and fatigue-free operation in harsh industrial and mobile environments.
PRODUCT IMAGES

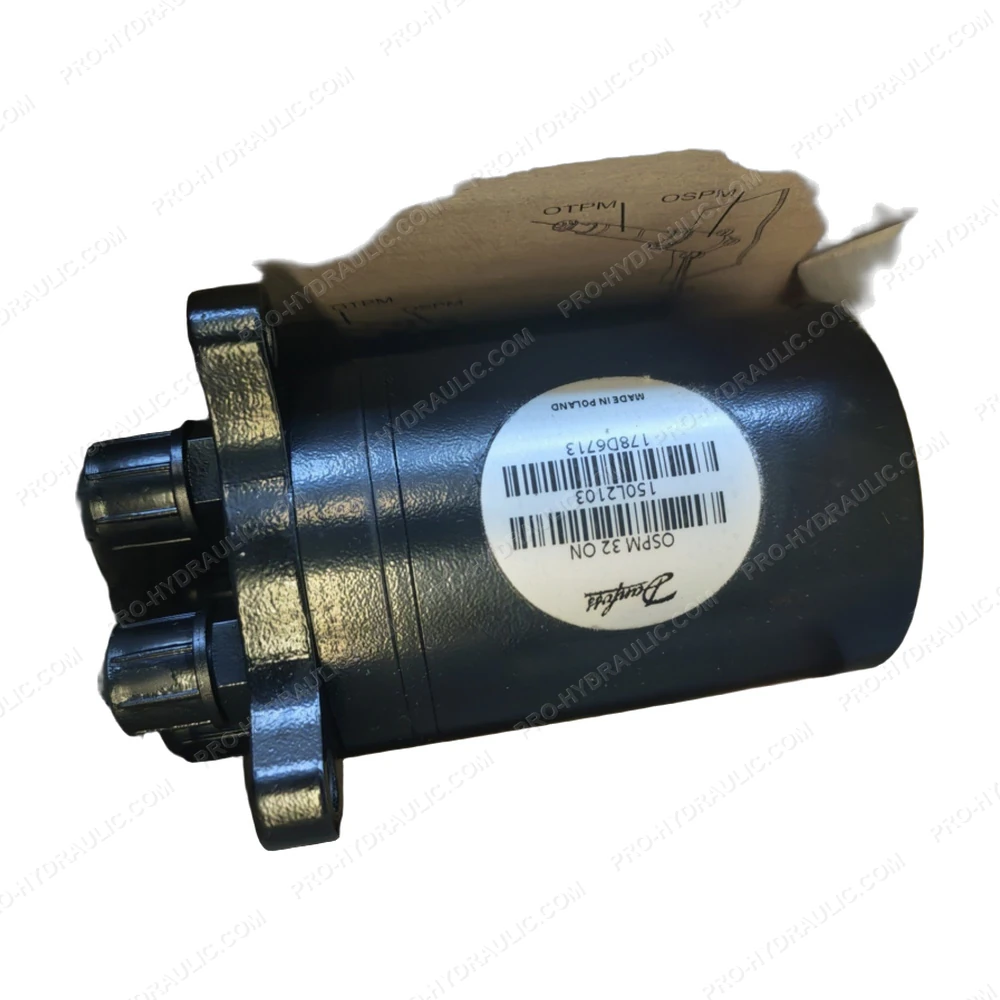

Danfoss OSPM 32 ON / 150L2103 Hydraulic Steering Unit
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss OSPM 32 ON / 150L2103 Hydraulic Steering Unit. This Denmark-made 32 cc/rev hydraulic component features a rotary spool valve design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
