Product Overview
The Danfoss SPC2-10-P-0-25 is a precision two-way proportional cartridge valve engineered for accurate, infinitely variable control of hydraulic flow and pressure in demanding industrial circuits. As part of Danfoss’s SPC series, this valve utilizes a proportional solenoid actuator acting on a precision-machined metering spool, delivering smooth, stepless response proportional to the applied electrical command signal. With a 10-size (NG10 / CETOP 5 equivalent) cartridge footprint and a nominal flow rating of 25 L/min, the SPC2-10-P-0-25 is designed for direct slip-in mounting into standardized cavities, making it ideal for compact manifold-based hydraulic systems requiring high-resolution control, low hysteresis, and repeatable performance in closed-loop or open-loop architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Cartridge Valve (Precision Proportional & Servo Valve) |
| Model Designation | SPC2-10-P-0-25 |
| Manufacturer | Danfoss |
| Valve Size / Cavity | Size 10 (NG10 / CETOP 5 equivalent cartridge cavity) |
| Nominal Flow Rating | 25 L/min (as designated by model suffix) |
| Actuation Type | Proportional solenoid with precision metering spool |
| Operating Pressure | Standard Industrial Grade (up to rated bar per Danfoss SPC2 series) |
| Mounting & Connection | Slip-in cartridge, standard ISO / Danfoss cavity interface |
| Control Signal | Proportional current (PWM / analog amplifier compatible) |
Engineering Features & Advantages
- Precision Proportional Metering: The SPC2-10-P-0-25 delivers stepless, high-resolution flow control proportional to the input current, enabling accurate velocity and force regulation in closed-loop hydraulic systems with minimal hysteresis and excellent repeatability.
- Compact Cartridge Design: The slip-in cartridge format allows direct integration into custom manifold blocks, reducing system footprint, eliminating external piping, and minimizing leak paths compared to conventional subplate-mounted proportional valves.
- Fast Dynamic Response: Optimized spool geometry and solenoid force characteristics provide rapid response times suitable for demanding motion control sequences, including position, velocity, and pressure regulation tasks.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened metering surfaces and robust solenoid construction ensuring long service life and stable performance across millions of cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original DANFOSS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a 10-size (NG10 / CETOP 5 equivalent) cartridge footprint and a nominal flow rating of 25 L/min, the SPC2-10-P-0-25 is designed for direct slip-in mounting into standardized cavities, making it ideal for compact manifold-based hydraulic systems requiring high-resolution control, low hysteresis, and repeatable performance in closed-loop or open-loop architectures.
PRODUCT IMAGES

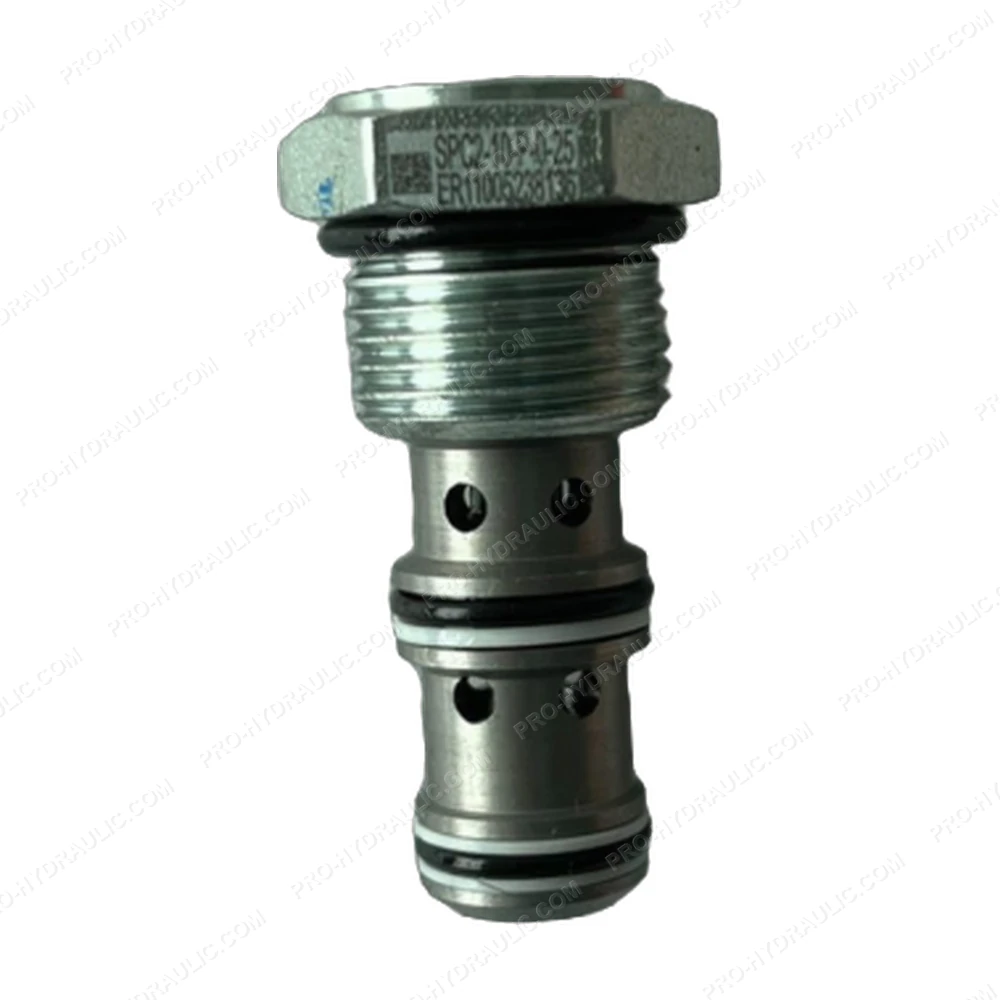

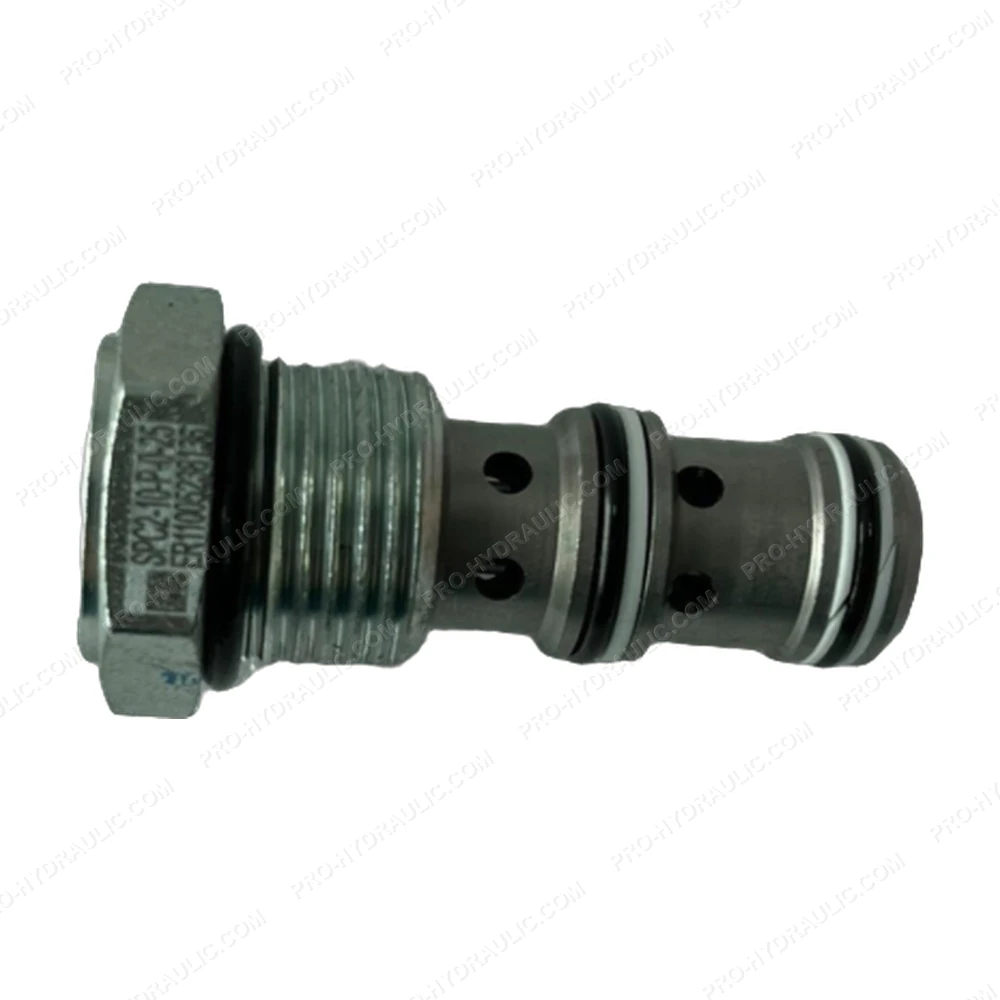

DANFOSS SPC2-10-P-0-25 Proportional Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine DANFOSS SPC2-10-P-0-25 Solenoid Proportional Cartridge Valve. This Denmark-made 24V DC hydraulic component features a 2-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
