Product Overview
The Danfoss SV1-16-C-0-00 is a two-position, three-way solenoid-actuated directional cartridge valve engineered for precise control of hydraulic fluid flow direction in high-pressure industrial circuits. As part of the Danfoss SV series of screw-in cartridge valves, this model features a robust poppet or spool-type design that delivers reliable switching performance with minimal internal leakage. The valve operates on a standard 2/3 configuration, meaning it provides two distinct flow positions across three ports, making it ideal for applications requiring selective flow routing such as load holding, actuator extension/retraction, or pilot circuit control. Its compact cartridge format allows direct installation into a machined manifold cavity, eliminating the need for external piping and reducing potential leak points in the system. The SV1-16-C-0-00 is designed for demanding industrial environments where consistent directional control, fast response, and long service life are critical requirements.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Directional Control Cartridge Valve (Solenoid Actuated) |
| Model Designation | SV1-16-C-0-00 |
| Configuration | 2-Position, 3-Way (2/3) |
| Operating Pressure | Up to 350 bar (5075 psi) rated |
| Nominal Flow Rate | Up to 60 L/min (16 size cavity) |
| Actuation Type | Solenoid (standard industrial coil, various voltages available) |
| Mounting & Connection | Screw-in cartridge, 16-size cavity per ISO 7784 / Danfoss standard |
| Seal Material | Nitrile (Buna-N) standard; Viton optional |
| Response Time | Typical 20–40 ms (energize/de-energize) |
Engineering Features & Advantages
- Precision Flow Control: The 2/3 spool design ensures accurate and repeatable directional switching with minimal pressure drop and internal leakage, optimizing system efficiency.
- Compact Cartridge Design: Screw-in cartridge format enables direct manifold mounting, reducing installation space, piping complexity, and potential leakage points compared to conventional subplate valves.
- High-Pressure Capability: Rated for continuous operation up to 350 bar, suitable for high-pressure hydraulic systems in heavy-duty industrial applications.
- Industrial Reliability: Built with hardened, precision-machined internal components for extended service life and consistent performance under severe operating conditions.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The SV1-16-C-0-00 is designed for demanding industrial environments where consistent directional control, fast response, and long service life are critical requirements.
PRODUCT IMAGES

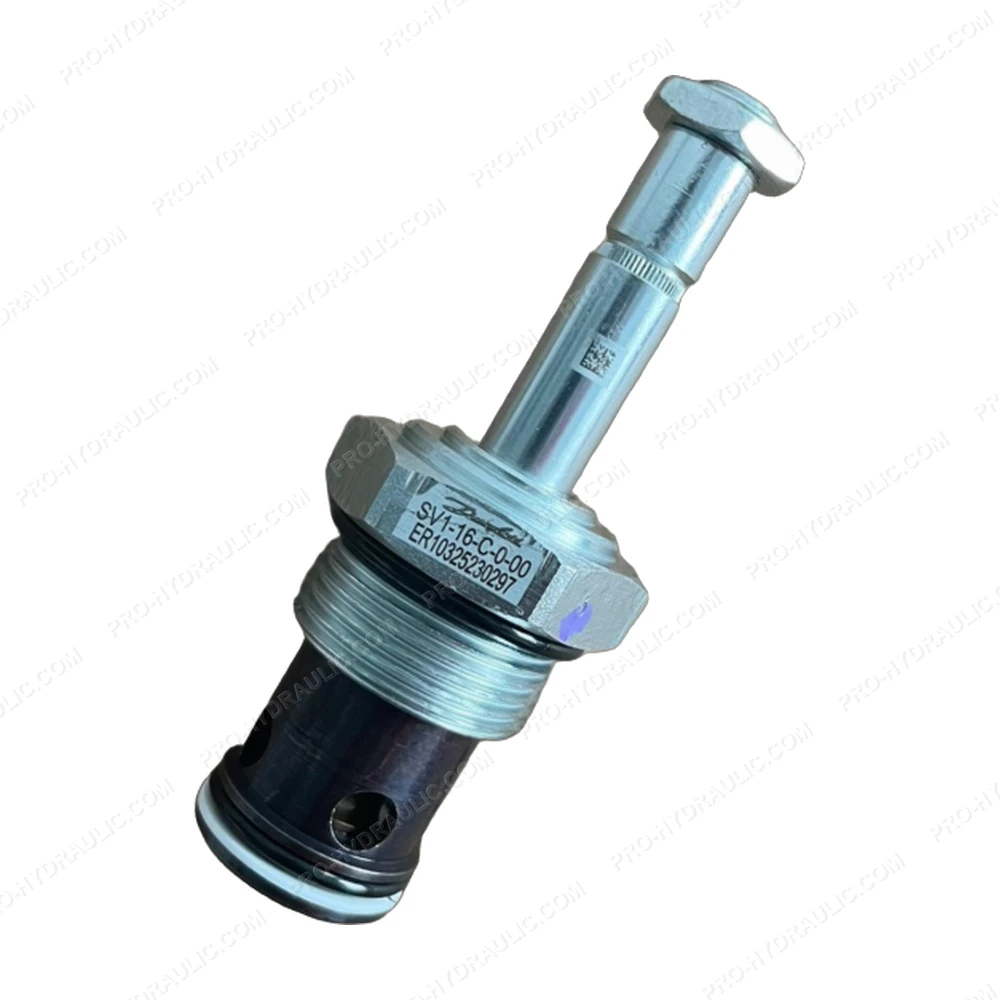

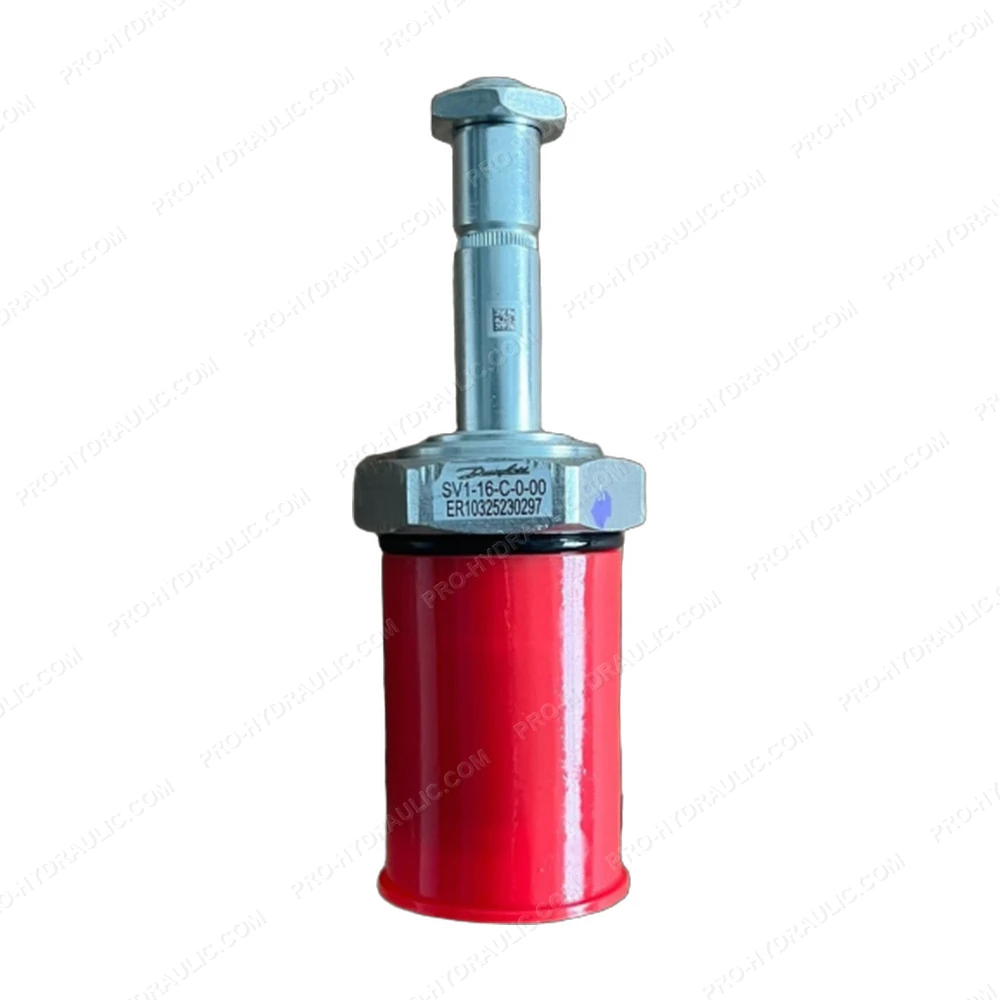

Danfoss SV1-16-C-0-00 Solenoid Directional Cartridge Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss SV1-16-C-0-00 Solenoid Directional Valve. This Denmark-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
