Product Overview
The DANFOSS SV4-10V-C-0-00 (02-167044) is a high-performance solenoid-operated directional cartridge valve engineered for precise control of hydraulic flow direction in demanding industrial circuits. Manufactured by Danfoss, a global leader in mobile and industrial hydraulics, this 2-position, 4-way (4/2) spool-type directional valve utilizes a robust wet-armature solenoid to shift an internal spool, directing pressurized fluid between designated ports with rapid, repeatable response. Its slip-in cartridge construction allows direct installation into a machined manifold cavity, eliminating external leakage paths and reducing overall system footprint. The SV4-10V series is designed for continuous-duty operation and is widely deployed as a pilot or main-stage control element in manifold-based hydraulic power units, where reliable directional switching and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Cartridge Valve (4/2 Spool Type) |
| Model Designation | SV4-10V-C-0-00 / 02-167044 |
| Manufacturer | Danfoss |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Actuation Type | Wet-Armature Solenoid, Spring Return |
| Spool Configuration | 4-Way, 2-Position (4/2) Directional Spool |
| Mounting & Connection | Slip-In Cartridge, ISO / Danfoss Standard Cavity Interface |
| Seal Type | NBR / FKM Options per Application |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage and consistent directional shifting across the full rated pressure range.
- Fast Solenoid Response: Wet-armature solenoid design delivers rapid energization and de-energization, enabling accurate sequencing in high-cycle industrial control circuits.
- Compact Cartridge Architecture: Slip-in cartridge format minimizes manifold machining complexity and eliminates external piping, reducing potential leak points and installation time.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including elevated pressures, thermal cycling, and contaminated fluid environments when properly filtered.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Danfoss OEM standards, ensuring drop-in interchangeability for the SV4-10V-C-0-00 / 02-167044 model.
Typical Industrial Applications
This solenoid directional cartridge valve is commonly specified in plastic injection molding machines for mold open/close and ejector sequencing, metallurgical presses for directional control of clamping and ram circuits, construction and marine hydraulic systems for actuator selection and load holding, and CNC machine
PRODUCT IMAGES

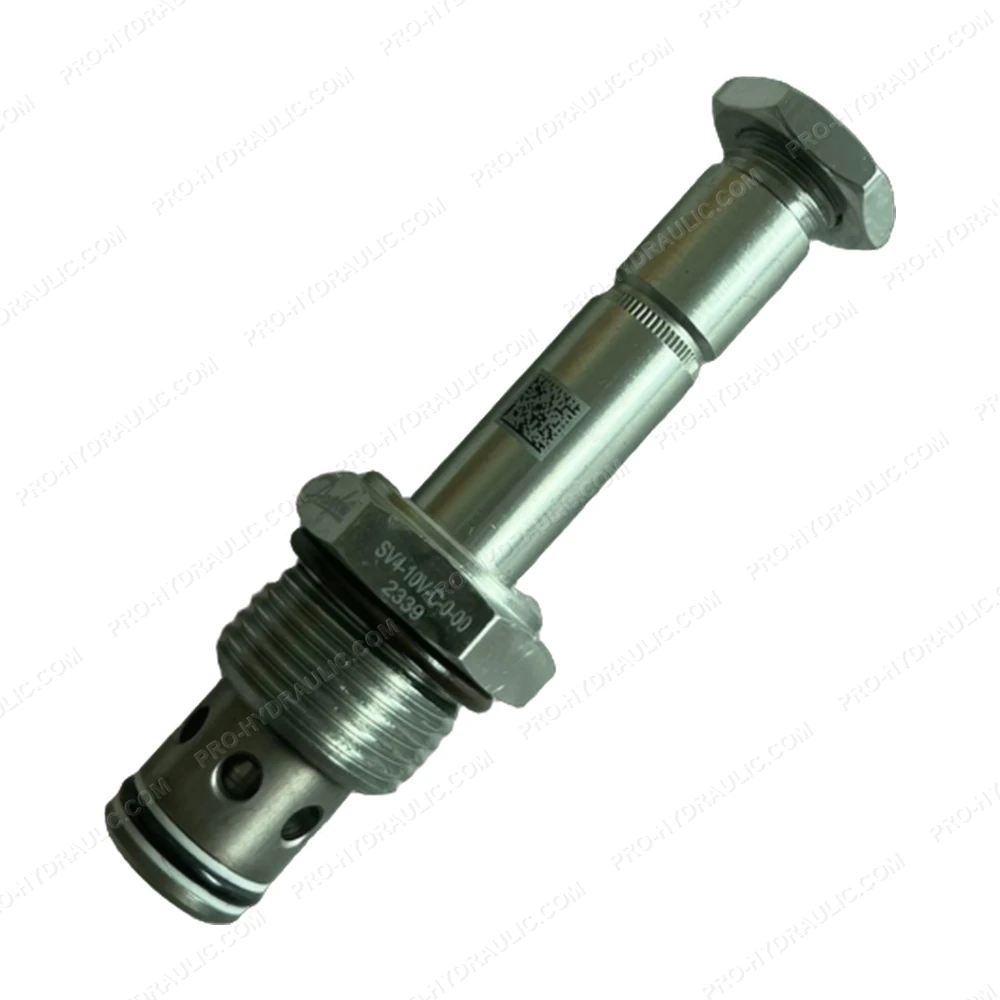

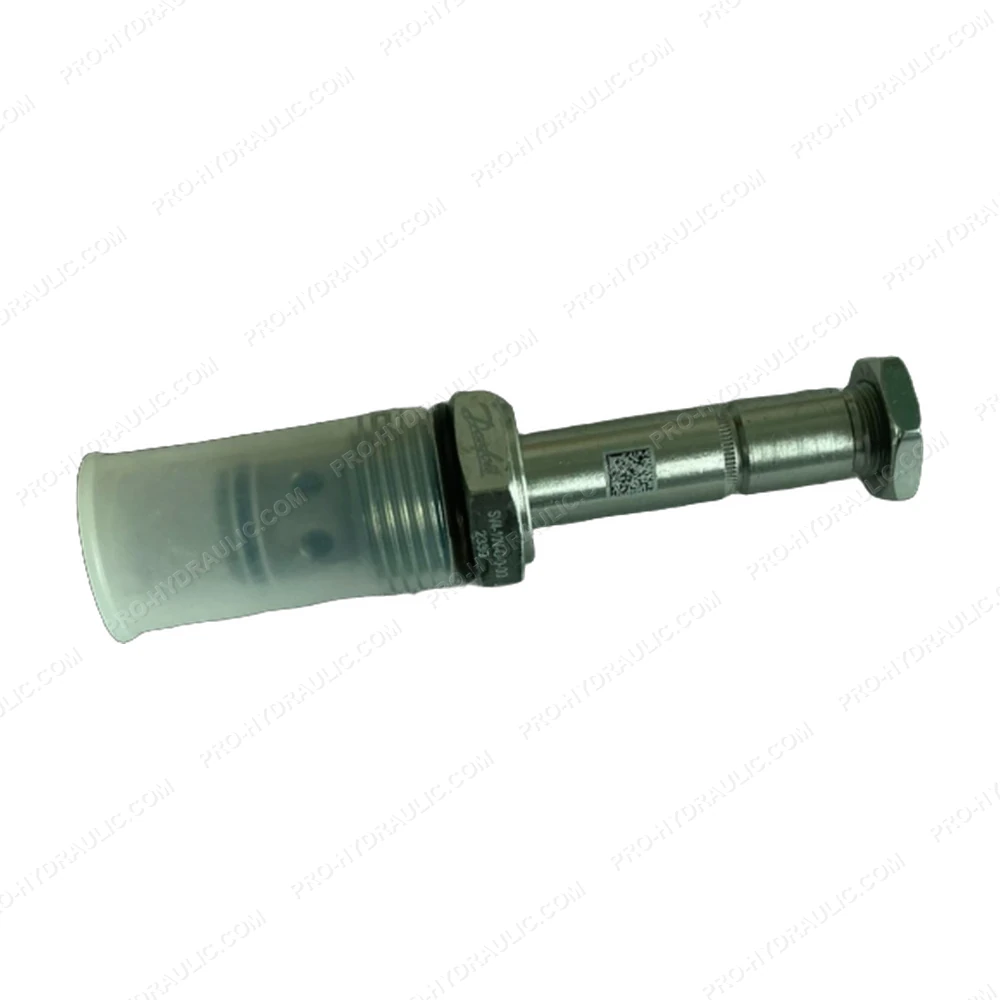

DANFOSS SV4-10V-C-0-00 / 02-167044 Solenoid Directional Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Danfoss SV4-10V-C-0-00 / 02-167044 Solenoid Directional Valve. This Denmark-made 10V hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
